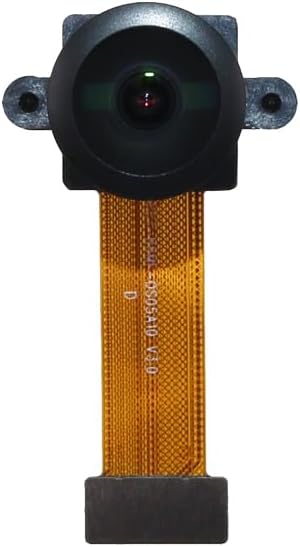

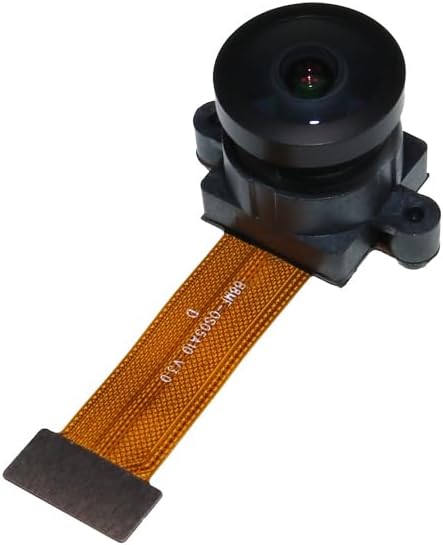

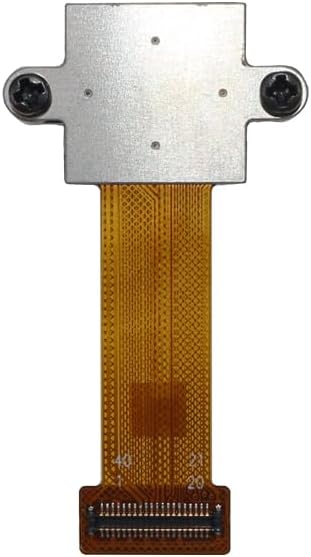

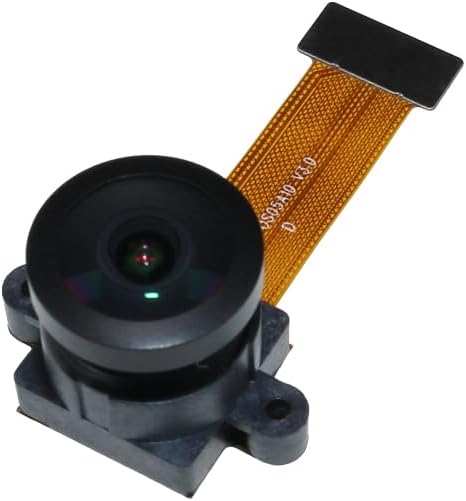

YDS-B8MF-OS05A10 V3.0 5MP High Definition OS05A10 MIPI Interface M12 Fixed Focus Camera Module

- optical size of 1/2.7" programmable controls for: frame rate; mirror and flip; cropping; windowing - supports output formats: 12-/10-bit RAW RGB - standard serial SCCB interface - supports image sizes: 5MP (2688x1944); 1080p (1920x1080); 720p (1280x720); - up to 4-lane MIPI/LVDS serial output interface (supports maximum speed up to 1500 Mbps/lane) - 2-exposure staggered HDR support programmable I/O drive capability light sensing mode (LSM) - PLL with SCC support
