- Provide online user manual, please check the manual carefully before using. With development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32).
- Doesn't support partial refresh. No backlight, keeps displaying last content for a long time even when power down.

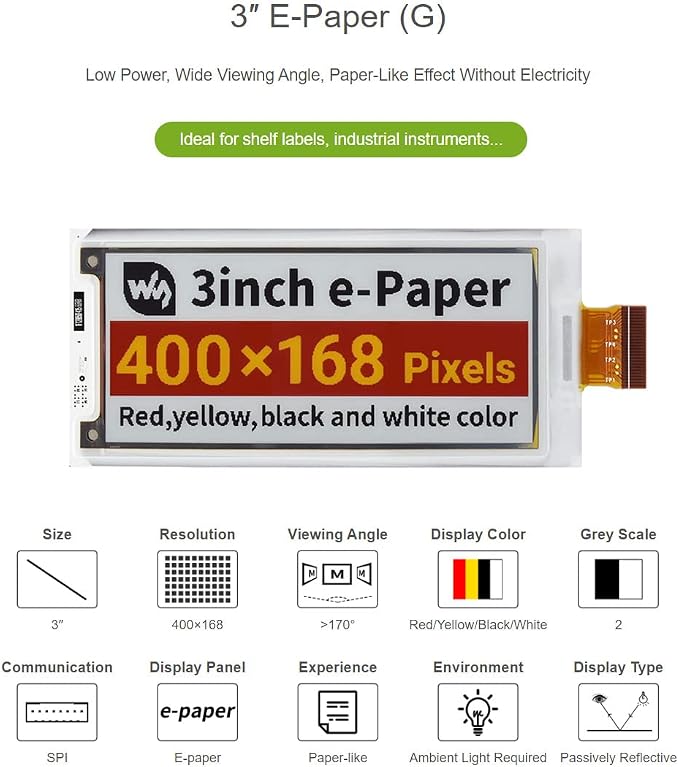

- Low power, wide viewing angle, paper-like effect without electricity. Ideal for price tags, shelf labels, industrial instruments...
- Ultra low power consumption, basically power is only required for refreshing.

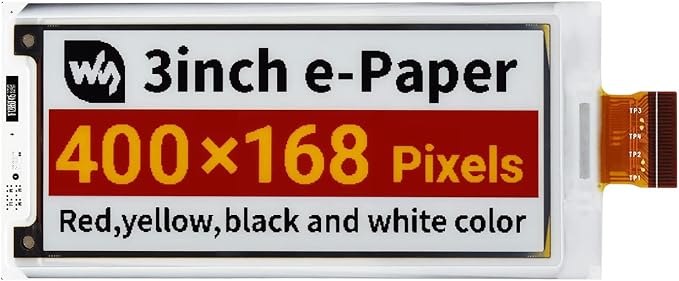

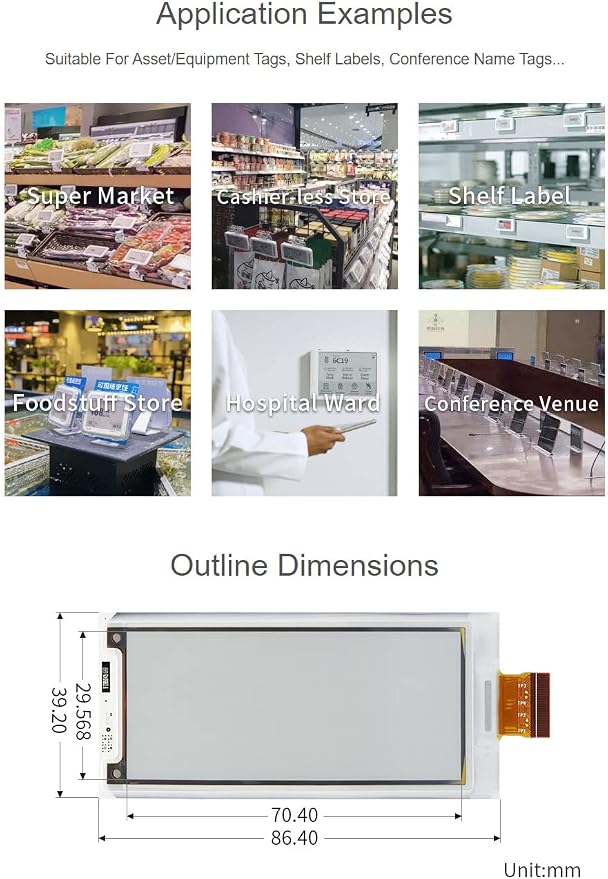

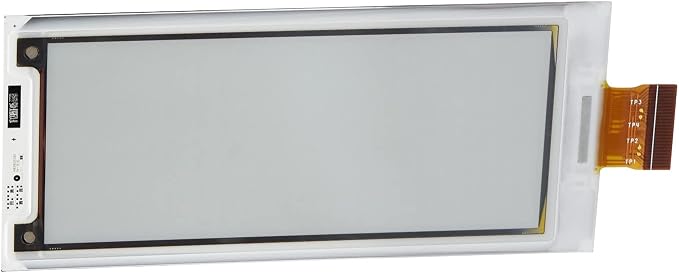

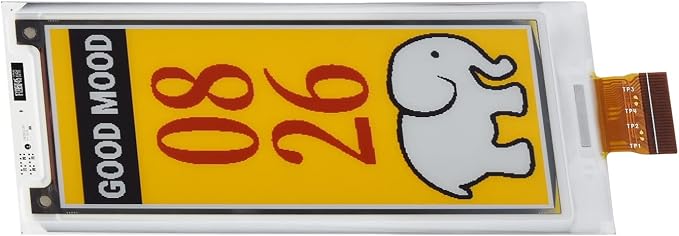

- Red/Yellow/Black/White display color. Outline dimension (raw panel): 45.5mm x 36.4mm x 0.91mm.
Product description

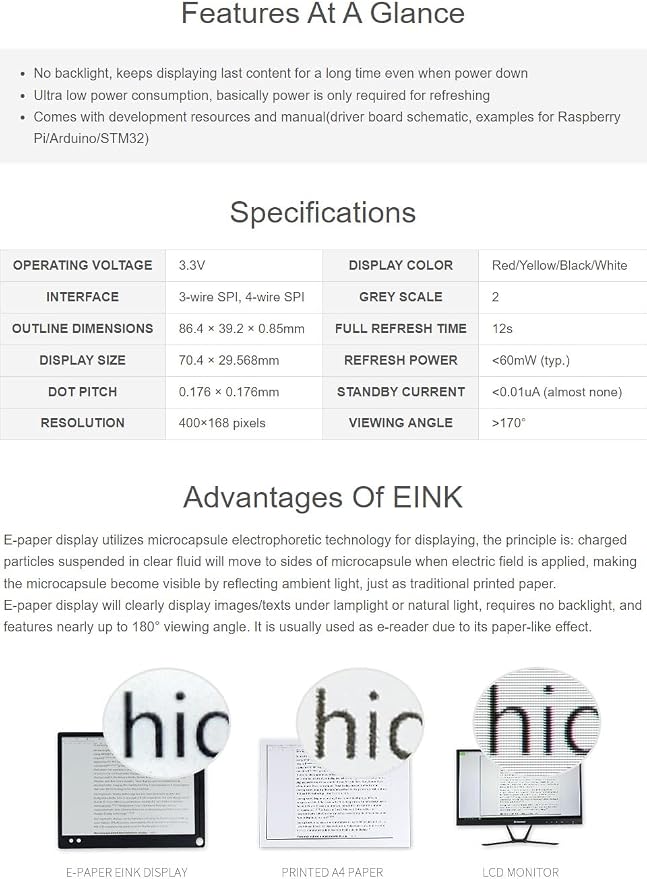

Features At A Glance
Specifications
Feature
Note:
Working Principle
This product is an E-paper device adopting the image display technology of Microencapsulated Electrophoretic Display. The basic principle is that charged nanoparticles suspended in a liquid migrate under the action of an electric field. The E-paper screen display patterns by reflecting the ambient light, so it has no background light requirement. Under ambient light, the E-paper screen still has high visibility with a wide viewing angle of 180 degrees. It is the ideal choice for E-reading.
