- Provide online user manual, please check the manual carefully before using!

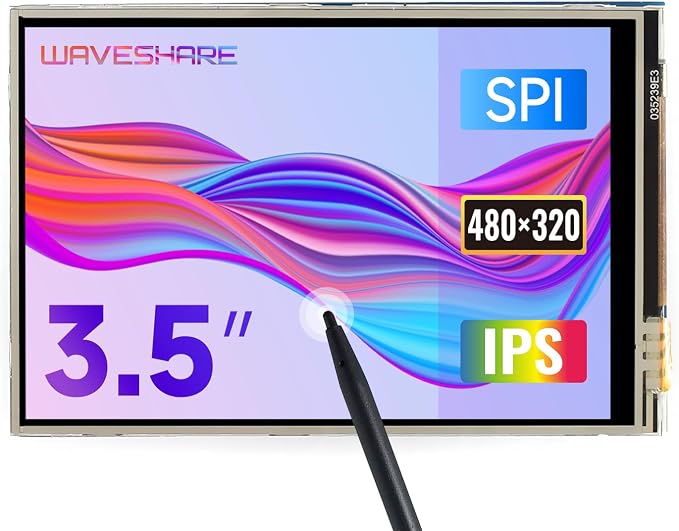

- 480x320 hardware resolution.Resistive touch control Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+/Pi 4B)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- High quality immersion gold surface plating
Product description

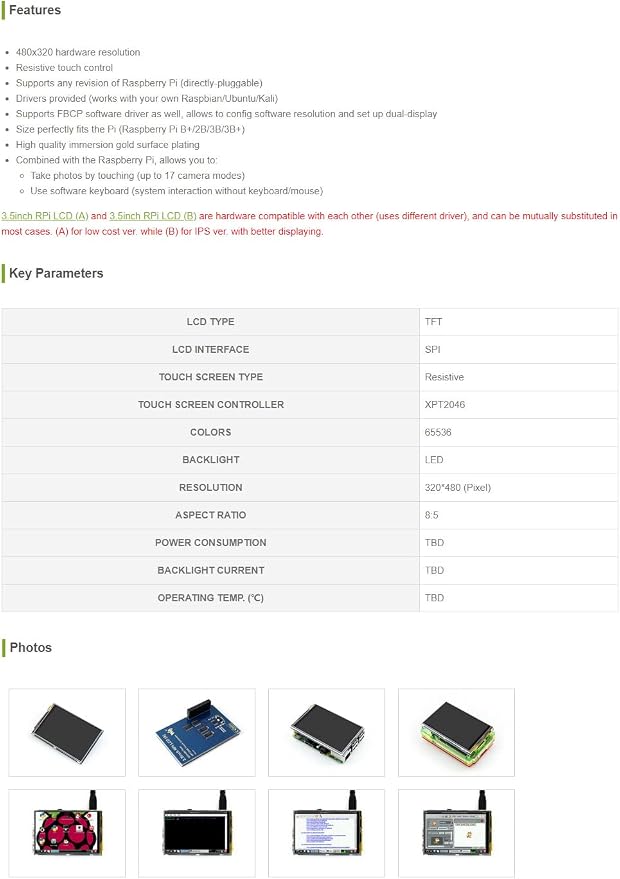

Features
Key Parameters
WIKI: waveshare.com/wiki/3.5inch_RPi_LCD_(A)?amazon

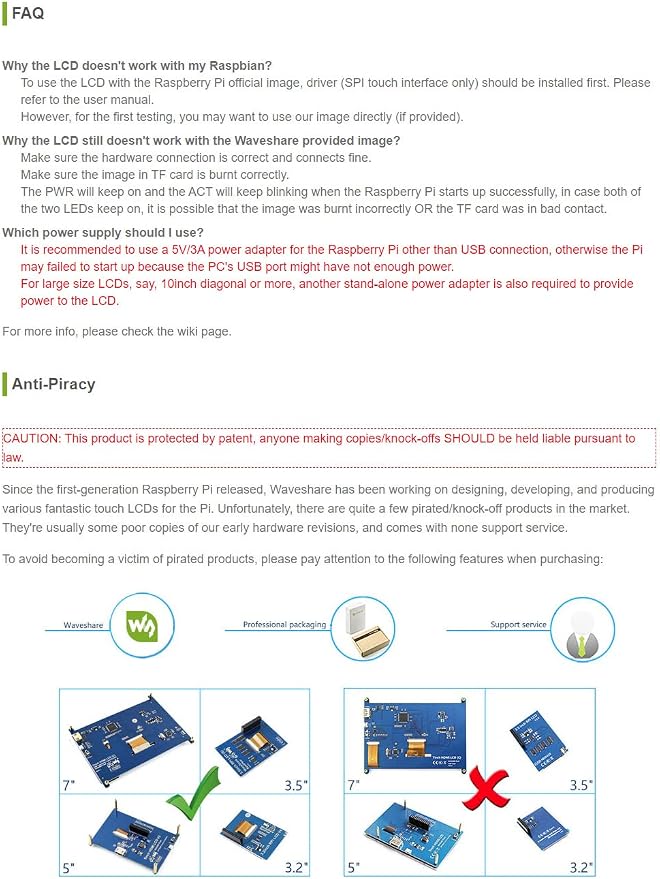

FAQ
3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.
Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver (SPI touch interface only) should be installed first. Please refer to the user manual. However, for the first testing, you may want to use our image directly (if provided).
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine. Make sure the image in TF card is burnt correctly. The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power. For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.
For more info, please check the wiki page.
