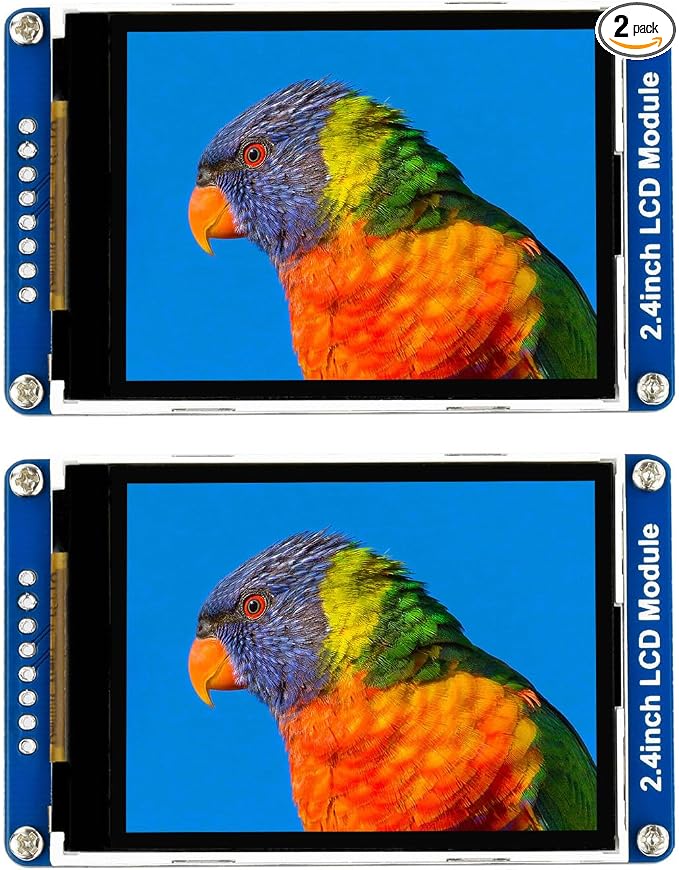

waveshare 2PCS 2.4inch LCD Display Module with 65K RGB Colors 240×320 Resolution SPI Interface

- 2PCS Version Provide online user manual, please check the manual carefully before using! - 2.4" LCD DISPLAY MODULE Embedded ILI9341 Driver, Using SPI Bus - 240×320 resolution, 65K RGB colors, clear and colorful displaying effect - SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi//STM32 - Comes with development resources (examples for Raspberry Pi//STM32)

Product description

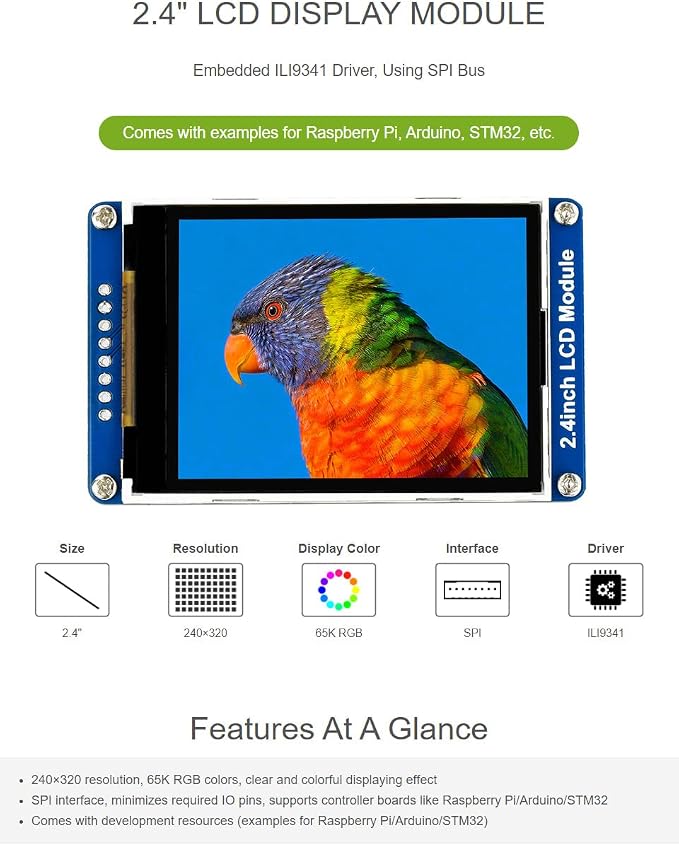

2.4" LCD DISPLAY MODULE

Features At A Glance

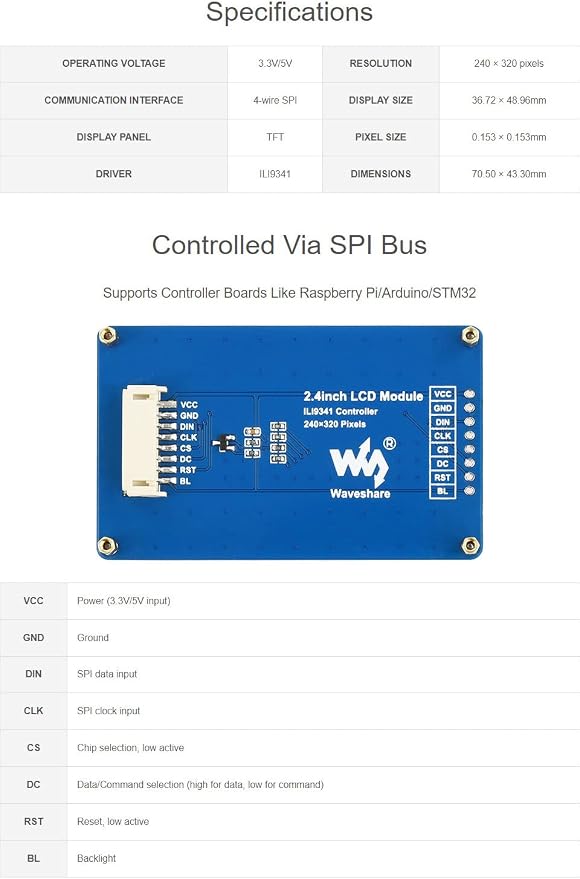

Specifications

Controlled Via SPI Bus

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

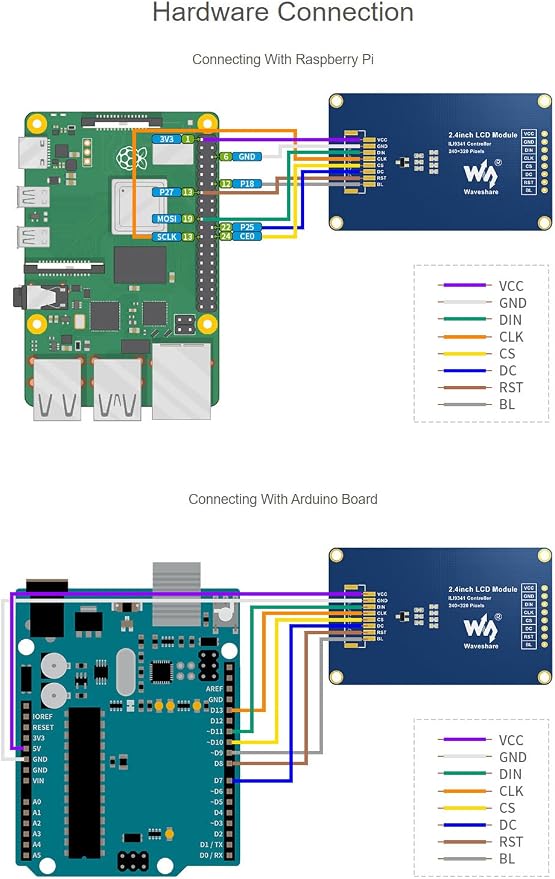

Connecting With Raspberry Pi

Connecting With Arduino Board

Living Example

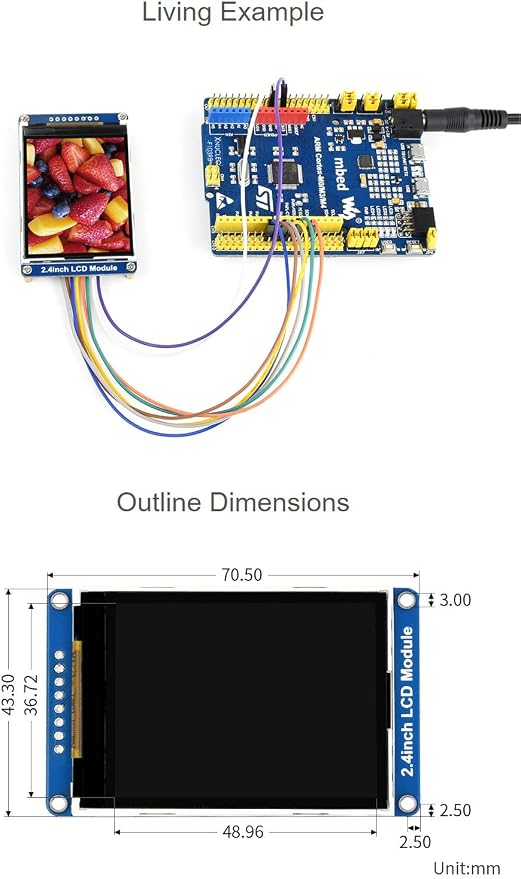

Outline Dimensions

WIKI: waveshare.com/wiki/2.4inch_LCD_Module?amazon

VCC: Power (3.3V/5V input)

GND: Ground

DIN: SPI data input

CLK: SPI clock input

CS: Chip selection, low active

DC: Data/Command selection (high for data, low for command)

RST: Reset, low active

BL: Backlight
