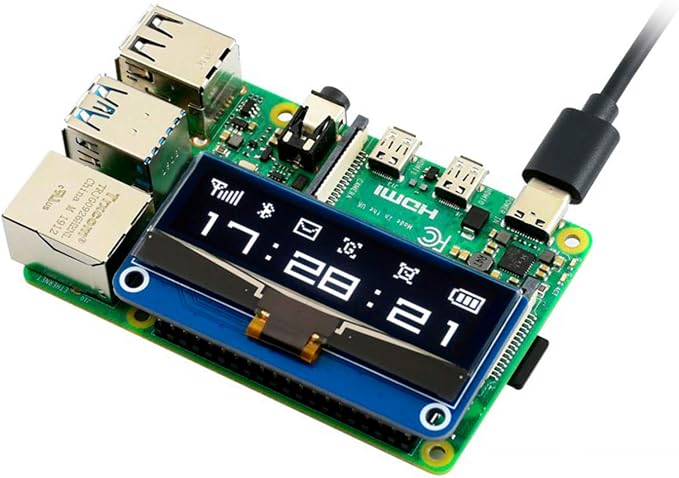

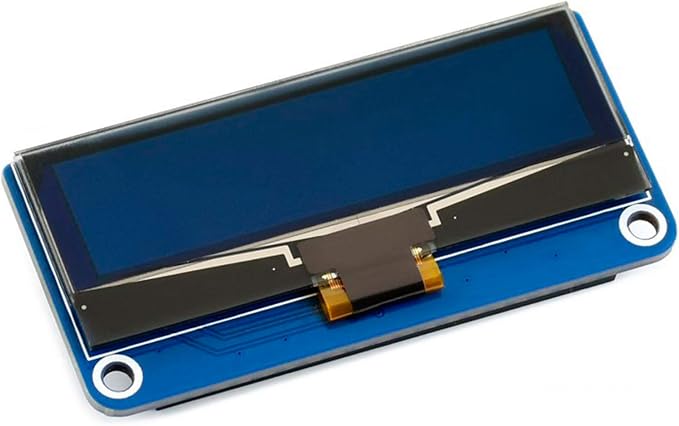

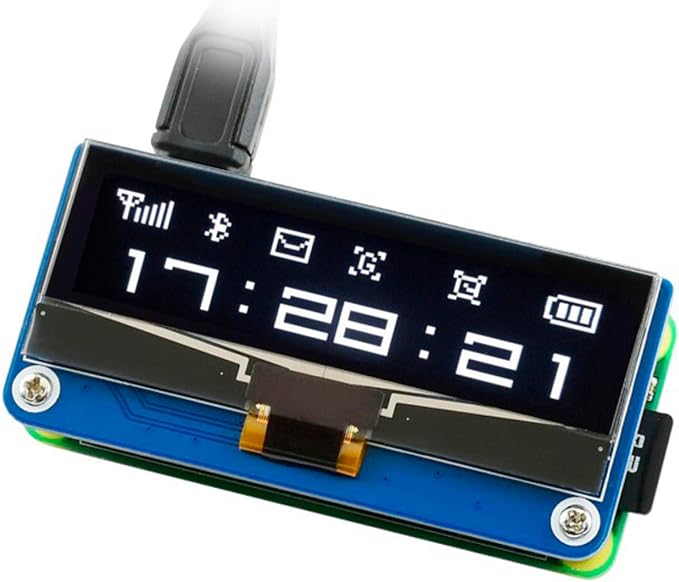

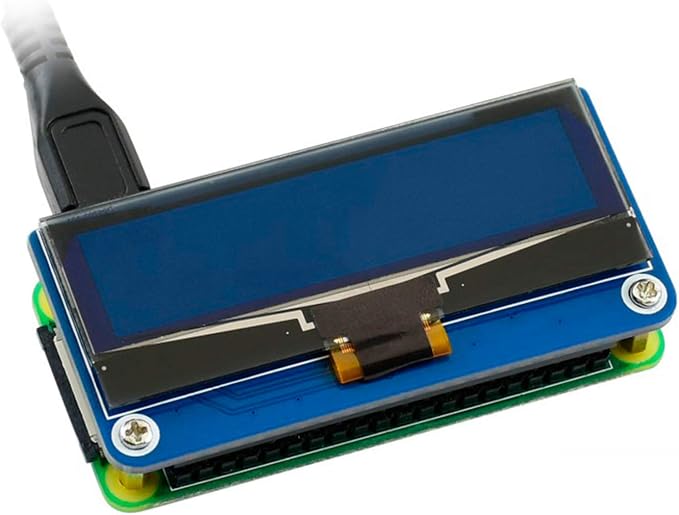

- This is an OLED display HAT for Raspberry Pi, 2.23inch diagonal, 128×32 pixels, with embedded SSD1305 driver, communicating via SPI or I2C interface.Trying to add a control interface for your Pi? This compact display would be the ideal choice.

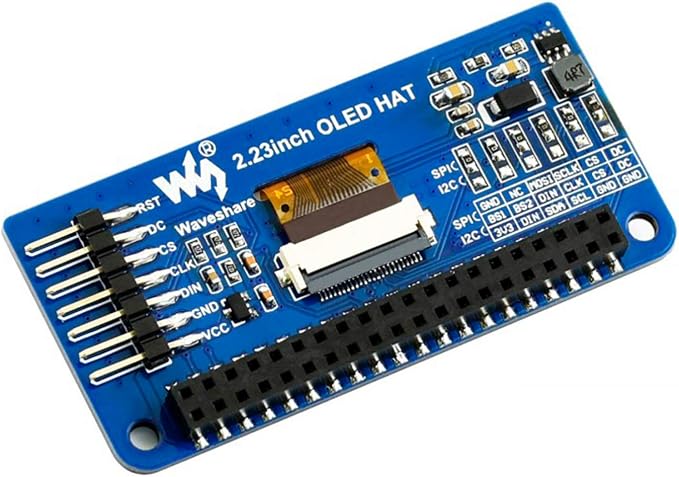

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Optional interfaces: SPI (default), or I2C, configured via onboard resistor

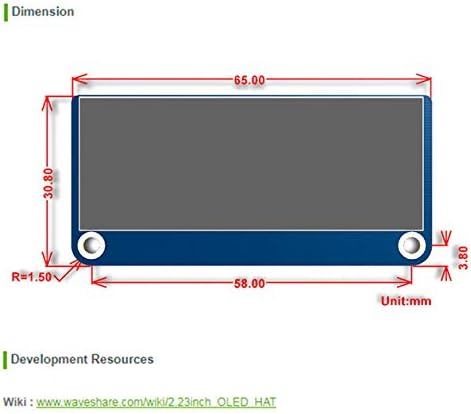

- Driver: SSD1305.Interface: SPI / I2C.Display size: 2.23inch diagonal.Display color: white.Resolution: 128×32.Viewing angle: >160°.Power supply voltage: 3.3V/5V.Logic level: 3.3V.

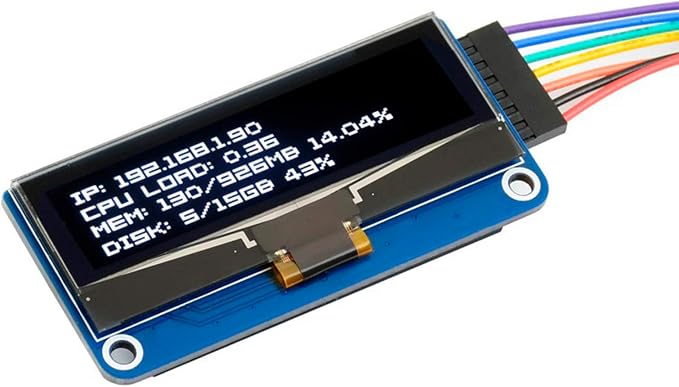

- Brings control pins for host boards like Arduino/STM32. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
