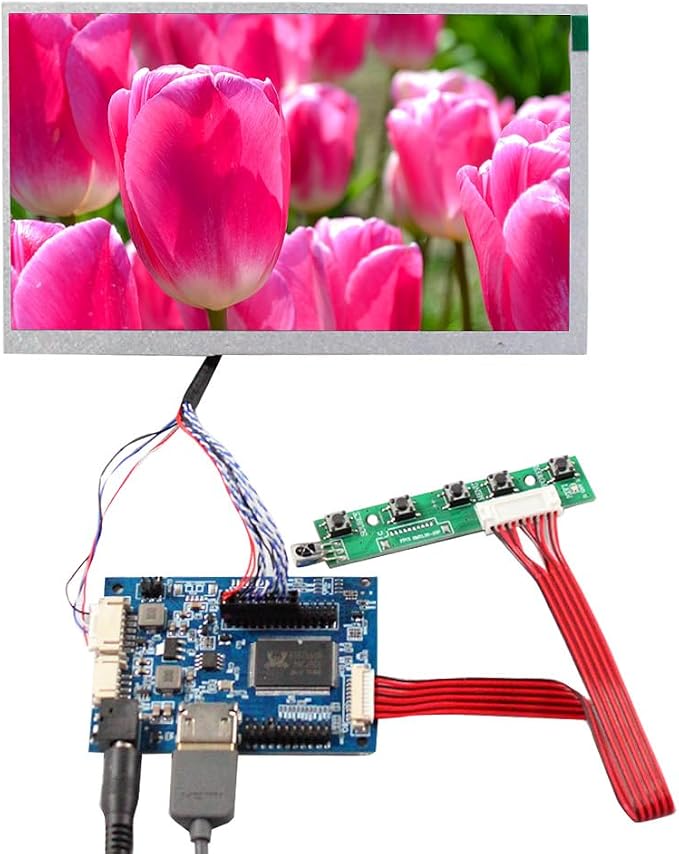

- Display Features: This kit includes a 7-inch 1024x600 LCD screen with 1000 Nits brightness, and LVDS (1 ch 8-bit) 20-pin.

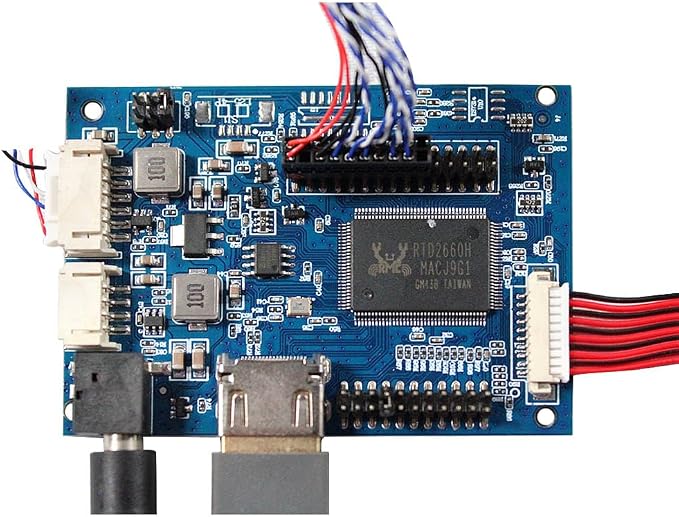

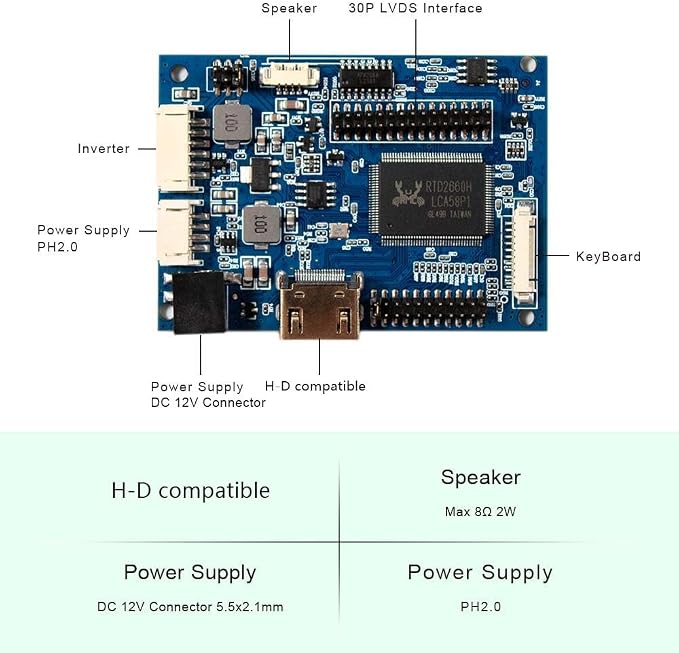

- Controller Board: The included VS-TY2660H-V661 board supports H/D input. Audio input: H/D. Audio output: Speaker (4Pin PH1.0 connector).

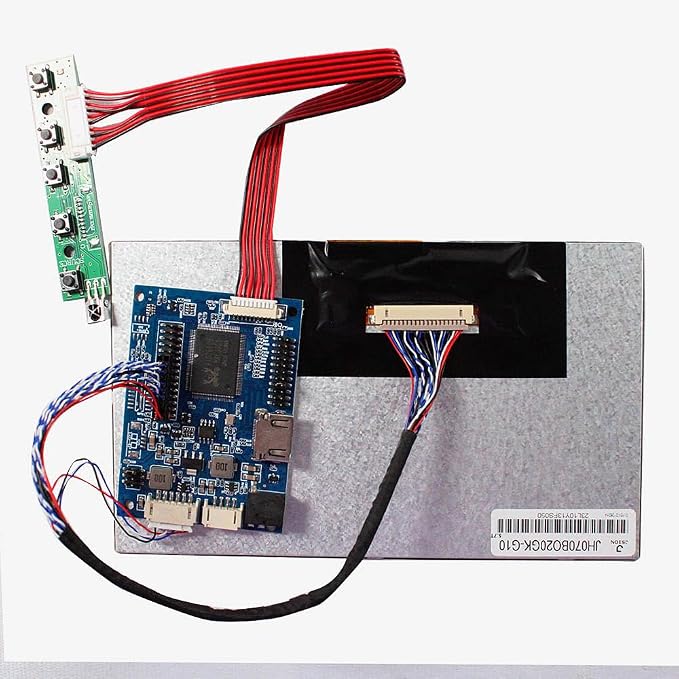

- Interface and Compatibility: The screen model is VS-JH070BO20GK-1000. It uses LVDS (1 ch 8-bit) 20-pin. Please confirm the screen model, resolution, and interface before purchase.
- Power and Use Note: The board requires 12V DC, 5A or higher. Power adapter is not included. Please use the bare board in an insulated environment.

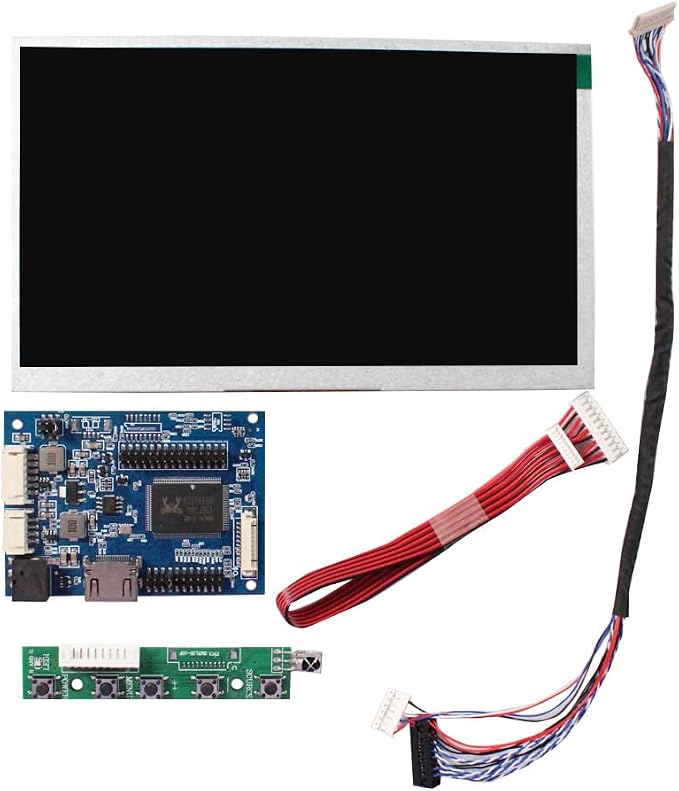

- Packing List: 1 x LCD Controller Board, 1 x 7 Inch LCD Screen, 1 x LVDS Cable, 1 x Backlight Cable, and 1 x Keyboard With Cable.
