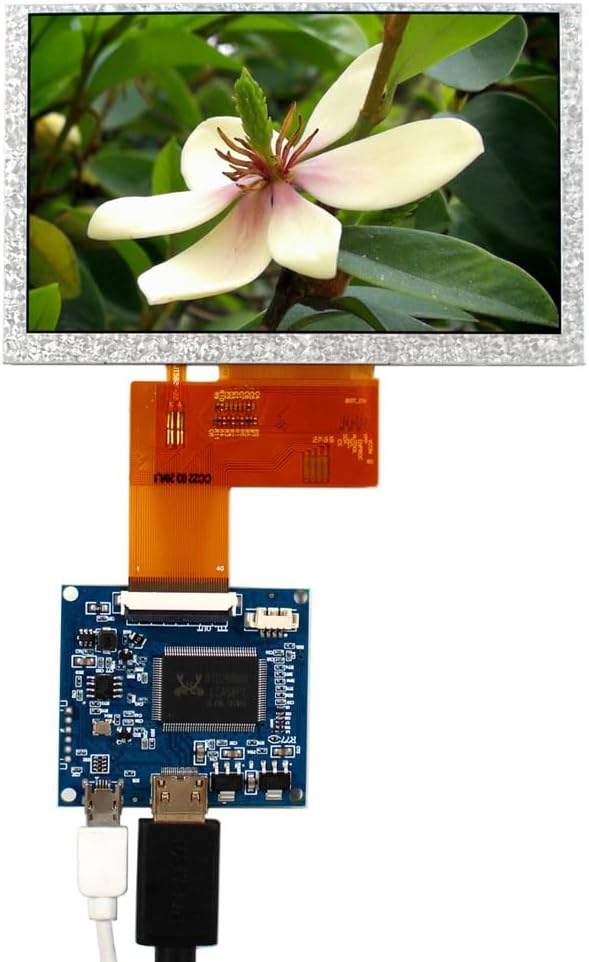

- 5 Inch 800x480 High-Brightness Screen: This kit includes a 5 inch LCD screen with 800x480 resolution, 1000 Nits typical brightness, 108 x 64.8 mm display area, and 120.7 x 76.3 x 3.3 mm outline size.

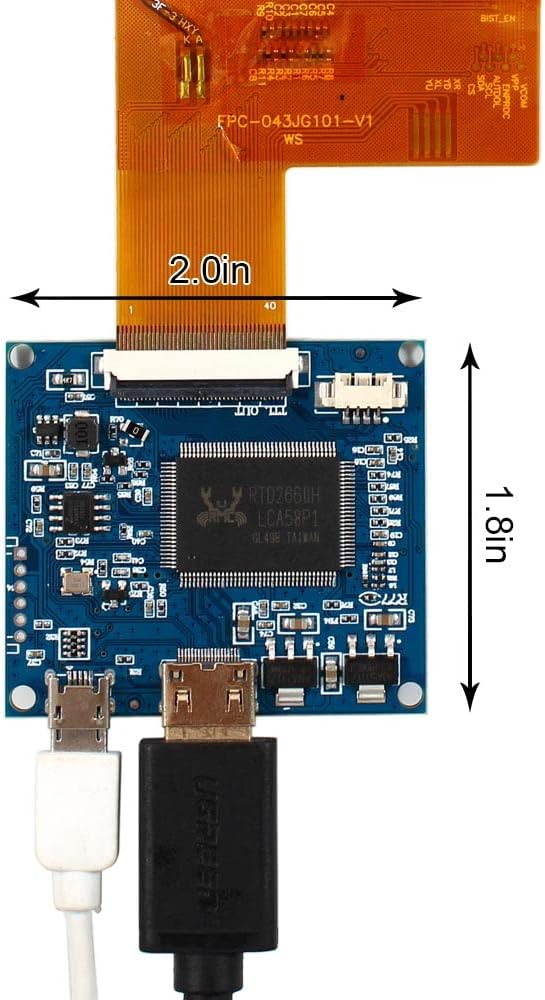

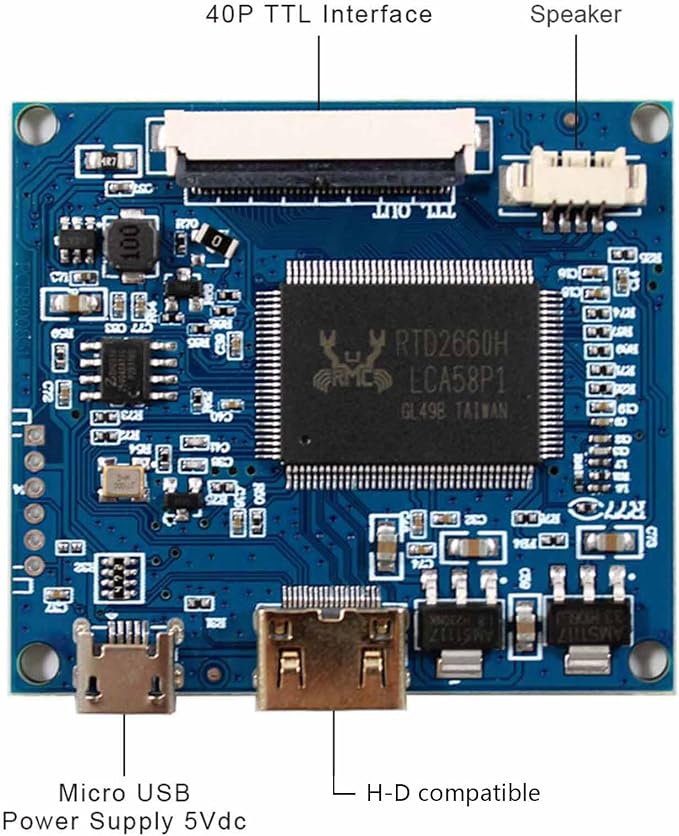

- Mini H/D Controller Board: The included controller board is designed for 40-pin TTL LCD screens, supports Mini H/D video input, and has a compact 52 x 46 x 6 mm board size for custom display projects.
- 40-Pin TTL Interface: The screen uses a Parallel RGB (1 ch, 8-bit) 40-pin FPC interface. Please confirm the screen model, resolution, and interface before purchase.
- Power and Use Note: The board requires 5V-9V DC input above 20W. Power adapter is not included. Please use the bare board in an insulated environment.

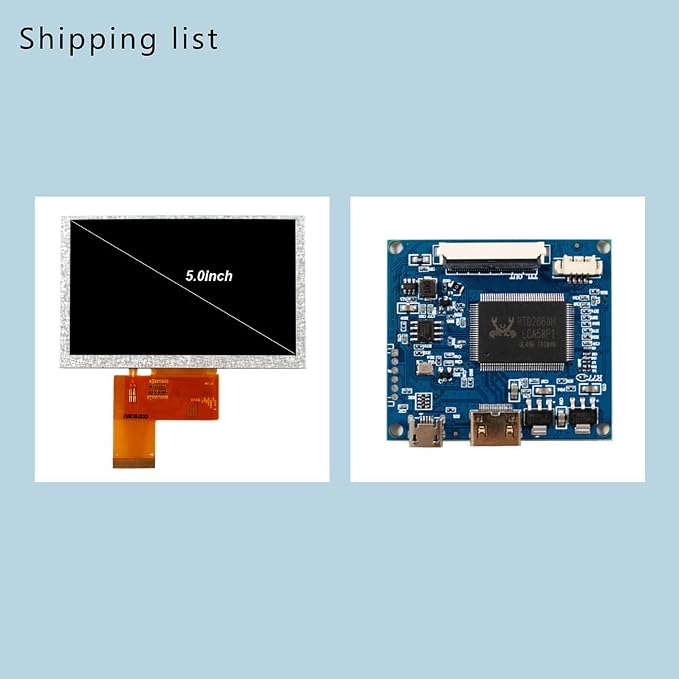

- Packing List: 1 x Mini H/D LCD Controller Board VS-TY2660V1-851 and 1 x 5 inch 800x480 high-brightness LCD screen.
