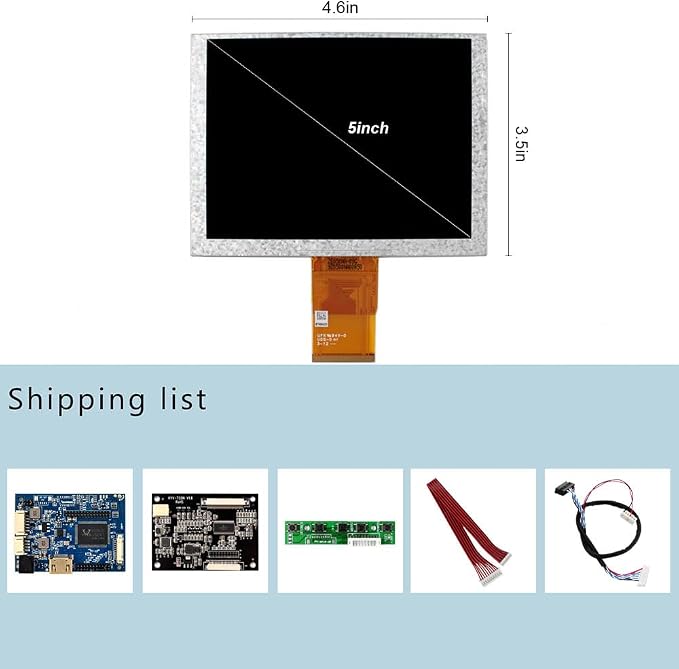

- Screen Specs: This kit includes a 5.0 Inch 640x480 LCD Screen with 250 Nits brightness, 101.76 x 76.32 mm display area, 117.65 x 88.43 x 5.9 mm outline size, and 50 pins Parallel RGB (1 ch, 8-bit) , FPC.
- Controller Board Features: The controller board supports H/D video input and uses a 74 x 53 x 12 mm board size for compact display builds.
- Interface and Use: Suitable for embedded display, industrial control, and custom display projects. Please confirm the resolution, interface, and mounting space before purchase.
- Power and Use Note: This kit requires 12V DC more than 2A. Power adapter is not included. Please use the bare board in an insulated environment.
- Packing List: 1 x H/D Audio LCD Controller Board, 1 x 5.0 Inch 640x480 LCD Screen, 1 x Tcon Board, 1 x LVDS Cable, 1 x Keyboard With Cable.
