- 5.5" H546UAN01.0 2160X3840 LCD Screen: Resolution 2160RGB)×3840 Outline Size 69.84 ×128.86×1.38(H×V×D) Display Area 68.04× 120.96 (H×V) Brightness 500 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 70/70/70/70 (Typ.)(CR≥100) [Left / Right / Up / Down]

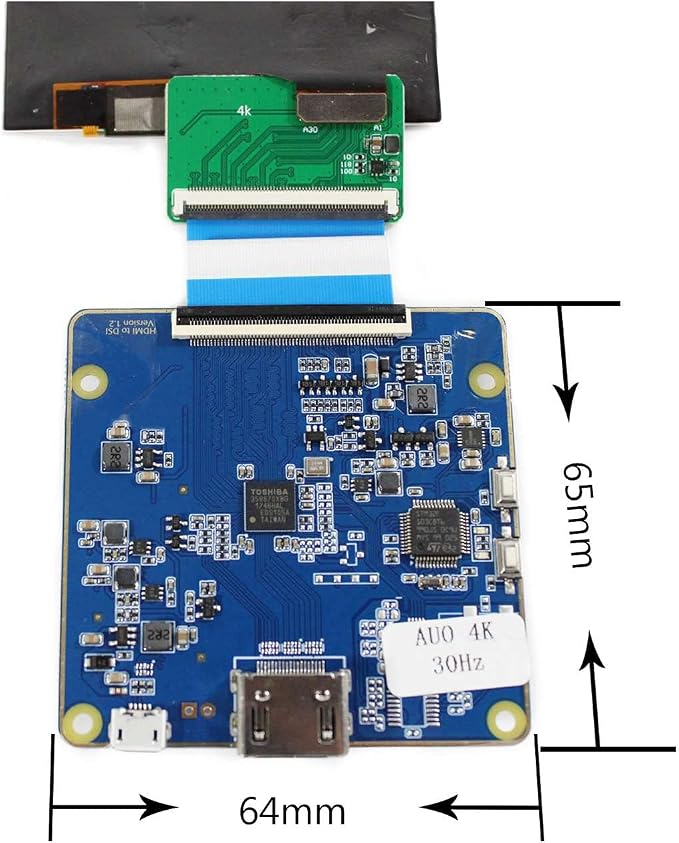

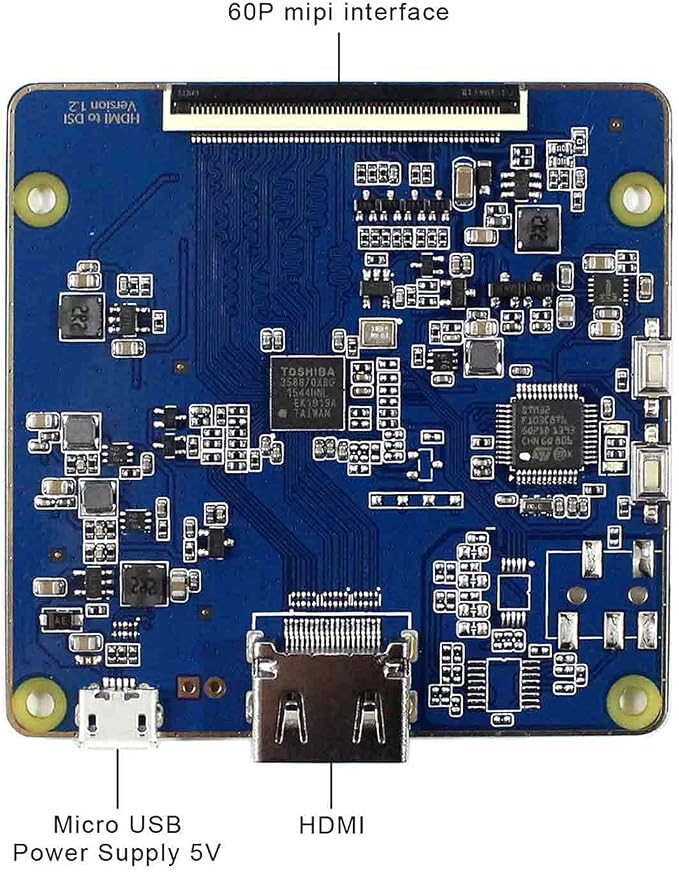

- Board Work for 60Pin Mipi LCD Screen (Audio Input: ) (Please note this item only supports 4K 30Hz signal input.)
- Input Power Adapter: 5Vdc More than 1A.
- Come In Standby Model When Not Input Signal. Standby Model <0.5W.

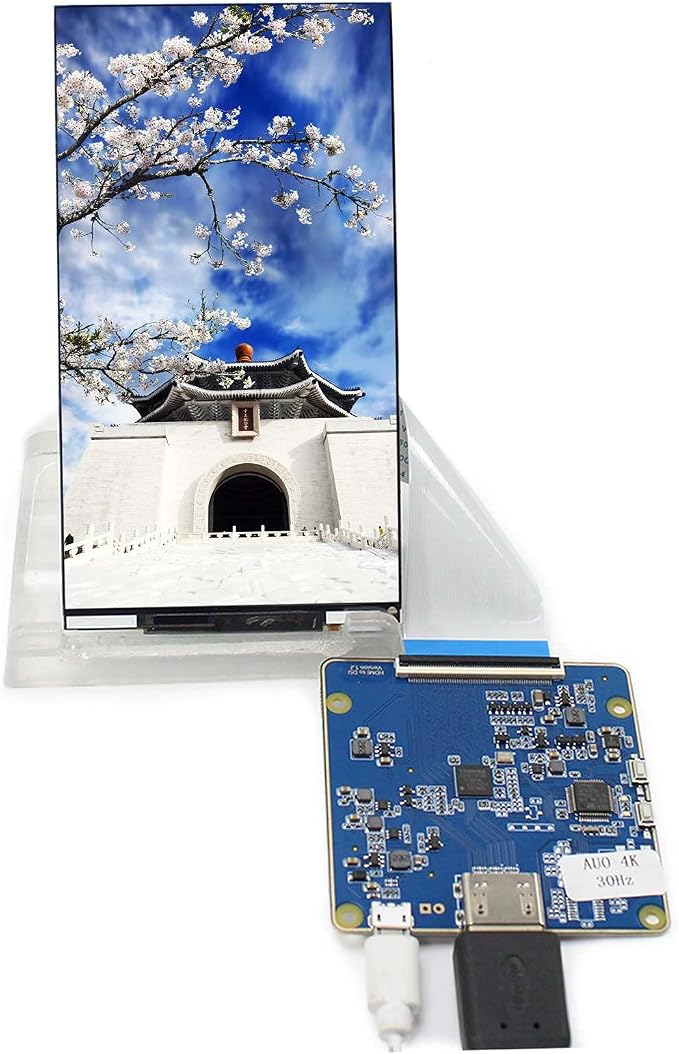

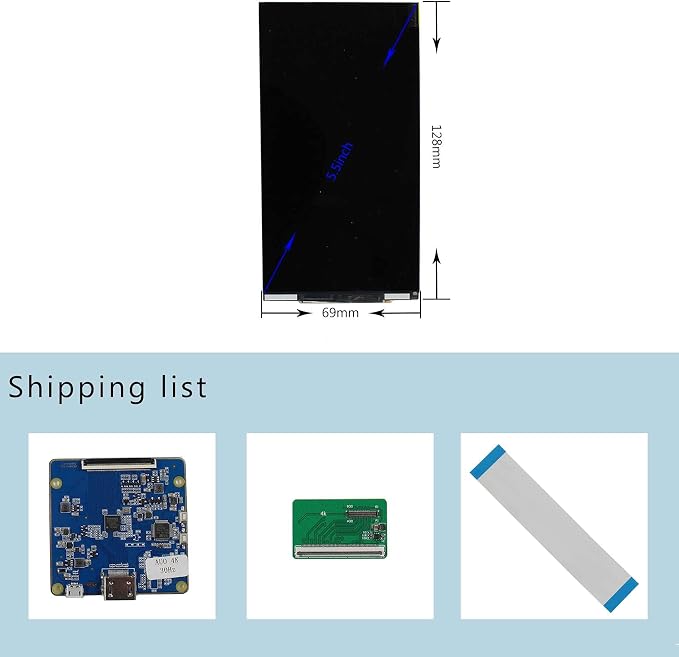

- Packing list : 1× To Mipi LCD Controller Board VS-TMIPI-4K V2 1× 5.5inch H546UAN01.0 2160X3840 LCD Screen 1× Signal Cable 1× Converter Board
