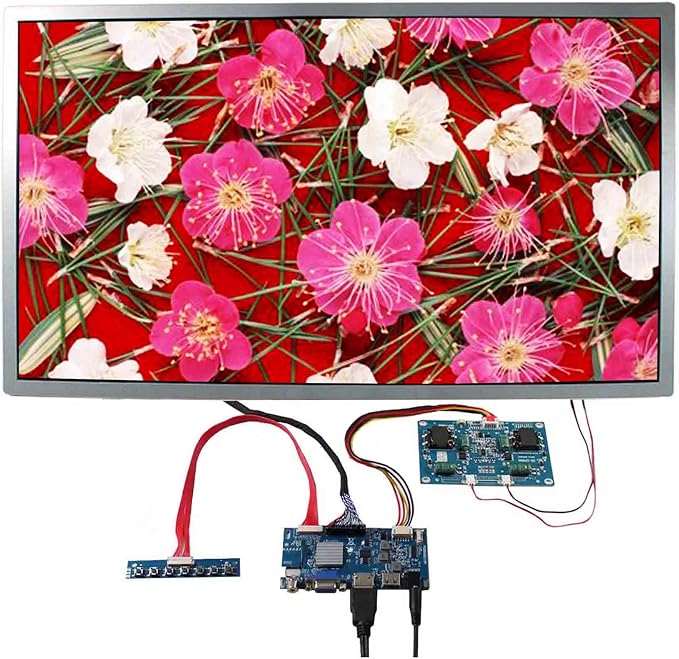

- Display Features: This kit includes a 27-inch 1920x1080 LCD screen with 1500 Nits brightness, and Parallel LVDS (2 ch, 8-bit), 30-pin.

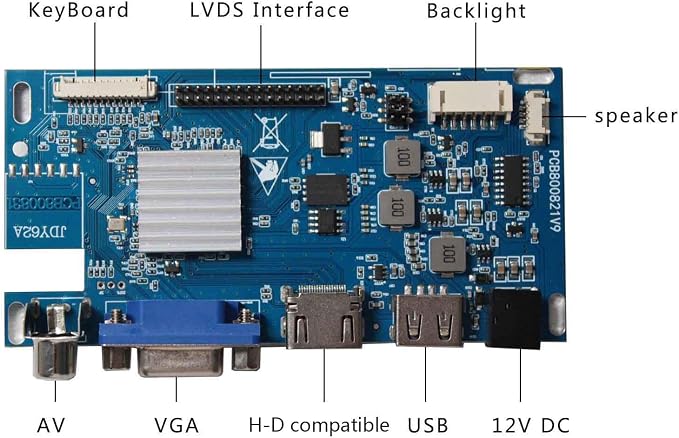

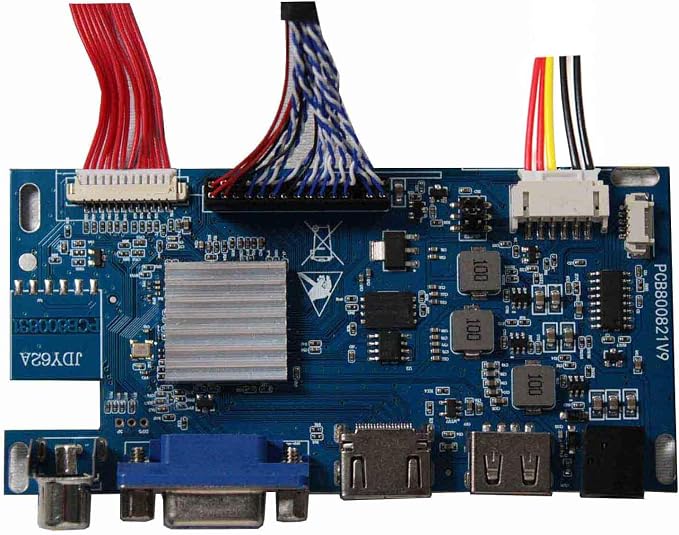

- Controller Board: The included VS-TY2660H-831 board supports H/D, VGA, and AV input. Audio input: H/D. Audio output: speaker connector.

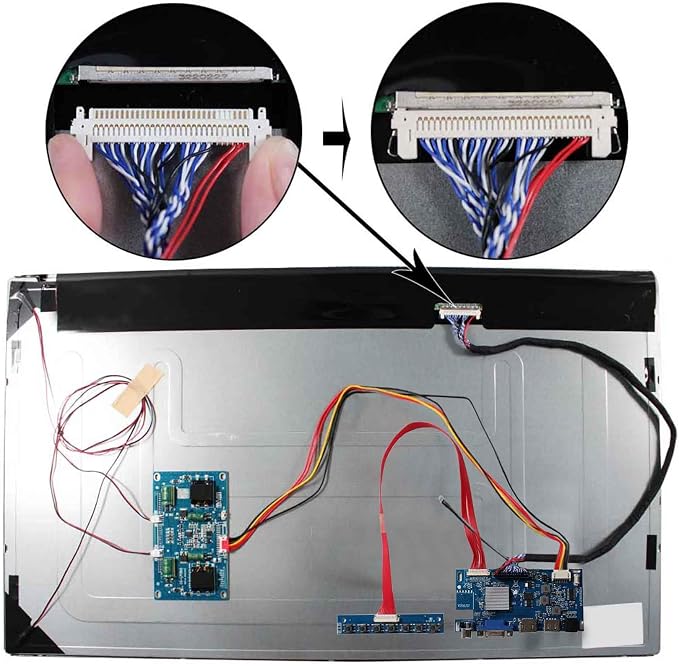

- Interface and Compatibility: The screen model is VS270GF-1500. It uses Parallel LVDS (2 ch, 8-bit), 30-pin. Please confirm the screen model, resolution, and interface before purchase.
- Power and Use Note: The board requires 12V DC, 2A-5A. Power adapter is not included. Please use the bare board in an insulated environment.

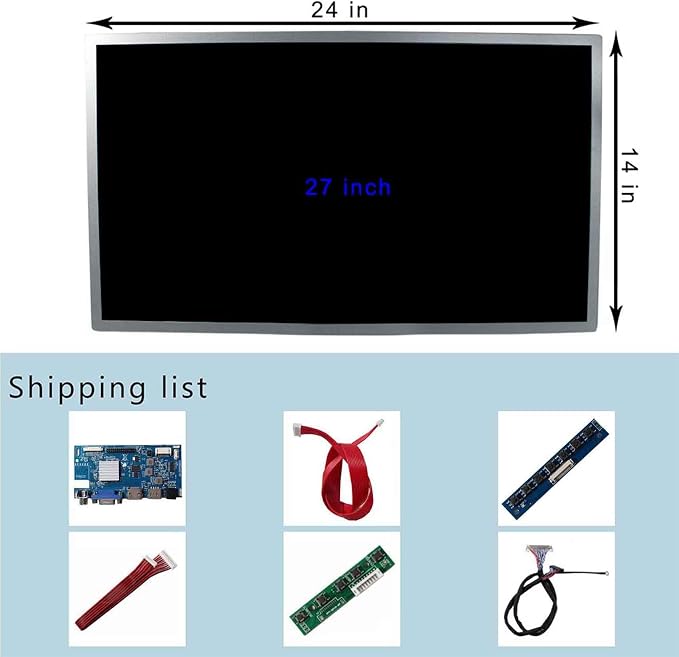

- Packing List: 1 x LCD Controller Board, 1 x 27 Inch LCD Screen, 1 x LVDS Cable, 1 x Backlight Cable, and 1 x Keyboard With Cable.
