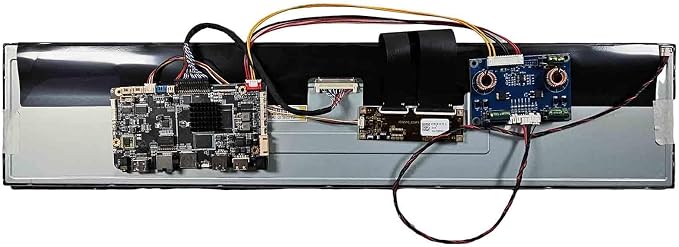

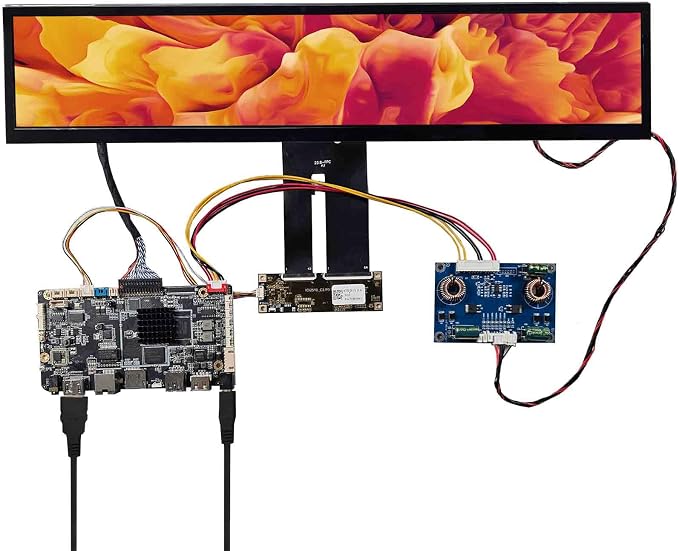

- Screen Specs: This kit includes a 24 Inch 1920x360 Capacitive Touch Stretched Bar LCD Screen with 300 Nits brightness, 579.888 x 112.104 mm display area, 612.7 x 132.1 x 10.2 mm outline size, and LVDS (1ch 6bit) Connector 40Pin.

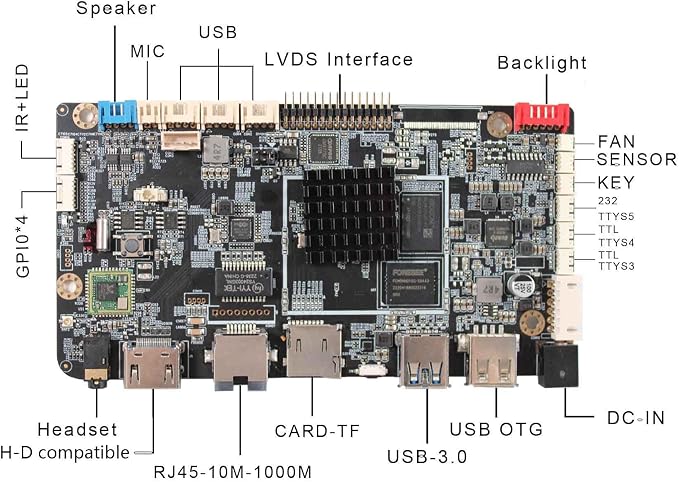

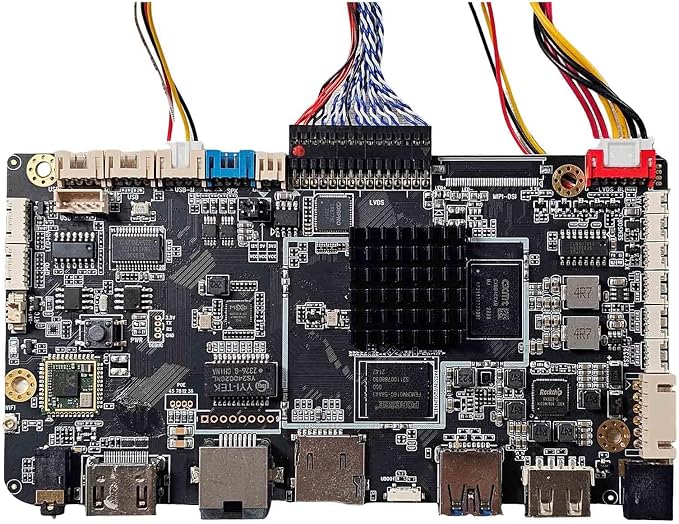

- Controller Board Features: The included controller board runs Android 11 on the RK3566 platform and uses a 142 x 75 x 16 mm board size for embedded display integration. Audio output: Speaker 8R/2W.
- Interface and Use: Suitable for embedded display, industrial control, and custom display projects. Please confirm the resolution, interface, and mounting space before purchase.
- Power and Use Note: This kit requires 12V DC more than 2A. Power adapter is not included. Please use the bare board in an insulated environment.

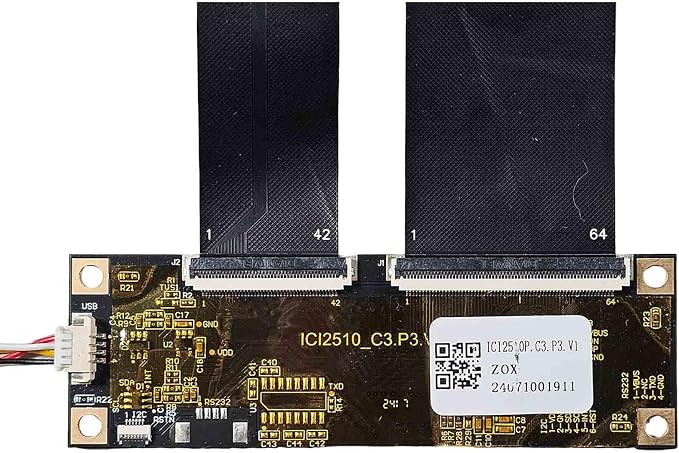

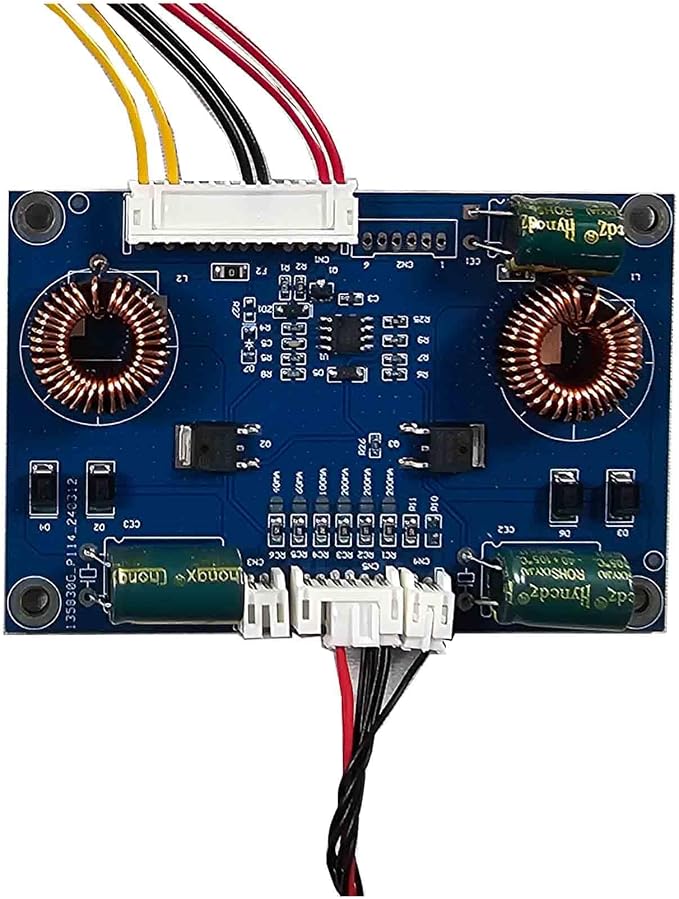

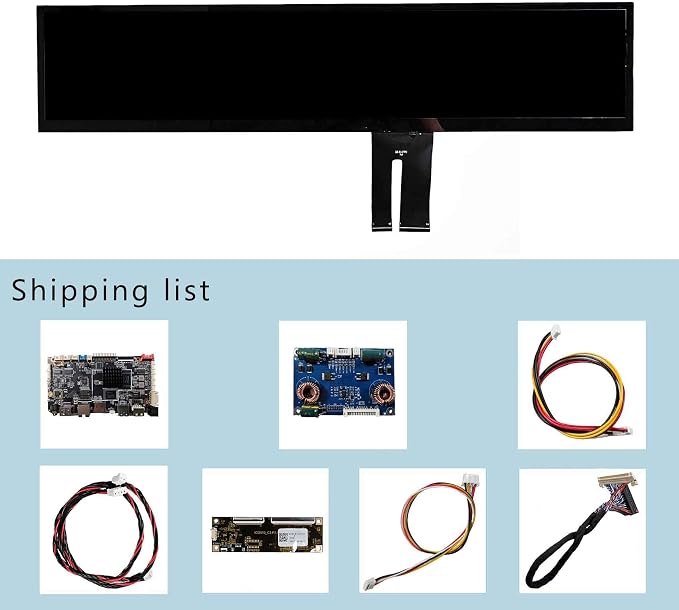

- Packing List: 1 x Android LCD Controller Board, 1 x 24 Inch 1920x360 Capacitive Touch Stretched Bar LCD Screen, 1 x Converter Board, 1 x Signal Cable, 1 x Keyboard With Cable.
