- 14.1-inch AA141TC01 LCD screen with 1280 x 800 resolution, TN normally white transmissive display mode, 500 cd/m2 typical brightness, 700:1 contrast ratio, and 20-pin LVDS interface for DIY monitor projects.

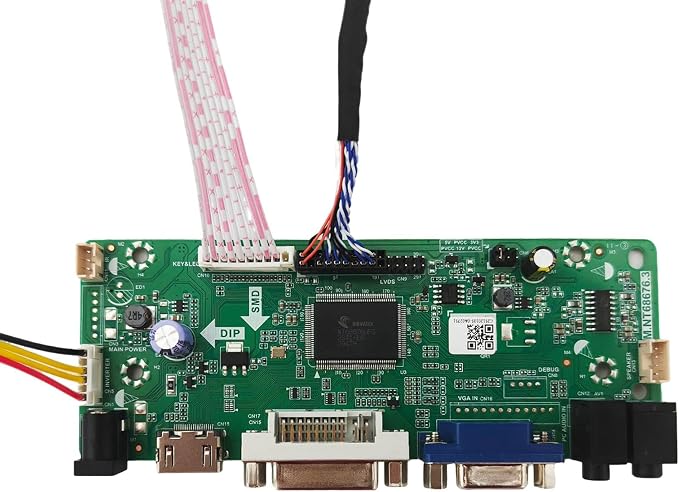

- Controller board supports H/D, DVI, and VGA input, plus H/D audio input and speaker output, making it suitable for multiple video source connections in display conversion and embedded applications.
- Screen outline size is 326 x 216.5 x 16.5mm, display area is 303.36 x 189.6mm, and the panel uses WLED backlight with 3.3V input for stable image output.

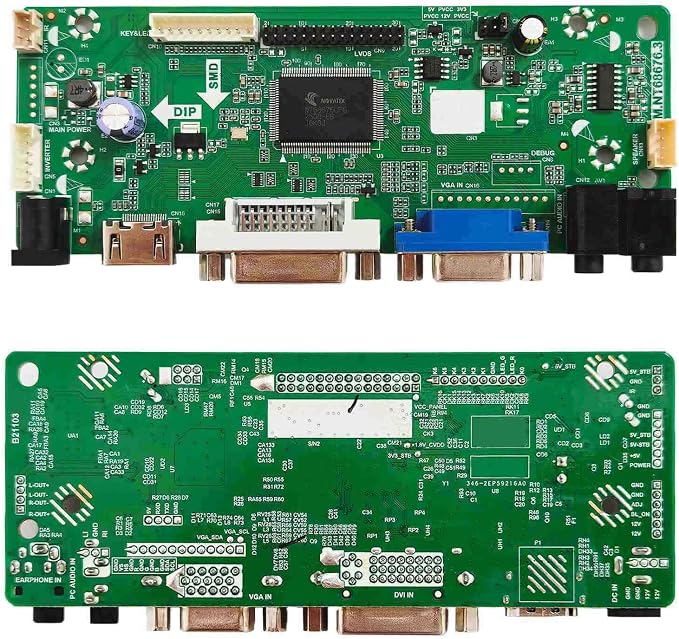

- Board size is 125 x 53 x 17mm and input power requirement is 12V DC 2A or above. The kit is suitable for DIY monitors, industrial displays, bench testing, and custom embedded systems.

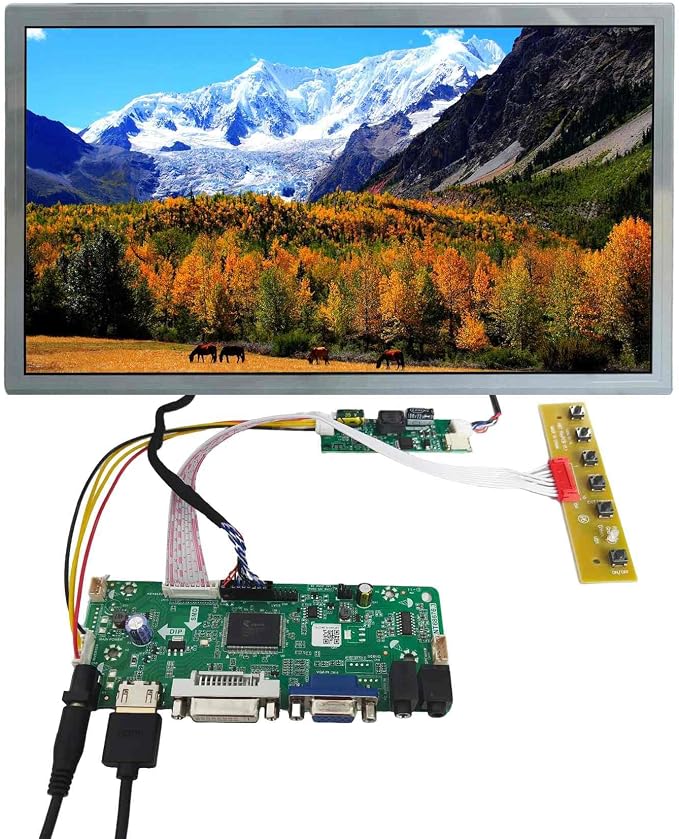

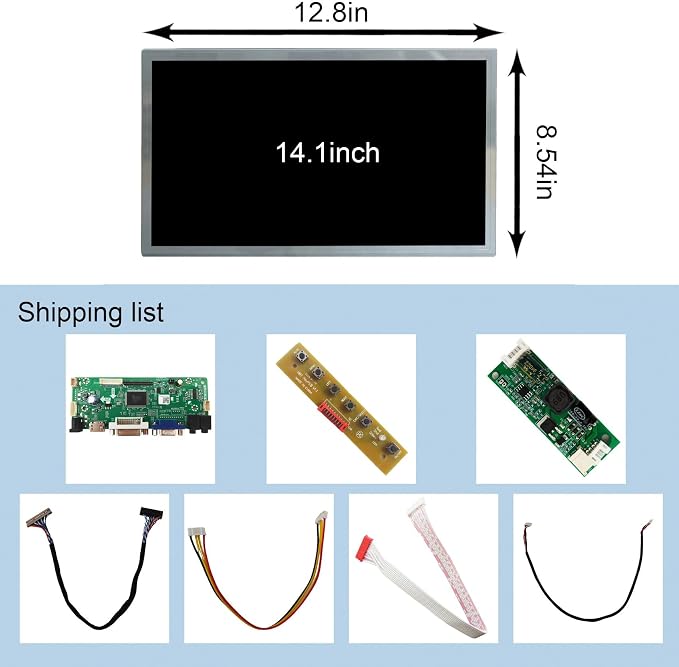

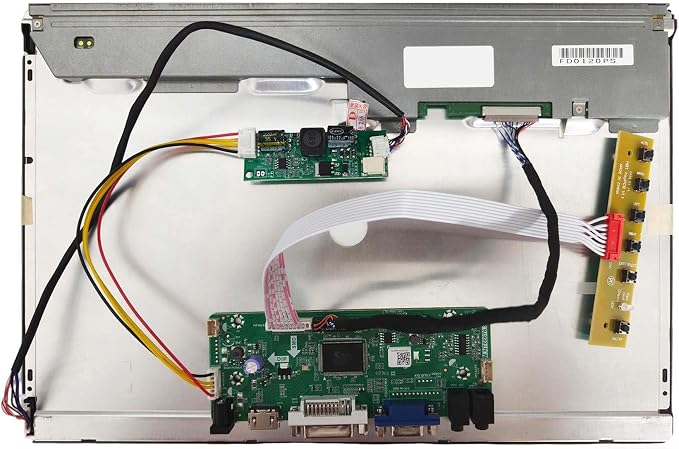

- Packing list: 1 x H/D VGA DVI LCD Controller Board M.NT68676; 1 x 14.1-inch AA141TC01 1280x800 LCD Screen; 1 x LVDS Cable; 1 x Backlight Board; 1 x Keyboard With Cable
