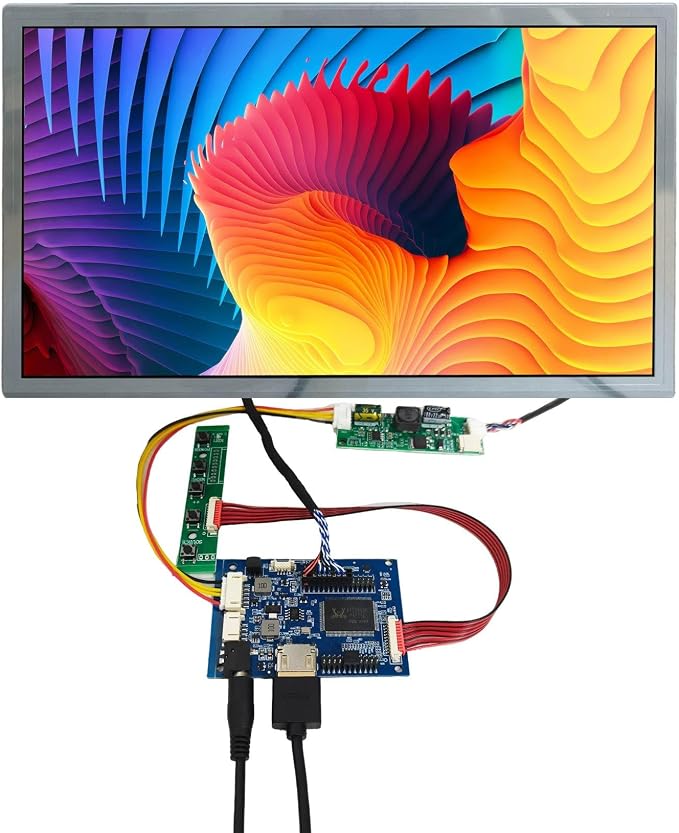

- 14.1-inch AA141TC01 LCD screen with 1280 x 800 resolution, TN display mode, 500 cd/m2 typical brightness, 700:1 contrast ratio, and 20-pin LVDS interface for custom monitor projects.

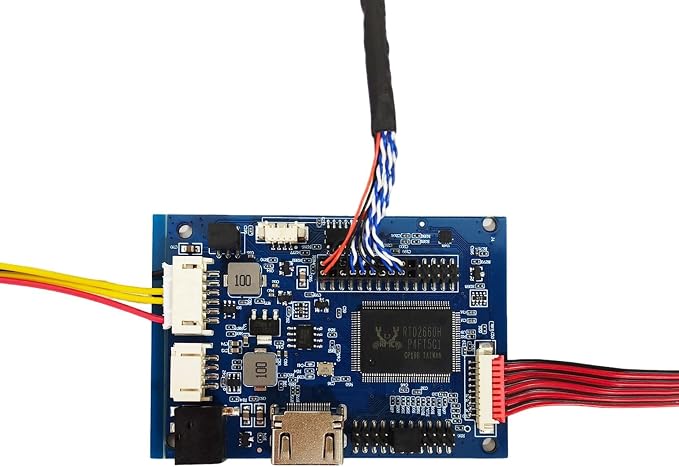

- Controller board supports H/D video input and H/D audio input, plus speaker output through a 4Pin PH1.0 connector, making it suitable for compact single-source display systems.
- Screen outline size is 326 x 216.5 x 16.5mm, display area is 303.36 x 189.6mm, and the panel uses WLED backlight with 3.3V input.

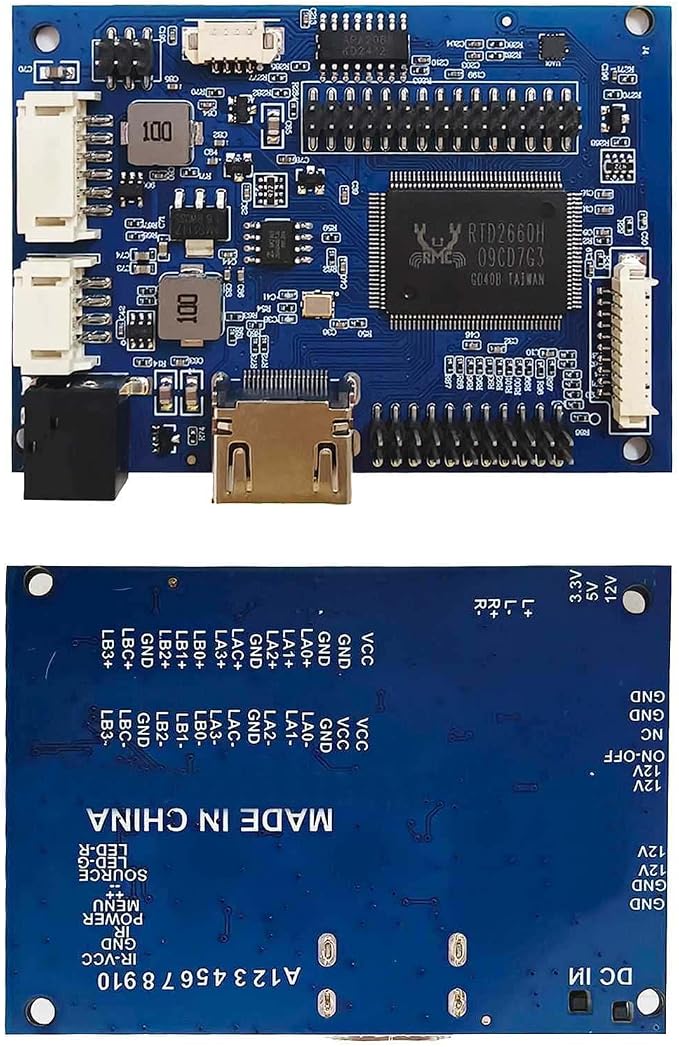

- Board size is 74 x 53 x 12mm and input power requirement is 12V DC 5A or above. The kit is suitable for DIY monitors, industrial displays, and embedded H/D display projects.

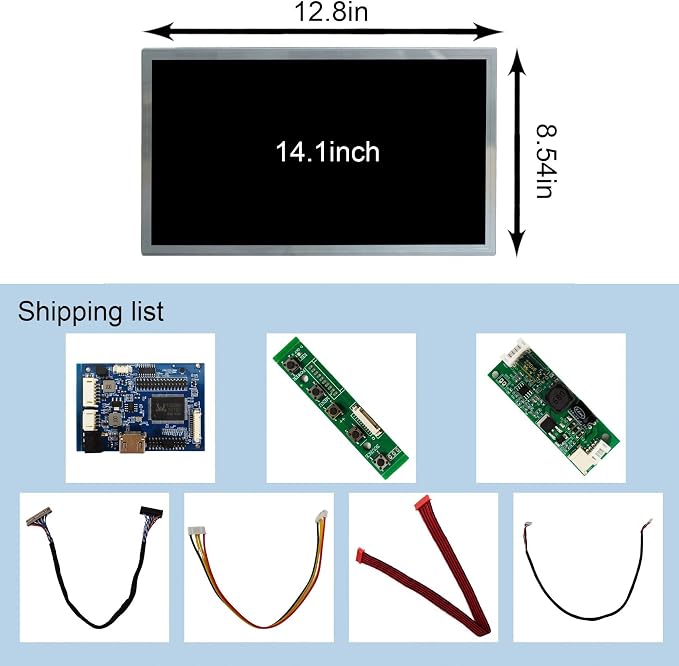

- Packing list: 1 x H/D Audio LCD Controller Board VS-TY2660H-V661; 1 x 14.1-inch AA141TC01 1280x800 LCD Screen; 1 x LVDS Cable; 1 x Backlight Board; 1 x Keyboard With Cable
