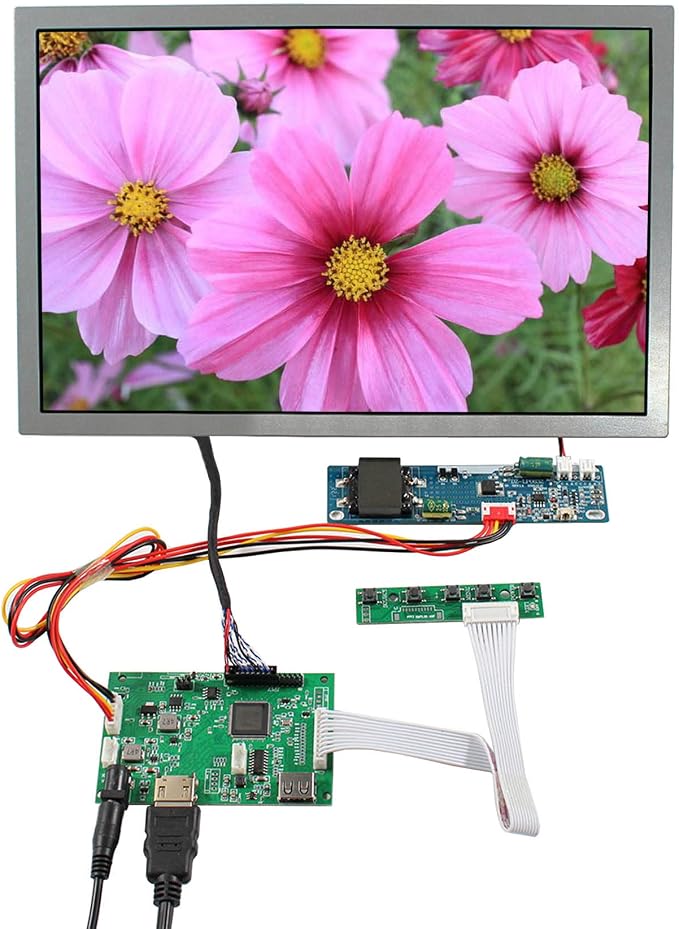

- Display Features: This kit includes a 12.1-inch 1280x800 LCD screen with 1000 Nits brightness, 216.12 x 163.2 mm display area, and 20-pin LVDS (1 ch, 6-bit) interface.

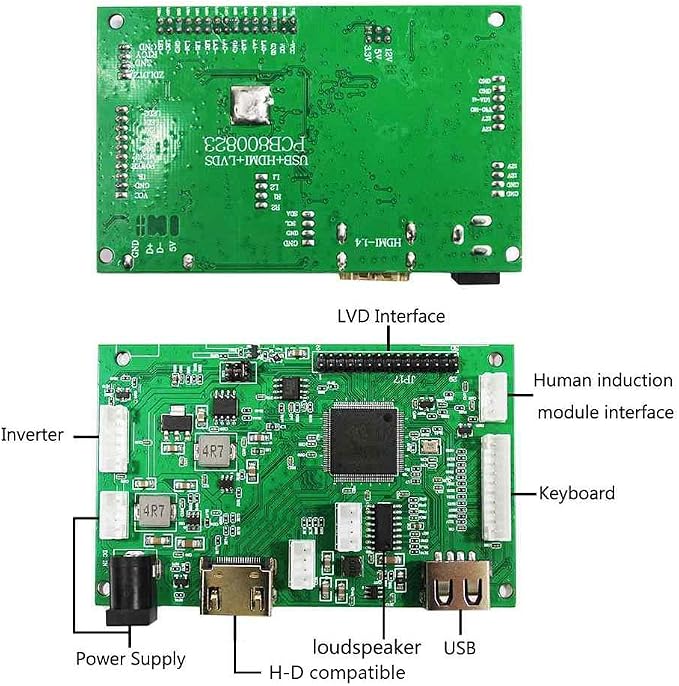

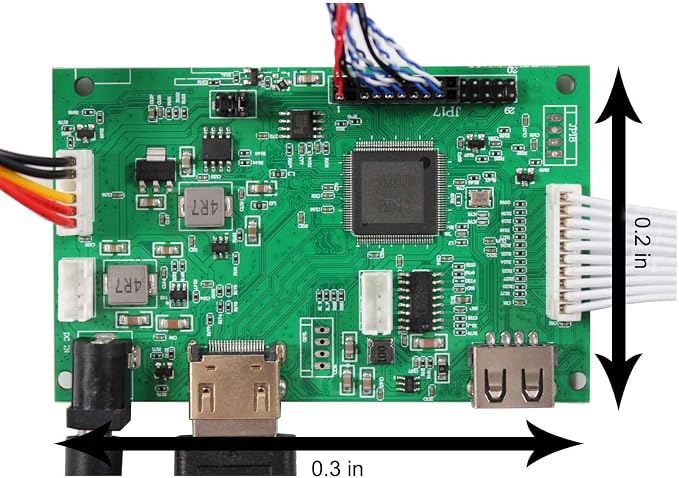

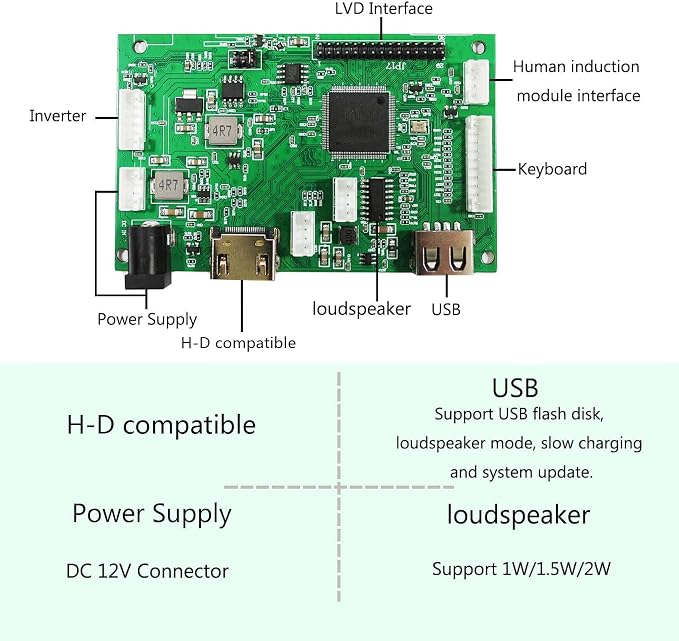

- Controller Board: The included VS-TY2660HU-823 board supports H/D and USB input. Board size: 90 x 56 x 14 mm. Audio output: Speaker support 8ohm 2W / 4ohm 2W.
- Interface and Compatibility: The screen model is AA121TD02. It uses 20-pin LVDS (1 ch, 6-bit) interface. Please confirm the screen model, resolution, and interface before purchase.
- Power and Use Note: The board requires 12V DC, 2A or higher. Power adapter is not included. Please use the bare board in an insulated environment.

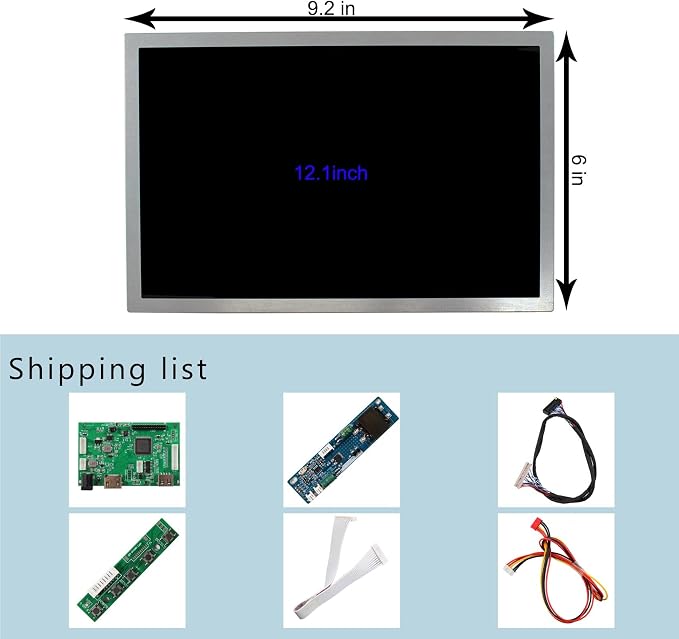

- Packing List: 1 x H/D USB LCD Board VS-TY2660HU-823, 1 x 12.1 inch 1280x800 LCD Screen, 1 x LVDS Cable, 1 x Backlight Cable, and 1 x Keyboard With Cable
