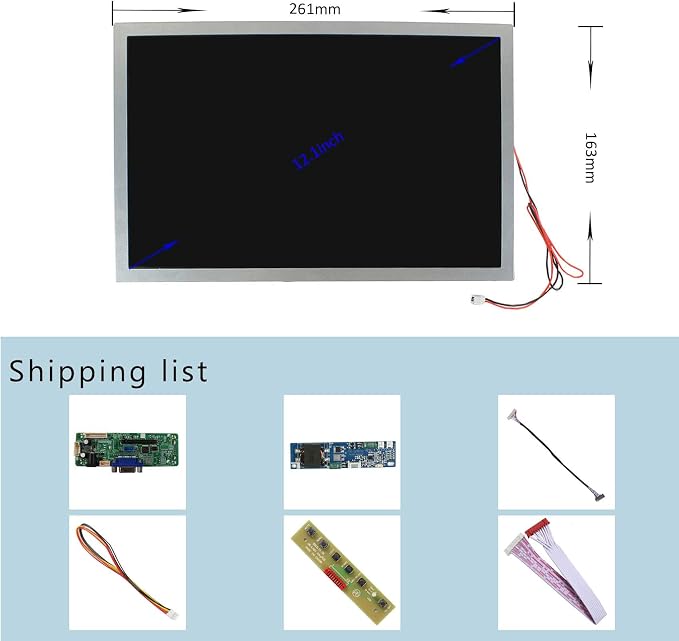

- Display Features: This kit includes a 12.1-inch 1280x800 LCD screen with 1000 Nits brightness, and LVDS (1 ch, 6-bit), 20 pins connector.

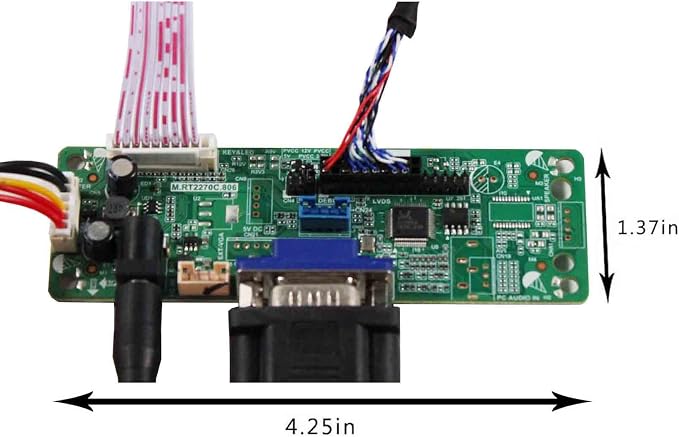

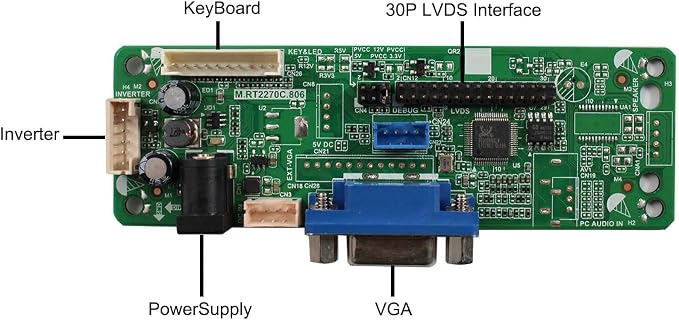

- Controller Board: The included RT2270C-A board supports VGA input.
- Interface and Compatibility: The screen model is AA121TD02. It uses LVDS (1 ch, 6-bit), 20 pins connector. Please confirm the screen model, resolution, and interface before purchase.
- Power and Use Note: The board requires 12V DC, 2A or higher. Power adapter is not included. Please use the bare board in an insulated environment.
- Packing List: 1 x LCD Controller Board, 1 x 12.1 Inch LCD Screen, 1 x LVDS Cable, 1 x Backlight Cable, and 1 x Keyboard With Cable.
