- 12.1" LQ121K1LG52 1280X800 LCD Screen: Resolution 1280RGB)×800 Outline Size 278 x 184 x 9.6 (H×V×D) Display Area 261.1 x 163.2 (H×V) Brightness 400 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 80/80/65/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

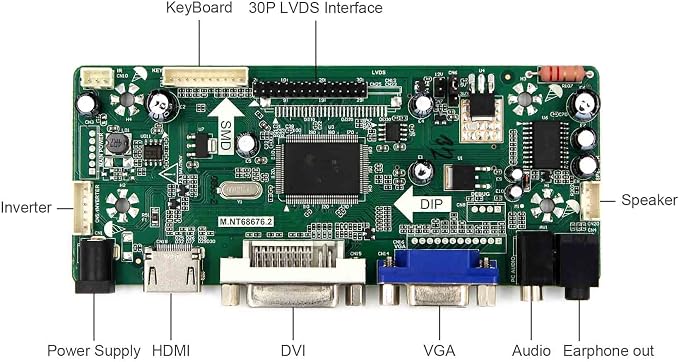

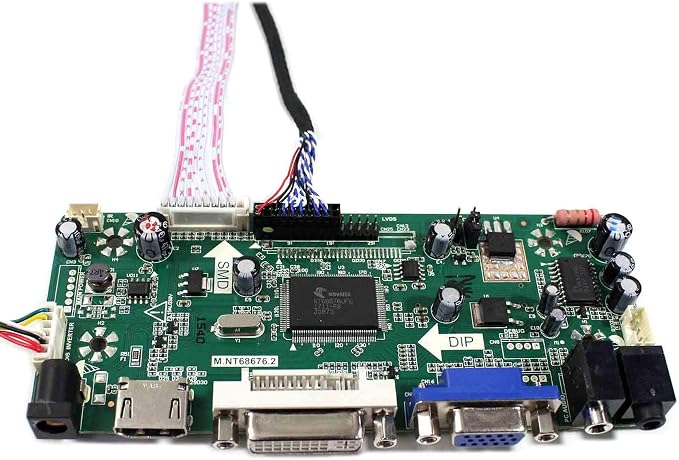

- DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen (Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector)
- Recommend Power Adapter Spec. Input Power Adapter: 12Vdc More than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board)
- Come In Standby Model When Not Input Signal. Standby Model <1W

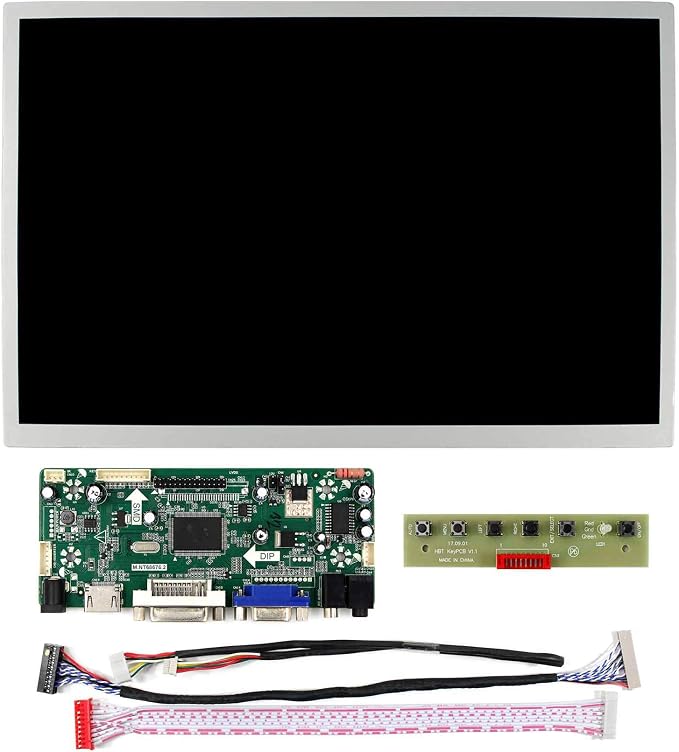

- Packing list : 1× VGA DVI LCD Controller Board 68676 1× 12.1inch LQ121K1LG52 1280X800 LCD Screen 1× LVDS Cable 1× Backlight Cable 1× Keyboard With Cable (Please Note There is No Power Adapter in The Packing List.)
