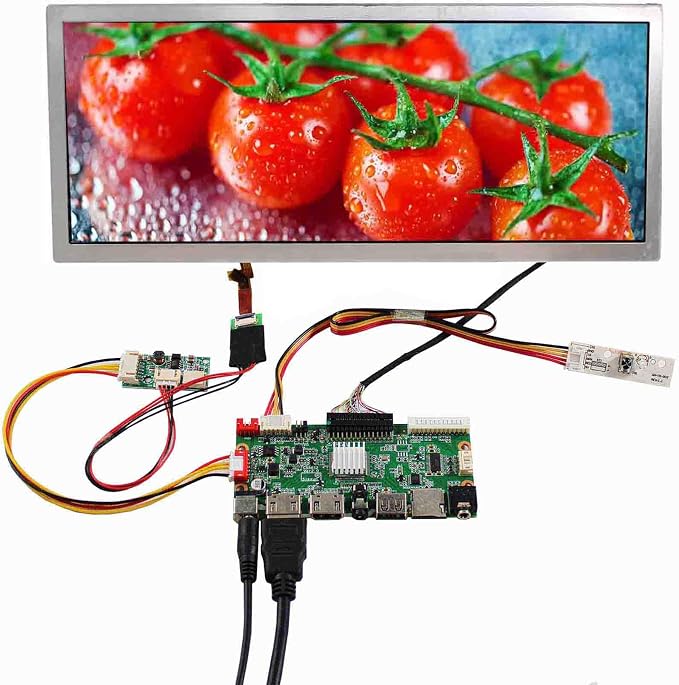

VSDISPLAY 10.3 1920x720 LCD Screen HSD103KPW2-A10 with Controller Board | 850 Nits Brightness DisplaySupports H/D/USB/SD InputMultimedia supports MP4

- 10.3" HSD103KPW2-A10 1920X720 LCD Screen: Resolution 1920(RGB)×720 Outline Size 259.8×112×15.7(H×V×D) Display Area 243.6×91.4 (H×V) Brightness 850 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] - USB SD LCD Controller Board Work for LVDS LCD Screen ( AV default unavailable ) (Audio Input: USB SD Audio Output: Speaker Earphone) - Multimedia supports MP4 - Recommend Power Adapter Spec. Input Power Adapter: 12Vdc more than 2A. (VSDISPLAY Power Adapter, AC 100-240V Input to 12V DC,2A Output ,Power Supply, US Plug , Fit SC24W-1202000U, Fit for All Types of VSDISPLAY LCD Controller Board) Come In Standby Model When Not Input Signal. Standby Model <0.3W - Packing list: 1× USB SD LCD Controller Board Work for LVDS LCD Screen ( AV default unavailable ) 1×10.3" HSD103KPW2-A10 1920X720 LCD Screen 1× Converter Board 1× Signal Cable 1× Keyboard With Cable (Please Note There is No Power Adapter in The Packing list.)

Product description

Product Description

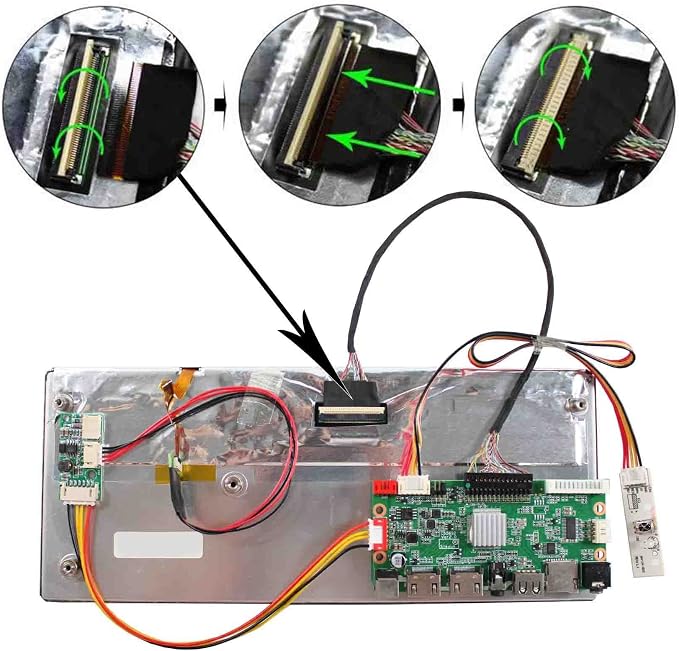

Specific Connection for 10.3'' LCD screen with Board

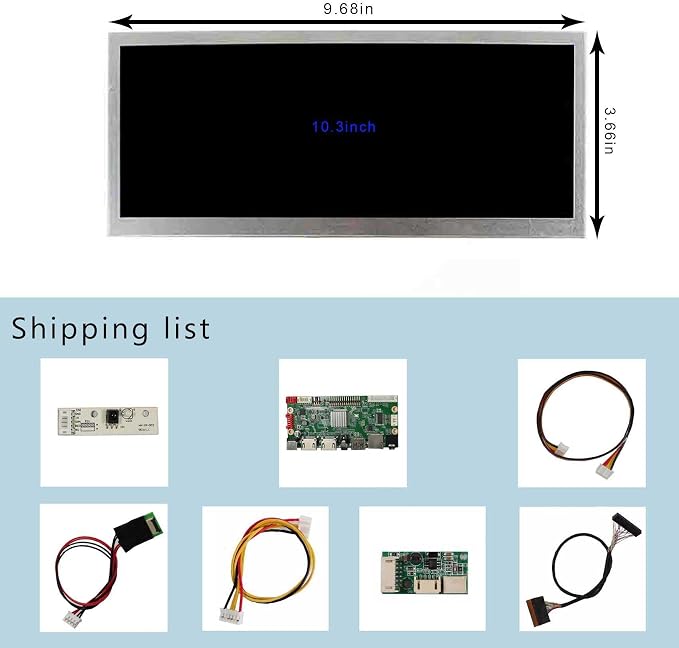

Packing List

Display New Mode IPS Pro, Normally Black, Transmissive

Resolution 1920(RGB)×720

Outline Size 259.8×112×15.7(H×V×D)

Display Area 243.6×91.4 (H×V)

Brightness 850 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins

Backlight 9S4P WLED

Input Voltage 3.3V (Typ.)

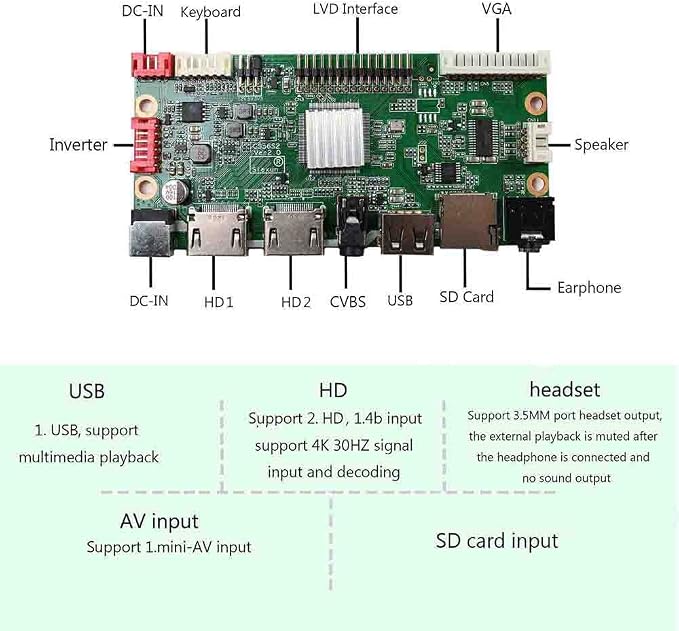

H/D USB SD LCD Controller Board Work for LVDS LCD Screen ( AV default unavailable )

Input Power Adapter: 12Vdc more than 2A

Come In Standby Model When Not Input Signal

Standby Model <0.3W

OSD: Support Menu Contrast Brightness

Language: English

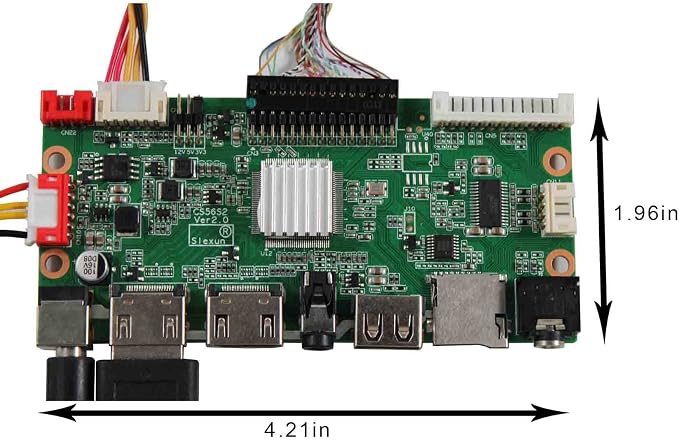

Board Size: 107mm x 50mm x 15mm

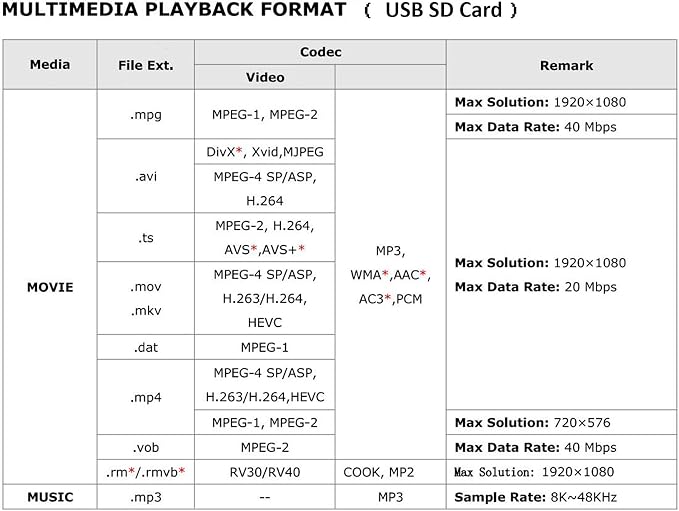

Multimedia supports MP4

Audio Input: H/D USB SD

Audio Output: Speaker Earphone

Key Board: Power Menu Up Down Exit
