- VANTEC 5-PORT USB 3.2 GEN2X2 20GBPS WITH 2C AND 3A PCIE HOST CARD
From the manufacturer
5-Port USB 3.2 Gen2x2 (20Gbps) with 2C and 3A PCIe Host Card
Features and Specifications
USB 3.2 Gen 2x2 (20Gbps) Speed to give you the Maximum File Transfer or Backup; Support PCIe x4 slot(use 2 lanes) interface with wider lanes for speed and large amount of data.
Support UASP Devices on both ports for extra boost in speed when using latest OS; Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus.
Support for Windows and Linux OS for latest Technology; USB 3.1 Type C Port for Newer devices and Type A for Compatibility with older USB 3.0 and 2.0.
Full height PCIe x2 (requires x4 slot); Backward compatible with legacy USB 3.0, 2.0 and 1.1
Compliant with extensible Host Controller interface specification Revision 1.1; Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
Supports PCI Express Card Electromechanical Specification Release 2.0; Supports PCI Bus Power Management Interface Specification Release 1.2
Support driver on Windows 7 and native drivers within Windows 8/8.1/10; Support Linux kernel 3.13.0 & above
Device Support: USB 3.2 Gen2 Type C and Type A

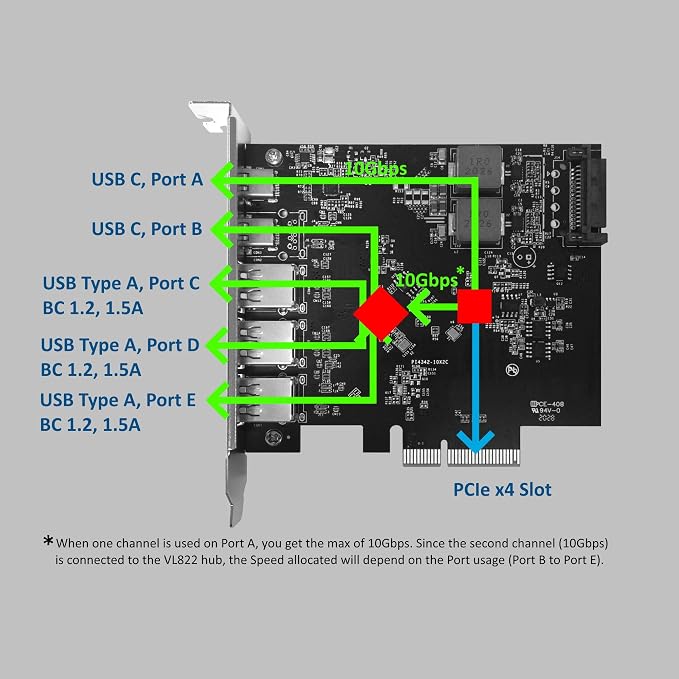

Ports: 5, USB 3.2 Gen2, Two Type C and Three Type A ports
All Type A ports support charging via BC 1.2 specs, 1.5A
Bus Technology: PCI-Express x2; Power connector: SATA power connector
Dimension: 3.7 x 3.7 x 0.7 inches / 95 x 95 x 19mm
System Requirements: PCI-Express x4, x8 or x16 slots; Microsoft Windows 7, Windows 8.x/10 (native, no drivers required), Linux 3.2, 3.10, 3.12, 4.2 and 4.4 (native) or later; USB 3.1 devices preferred to get maximum speed; SATA power, not Low Profile

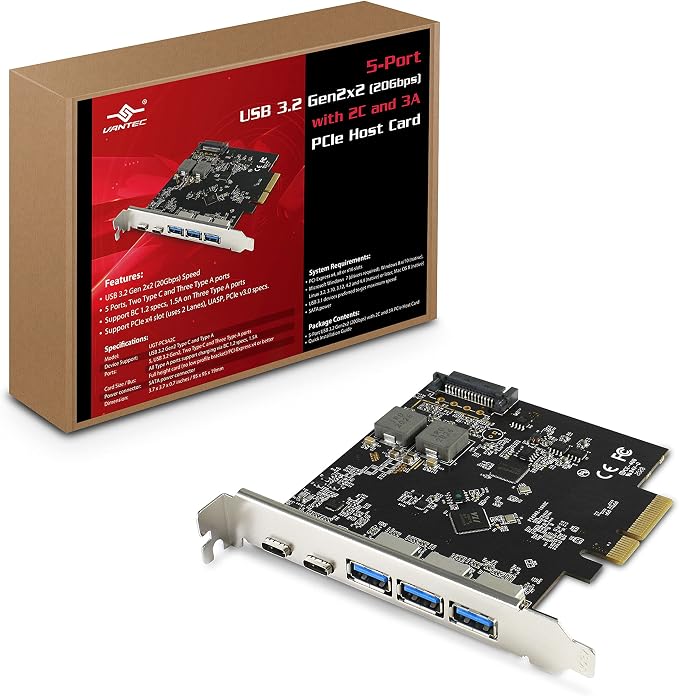

Package Contents: 5-Port USB 3.2 Gen2x2 (20Gbps) with 2C and 3A PCIe Host Card, Quick Installation Guide
