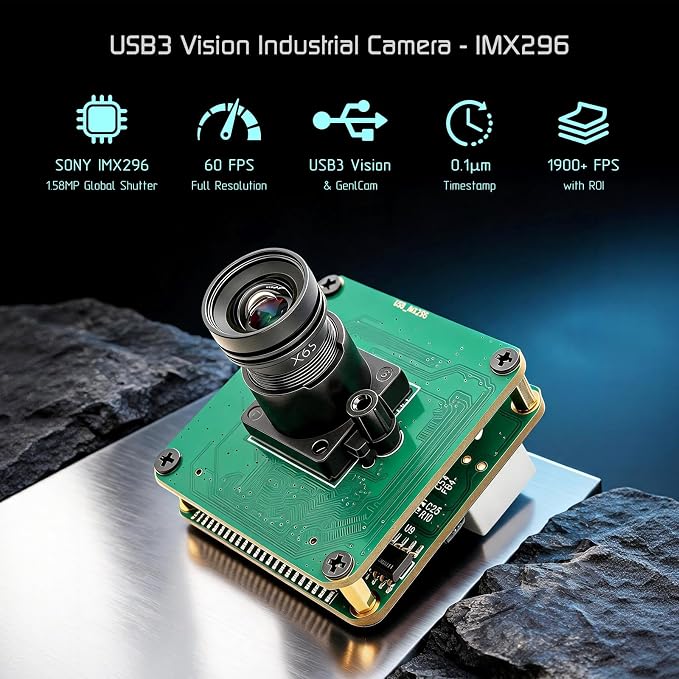

- High-Performance IMX296 Sensor: 1/2.9" global shutter CMOS with 1.58MP (1456x1088) resolution, 3.45m pixels, and true 60FPS at full resolution (MONO8) delivers distortion-free imaging for motion analysis, scientific research, and high-speed industrial applications

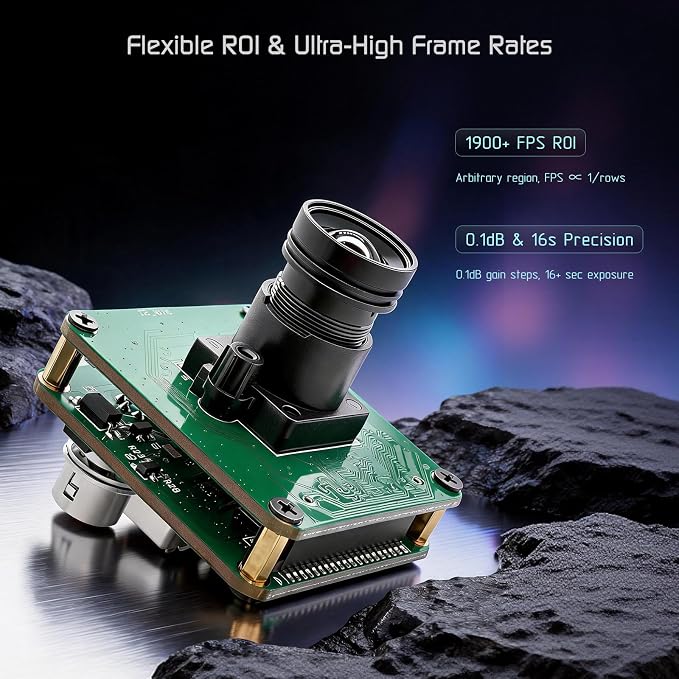

- Flexible ROI & Ultra-High Frame Rates: Arbitrary single-region ROI support boosts frame rates inversely with rows, exceeding 1900FPS in reduced-height modes, analog gain 0-48dB (0.1dB steps) and long exposure up to 16+ seconds for precise control

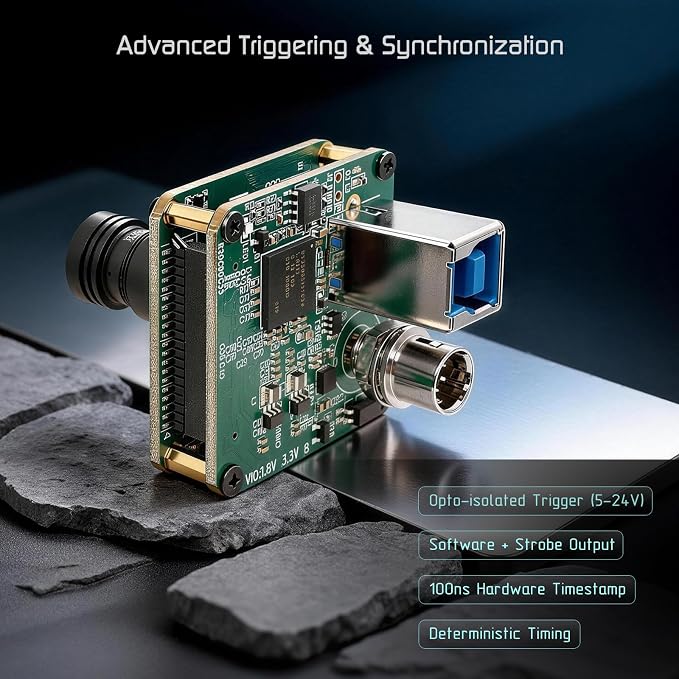

- Advanced Triggering & Synchronization: Opto-isolated hardware trigger (5-24V), software trigger, and strobe output with 0.1s (100ns) hardware timestamping for deterministic timing in robotic pick-and-place, inspection, and area-scan emulation

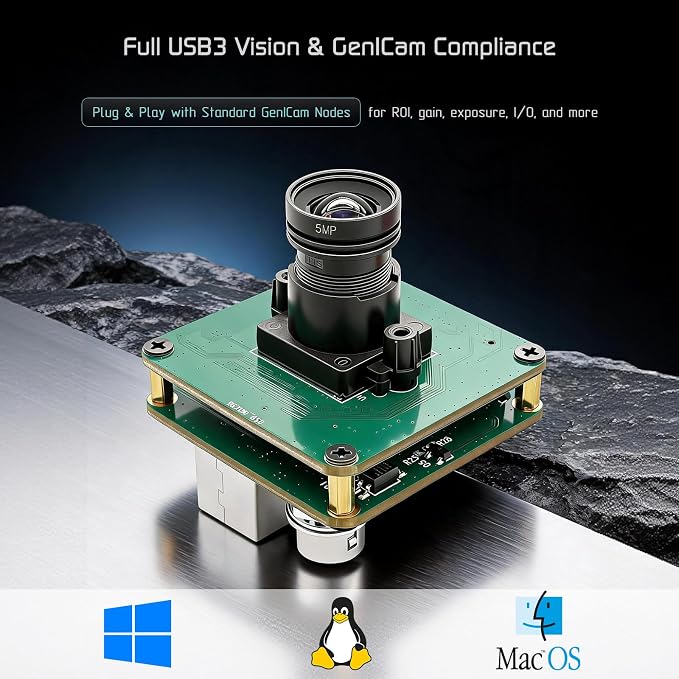

- Full USB3 Vision & GenICam Compliance: 100% plug & play with standard GenICam nodes for ROI, gain, exposure, I/O, and more, includes on-board temperature sensor, "Find Me" LED, and unique 64-bit serial number for multi-camera setups

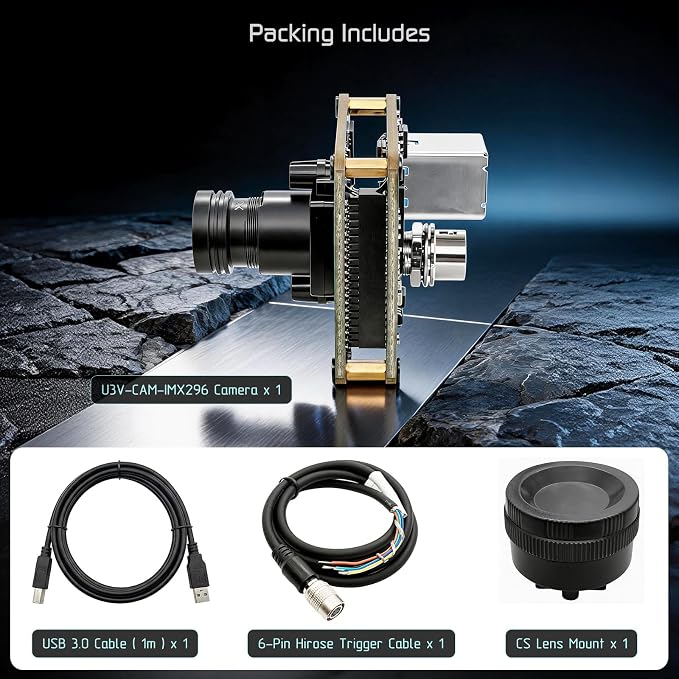

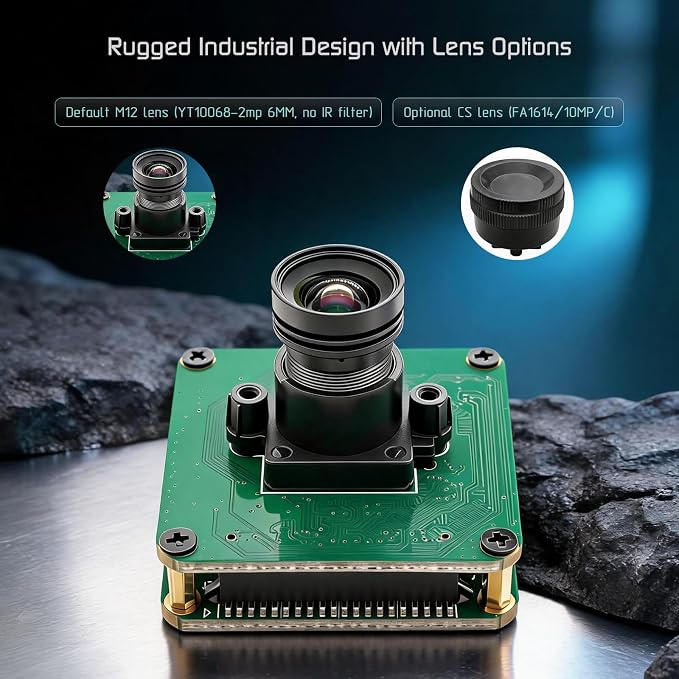

- Rugged Industrial Design with Lens Options: Default M12 lens (YT10068-2mp 6MM, no IR filter), optional CS lens (FA1614/10MP/C), compatible with Aravis, eBUS Player, OpenCV on Windows/Linux/macOS, includes USB3.0 cable and 6-pin Hirose trigger cable
Product description
USB3 Vision Industrial Monochrome Camera with IMX296 Global Shutter Sensor
Specification
Precision Imaging for Demanding Industrial Applications
Advanced Control & Synchronization Features
True Plug-and-Play USB3 Vision Protocol
Lens & Hardware Flexibility
