USB3.0 4K 60fps High Speed Industrial CameraCS-Mount 10X Manual 5-50mm Varifocal Zoom Lens3840×2160 ResolutionPlug and PlayCompatible with Windows Linux Mac Android PC Jetson Nano

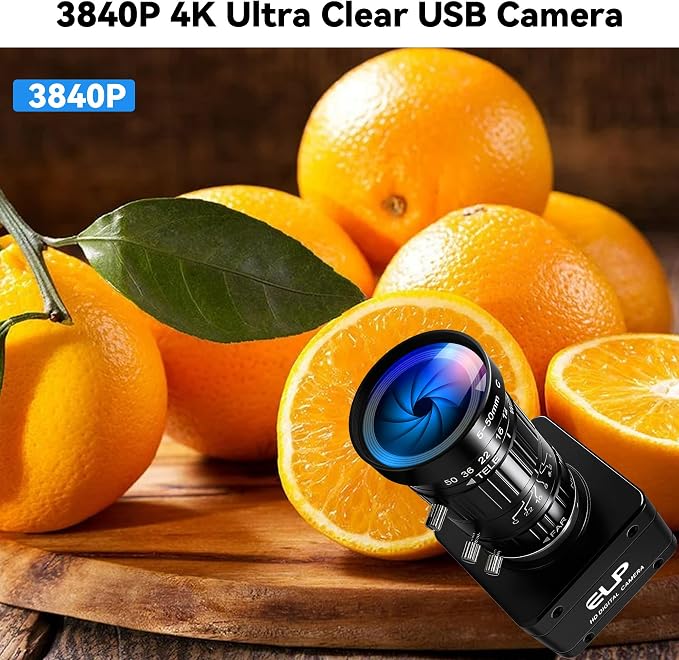

- 4K High Resolution: Adopts 1/1.8-inch high-performance CMOS IMX678 color sensor with 2.0μm pixel size, up to 4K 3840×2160 ultra HD resolution. Built with 41dB high S/N ratio and 0.1Lux low illumination capability, restoring true rich colors, clearly capturing details even in dark low-light industrial scenes. - USB3.0 High Frame Rate: Standard USB 3.0 high-speed transmission port, dual encoding support of MJPEG/YUY2. Realizes 4K@60fps, 1080P@60fps multi-spec stable frame output, no picture blurring or lagging, perfectly fits high-speed shooting, motion tracking and real-time industrial vision monitoring. - 5-50mm 10X Manual Varifocal Lens: 8 Megapixels usb webcam with 5-50mm manual varifocal lens, and aluminum mini case, they can obtain different angles of view, different sizes of images, and different scene ranges by adjusting the focal length. Opened zoom, it will worked, manual control of aperture, zoom and focus, you need to loosen them slightly before the adjustments can be made, then they can be tightened again. - Universal Plug & Play Compatibility: Standard UVC drive-free design, plug and play without complicated installation. Fully compatible with Win10/Win11, Linux, Mac OS, Android mainstream systems, widely used for machine vision, 3D printers, robot equipment video surveillance systems, live streaming, video conferences, dashcams, and Raspberry Pi supporting scenarios. - Stable Power & Wide Temperature Resistance: Comes with 1.2m dedicated USB3.0 Type-C high-speed cable, DC 5V low-power safe power supply, stable 230-260mA operating current. Supports -10°C to 70°C long-term stable working and -20°C to 80°C safe storage, durable for all-day industrial continuous operation.

Product description

IFWATER USB 3.0 Industrial Camera, 4K 60fps Webcam with CS-Mount 10X Manual 5-50mm Varifocal Zoom Lens, Plug & Play for Windows Linux Mac Android PC

4K 60fps High Speed USB 3.0 Camera, 3840×2160 High Resolution CS-Mount Webcam, IFWATER 10X Manual 5-50mm Varifocal Zoom Lens, Plug and Play

CS-Mount 10X Manual 5-50mm Varifocal Zoom Lens Camera, USB3.0 4K 60fps Industrial Webcam, Multi Compatible with Windows Linux Android Mac Jetson Nano

Multi-Purpose Industrial Webcam for Lightburn Golf Swing Conference, IFWATER USB 3.0 4K 60fps Camera, 10X 5-50mm Varifocal CS-Mount Lens,

IFWATER 3840×2160 4K 60fps USB3.0 Camera, Plug and Play Industrial Webcam Compatible with Windows Linux Mac Android Jetson Nano Raspberry Pi

Product Features:

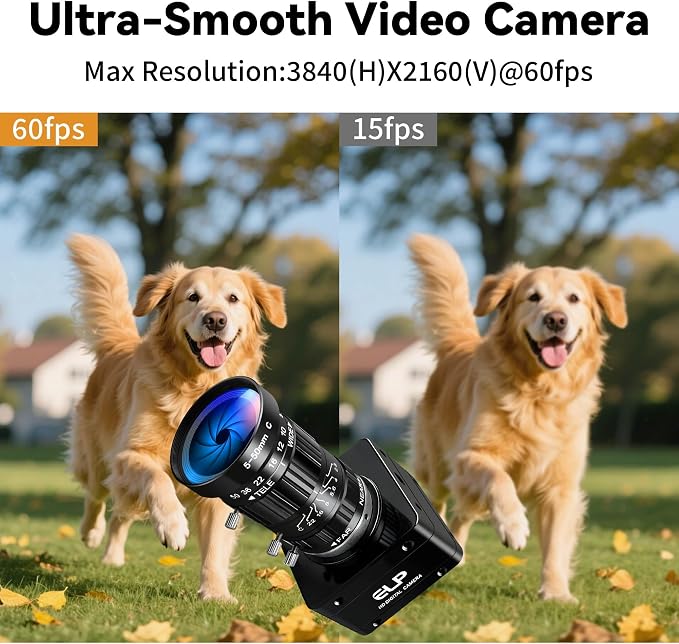

1: Excellent 60fps high speed performance: The 3840x2160 MJPEG 60fps/ YUY2 23fps high-speed mode is the real win here.

2: 4K @60fps Motion looks smooth and clear, and it’s actually usable for analyzing quick movements.

3: Solid image quality: In good lighting, the picture is crisp with nice detail. It’s a small sensor camera, but it punches above its size when you give it enough light.

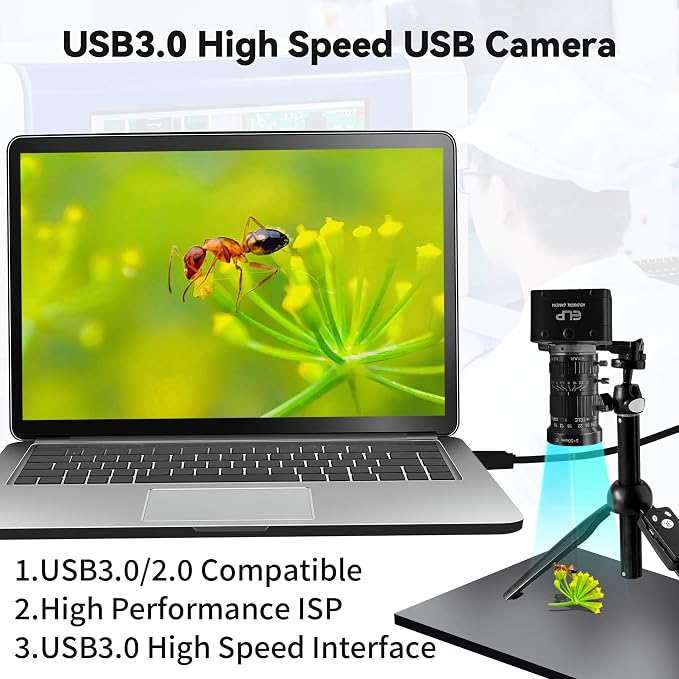

4: USB 3.0 support: When you’re pushing higher resolutions/frame rates, the USB 3.0 connection makes a noticeable difference in stability and throughput.

A couple of practical notes:

Like most high-speed cameras, lighting matters?you’ll get the best results with bright, even light.

Depending on your computer and software, you may need to dial in resolution/FPS settings to match what your system can sustain (totally normal for high-frame-rate capture).

SPECIFICATION:

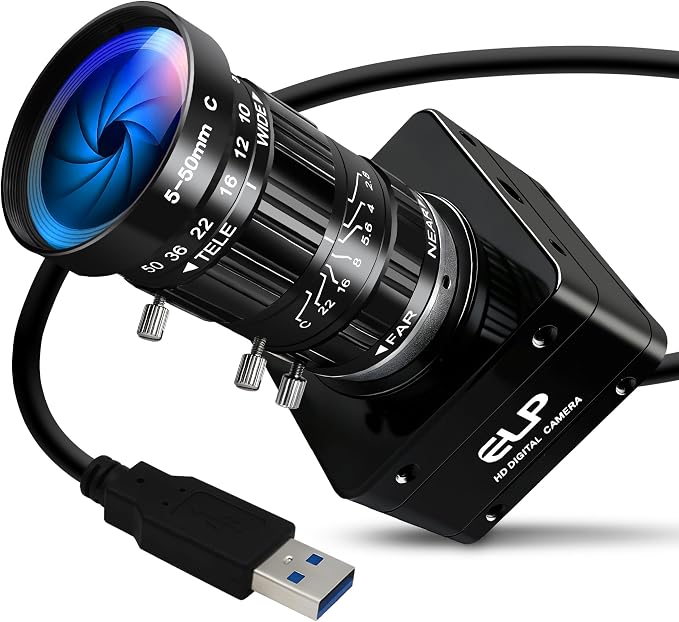

*aluminum mini case, CS mount

*5-50mm megapixel varifocal lens, 1.5m Type C USB 3.0 cable

Max / Default Resolution:3840H) x 2160(V)

Video Compression:MJPEG / YUY2(YUYV)

Shutter Type: Electronic rolling shutter / Frame exposure

Connecting Port Type: USB 3.0 Interface

Power Supply & Interface:USB Type-C Power Supply, Type-C

With 1.2m cable with USB3.0 Type-C port

DC 5V, Power current 180-260mA

Working Temperature: -10°C to 65°C

Operating System Request：

Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.

Resolution & Frame Rate:

(USB 3.0 Interface & Speed) Under USB 3.0 Interface & Speed:

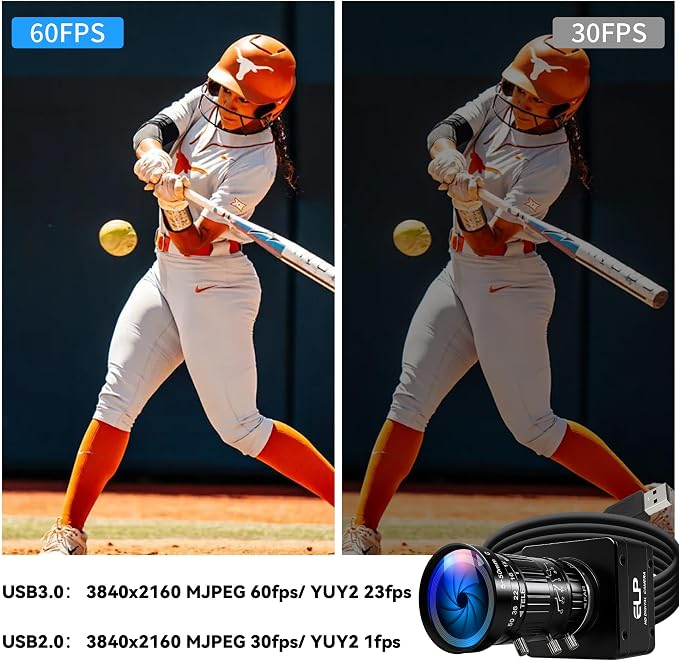

3840x2160 MJPEG 60fps/ YUY2 23fps 2880x2160 MJPEG 60fps/ YUY2 30fps

2592x1944 MJPEG 60fps/ YUY2 30fps 2560x1440 MJPEG 60fps/ YUY2 30fps

2048x1536 MJPEG 60fps/ YUY2 60fps 1600x1200 MJPEG 60fps/ YUY2 60fps

1920x1080 MJPEG 60fps/ YUY2 60fps 1280x960 MJPEG 60fps/ YUY2 60fps

1280x720 MJPEG 60fps/ YUY2 60fps 640x480 MJPEG 60fps/ YUY2 60fps

Resolution & Frame Rate:

(USB 2.0 Speed) Under USB 2.0 Speed:

3840x2160 MJPEG 30fps/ YUY2 1fps 2880x2160 MJPEG 30fps/ YUY2 1fps

2592x1944 MJPEG 30fps/ YUY2 1fps 2560x1440 MJPEG 30fps/ YUY2 1fps

2048x1536 MJPEG 30fps/ YUY2 1fps 1600x1200 MJPEG 60fps/ YUY2 1fps

1920x1080 MJPEG 60fps/ YUY2 1fps 1280x960 MJPEG 60fps/ YUY2 1fps

1280x720 MJPEG 60fps/ YUY2 10fps 640x480 MJPEG 60fps/ YUY2 30fps

Central Definition: 1000LW/PH(Center)

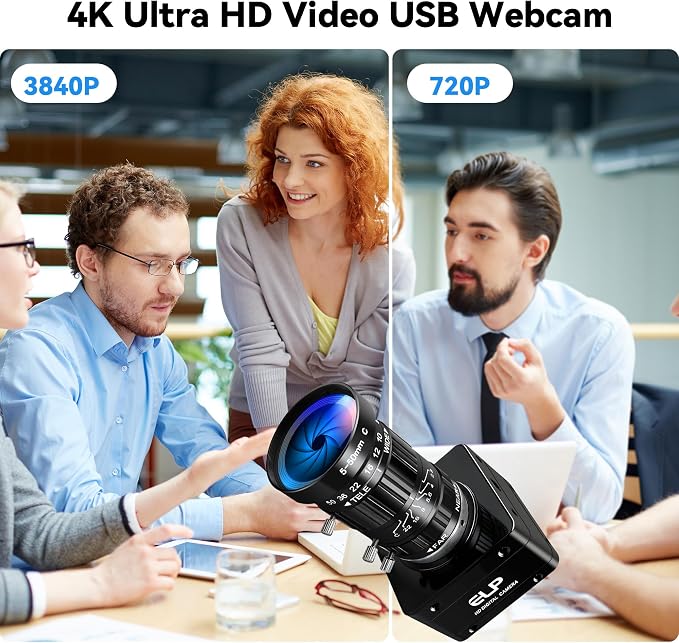

This 2160P 4k high resolution ensures that even still shots are crisp and detailed.

Whether you're using it for a 3D printer monitor, a Lightburn setup, or a Jetson Nano project,

especially the 60fps@2160P, which is perfect for motion analysis or high-speed DIY projects.

Support Multi System & Software

-No driver required, plug and play

- Support Live Streaming Software, Skype, Zoom, Facetime, Youtube...

- Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2...

- Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS...

Detailed Features：

4K High Resolution USB Webcam with 1/1.8” CMOS IMX678 Sensor Manual Zoom USB Camera Free driver Plug and Play.

1. High resolution 4K USB Camera with IMX678 Image Sensor.

2. Super high resolution 3840x2160 MJPEG 60fps/ high resolution.

3. UVC free driver, USB3.0/USB2.0 Plug and Play.

4. 1.5m Type C USB 3.0 cable.

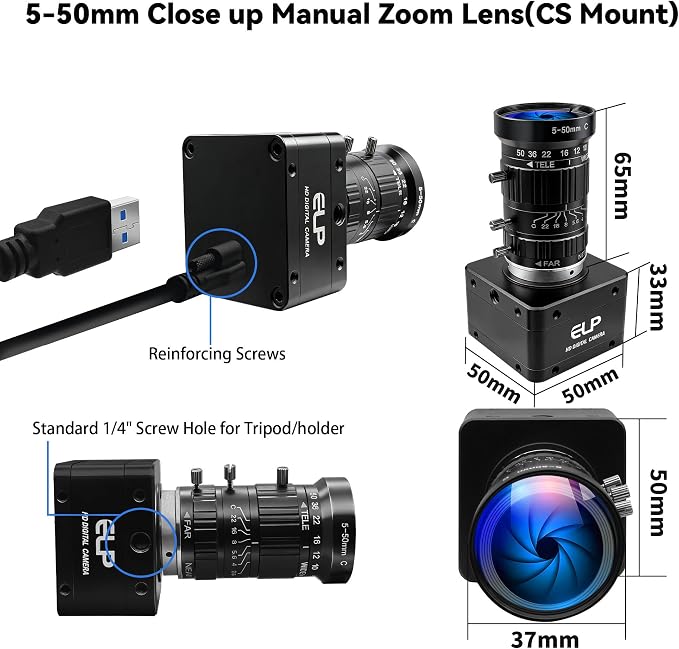

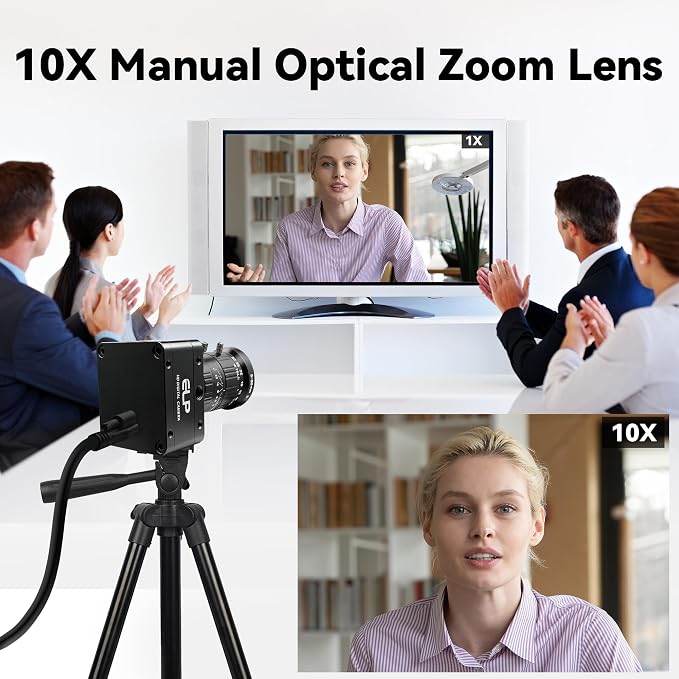

5. With CS Mount, 5-50mm 10X Varifocus Close up Manual Lens.

6. Support different operating systems, compatible with different softwares
