USB2.0 UVC Camera Module 1M Global Shutter Mono Sensor OV9281 720p 120fps with UVC Driver External Trigger Strobe for Raspberry Pi Jetson Nano Computers Windows Linux Android Mac OS

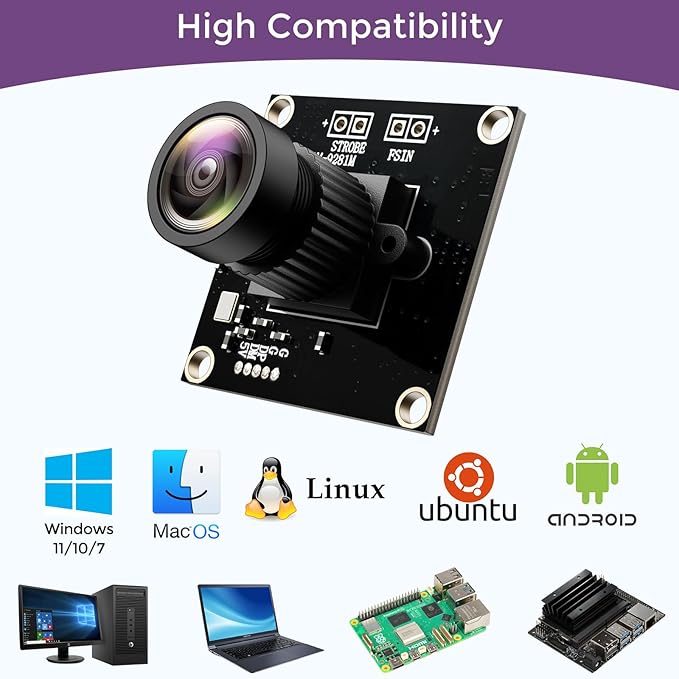

- 【High-Speed Global Shutter Camera】Equipped with 1MP OV9281 mono sensor and global shutter technology, delivers 720p at 120fps. Captures crisp, distortion-free images of fast-moving objects, ideal for machine vision and industrial applications. - 【Universal UVC USB2.0 & USB3.0 Support】Plug-and-play UVC camera module with built-in driver. Compatible with both USB2.0 and USB3.0 interfaces, supporting Windows, Linux, Mac OS, Android, Raspberry Pi, and Jetson Nano. - 【External Trigger & Strobe Function】Features hardware external trigger mode and strobe output pins for precise capture control and perfect synchronization with external lighting. - 【Easy Connection with 2.0mm Headers】Simplifies external circuit connections. Accessible trigger and strobe pins enable quick prototyping and integration for developers. - 【Wide 148° M12 Lens】Fixed-focus M12 lens provides 148-degree field of view, ensuring broad coverage for surveillance, robotics, and computer vision applications.

Product description

U20CAM-9281M UVC USB 2.0 Standard Camera

Superior Performer

USB 2.0 Port

Wide Angle Lens

Optional Aluminum Alloy Case

External Trigger Function

Strobe Function

Module Specification

Lens Specification:

USB2.0 UVC Camera

1MP Global Shutter Mono sensor external trigger 120fps 1280x800

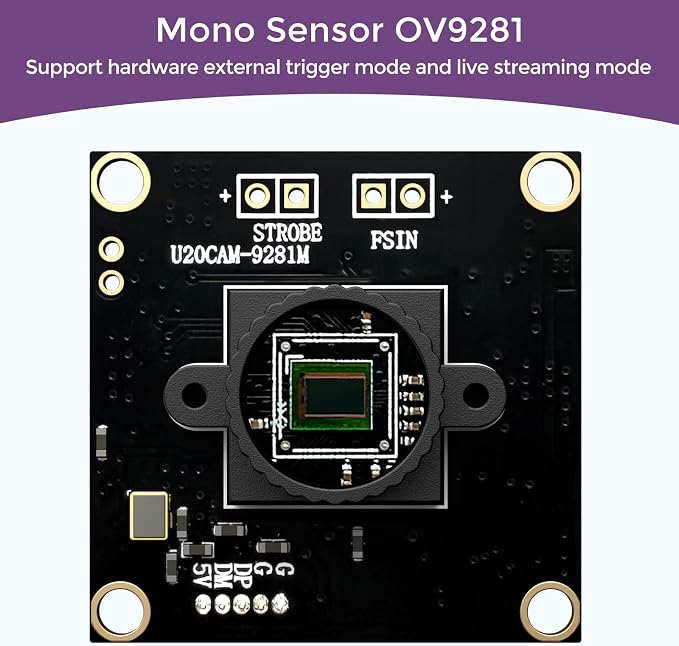

1/4’’ OV9281 CMOS sensor,1 Mega Pixel,1280(H) x 800(V),3μm*3μm,Monochrome (black/white image)

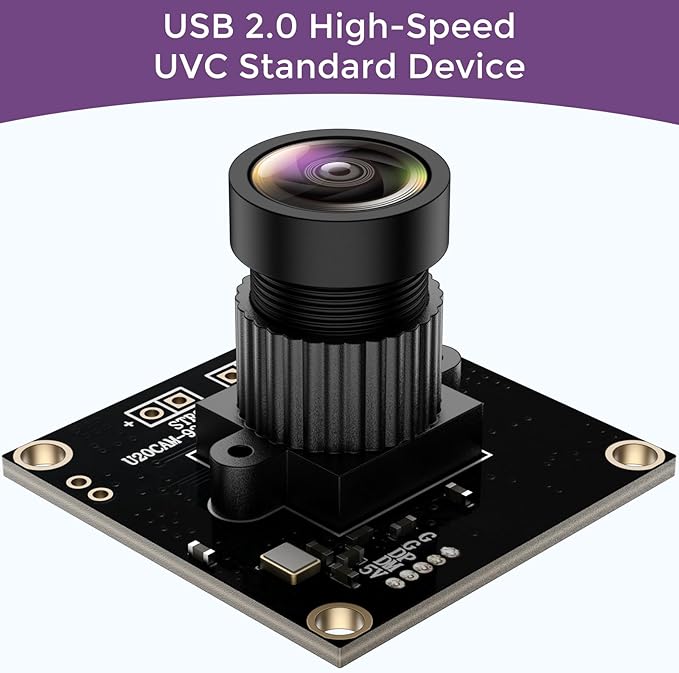

Plug and Play USB 2.0 High-speed and UVC standard device.

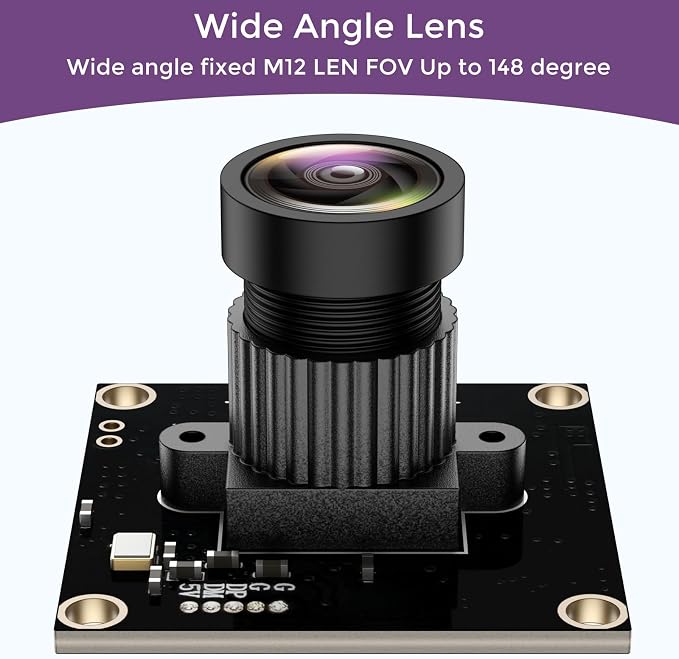

Featured with wide angle fixed M12 LEN FOV Up to 148 degree.

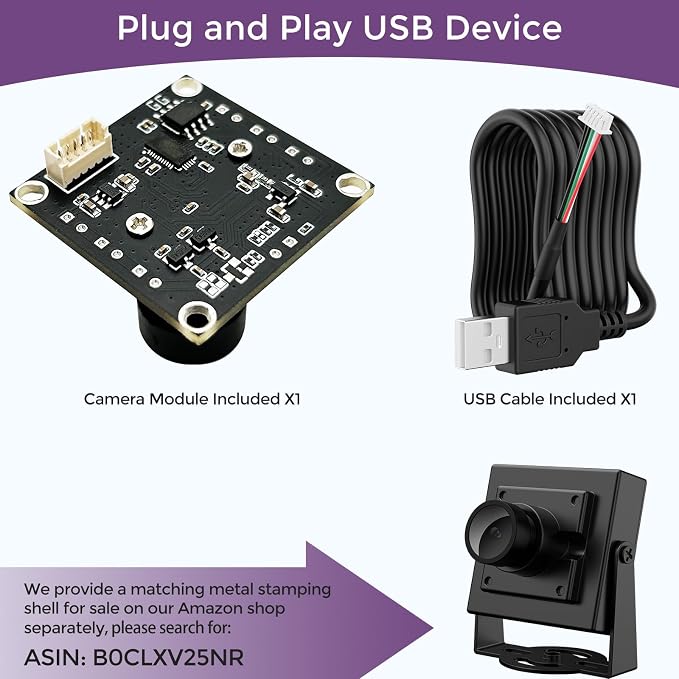

If you need a solid housing cover case, please refer to B0CLXV25NR.

PINS Description

PINS Description
