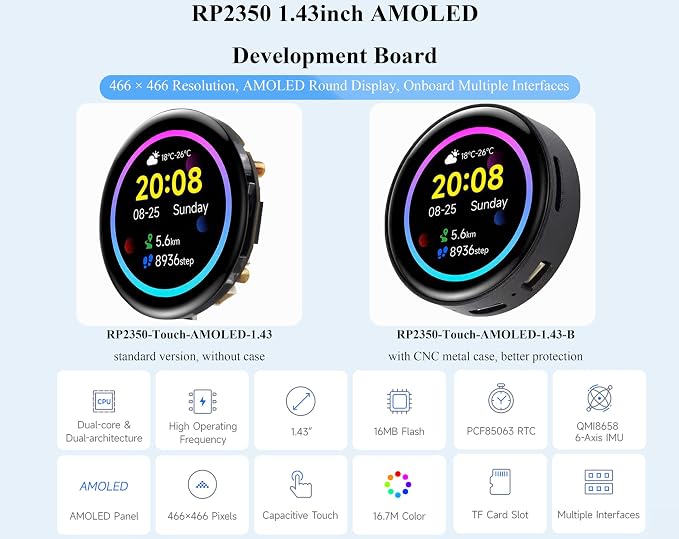

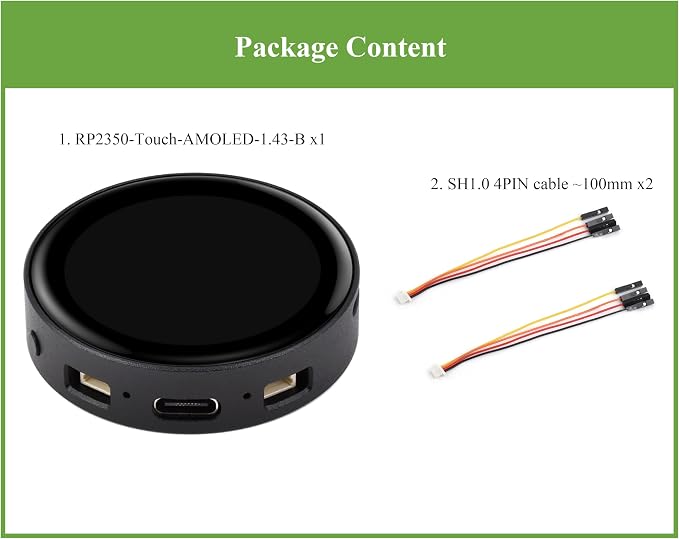

RP2350 1.43inch AMOLED Touch Display Development Board 466x466 SPI Interface Round Display Onboard Accelerometer and Gyroscope Sensor USB UART I2C and GPIO etc. with CNC Metal Case

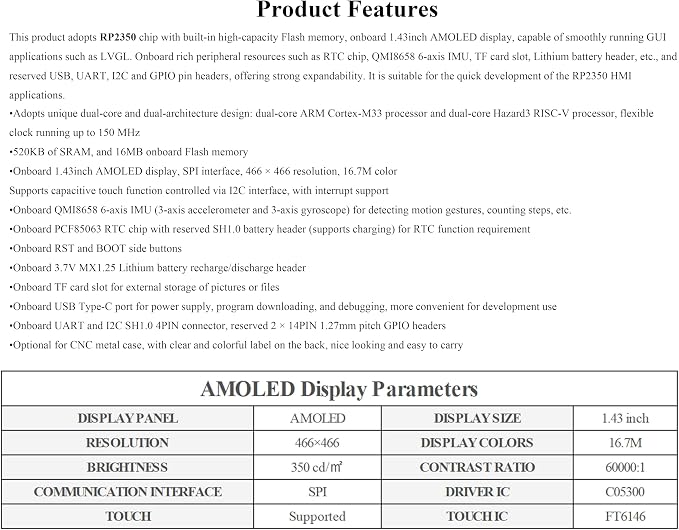

- It adopts RP2350 chip with built-in high-capacity Flash memory, dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory.
- Onboard 1.43inch AMOLED display, SPI interface, 466 x 466 resolution, 178° wide viewing angle, 16.7M color, capable of smoothly running GUI applications such as LVGL. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image.

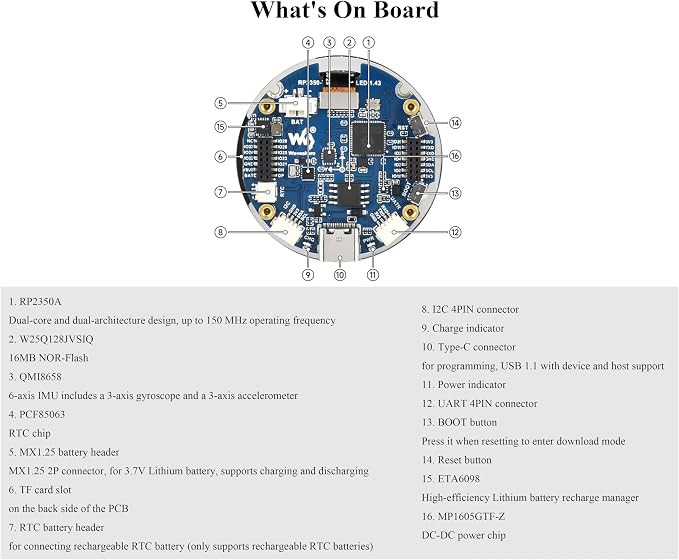

- Onboard rich peripheral resources such as R-T-C chip, QMI8658 6-axis IMU, TF card slot, Lithium ba|tte|ry header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 R-T-C chip with reserved SH1.0 ba|tte|ry header (supports charging) for R-T-C function requirement. Onboard 3.7V MX1.25 Lithium ba|tte|ry recharge/discharge header.

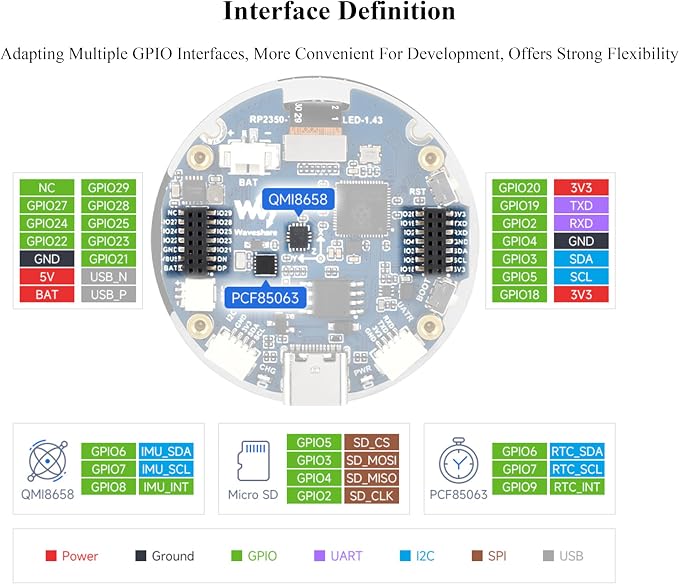

- Onboard RST and BOOT side buttons. Onboard TF card slot for external storage of pictures or files. Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch GPIO headers.
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/dlco8
