QIANRENON USB3.0 Male to Female Threaded Fixing Adapter - Waterproof Round Converter for USB Data Transfer &amp Charging

- 【USB3.0 Male to Female】USB3.0 Male to Female Threaded fixing Mounting socket.Converts USB3.0 male to USB3.0 female input and output, providing a stable data transfer and charging environment. - 【Nut fixing】USB3.0 plug to socket Panel Mount Round adapter. Equipped with M24 x 1.5 nut, simply cut a φ25mm hole on the board surface and fix it by the nut to achieve USB3.0 port extension. Note:Mounting plate thickness ≤ 9mm. - 【5Gbps】USB3.0 Round Data Connector Mounting socket. Data transfer speed up to 5Gbps, supports 5V/1A charging, backwards compatible with USB2.0. - 【Waterproof/Dustproof】USB3.0 male to female Threaded fixed Mount Waterproof connector. With waterproof and dustproof cap to protect the inside of the port from rain, dust or foreign objects. - 【Sturdy Durable】USB3.0 threaded fixing Round connector socket. A reinforced and easy-to-install USB connection system with a zinc alloy housing, rugged enough to meet the needs of the home or certain harsh industrial environments.

Product description

USB 3.0

USB 3.0

Charging

Panel Mount

Panel Mount

Panel Mount

Panel Mount

Application

USB3.0 Male to Female Threaded Fixing Adapter

5Gbps USB3.0 Plug to Socket Round Waterproof Converter

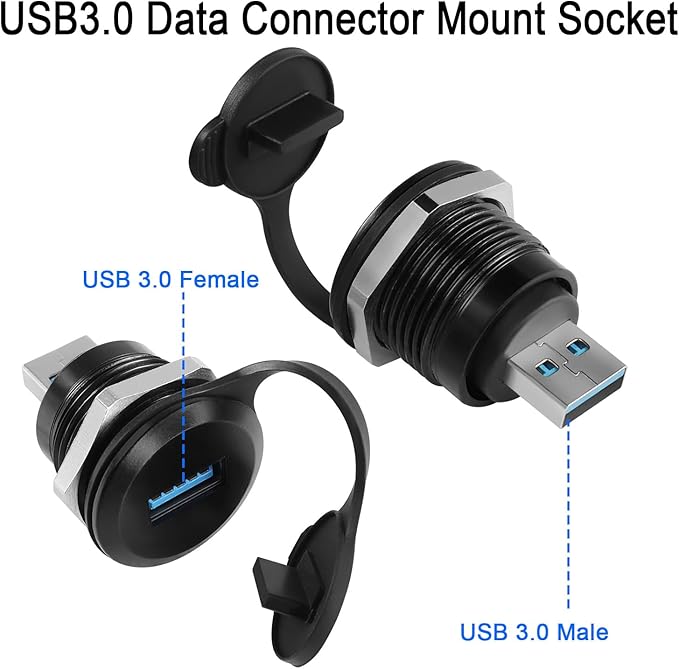

USB3.0 Data Connector Mount Socket

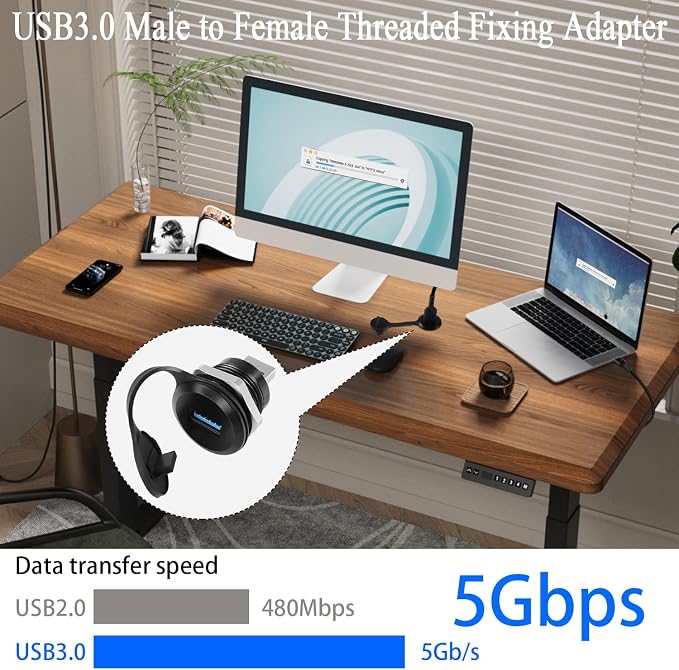

USB3.0 Round Data Connector Mounting socket, compliant with the standard USB 3.0 version, data transfer speed up to 5Gbps, allowing you to easily transfer files in seconds, backward compatible with USB 2.0/USB 1.0

USB3.0 plug to socket Panel Mount Round adapter, charging power up to 5V/1A, precise connection for safer charging

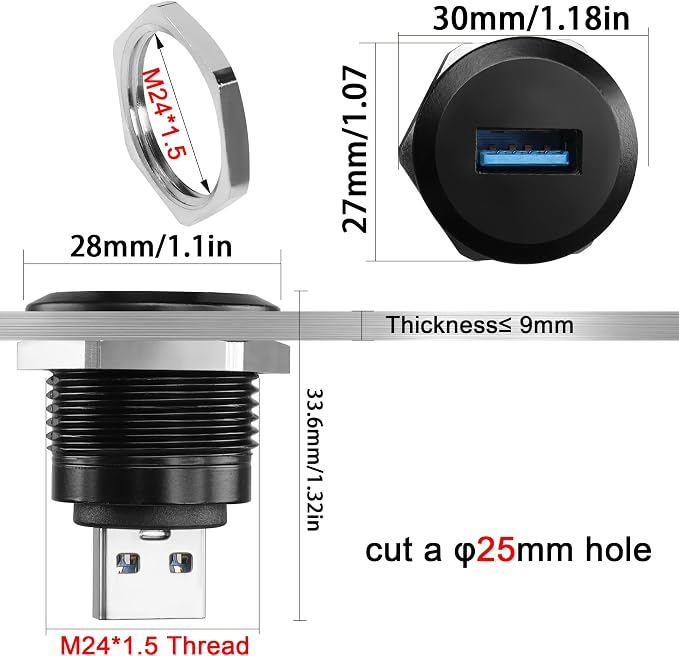

Equipped with M24 x 1.5 nut, simply cut a φ25mm hole on the board surface and fix it by the nut to achieve USB3.0 port extension. Note:Mounting plate thickness ≤ 9mm.

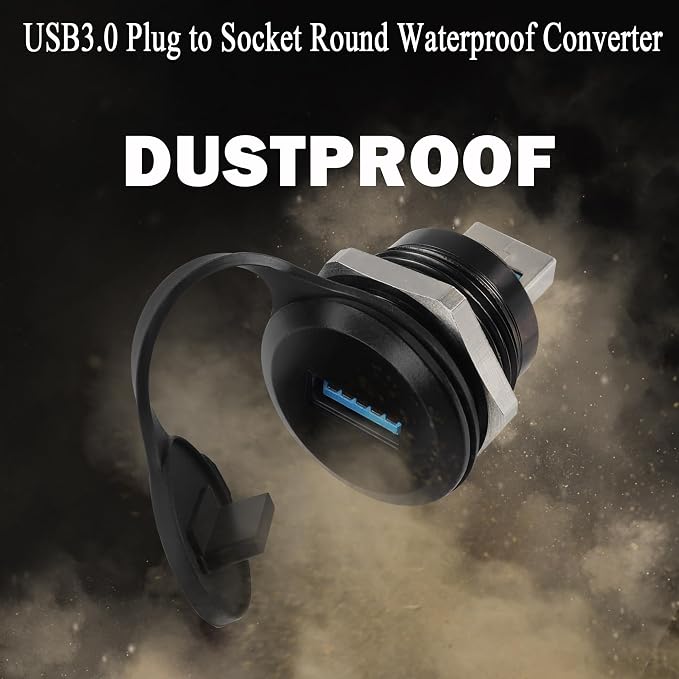

USB3.0 male to female Threaded fixed Mount Waterproof connector. With waterproof cap to protect the inside of the port from rain, dust or foreign objects.

USB3.0 Female to Male Threaded fixing Mounting socket adapter, when the product is not in use, the dust cover can be closed to prevent dust or debris from contaminating the unit and causing inaccurate connections.

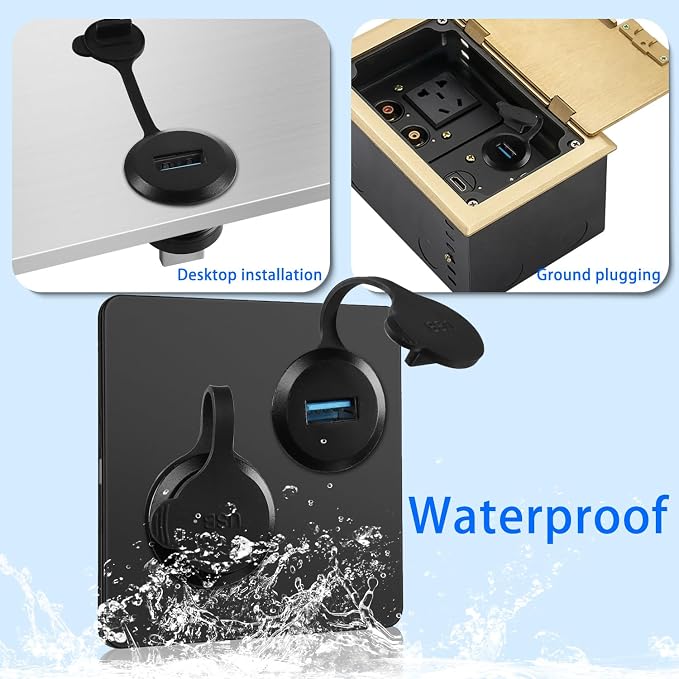

USB3.0 male to female Thread fixing Round connector. suitable for installation in rack, cabinet, equipment panel, desktop, wall, floor plug.

Used for computer, home, office, automation, medical, smart home and other USB3.0 to USB C port conversion expansion

USB3.0 male to female Thread fixing Round connector, suitable for installation in rack, cabinet, equipment panel, desktop, wall, floor plug.

Used for computer, home, office, automation, medical, smart home and other USB3.0 to USB C port conversion expansion

USB3.0 male to female Thread fixing Round connector, suitable for installation in rack, cabinet, equipment panel, desktop, wall, floor plug.

Used for computer, home, office, automation, medical, smart home and other USB3.0 to USB C port conversion expansion

USB3.0 threaded fixing Round connector socket, suitable for installation in rack, cabinet, equipment panel, desktop, wall, floor plug.

Used for computer, home, office, automation, medical, smart home and other USB3.0 to USB C port conversion expansion

Computer case

Desk plug

86 Panel

Desktop

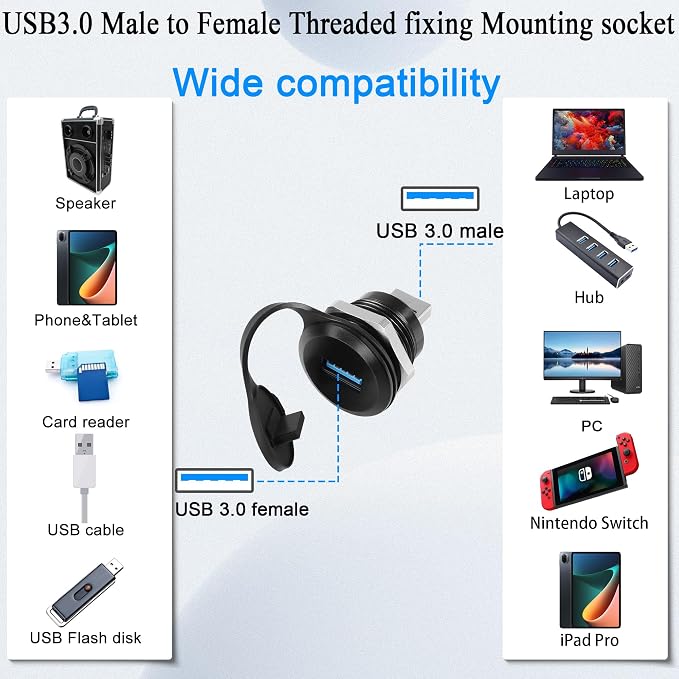

USB3.0 Round Data Connector Mounting socket, for data transfer and charging of cell phones, computers, storage devices, digital cameras, audio/video devices or connecting to USB peripherals such as printers, keyboards, mice.

Port A: USB3.0 male

Port B: USB3.0 female

Transfer speed: 5Gbps

Charging power: 5V/1A

Features: Threaded fixed installation

Thread size: M24*1.5

Mounting plate thickness: ≤9mm (0.35in)

Mounting hole diameter: φ25mm (φ0.98in)

Housing: Zinc alloy
