PSU ATX Breakout Board Benchtop DC 12V 5V 3.3V DIY Power Splitter with Fuse | 20Pin 24Pin Mod Connector with USB and Multi 12V Rail Output Ports PC Desktop Supply Distributor for Electronics Enthusia

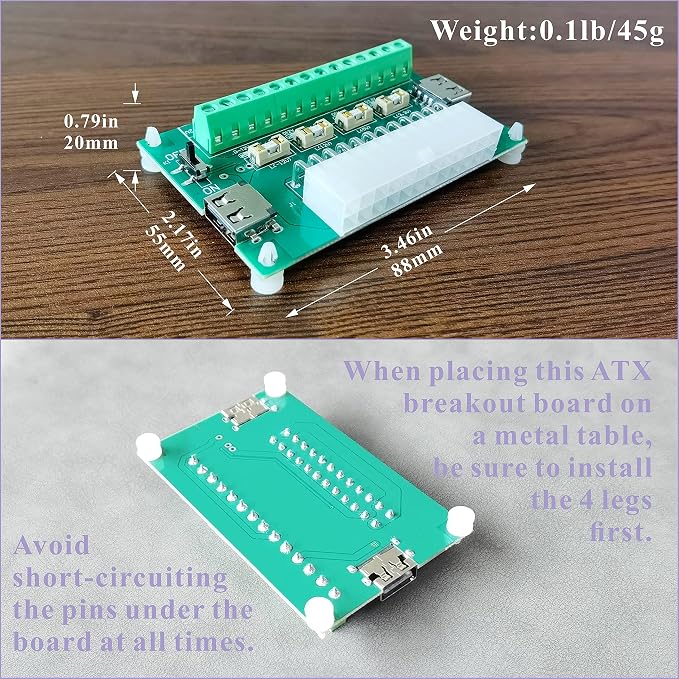

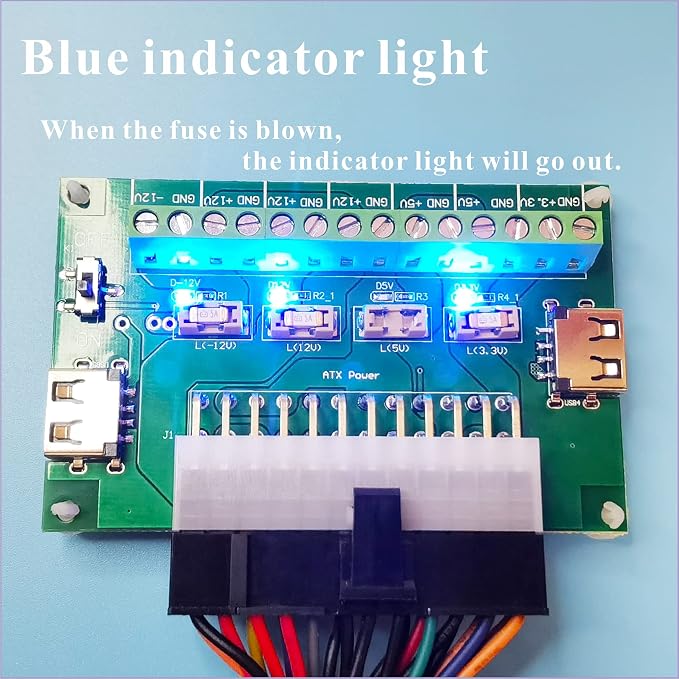

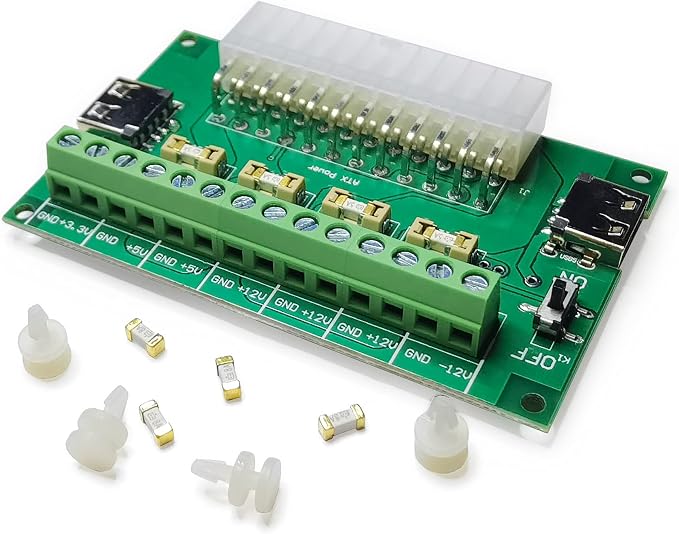

- 【24pin 20pin】Compatible with full 24-pin and 20-pin ATX mains. When inserting 20 pin, please align to the right. Different server PSU may provide different maximum currents. - 【Fuse】Yaotech Advanced Technology Extended conversion connector is equipped with 5A and 8A high amp fuses for your choice, one more protection is safer and necessary. Electronic enthusiasts can modify it with soldering tools too. - 【Ports】This PC power supply unit Hub has direct current 12V*3, 5V*2, 3.3V*1, -12V*1, USB-A 5V*2 voltage output ports. It can be used for high amperage led desk lamp, smart phone charging, just normal charging, fast charging is not supported, electric toy charging, student handmade items for school, electronic learning & education project, etc. - 【Indicator Lights】This PSU converter has independent switch and 4 blue indicator lights to indicate 4 voltage output ports. When the fuse is blown, the corresponding indicator light will go out. - 【Feet】We provide 4 insulated feet, when you need to put the pcb board on the metal table, you can install insulated feet to avoid short circuit.

Product description

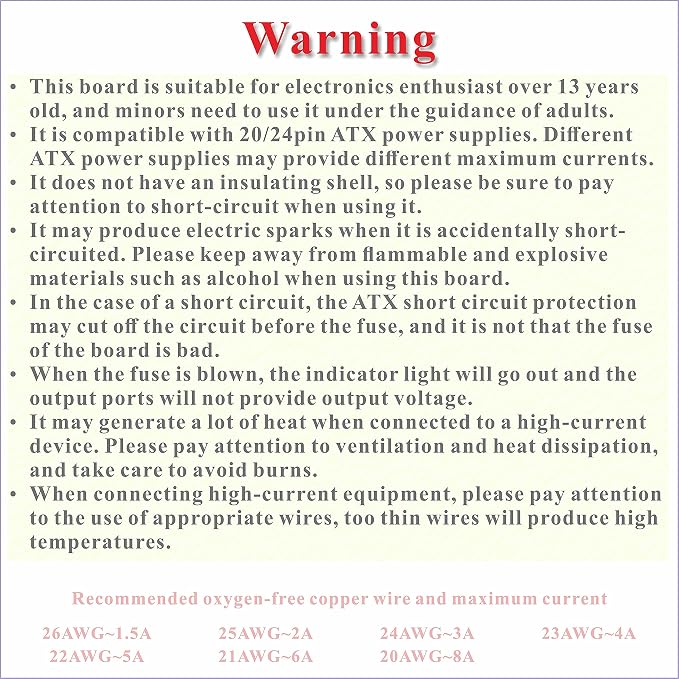

Warning

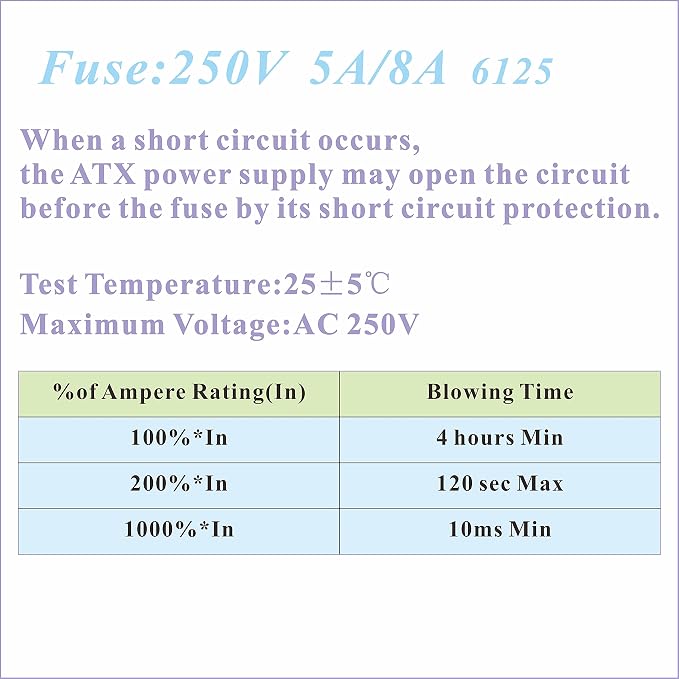

Wire & Fuse

At room temperature of 77±9℉ / 25±5℃

Recommended oxygen-free copper wire and maximum current:

26AWG~1.5A / 25AWG~2A / 24AWG~3A / 23AWG~4A / 22AWG~5A / 21AWG~6A / 20AWG~8A

When connecting high-current equipment, please pay attention to the use of appropriate wires, too thin wires will produce high temperatures.
