PEMP Ultra-Thin 12.3 for BMW i3 l01 NBT (2013-2017) Wireless and Wired CarPlay Android Auto Screen Calls Using The OEM Bluetooth

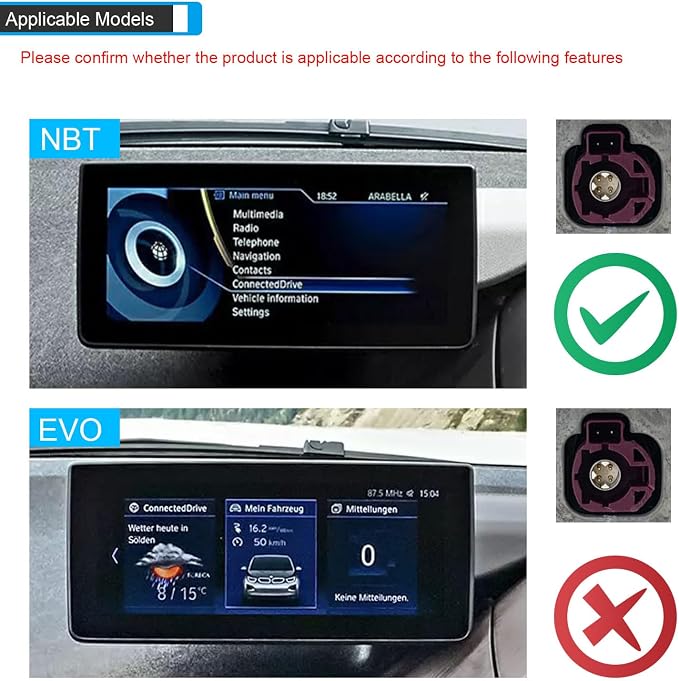

- [ULTRA-THIN] Using Ultra-thin process, the screen-to-body ratio reaches 82.3%, 12.3" large display; metal material shell and Non-Airgap process, the picture quality image is more realistic. - [SUPPORT OEM BLUETOOTH] Supports wireless and wired CarPlay and Android Auto, you can use the original car microphone to make calls when using CarPlay and Android Auto. No echo and high quality sound. - [SPECIAL ATTENTION] Please focus on checking your original system. The product is not suitable for installation on cars with 4PIN CIC system and 6PIN EVO system. The 2017 model year is currently in a system transition phase, and some models will be equipped with the EVO system, which is incompatible with this screen. Please contact us to confirm before purchasing. - [QUICKLY] With Linux System, You Can Get CarPlay or Android Auto Interface Quickly; In 2 Seconds You Can Get Reverse Camera Video. - [PRECAUTIONARY NOTE] Does not support aftermarket cameras that exceed 720P AHD format. Supports up to 720P offline video. Screen does not support 4G and GPS. Installing applications is not supported.

Product description

Featured Functions

Why can't get OEM car info and Sound?

Metal Casing and Ultra-thin Panel

Use the OEM Bluetooth to Calling in CarPlay Android auto

Move the original host fiber optic cable to the new harness

Please connect the audio harness to the armrest box AUX IN connector

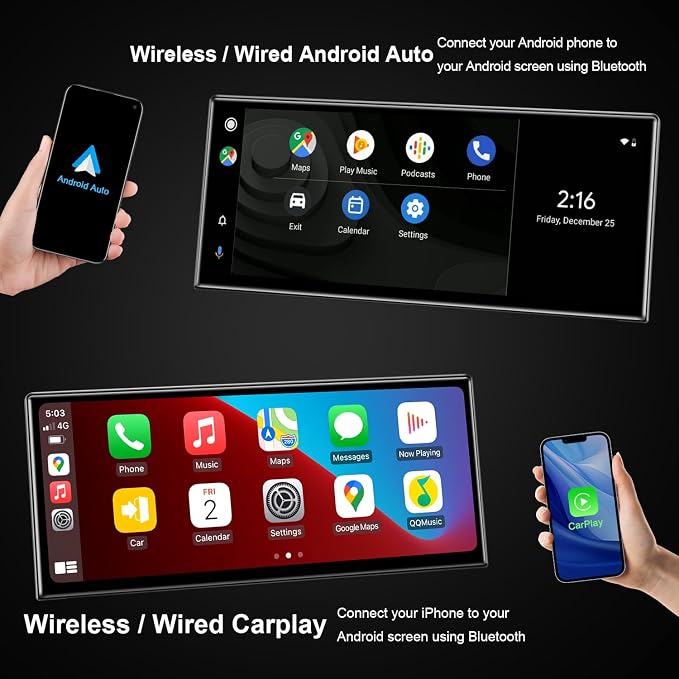

Built-in Apple CarPlay, Android Auto, Mirror Link.

Support the wired and wireless Apple CarPlay/Android Auto,/Mirror Link.

Use CARPLAY/Android Auto/Mirror Link USB for wired connections.

82.3% screen-to-body ratio using narrow bezels.

Linux Screen Features a 12.3” Big IPS display. Wide viewing angle up to 170 degrees.

High Resolution up to 1920X720RGB.

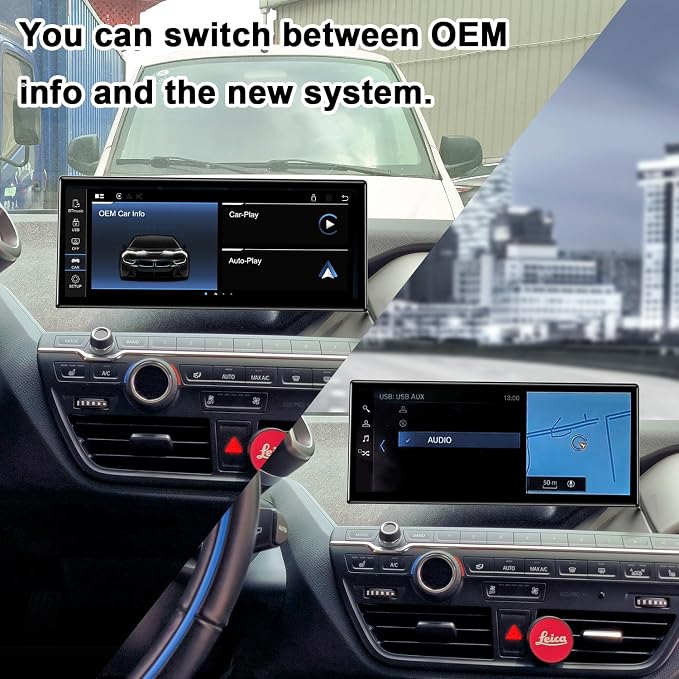

Please resolve the sound and Car OEM Car info you are currently experiencing based on the two scenarios above.

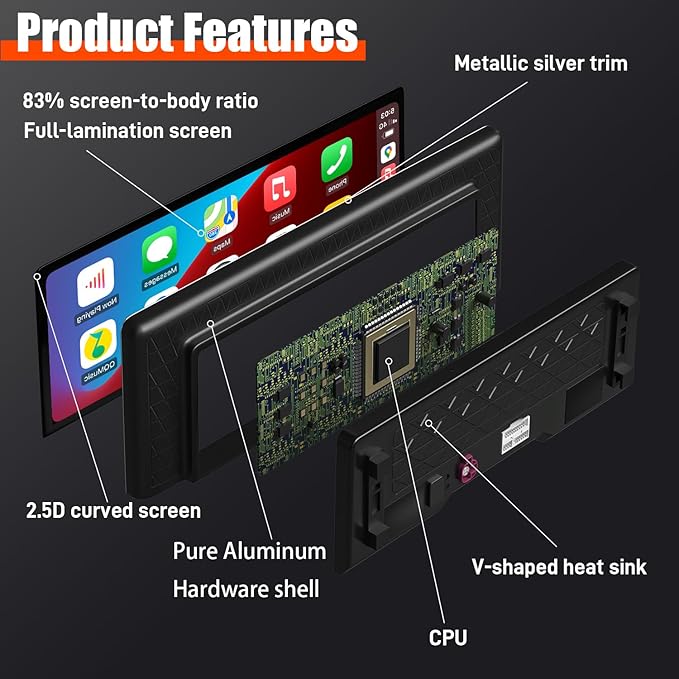

1. 13MM ultra-thin panel design, aluminum alloy material shell.

2. Narrow bezel process, screen ratio up to 82.3%.

If your car has the OEM Bluetooth, Please use the original Bluetooth to make calls when using CarPlay and Android Auto. No echo and high quality sound.

NOTE: This connection can only be used to get music sound when your vehicle has Bluetooth audio capability.

How to get sound using raw bluetooth, search on YouTube: gKqeUAbMyCs

If your OEM radio has a fiber optic cable above the power harness, Pls move it to the new harness. Otherwise you can't get the car information and the CarPlay sound. And it will be accompanied by a heartbeat wheezing sound.

If your original automotive fiber optic cable is too short, you can purchase this ASIN: B0FF9TSB9R

Fiber optic extension cable solves the problem of too short fiber optic cable.

Be sure to use USB IN 1 to connect the wired CarPlay Android auto and Mirror link function.

Please select the correct resolution for the OEM display within the settings, otherwise the OEM Car INFO may not display properly.

Setup>Car Settings> Original Car's Screen Resolution> Select the item

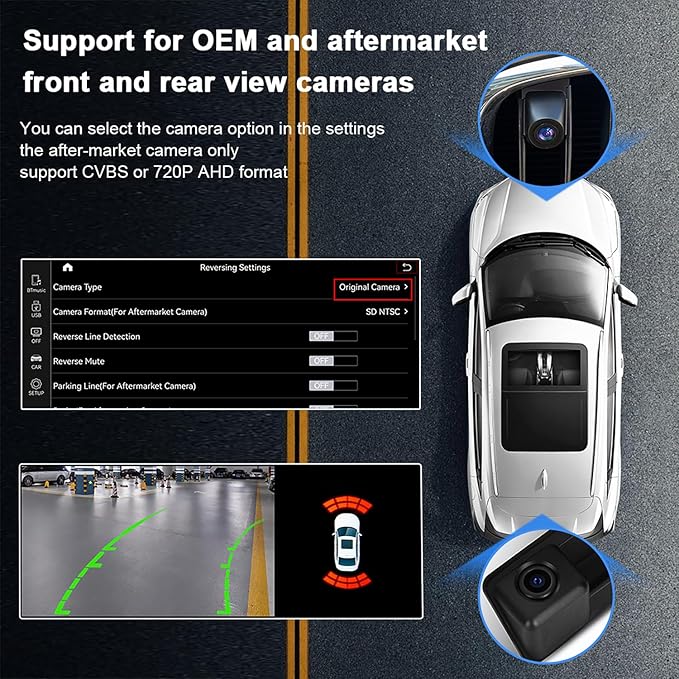

Please select the correct camera option within Settings, Select Original Camera if it is a factory camera. Select Aftermarket Camera, if you are installing an aftermarket camera.

If you have properly adapted the fiber optic harness and selected the AUX menu in the OEM interface, you still can't get CarPlay or Android auto sound. Be sure to connect the audio cable between the armrest box AUX IN and AUDIO OUT.
