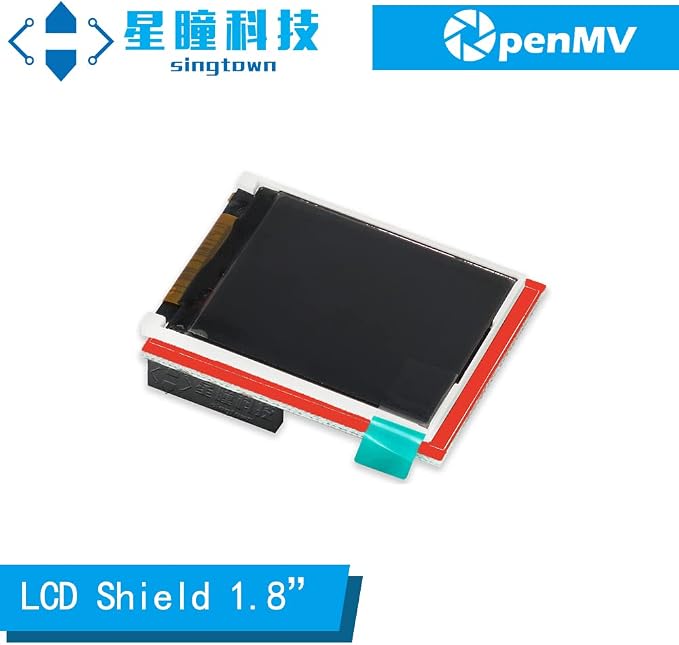

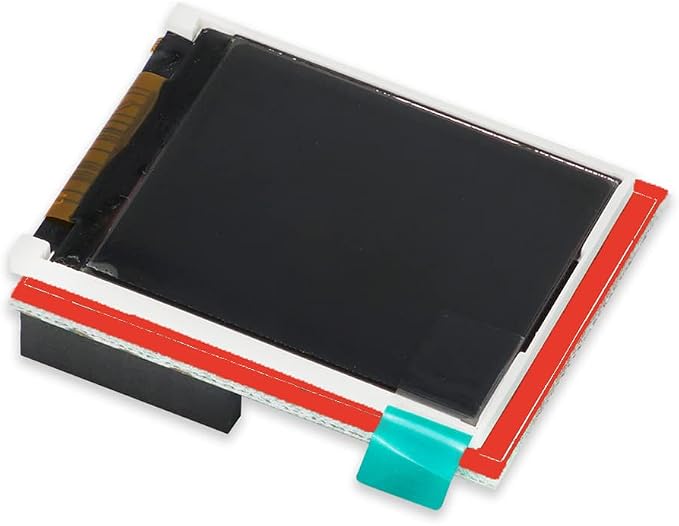

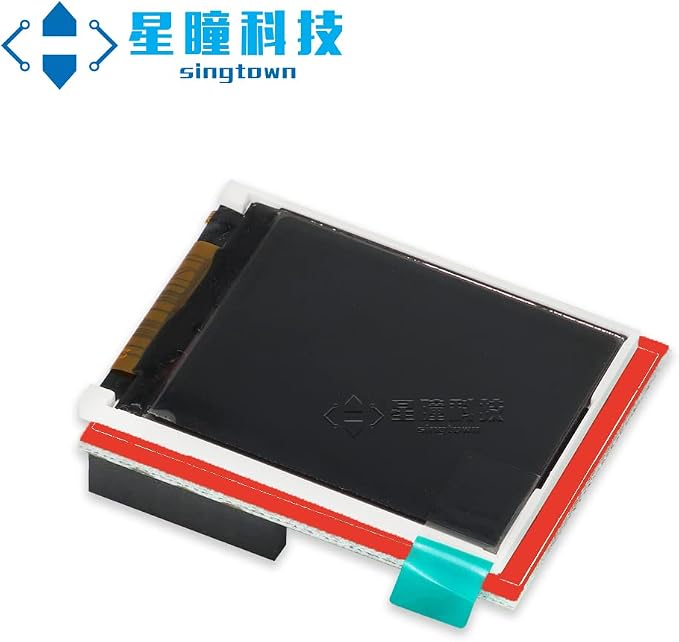

OpenMV SingTown LCD Shield 1.8 TFT Color Monitor Apply to Cam H7 Plus Cam H7 Cam M7 Cam H7 R2

- On-the-Go Display: 1.8" TFT LCD with 128x160 resolution and RGB565 support for vibrant visuals without needing a computer. - Real-Time Debugging: Perfect for field use, like viewing thresholded images during robotic tasks. - Low Power Consumption: Operates efficiently at 140mA depending on backlight use, ideal for portable applications. - Compact Design: Measures 48x38x13mm and weighs only 13g, making it easy to integrate. - Durable Build: Operates in tough conditions, with a range from -20°C to 70°C.

Product description

Pinout

Specifications

Power Consumption

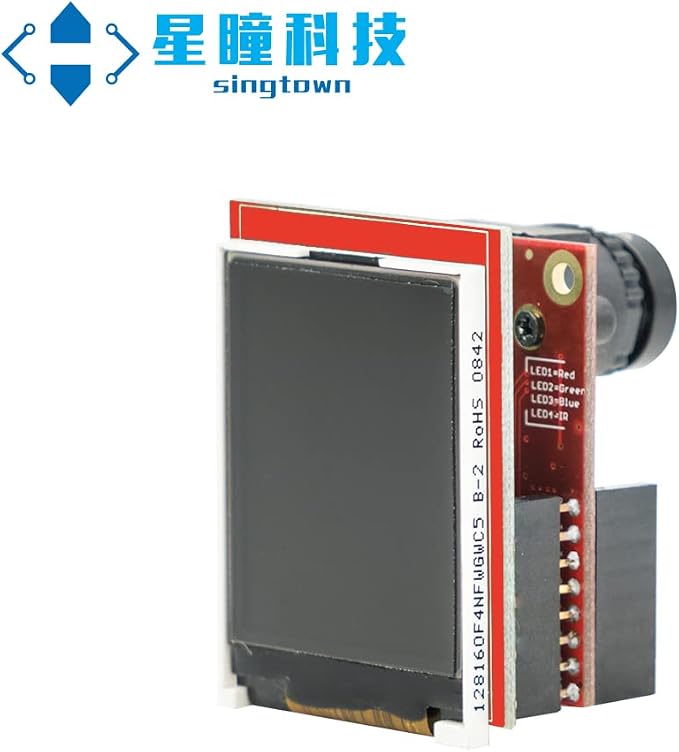

The LCD Shield gives your OpenMV Cam the ability to display what it sees on-the-go while not connected to your computer. It features a 1.8" 128x160 16-bpp (RGB565) TFT LCD display with a controllable backlight. Your OpenMV Cam's firmware has built-in support for controlling the LCD Shield using the lcd module.

Applications

The LCD Shield is great for robotic applications where you need to debug your OpenMV Cam in the field - like when debugging a line following robot. For example, you can use the LCD Shield to display the frame buffer after you've thresholded and drawn markups on an image.

8473301000

-30°C to 80°C

-20°C to 70°C
