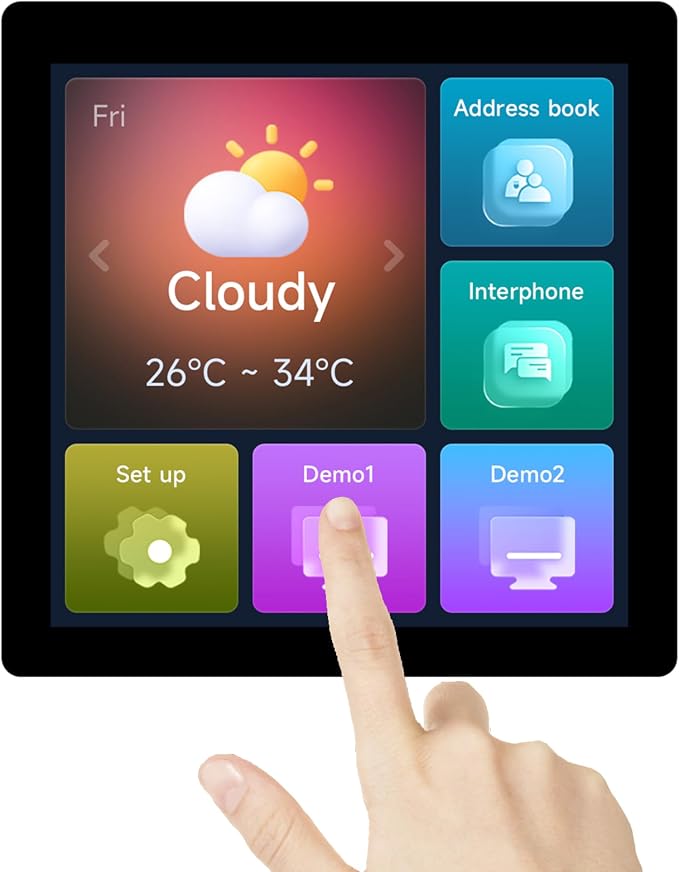

- ESP32-S3-Touch-LCD-4 is microcontroller development board onboard 4inch 480x480 capacitive touch screen, 65K color, it can smoothly run GUI programs such as LVGL. Integrates RGB interface LCD with 5-point capacitive touch, multiple peripheral interfaces
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB S RA M and 384KB ROM, with onboard 16MB Flash and 8MB P S R AM

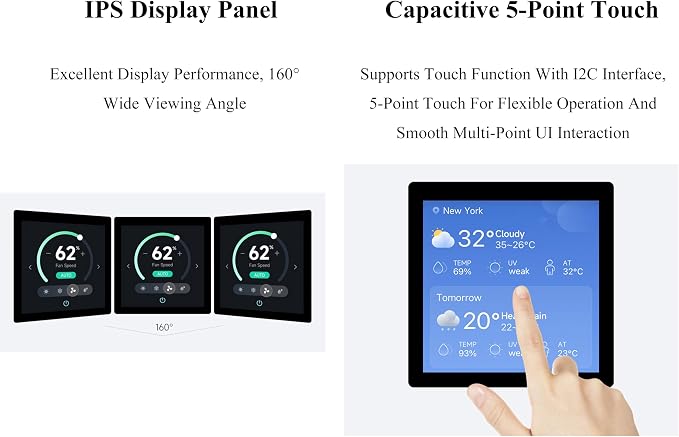

- IPS Display Panel --- Excellent display performance, 160° wide viewing angle
- Capacitive 5-point touch --- supports touch function with I2C interface, 5-point touch for flexible operation and smooth multi-point UI interaction

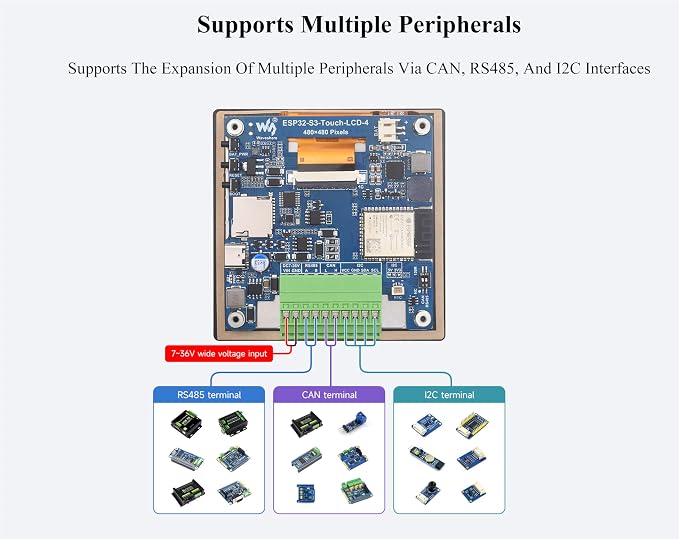

- Supports multiple peripherals --- Supports the expansion of multiple peripherals via CAN, RS485, and I2C interfaces

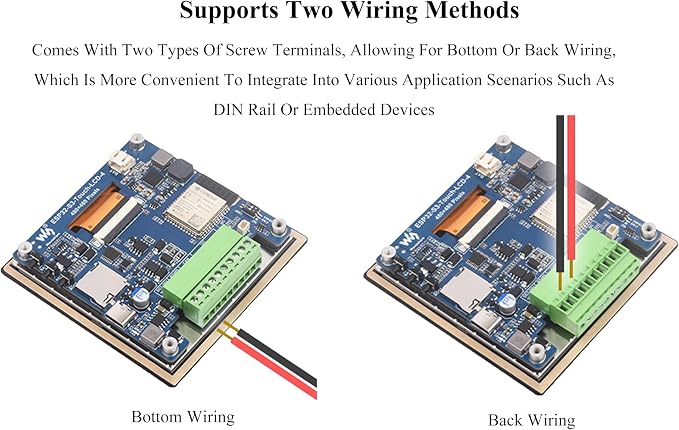

- Supports Two wiring methods --- Comes with two types of screw terminals, allowing for bottom or back wiring, which is more convenient to integrate into various application scenarios such as DIN rail or embedded devices
- Comes with Online Tutorial Usage Guide and Online Development Resource, Please check: n9.cl/8die9
Product description
Features

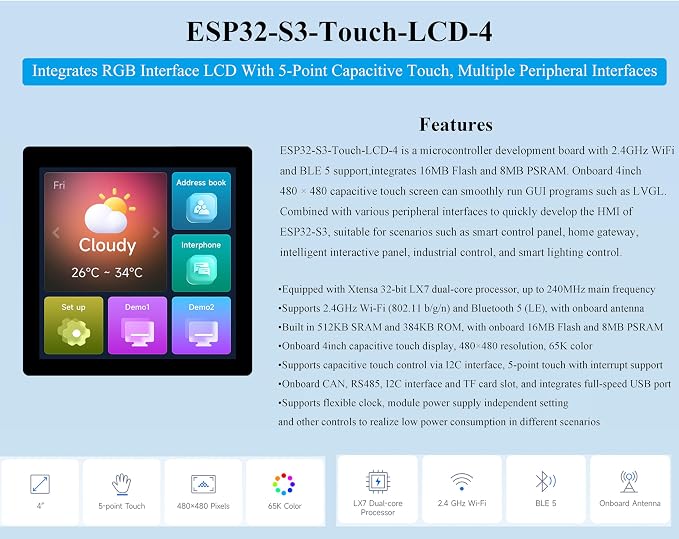

ESP32-S3-Touch-LCD-4 is a microcontroller development board with 2.4GHz W--F-i and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.
