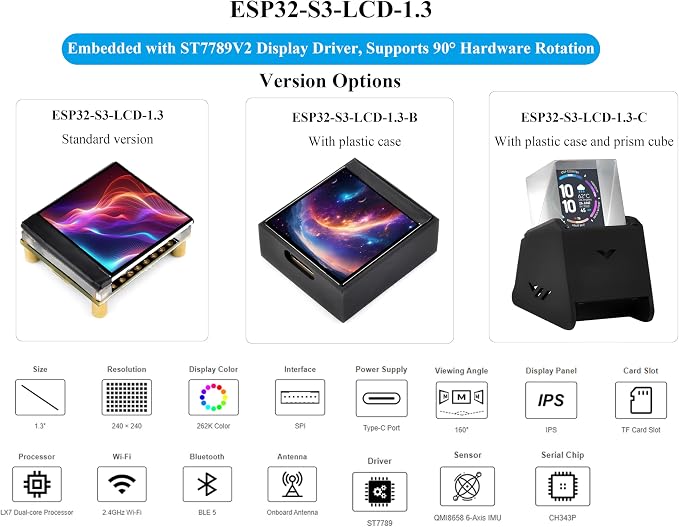

ESP32-S3 1.3inch Display Development Board ESP32 With Display 240x240 Pixels Built-in ST7789V2 & 6-Axis IMU 262K Color SPI Communication Supports 90° Hardware Rotation With Case and Prism Cu

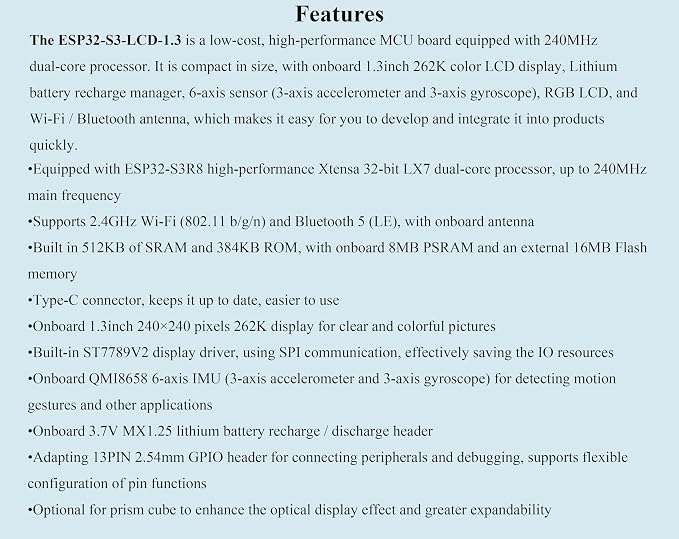

- Powerful MCU Board: Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-i--F-i (802.11 b/g/n) and Blue-tooth 5 (LE), with onboard antenna
- Storage and Memory: Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Display Features: 1.3inch 240×240 pixels 262K display for clear and colorful pictures. Support 90° Hardware Rotation, easy to adjust the display direction based on actual needs
- Display Driver: Built-in ST7789V2 display driver, using SPI communication, effectively saving the IO resources

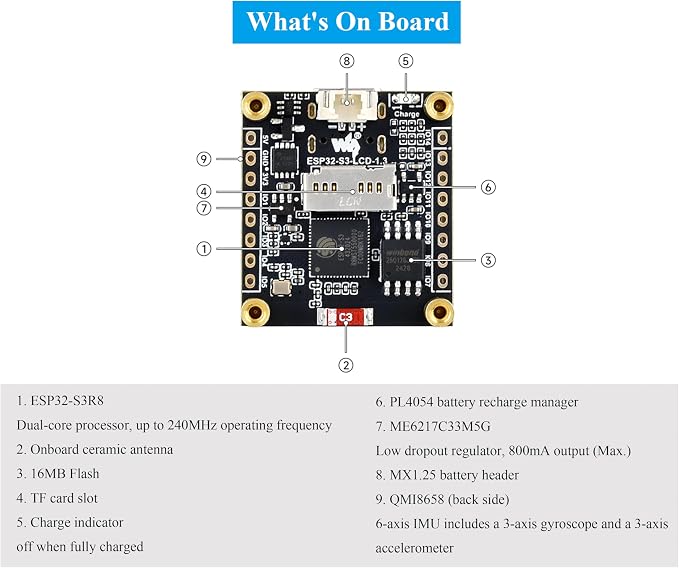

- Onboard Rich Interfaces: QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope, for detecting motion gestures and other applications), RGB LCD, and W-i--F-i / Blue-tooth antenna, which makes it easy for you to develop and integrate it into products quickly
