- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

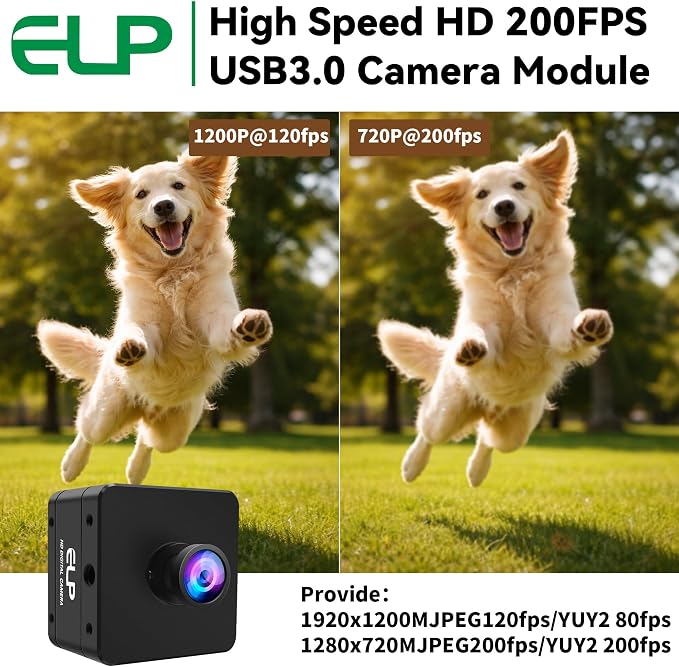

- FHD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 200fps@1280x720, YUY2 200fps@1280x720, MJPEG 120fps@1920x1200/1080P, YUY2 80fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting.

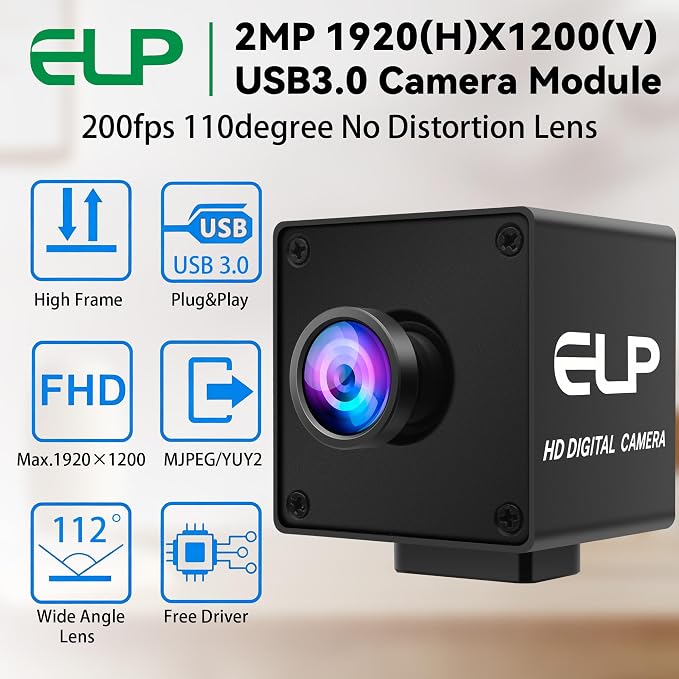

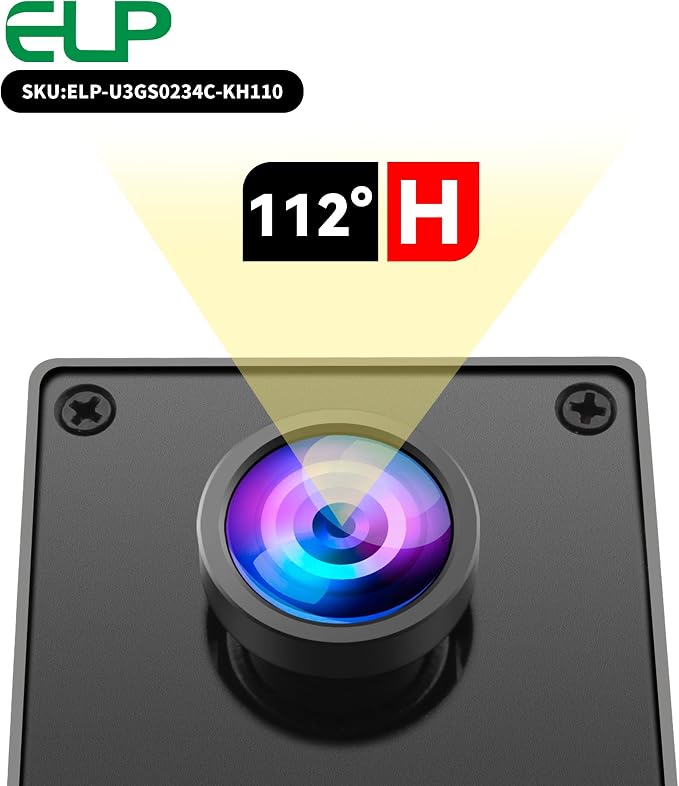

- Wide Angle 110degree no distortion lens, HFOV about 112degree, mini usb camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial.

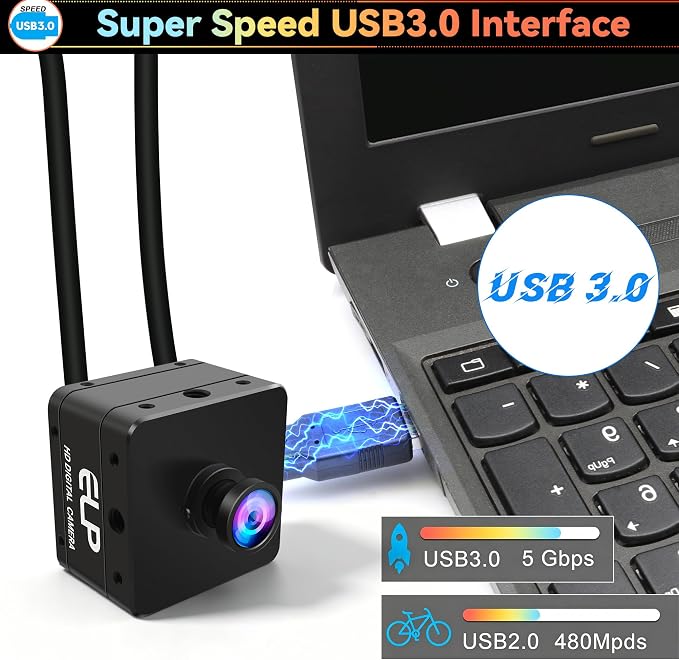

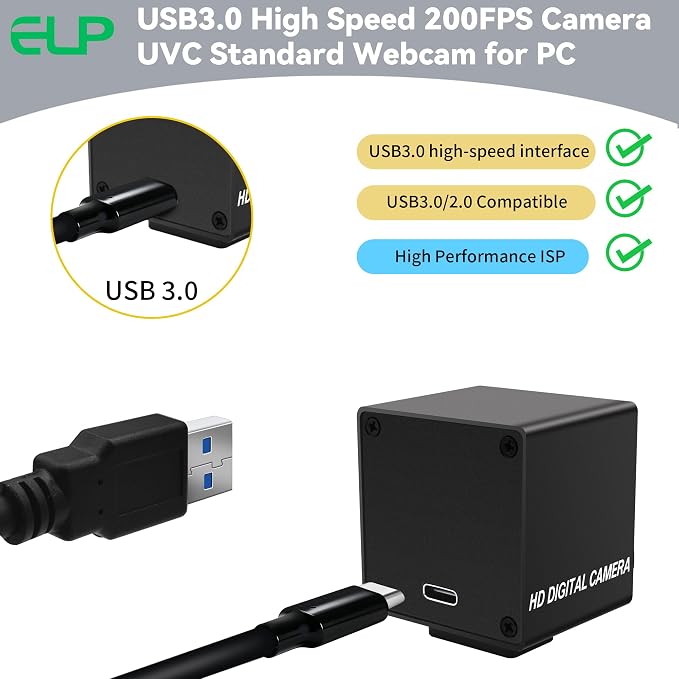

- USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP.
- Adopt high quality 1/2.6” Aptina AR0234 high quality sensor for sharp clear image.
- USB3.0 Type C connector, equipped with 1.5m Type C USB 3.0 cable, Support OTG optional.
- Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc.
- Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

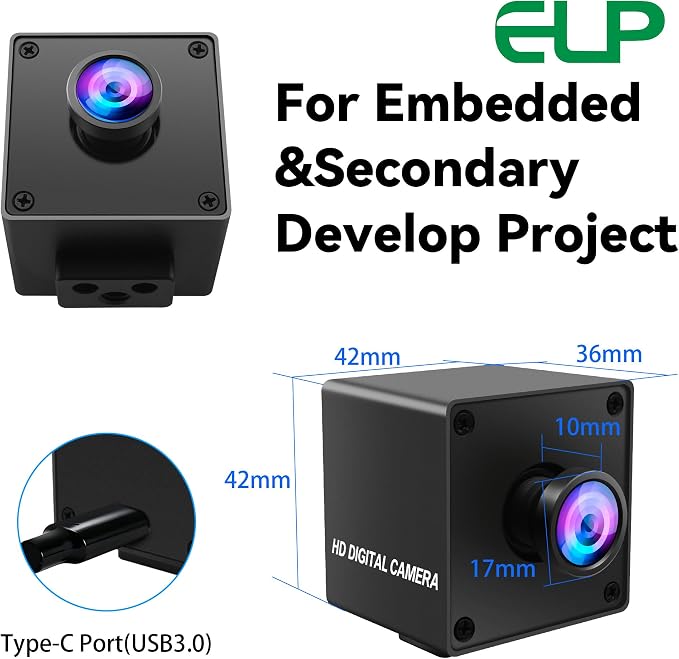

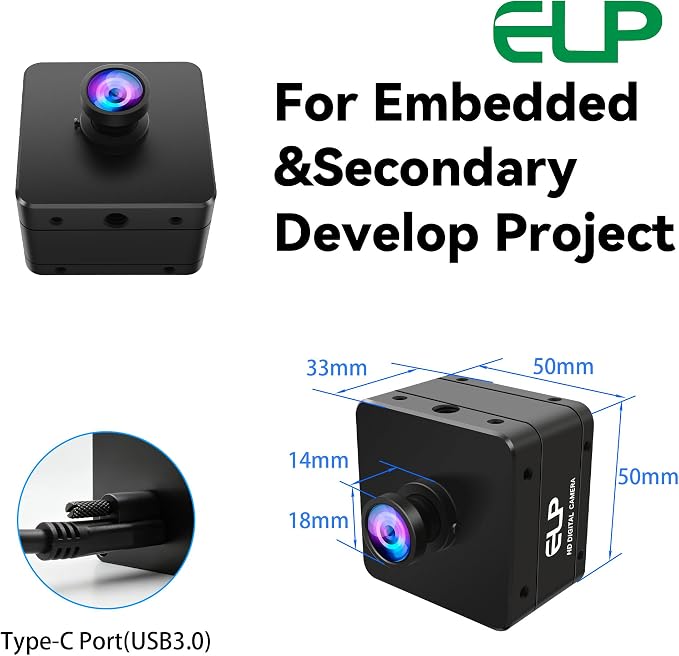

- Mini size, light weight, small outline and thin profile for embedded machine vision.
- Applications: wide angle 110degree no distortion lens usb camera with global shutter high frame rates allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
Product description
Fast frame HD@200fps usb3.0 camera module for quick moving objects shooting!

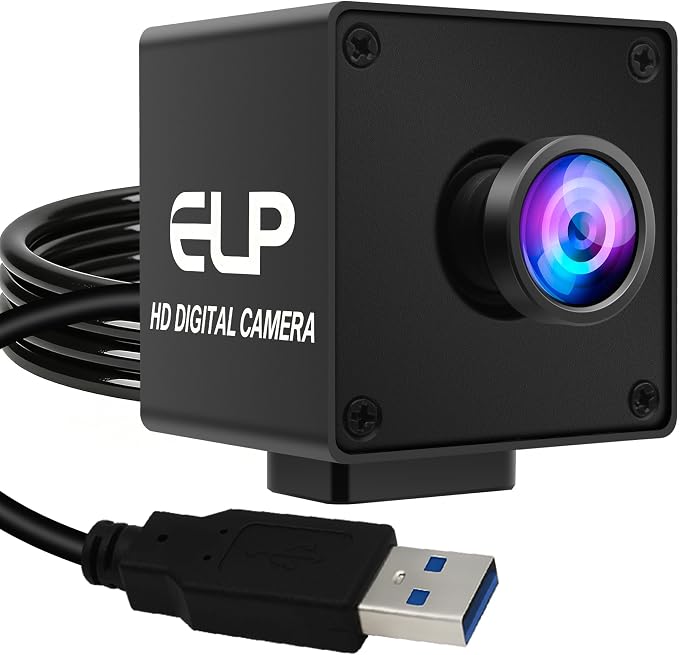

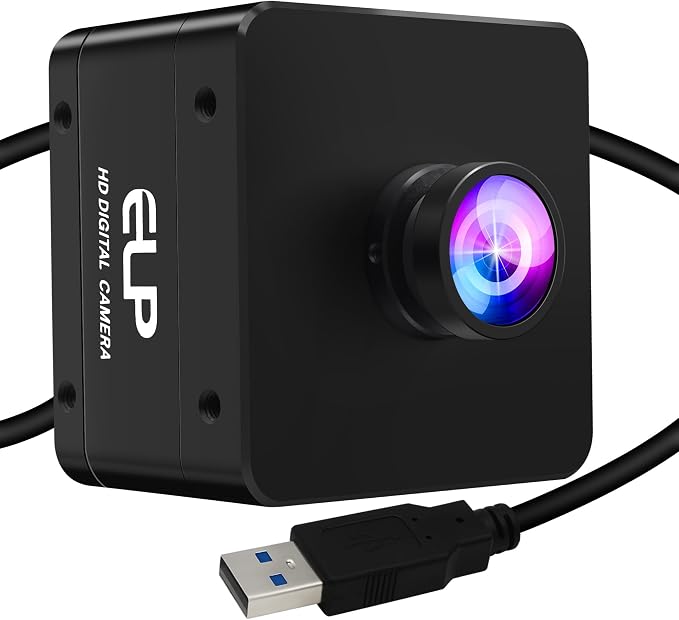

ELP Global Shutter USB3.0 Camera

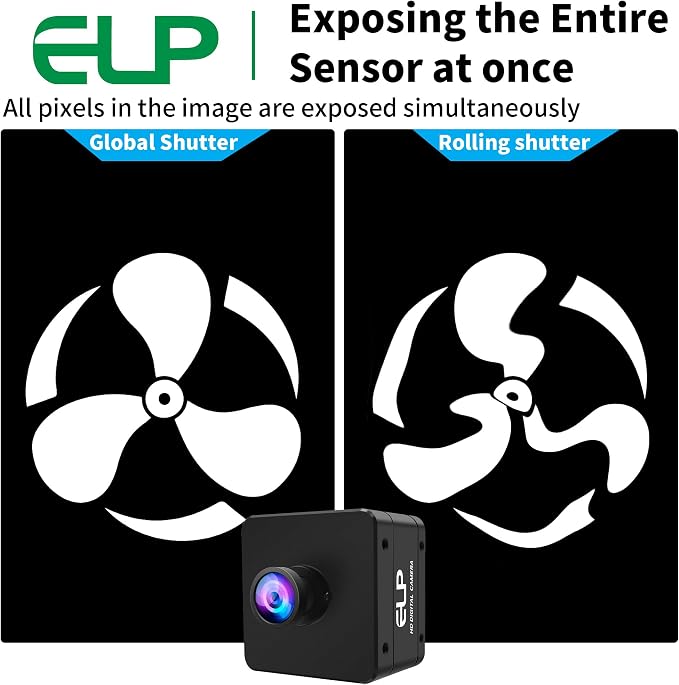

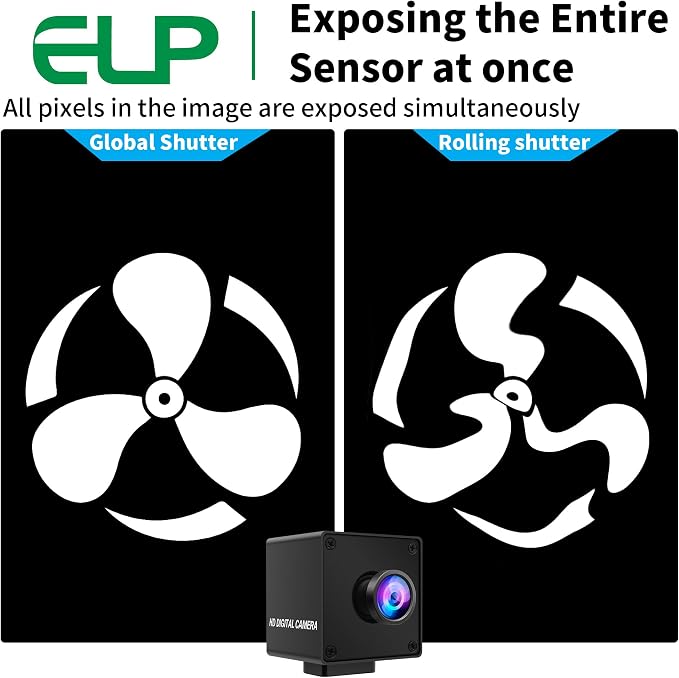

Global shutter: exposing the entire sensor at once, free of distortion!

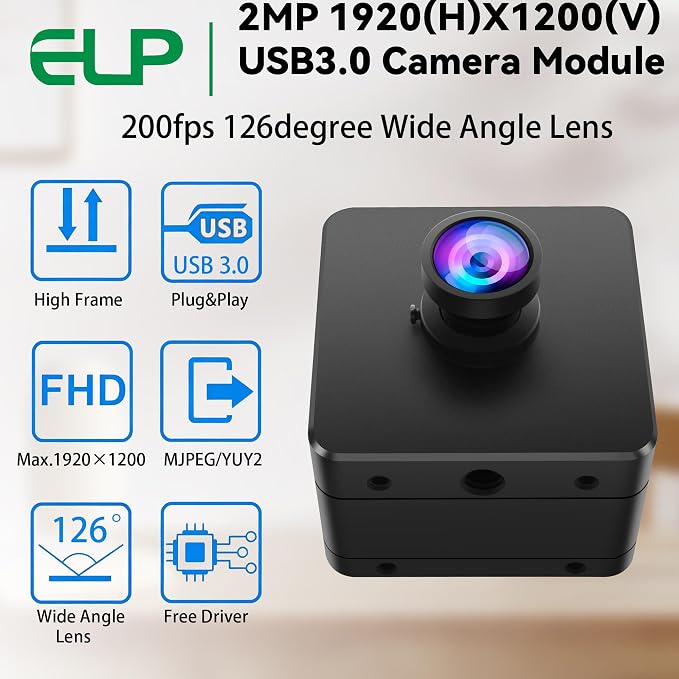

Max. 1920*1200 2mp USB Camera for pc, pi, Android Develop Board, Jetson Nano!
Fast Frame HD/200fps FHD/120fps USB3.0 global shutter camera module for computer
Mini size, light weight, small outline&thin profile for most machine visions!
Plug and play,free driver,UVC compliant, just plug in and go.
This is a new released ELP's USB camera. It's a 2MP, based on 1/2.6" global shutter Aptina AR0234 sensor, UVC compliant, high speed 200fps, 110degree no distortion USB3.0/2.0 camera. Plug&play, free driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
It can work with already preinstalled camera software instead of built-in camera, support Android development board,Raspberry Pi development board,Jetson Nano,etc.
FOR PC:
Support windows,linux,mac,Android,raspberry Pi
Very easy to use,UVC compliant,free driver,just plug in and go.
Resolution & Frame rate
USB3.0: 1920x1200 MJPEG 120fps/YUY2 80fps 1920x1080 MJPEG 120fps/YUY2 80fps 1280x960 MJPEG 120fps/YUY2 120fps1280x720 MJPEG 200fps/YUY2 200fps
USB2.0: 1920x1200 MJPEG 120fps/ YUY2 5fps 1920x1080 MJPEG 120fps/YUY2 5fps 1280x720 MJPEG 200fps/ YUY2 10fps
Applications:
Gesture and eye tracking, iris and physiognomy recognition, depth and motion detection
Mini lightburn camera for laser engraver, octoprint monitoring 3D printer
Home video surveillance system, live streaming, video conference, video recording, etc.
