ELP 4K USB Camera Module Autofocus w/Microphone Computer Mini USB2.0 Webcam Board 8mp Industrial Lightburn Camera IMX415 Audio Video Webcamera

- 4K 3840*2160 High resolution auto focus USB camera module. - With dual microphone for audio recording. - Autofocus, auto capture the moving object, works like the human eye. - With HD 100 degree no distortion M12 lens, HFOV about 94.5degree. - 1/2.5” IMX415 sensor for high quality image. - High frame rate - MJPEG 3840*2160 30fps. - MJPEG/YUY2 dual output format optional. - Mini board size 38x38mm for embedded application, low power consumption - ideal for portable equipment. - High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface - UVC compliant - support Windows, Linux, Android system with UVC.

Product description

ELP 4K USB camera autofocus with dual microphone wide angle 8mp pc camera for computer,pc,laptop.

ELP-USB4K02AF-V100 (100 No distion Lens, HFOV 94.5degree)

Super mini usb camera board for pc,computer,laptop,raspberry pi,android development board,Jetson Nano,etc

SPECIFICATIONS

With HD 100 degree autofocus no distortion M12 lens, HFOV about 94.5degree.

Ultra HD 8mp USB camera, with dual microphone for Computer and Raspberry Pi

Plug and play,free driver,UVC compliant, just plug in and go.

Small outline and thin profile for embedded machine vision like home surveillance system, wildlife photography, dashcam, baby camera, etc.

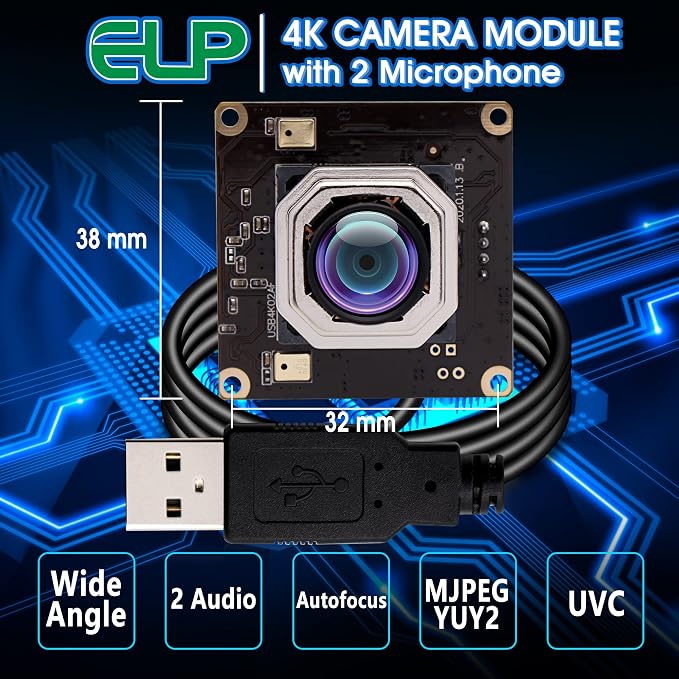

Mini 38mmx38mm camera board can be installed in most hidden and narrow position:

- Sensor: 1/2.8” IMX415

- Resolution: 4K 3840 x 2160

- Data Format: MJPG/YUY2

- Frame Rate: MJPG 30fps@3840x2160 YUY2 3fps@2048x1536.

- Field of View (FOV)： H= 94.5°

- Lens Mount: M12

- Focusing Range: 0.33ft (10CM) to infinity

- Dual microphone on board.

- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

- System Compatibility: Windows, Linux, Mac, and Android with UVC.

- Power Supply: USB powered 5V

- Working Current: MAX 370mA

- Operating Temp.: 32°F~140°F (0°C~+60°C).

- Dimension: 38mmx38mm

- Cable Length: 3.3ft (1M)

- Video conference

- Home video surveillance system

-Object recognition and tracking

- Dashcam

- Monitoring 3D printer

- Baby Camera

- Robot and machine vision

Max Resolution:

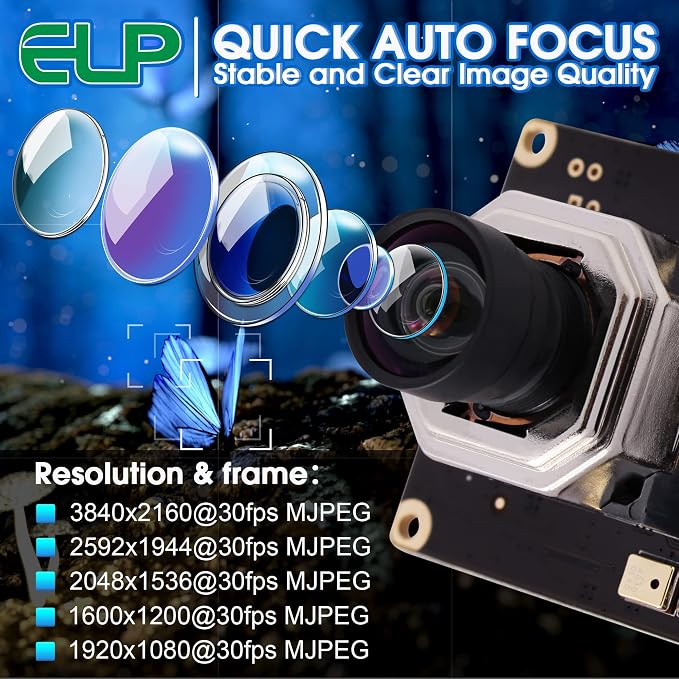

Auto control the focusing process to capture the moving object, works like the human eye, and shots the imaging you want.

Mini USB camera with none-distortion lens, FOV is about 94.5degree. Wider angle of view.

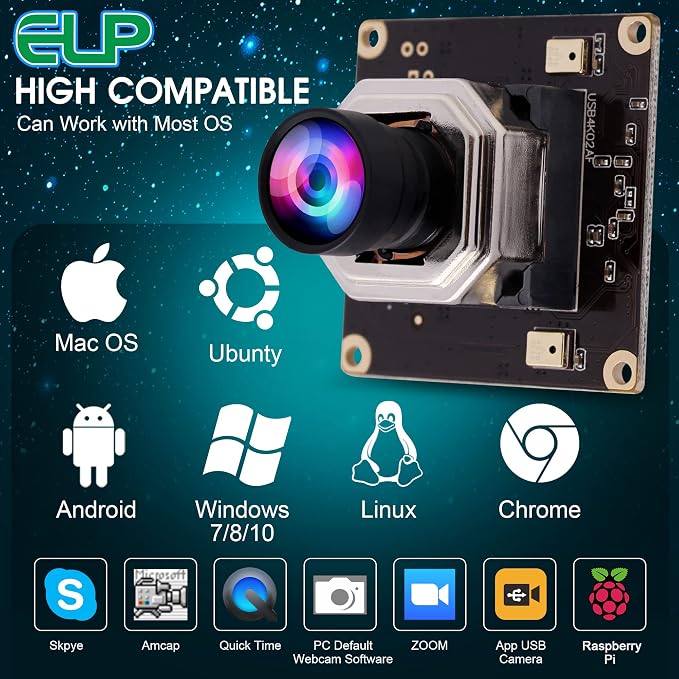

Can Work With Most OS:

Applications:
