ELP 200FPS Global Shutter USB3.0 Camera Module Wide Angle Fisheye Webcam for Computer Mini USB2.0 PC Camera High Speed Lightburn Cameras for Laser 1200P 120fps Webcamera AR0234 Cam for Laptop

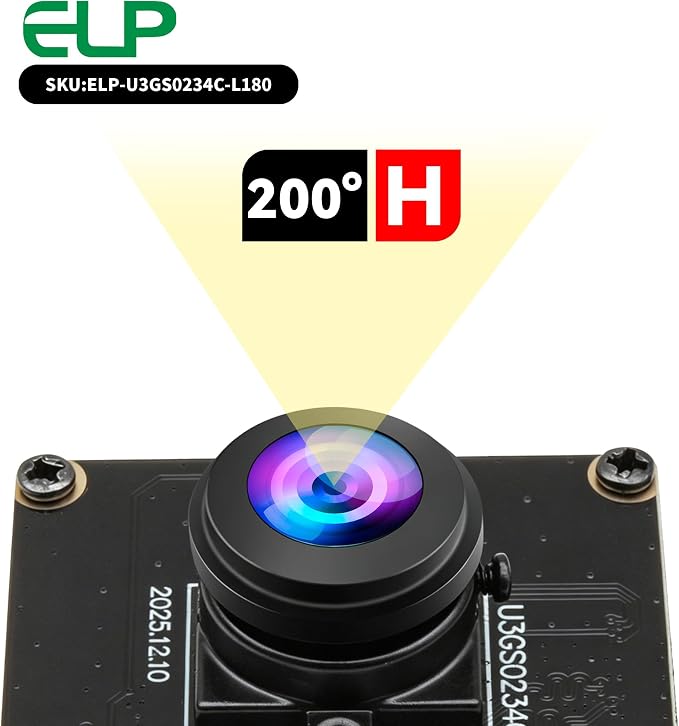

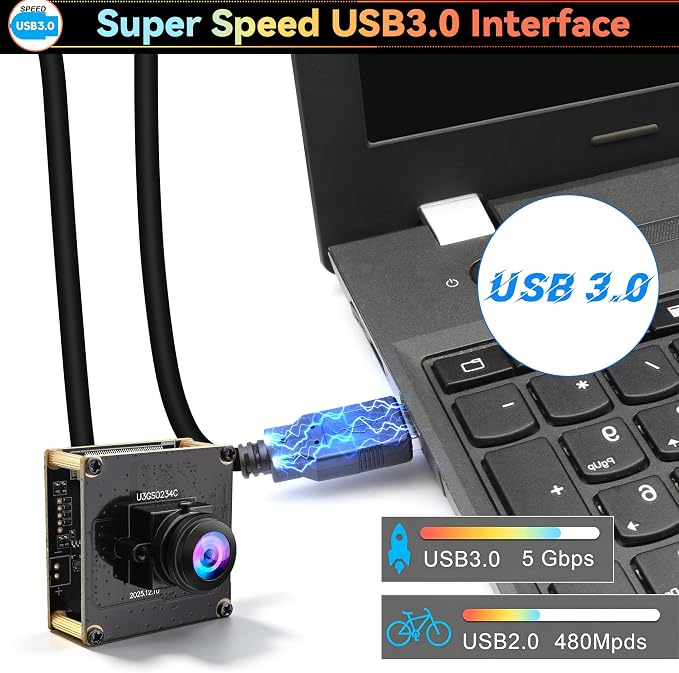

- Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. - FHD Resolution: 2MP 1920Hx1200V; Frame Rates: MJPEG 200fps@1280x720, YUY2 200fps@1280x720, MJPEG 120fps@1920x1200/1080P, YUY2 80fps@1920x1200/1080P, fast frame for for high-speed moving objects shooting. - Wide Angle 180degree Fisheye Lens, HFOV about 200degree, mini usb camera board can be installed in most hidden and narrow position, can be used in machine visions for personal or industrial. - USB3.0 high speed USB camera for high speed system, USB3.0/2.0 compatible, high performance ISP. - Adopt high quality 1/2.6” Aptina AR0234 high quality sensor for sharp clear image. - USB3.0 Type C connector, equipped with 1.2m Type C USB 3.0 cable, Support OTG optional. - Camera with UVC for Windows,Linux,Mac,Raspberry Pi,etc. - Plug&Play: UVC compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. - Mini size, light weight, small outline and thin profile for embedded machine vision. - Applications: wide angle fisheye lens usb camera module with global shutter high frame rates allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.

Product description

Fast frame HD@200fps usb3.0 camera module for quick moving objects shooting!

ELP Global Shutter USB3.0 Camera

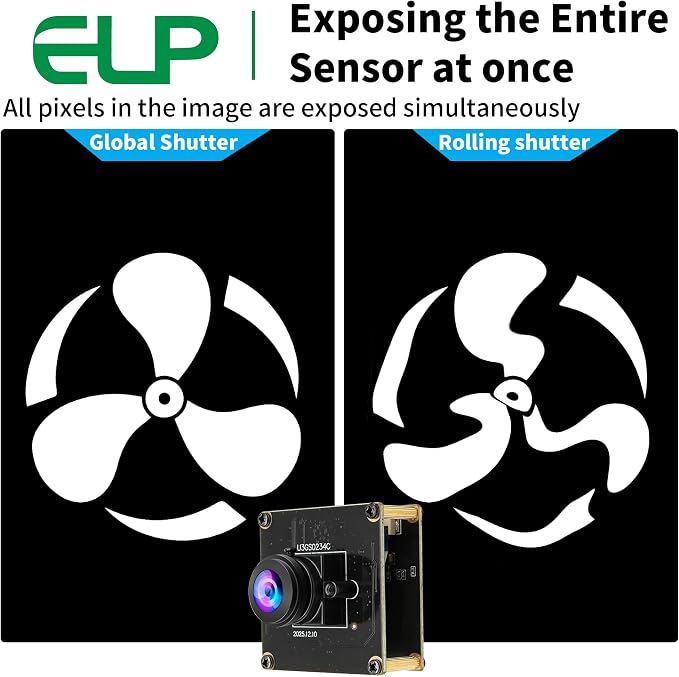

Global shutter: exposing the entire sensor at once, free of distortion!

Max. 1920*1200 2mp USB Camera for pc, pi, Android Develop Board, Jetson Nano!

Fast Frame HD/200fps FHD/120fps USB3.0 global shutter camera module for computer

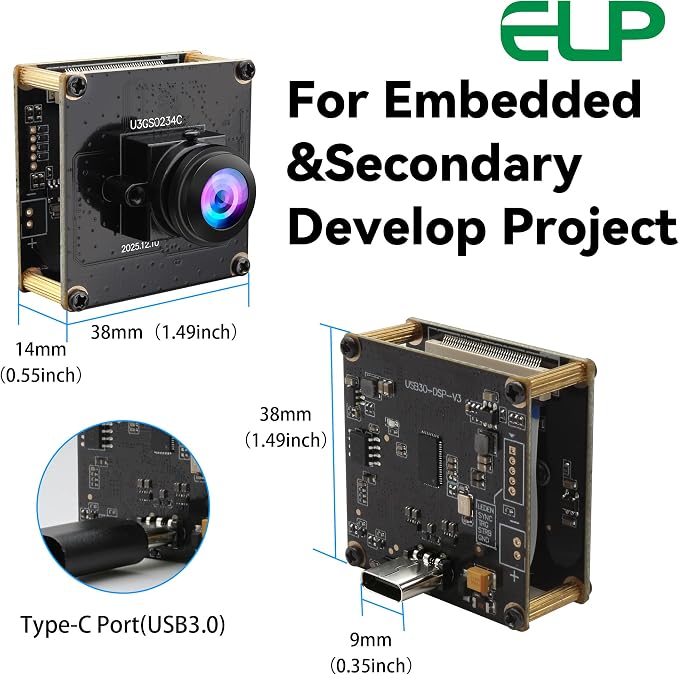

Mini size, light weight, small outline&thin profile for most machine visions!

Plug and play,free driver,UVC compliant, just plug in and go.

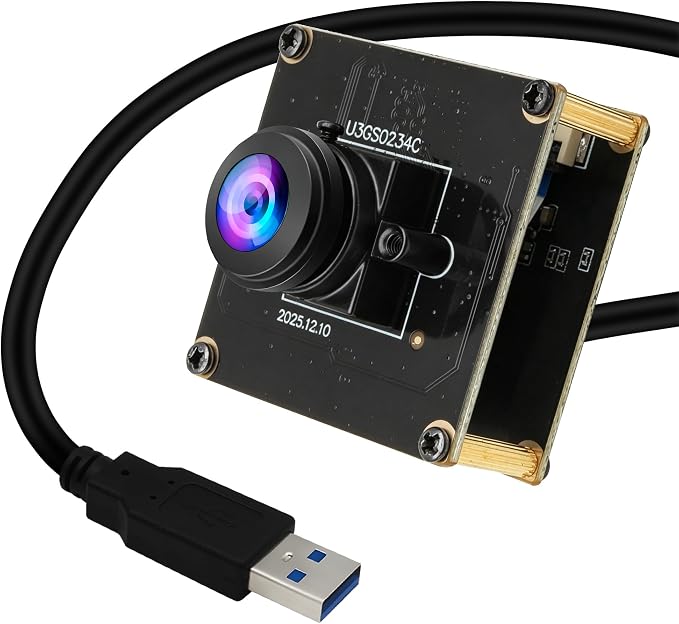

This is a new member of ELP's USB camera family. It's a 2MP, based on 1/2.6" global shutter Aptina AR0234 sensor, UVC compliant, high speed 200fps, 180degree Fisheye USB3.0/2.0 camera. Plug&play, free driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.

Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.

It can work with already preinstalled camera software instead of built-in camera, support Android development board,Raspberry Pi development board,Jetson Nano,etc.

FOR PC:

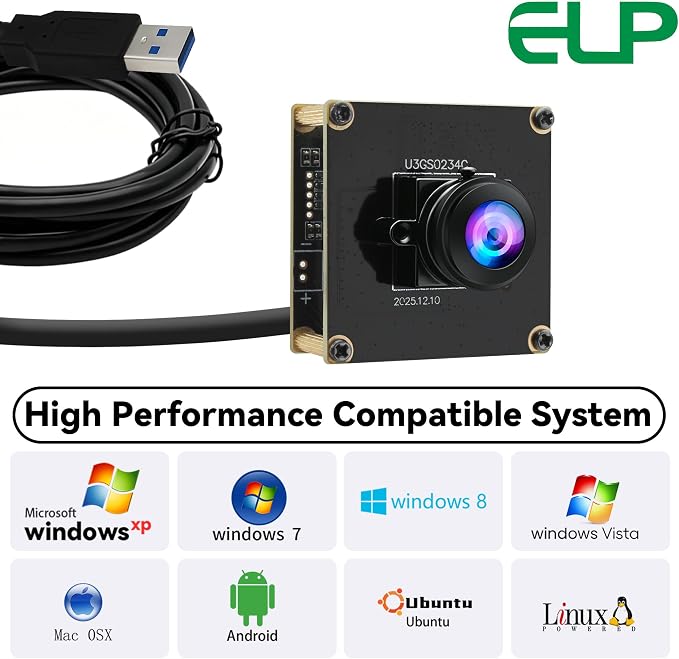

Support windows,linux,mac,Android,raspberry Pi

Very easy to use,UVC compliant,free driver,just plug in and go.

Resolution & Frame rate

USB3.0: 1920x1200 MJPEG 120fps/YUY2 80fps 1920x1080 MJPEG 120fps/YUY2 80fps 1280x960 MJPEG 120fps/YUY2 120fps1280x720 MJPEG 200fps/YUY2 200fps

USB2.0: 1920x1200 MJPEG 120fps/ YUY2 5fps 1920x1080 MJPEG 120fps/YUY2 5fps 1280x720 MJPEG 200fps/ YUY2 10fps

Applications:

Gesture and eye tracking, iris and physiognomy recognition, depth and motion detection

Mini lightburn camera for laser engraver, octoprint monitoring 3D printer

Home video surveillance system, live streaming, video conference, video recording, etc.
