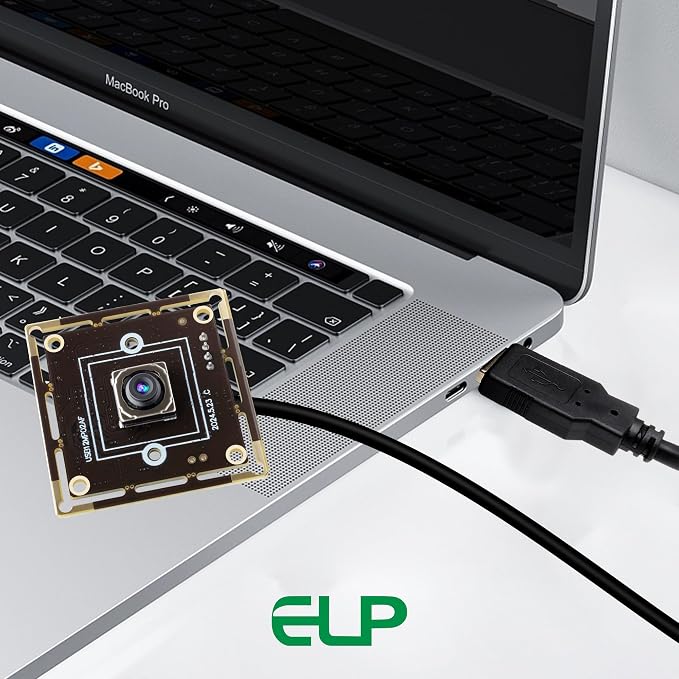

ELP 12mp Autofocus USB Camera Module 4K 30fps Webcam Board for Computer Mini UVC USB2.0 1080P 60fps PC Camera 300ms PDAF Fast Auto Focus Camera IMX362 USB Web Camera for Laptop

- 12Megapixel USB Camera Module, high resolution, Max resolution 4000X3000. - Fast frame 4K@30fps, 1080P@60fps for quick moving objects capturing. - 1/2.55” IMX362 sensor for high-quality image and low power consumption. - Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera. Focus Speed About 200ms at 60fps/ 300ms at 30fps. - HD Megapixel 65degree AF low distortion lens, Focus: 3.3mm, DFOV: about 76 Degree , HFOV: about 65 Degree. - Mini Illumination: 0.5Lux, MJPEG and YUY2 compression format optional. - High speed USB 2.0 interface for high resolution PC camera interface. - Mini size, light weight, super small outline and thin profile for embedded applications mini size 38X38mm (Compatible 32X32mm)/about 30g. - Camera with UVC for computer, laptop, pc, raspberry Pi, Jetson Nano, etc. - Applications: this mini 38mmx38mm camera board can be installed in most machine for wildlife photography, dashcam, baby camera, monitoring 3D printer, etc.

Product description

ELP 12mp USB camera with mic mini lightburn camera for computer, laptop, pc

PDAF AUTOFOCUS---Auto control the focusing process to capture the moving object!

Max. 4000*3000 12mp USB Camera for pc, pi, Android Develop Board, Jetson Nano!

UHD high speed 4k@30fps usb camera module for quick moving objects shooting!

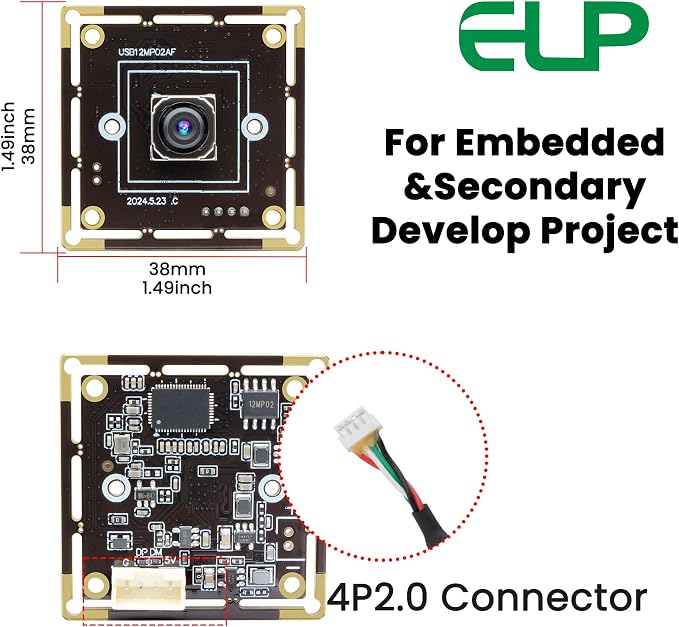

Mini size, light weight, small outline&thin profile for embedded machine vision!

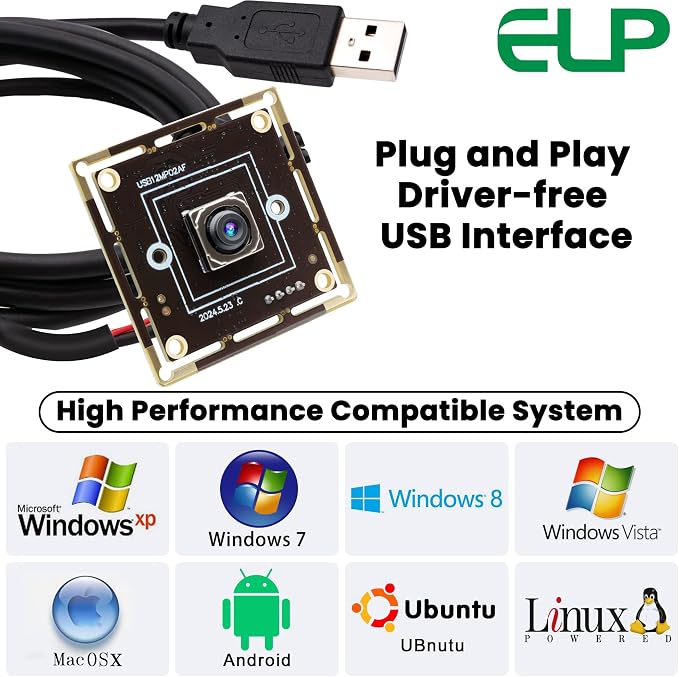

Plug and play,free driver,UVC compliant, just plug in and go.

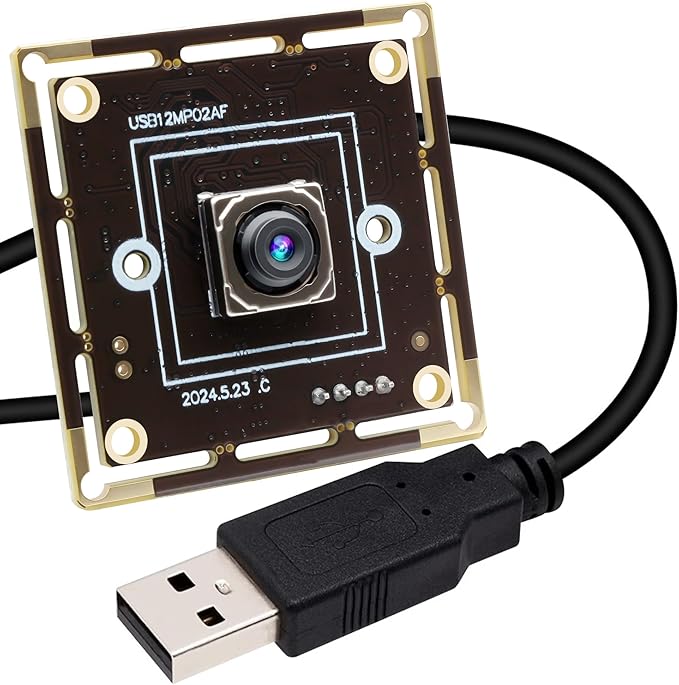

Model: ELP-USB12MP02-AF65(HFOV about 65degree)

It is PDAF fast auto focus, 4K@30fps, 1080P@60fps, 12mega pixel with IMX362 CMOS sensor, image quality is very high and stable.

ELP 12mp usb camera module have auto focus function, capture clear images of objects at different distances by auto focus.

Autofocus lens:

Shoot objects at millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.

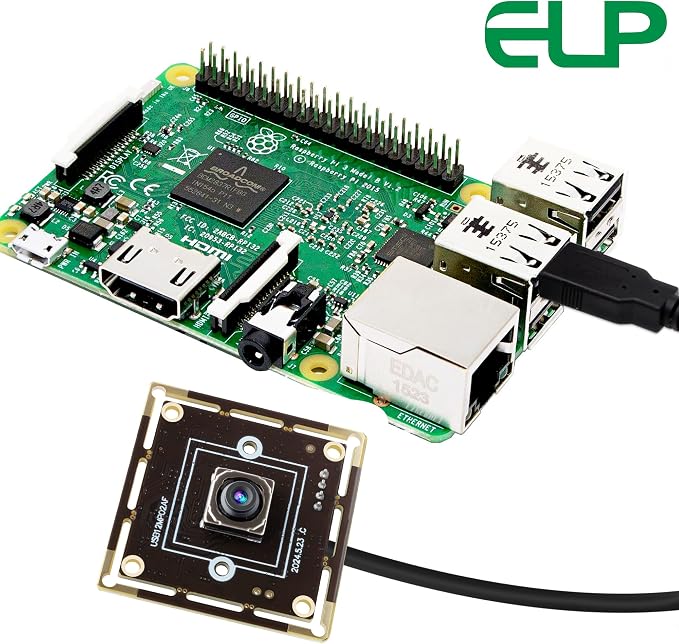

For Raspberry Pi:

FOR PC: Support windows,linux,mac,Android,raspberry Pi

Resolution & Frame Rate:

4000 x 3000 MJPEG@15fps/3840 x 2160 MJPEG@30fps/2592 x 1944 MJPEG@30fps YUY2@3fps 2560 x 1440MJPEG@30fps YUY2@3fps/2048x1536 MJPEG@30fps YUY2@3fps

1920 x 1080 MJPEG@60fps YUY2@5fps/1600 x 1200 MJPEG@45fps YUY2@5fps/1280x 1024 MJPEG@60fps YUY2@10fps

Applications:

Draw Maps+Drive RecorderIntelligent+Transportation Field+Robotic Machine Vision

Dashcam+baby camera+monitoring 3D printer+QR code scan+Bar Code Identification

Home Video Surveillance+Object tracking Device+Car Driving System+Face scan payment+Bank withdraw
