Coolgear 4 Port Managed USB 3.2 Gen 1 Hub with 15KV ESD Surge Protection and Individual Port Control for PCs

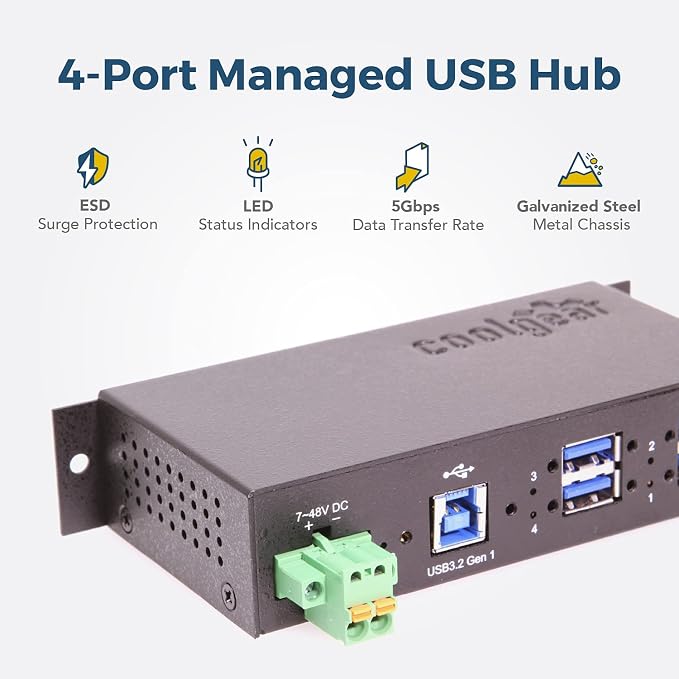

- Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock - Advanced Protection: The 4-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected. - Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1. - Port Management Software: Control each individual port's status, turn bus power on/off, and even reset the entire hub through the hub's management software which supports Windows, Mac, and Linux operating systems - WHY COOLGEAR? Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.

Product description

Features:

Management Software:

Mount it where you need it

Why Coolgear?

Advanced Engineering

Superior Build Quality

Reliability

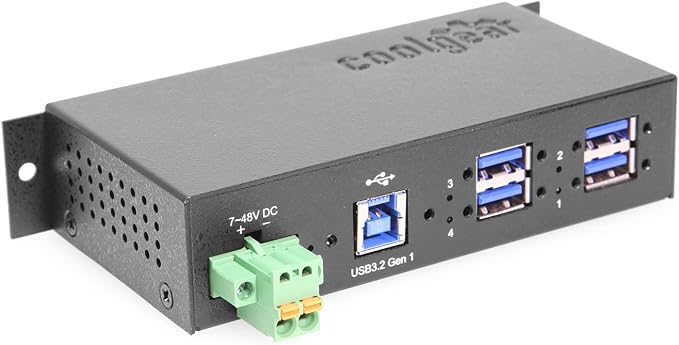

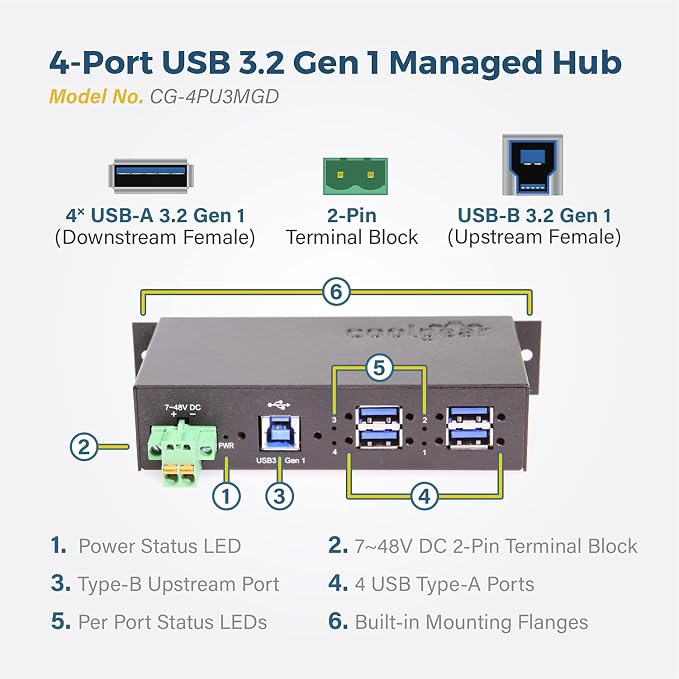

The CG-4PU3MGD is a managed USB 3.2 Gen 1 (or commonly called USB3.0) hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 4 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB 3.2 Gen 1, USB 2.0 and 1.1 existing devices.

Note: The last USB port of this hub (Port 4) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

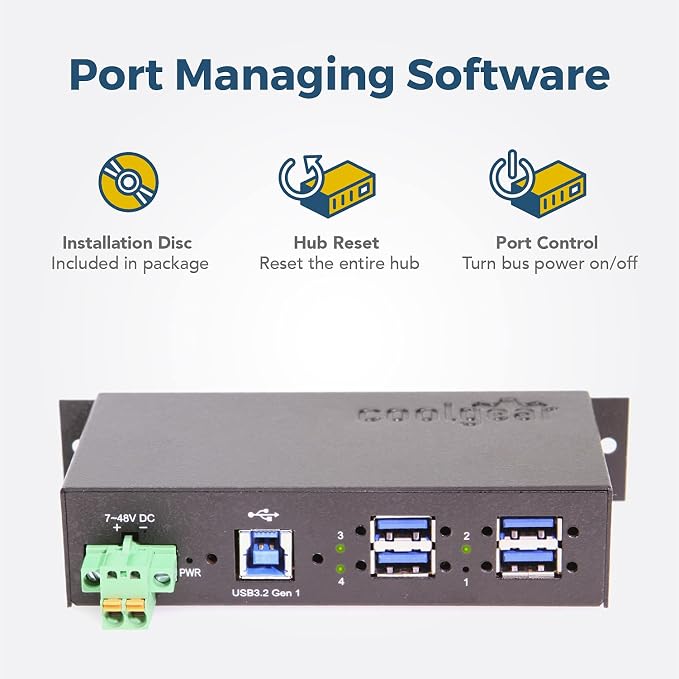

The CG-4PU3MGD is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, intel x86-64 and ARM based Linux.

The CG-4PU3MGD software package contains several managing software utilities which support different platforms allowing better control over each individual ports’ status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.

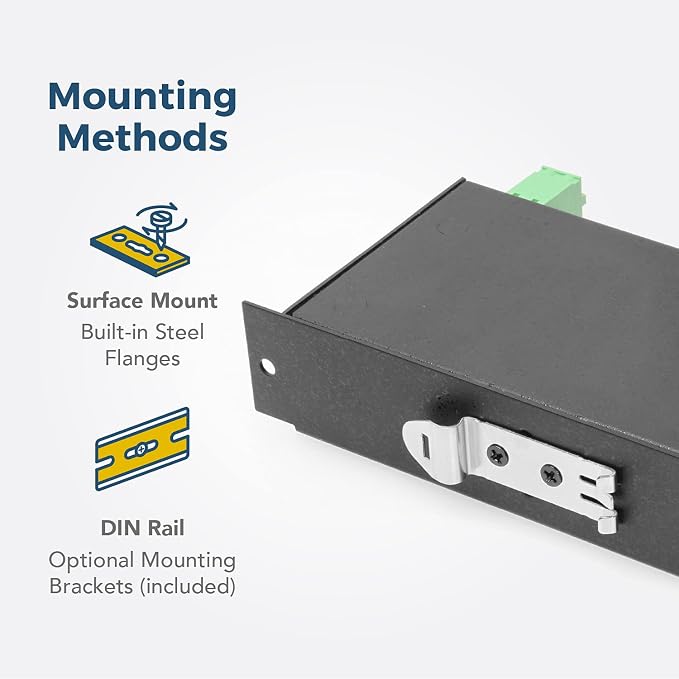

Housed in a compact steel chassis with built in mountable flanges, the 4-port hub is ready to mount on a wall or surface, or DIN rail with optional clip.

Perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.

Extensive on-site research, development, and engineering directly from our Lab in the USA allowing us to provide innovative products ready to handle the most demanding industries.

Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.

High Quality component selection offering higher duty cycle and longevity. Constantly researching new avenues to get you reliable connections for your peripherals.
