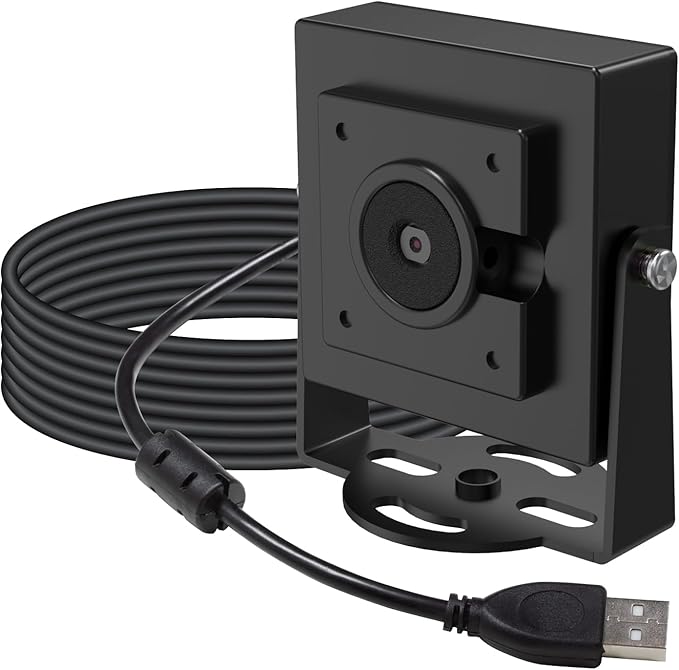

Arducam VGA Global Shutter USB Camera Module 800 FPS@QQVGA High Speed Camera Monochrome UVC Webcam for Windows Linux OS

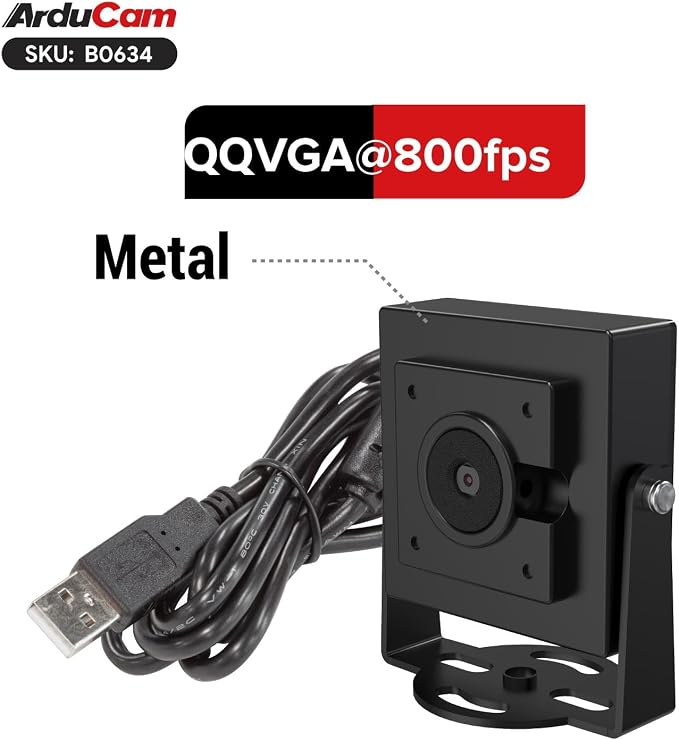

- Note ? Product Feature This is a global shutter camera with a 650 nm IR filter, suitable for well-lit industrial applications such as QR or barcode scanning - Global Shutter Mono: Features a VGA monochrome global shutter sensor that ensures pixel-level exposure consistency, making this UVC camera module ideal for precision measurement, motion analysis, and other industrial PC camera applications - Ultra High FPS: Supports frame rates of up to 800 FPS at QQVGA resolution, enabling capture of rapid events not observable with conventional USB Webcam solutions, such as high-speed inspection and motion tracking Note: Due to the limitation of USB2.0 device descriptor, the software can only report a maximum frame rate of 240fps, but the camera can actually reach 800fps(the actual frame rate can be seen during preview) - Standard FOV: This tiny camera uses a standard 69°(H) field-of-view lens to provide a balanced perspective, well-suited for metrology, inspection, and controlled imaging setups including 3D printer monitor, conference camera, and lab environments - Onboard ISP: Incorporates an onboard ISP to process image data in real time, delivering stable output while reducing system integration complexity for raspberry pi camera projects and embedded vision systems - Plug & Play UVC: Designed around the USB2 UVC standard, allowing immediate use as a USB Security Camera or home security camera across Windows, Linux, and macOS platforms without additional drivers - Industrial Control: Built with a compact metal enclosure and supports external triggering and ROI configuration, enabling precise timing control and flexible deployment in industrial automation and professional USB Webcam / PC camera scenarios

Product description

Overview

Highlights

Specifications

Applications

The Arducam ezBOX GS B0634 is a compact monochrome global shutter USB camera optimized for precision high-speed imaging. Supporting frame rates up to 800 FPS at QQVGA resolution, it enables detailed capture of fast motion while maintaining consistent exposure across the frame. With a standard field-of-view lens, integrated onboard ISP, UVC plug-and-play support, and external trigger capability, B0634 is ideal for measurement, inspection, and controlled machine vision applications.

VGA monochrome global shutter sensor ensures pixel-level exposure consistency, ideal for motion analysis and precision measurement.

VGA monochrome global shutter sensor ensures pixel-level exposure consistency, ideal for motion analysis and precision measurement.

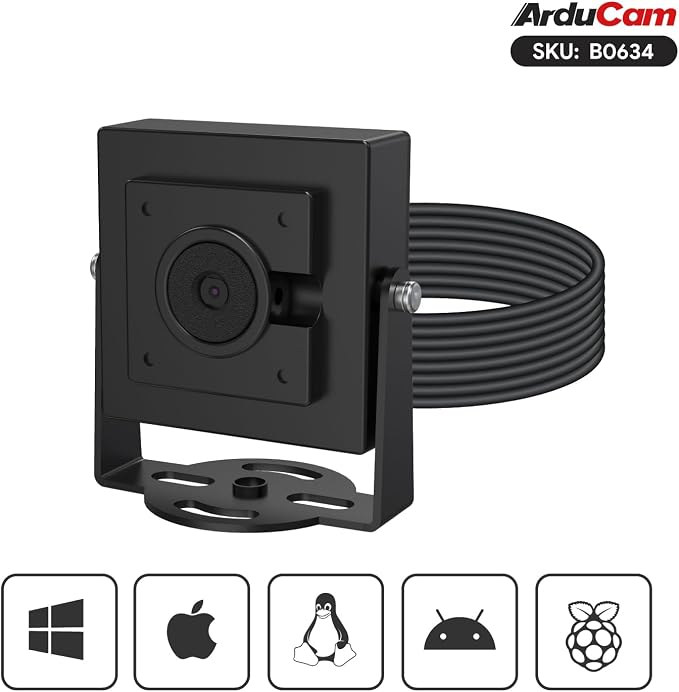

Supports external triggering, ROI configuration, and plug-and-play across Windows, Linux, and macOS. Compact metal enclosure ensures durability for industrial deployment.

Frame Rate(MJPG):

640x480@200fps, 320x240@400fps; 160x120@800fps

Frame Rate(YUV):

640x480@60fps, 320x320@160fps; 160x120@400fps

Product Series: ezBOX-VGA GS

Max Still Resolution: VGA

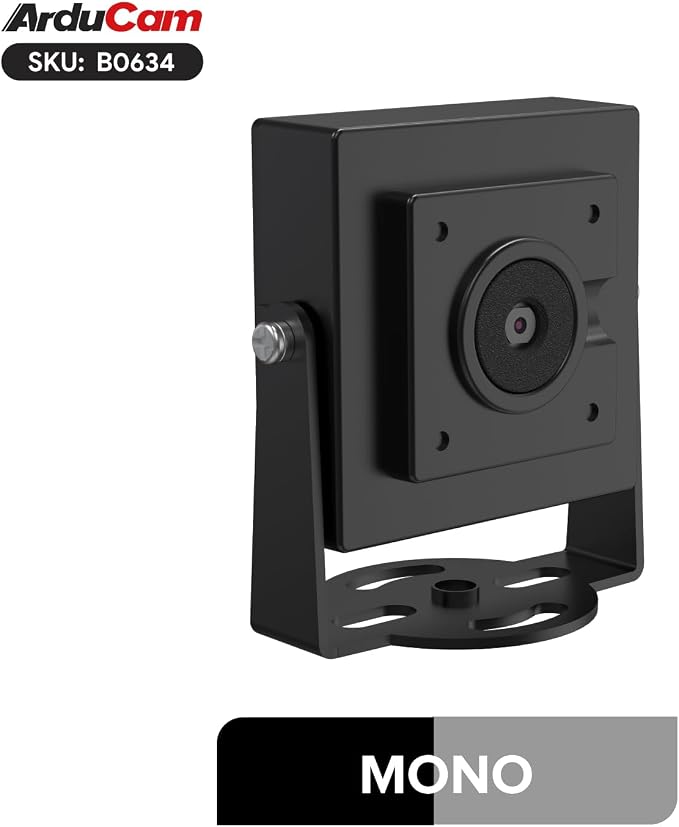

Color Filter Type: Monochrome

Shutter Type: Global Shutter

Optical Size: 1/7.5″

Output Format: MJPG/YUV

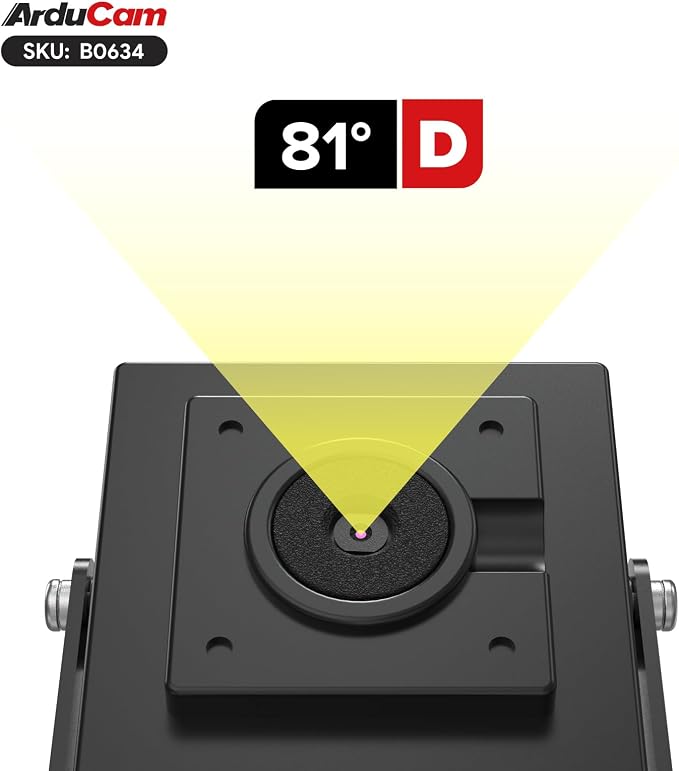

FOV: 69°(H)

Minimum Exposure Time: 100μs*

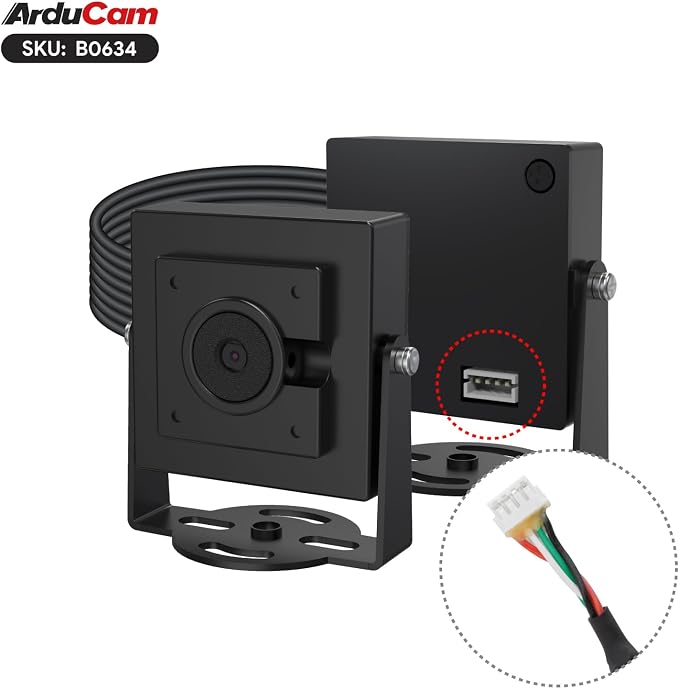

External Trigger Mode: Support
