Arducam VGA Global Shutter Color USB Camera Module 160 FPS@QQVGA High Speed Camera Wide Angle UVC Webcam for Windows Linux OS

- Global Shutter Color: This UVC camera module integrates a VGA color global shutter sensor, delivering accurate color reproduction while eliminating motion distortion in high-speed scenes, making ideal for motion analysis - Ultra High FPS: Capable of capturing images at up to 160 FPS at QQVGA resolution, enabling capture of rapid events not observable with conventional USB Webcam solutions, such as high-speed inspection and motion tracking - Wide Angle Optics: This tiny camera uses a standard 166°(D) lens, enabling broader scene coverage, reducing blind spots, and minimizing the need for multiple cameras. well-suited for metrology, inspection, and controlled imaging setups, including 3D printer monitor, conference camera, and lab environments - Onboard ISP: Built-in ISP performs real-time color processing and image optimization, providing stable and consistent output without relying on host-side processing for Raspberry Pi camera projects and embedded vision systems - Plug & Play UVC: Designed around the USB2 UVC standard, allowing immediate use as a USB Security Camera or home security camera across Windows, Linux, and macOS platforms without additional drivers - Industrial Control: Housed in a durable metal enclosure and supporting external trigger input and ROI customization, enabling precise timing control and flexible deployment in industrial automation and professional USB Webcam / PC camera scenarios

Product description

Overview

Highlights

Specifications

Applications

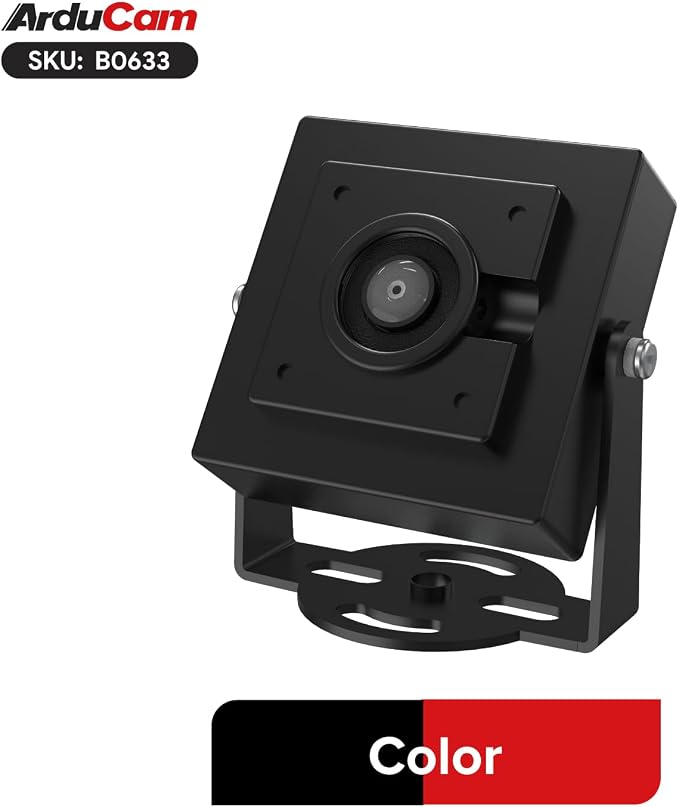

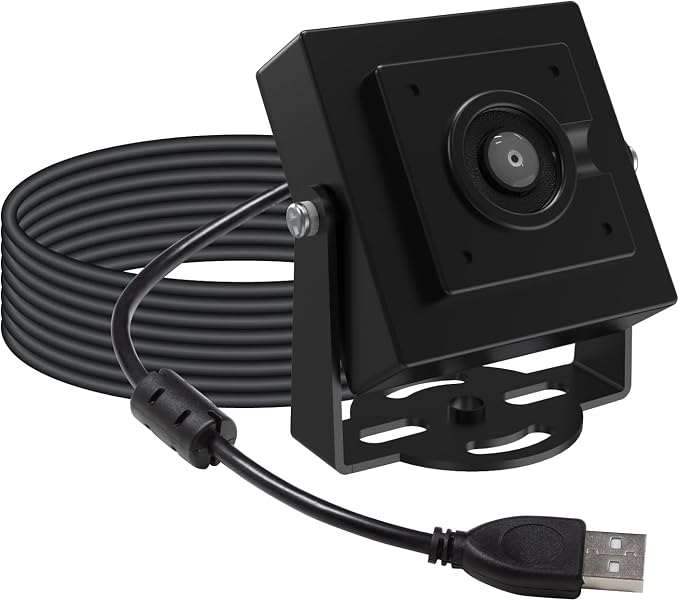

The Arducam ezBOX GS B0633 is a color global shutter USB camera built for applications that require both high-speed performance and accurate color imaging. Capable of reaching up to 160 FPS at QQVGA resolution, it captures rapid events with minimal motion distortion, while the wide-angle optics provide broad scene coverage. Featuring an onboard ISP, UVC plug-and-play operation, external trigger input, and a durable metal housing, B0633 is well suited for robotics, automation, and visual inspection systems.

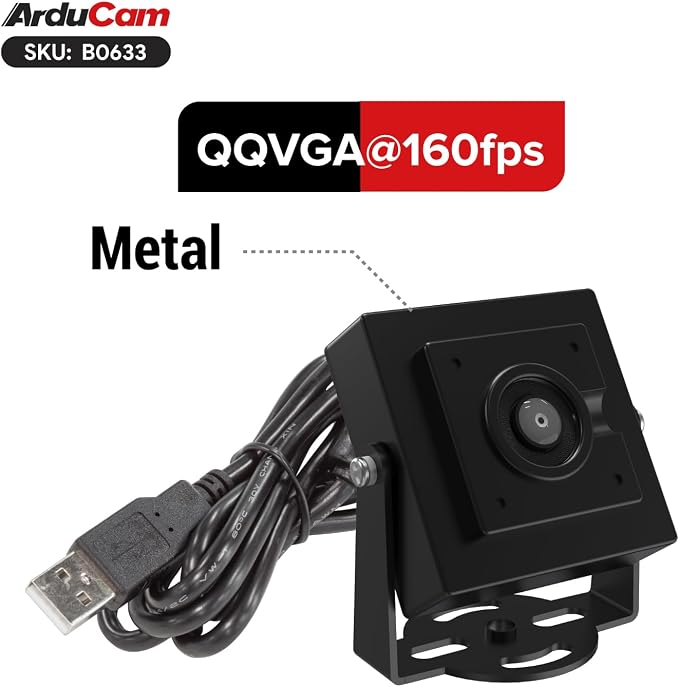

Up to 160 FPS enables motion analysis beyond standard USB cameras.

Pixel-level simultaneous exposure ensures distortion-free imaging of fast-moving objects.

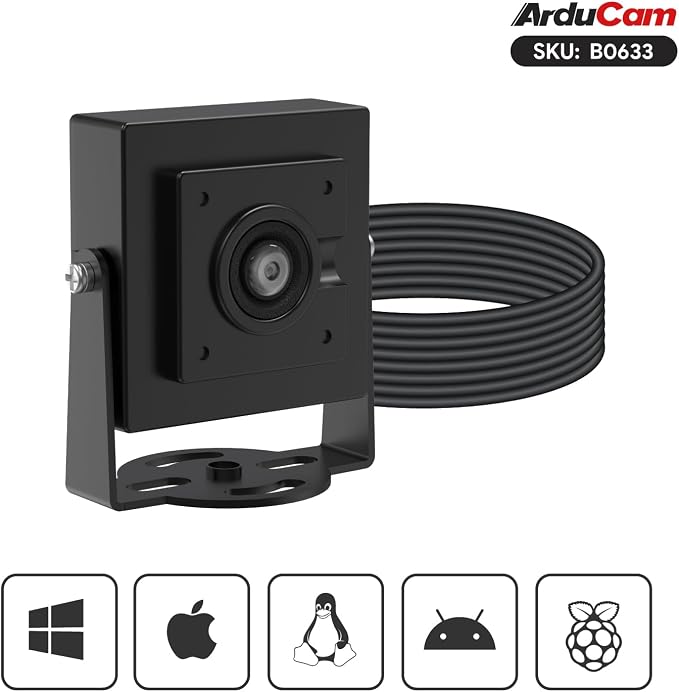

No drivers required?works instantly across major operating systems.

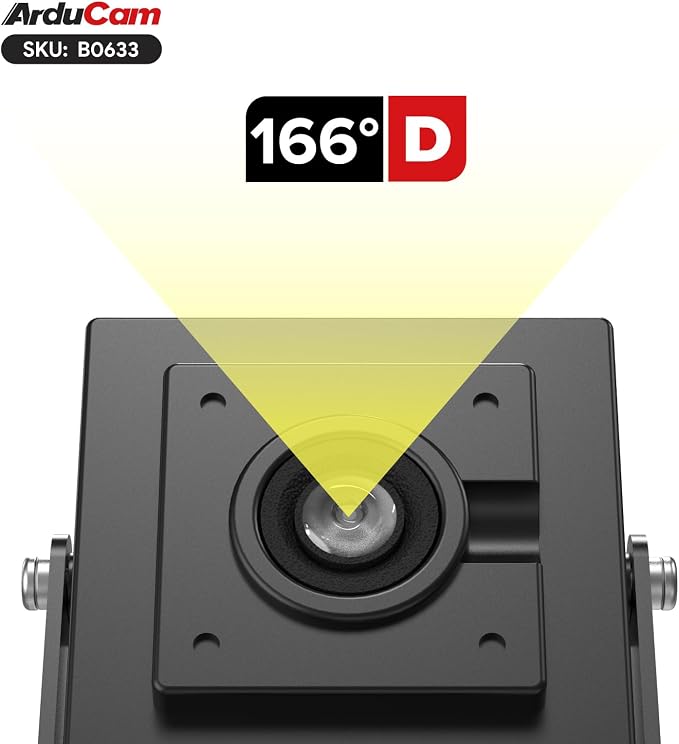

Capture more of the scene with fewer cameras.

Frame Rate(MJPG):

640x480@120fps, 320x240@160fps; 160x120@160fps

Frame Rate(YUV):

640x480@60fps,320x240@100fps; 160x120@100fps

Product Series: ezBOX-VGA GS

Max Still Resolution: VGA

Color Filter Type: Color

Shutter Type: Global Shutter

Optical Size: 1/7.5″

Output Format: MJPG/YUV

FOV: 166°(D)x130°(H)x100°(H)

Minimum Exposure Time: 100μs*

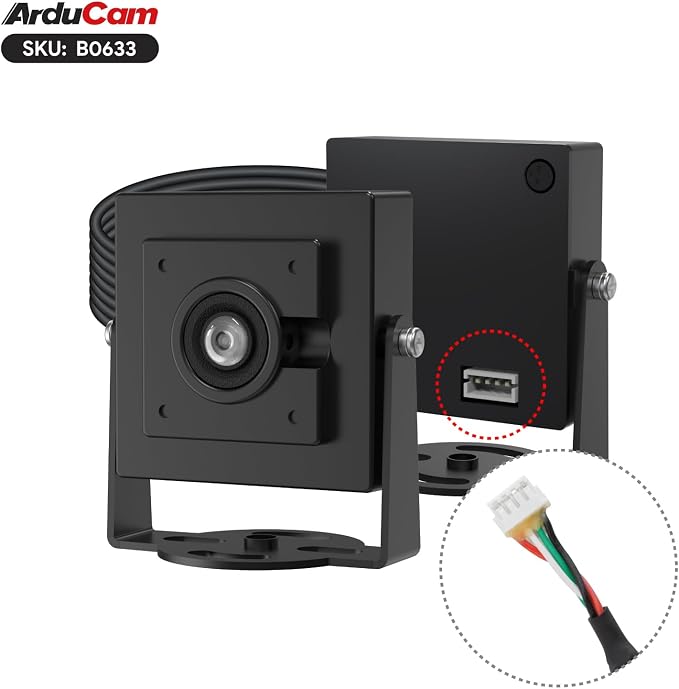

External Trigger Mode: Support
