- More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction. Max Resolution: 3264(H)x2448(V); MJPG 30fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480
- Autofocus: Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera.
- Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

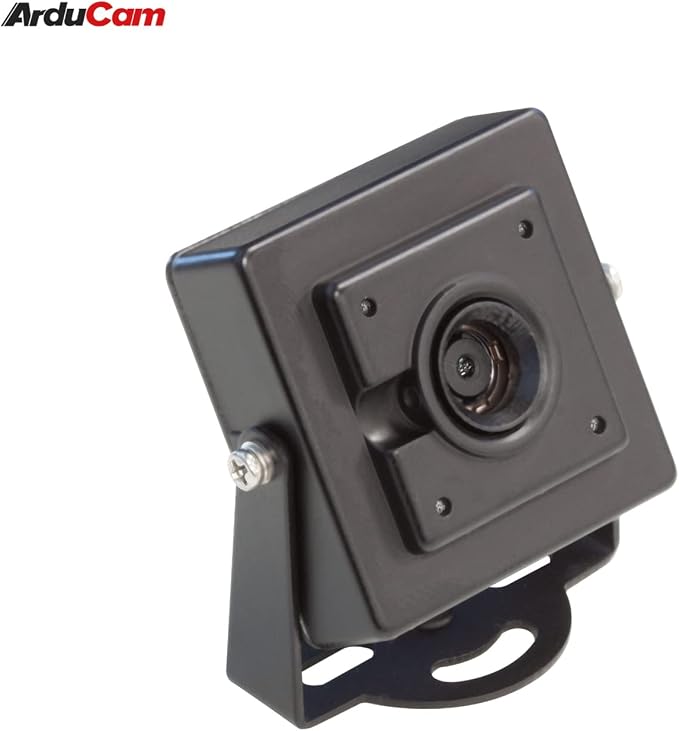

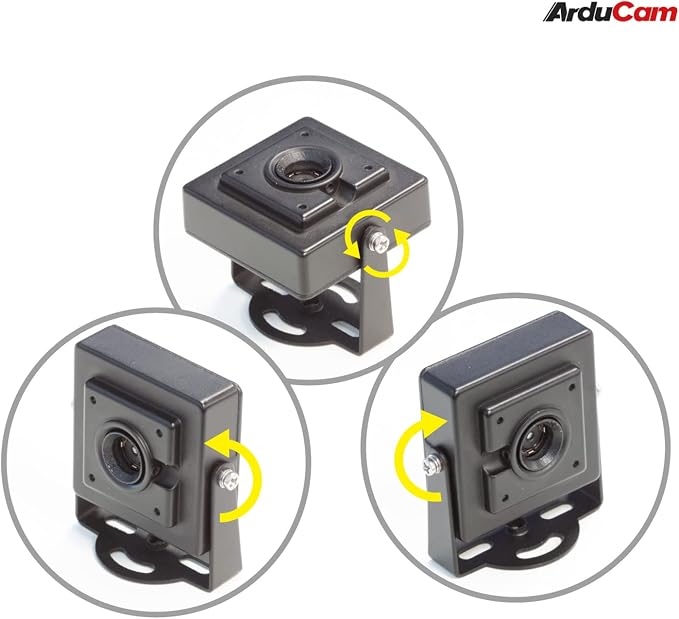

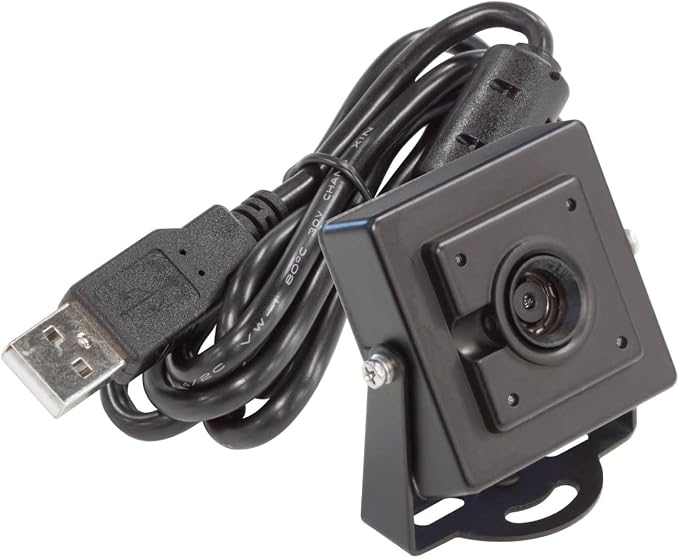

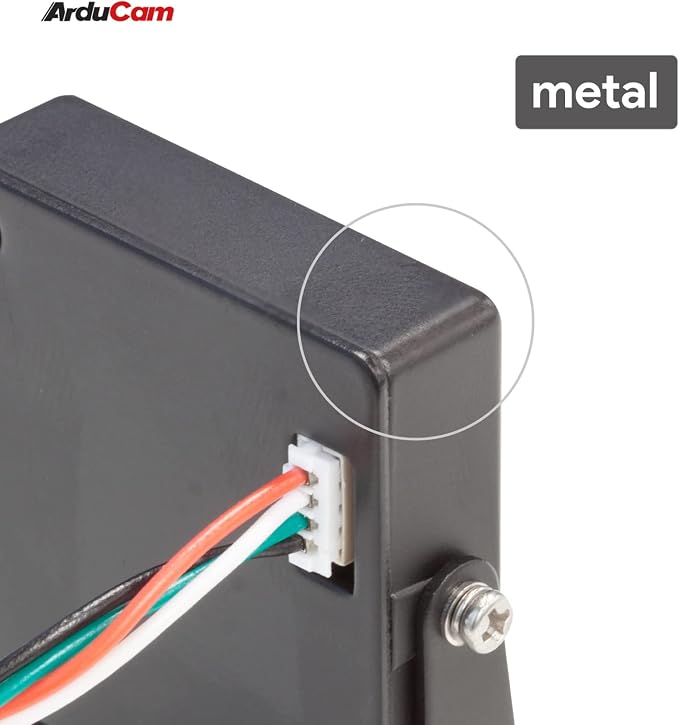

- Metal Case: This UVC camera comes with a metal case, which makes it looks more textured and safe. The case keeps it away from wetness and dust, making use more reassuring.

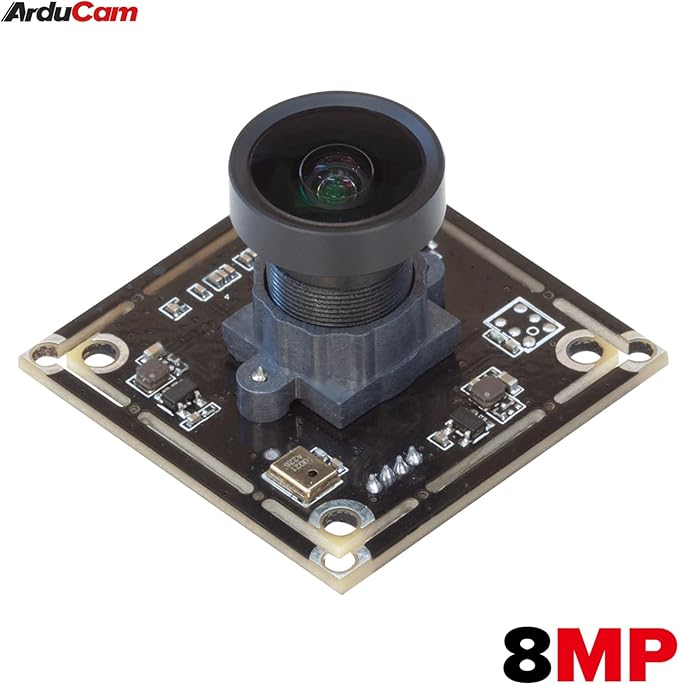

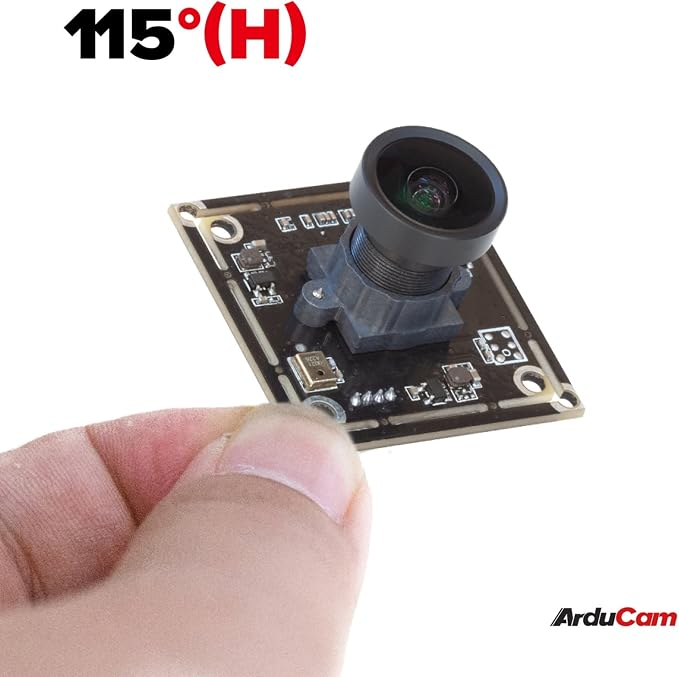

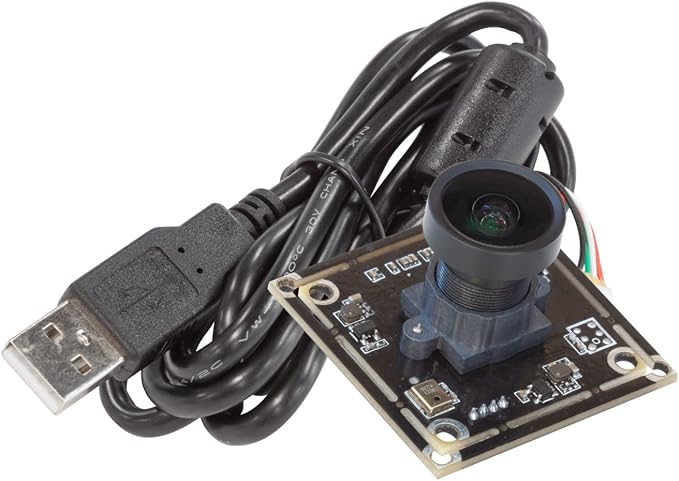

- More Applications: This 38mmx38mm camera board can be installed in the most hidden and narrow position for a home surveillance system, monitoring 3D Printers, object recognition, tracking, and other machine vision application.
Product description
Specifications
Applications

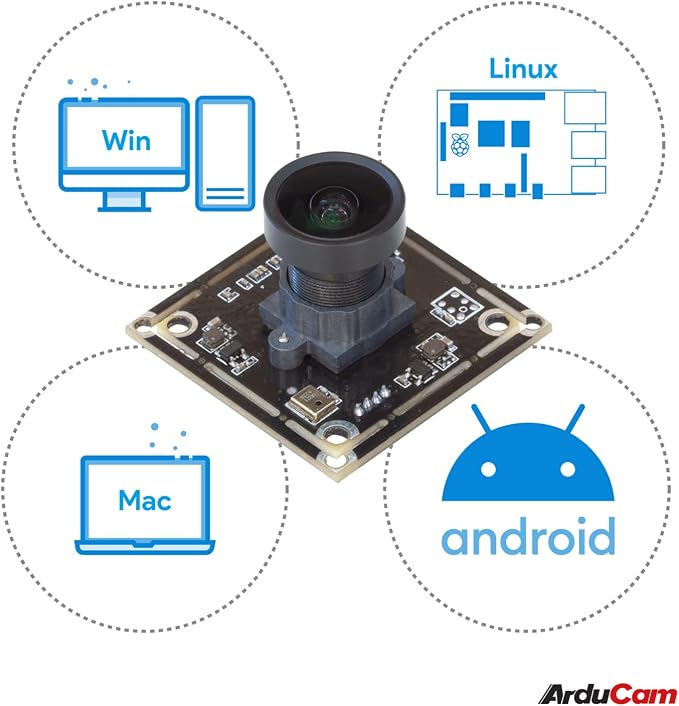

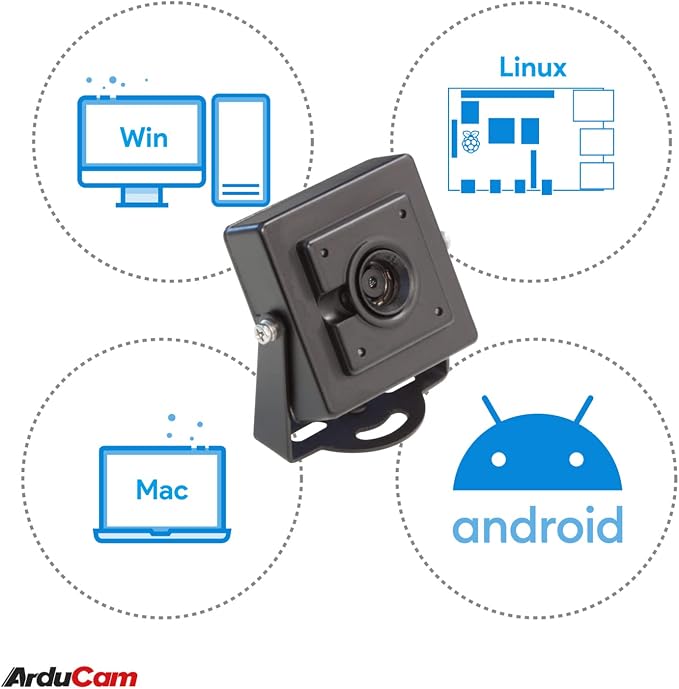

This camera is based on 8MP IMX179 image sensor. Output format: MJPG/YUY2. The max resolution&frame rate is 3264(H)x2448(V)@30fps. Besides, we have equipped the camera with Autofocus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 63°(H) autofocus Lens, allowing you to use it for some specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
MJPG： 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2： 1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480
Resolution: 8MP
Shutter Type: Rolling shutter
Output Format: YUYV/MJPG
YUYV/MJPG: 3264(H)x2448(V)
Focus Type: Autofocus
Lens Mount: M8.5±0.25
E.F.L: 3.543

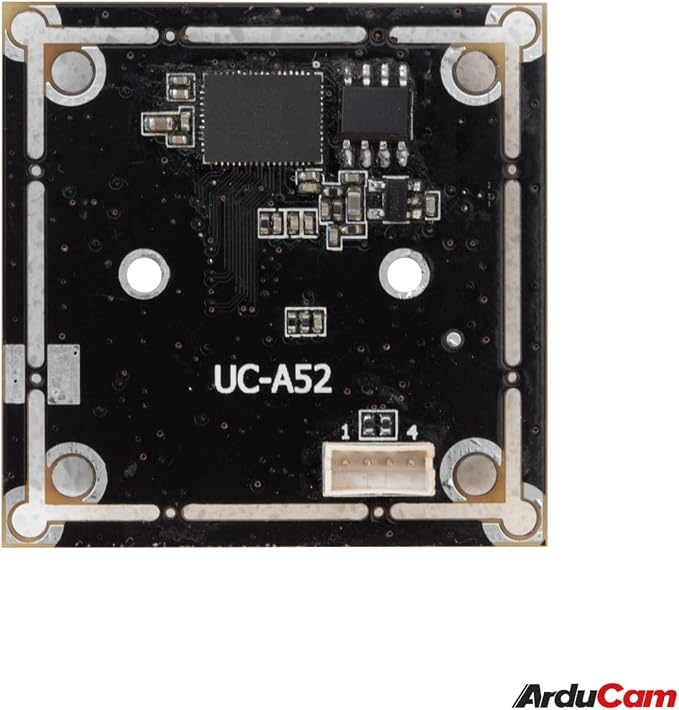

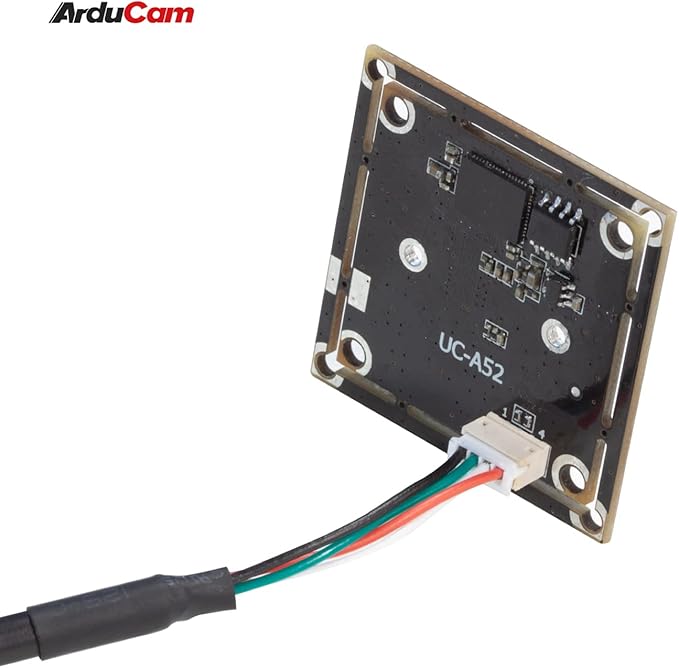

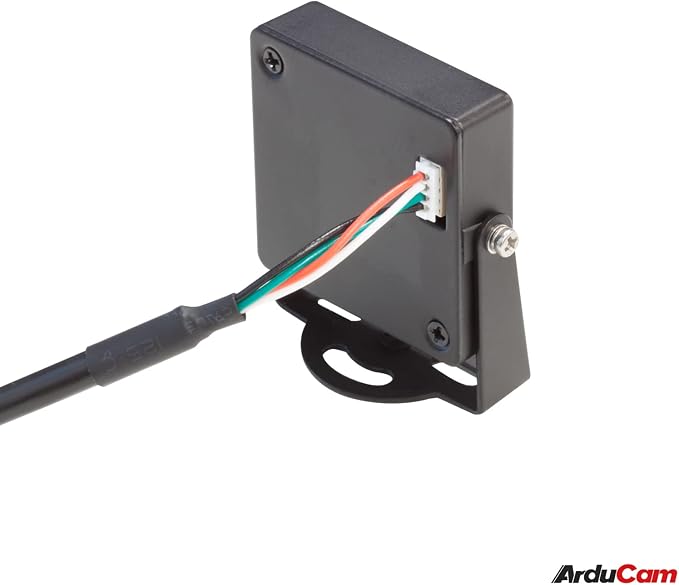

Connector: B4B-ZR
Operating Voltage: DC 5V +/- 5%
Operating Temp.: -4°F-158°F(-20°C to 70°C)
