Arducam 3MP ISX031 120dB HDR Jetson Orin Camera with 127° DFOV Wide-Angle Lens for NVIDIA Jetson Orin Nano &amp NX Built-in ISP LED Flicker Mitigation

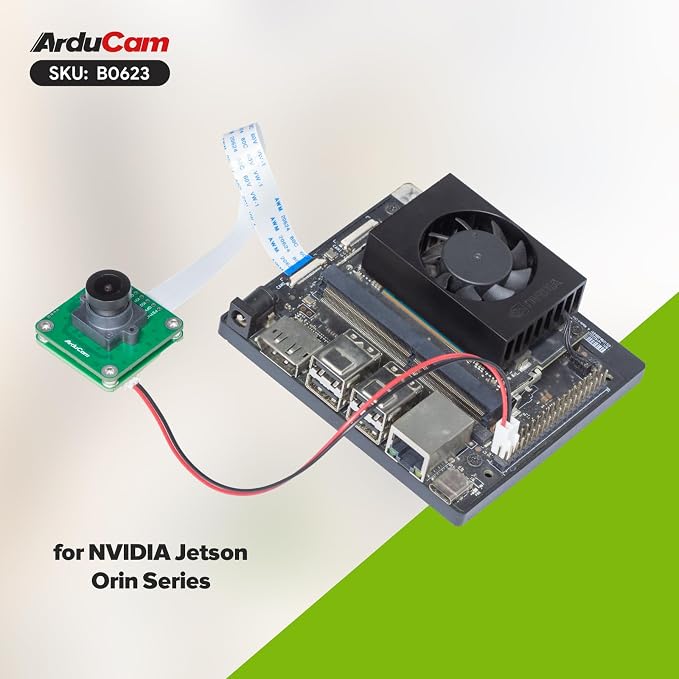

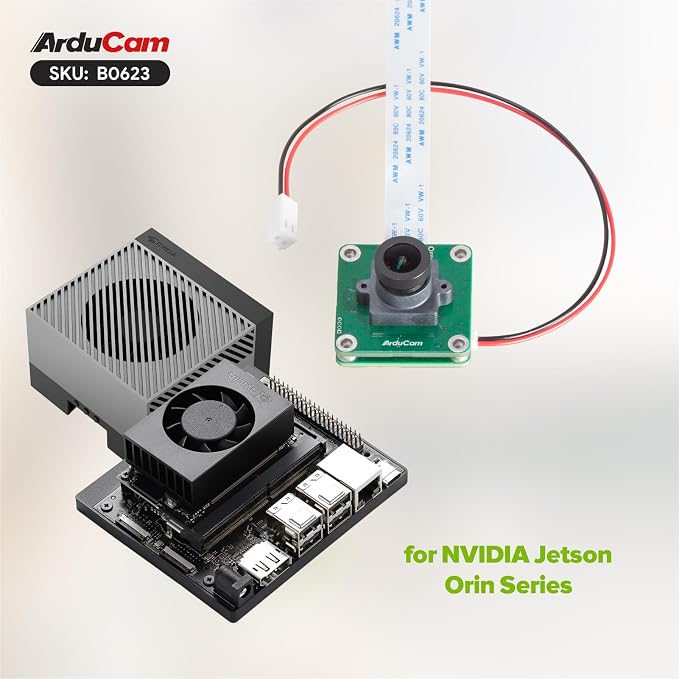

- Designed for NVIDIA Jetson Orin Platform: This professional NVIDIA Jetson Camera is fully compatible with Jetson Orin Nano Camera and Jetson Orin NX Camera platforms. Optimized for embedded AI vision applications, it integrates seamlessly with NVIDIA software and vision frameworks - 120dB HDR with Automotive-Grade Sensor: Powered by ISX031, this Jetson Orin Camera delivers up to 120dB high dynamic range, capturing critical details in high-contrast scenes such as bright outdoor sunlight, shadows, and mixed lighting environments - Built-in ISP for Stable Image Output: The integrated ISP performs real-time image processing including auto exposure, white balance, tone mapping, and noise reduction, reducing CPU/GPU workload on the Jetson platform while ensuring consistent image quality - LED Flicker Mitigation for Industrial Lighting: Advanced LED Flicker Mitigation (LFM) effectively suppresses flicker artifacts under LED or strobe lighting, making this MIPI CSI-2 Camera ideal for robotics, smart traffic, warehouses, and industrial automation - Wide-Angle MIPI CSI-2 Camera for AI Vision: Featuring a factory-calibrated 127° DFOV wide-angle lens and high-speed MIPI CSI-2 interface, this MIPI Camera for Jetson provides low latency, high bandwidth transmission, and expanded field of view for AI vision and autonomous perception systems

Product description

Overview

Highlights

Specifications

Functionality and Compatibility & Other Specs

Applications

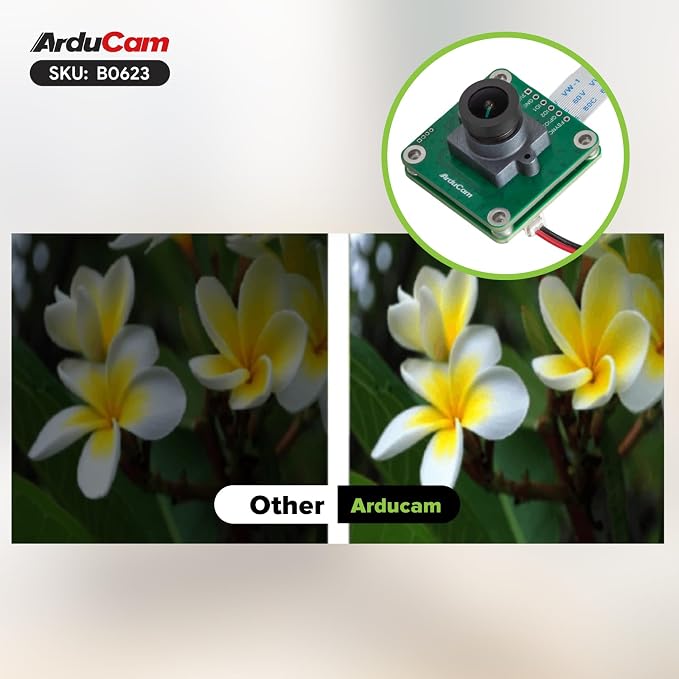

The Arducam 3MP ISX031 camera is a high-performance Jetson Orin Camera developed for next-generation AI vision and embedded perception systems. Designed as a native NVIDIA Jetson Camera, it supports both Jetson Orin Nano and Jetson Orin NX, enabling rapid deployment in robotics, autonomous machines, and outdoor intelligent systems.Equipped with an automotive-grade ISX031 sensor, the camera delivers 120dB HDR performance, ensuring reliable imaging across extreme lighting conditions. The built-in ISP handles critical image processing tasks on-board, improving system efficiency while maintaining stable, high-quality output.Thanks to LED Flicker Mitigation technology, the camera maintains clean, artifact-free images under LED lighting commonly found in industrial and traffic environments. Combined with a wide-angle lens and high-speed MIPI CSI-2 Camera interface, this solution provides accurate, low-latency visual input for demanding AI vision workloads.

Sensor: ISX031

Resolution:3 Megapixels

Chroma: Color

Resolution@fps: 1920x1536@60fps, 1920x1080@60fps

ISP: Built-in ISP

HDR Support: Yes

FOV: 127°(D)×97°(H)×76°(V)

Lens Mount: M12 Mount

User Control Parameters (v4l2-ctl): Brightness, Contrast, Saturation, Hue, Sharpness, Flicker, hflip, vflip

automotive-grade ISX031 sensor delivers up to 120dB HDR, preserving critical details in high-contrast scenes for reliable outdoor and autonomous vision applications.

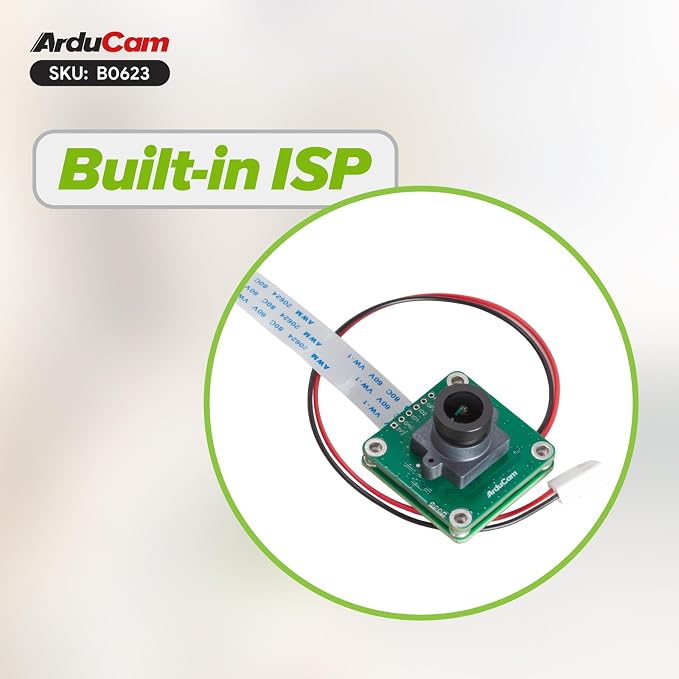

Integrated ISP handles exposure, white balance, tone mapping, and noise reduction on-board, reducing Jetson system load while ensuring consistent, low-latency image output

Advanced LFM suppresses flicker artifacts caused by LED or strobe lighting, ensuring clean and stable images in factories, warehouses, and traffic environments.

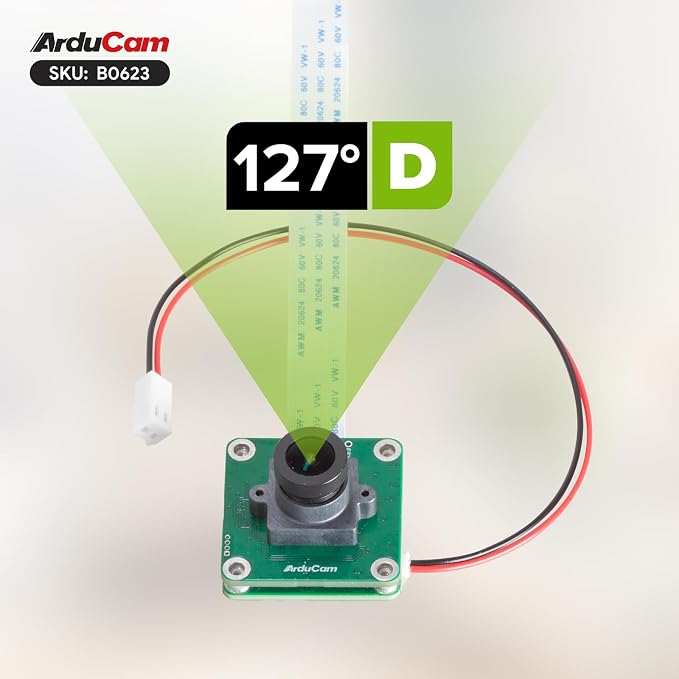

The 127° diagonal field of view provides broader scene coverage and improved spatial awareness, reducing blind spots in robotics and autonomous perception systems.
