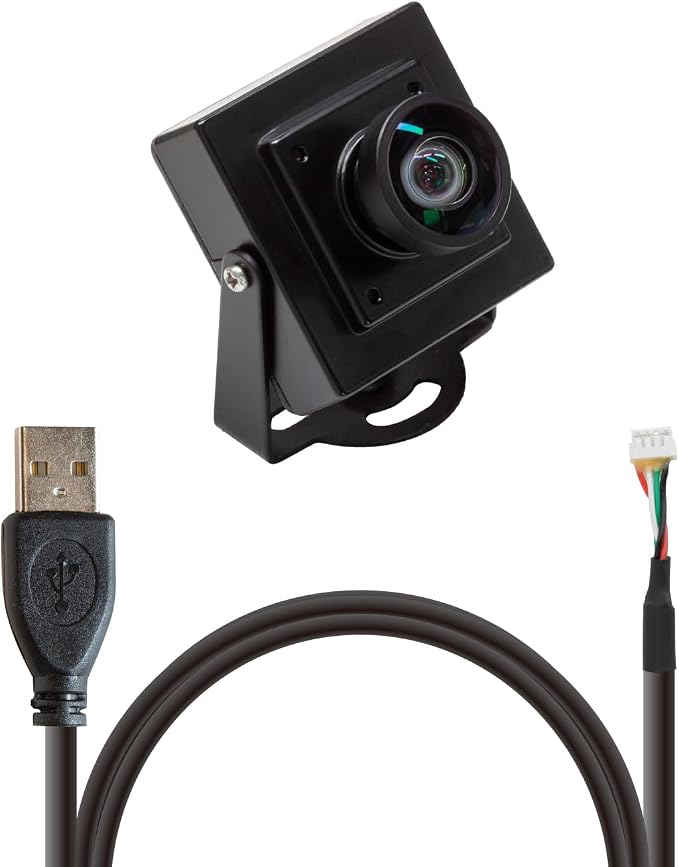

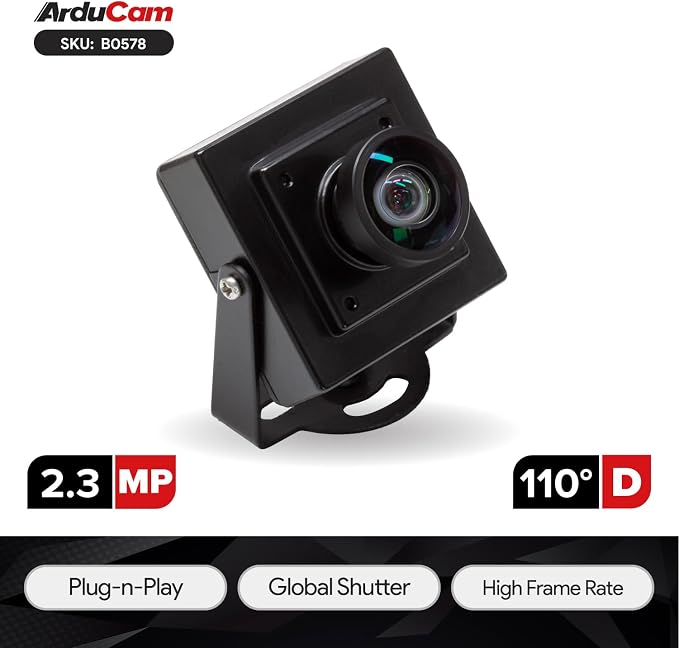

Arducam 2.3MP USB Camera Module Global Shutter 110°(D) Wide Angle Lightburn Camera 1080p@90fps High Speed USB 2.0 UVC Webcam for Windows Linux Android and Mac OS

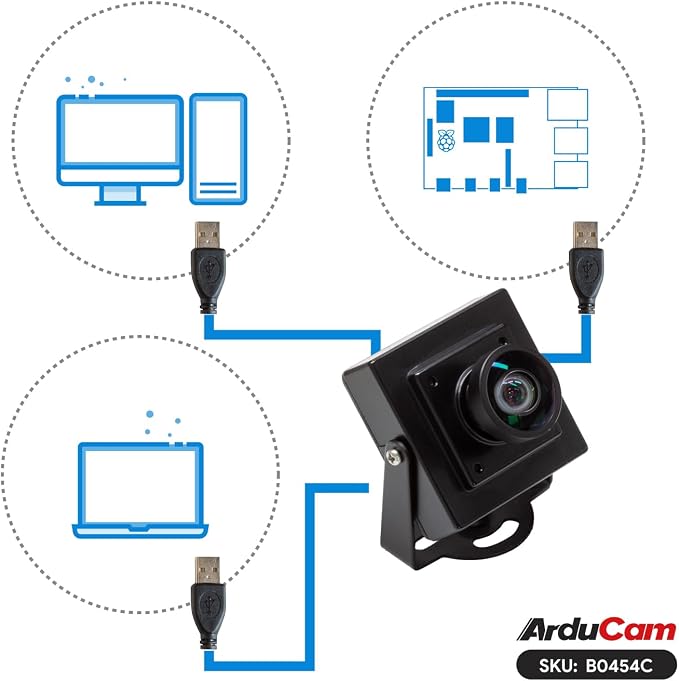

- Global Shutter for Precision Motion Tasks: Equipped with an advanced global shutter sensor, this USB webcam delivers crisp, blur-free images of fast-moving objects, making it an ideal 3D printer camera or tool for robotics, automation, and machine vision applications - True Plug-and-Play USB Connectivity: As a UVC-compliant PC webcam with standard USB2.0 support, it requires no additional drivers and delivers seamless compatibility as a versatile web camera for laptop and desktop computers - Flexible Onboard ISP Tuning: Optimized for professional and hobbyist use?including as a Lightburn camera?this model offers adjustable image parameters like exposure, gain, white balance, and more for superior control in varying lighting conditions - Smooth High-Frame-Rate Performance: Ideal for real-time monitoring and video capture, this 1080p webcam supports fluid 90fps streaming?perfect for automated inspection, gesture recognition, or high-speed scenarios where other 4k webcam for PC may struggle with latency - High-Definition 2.3MP Clarity: With sharp 1920×1200 resolution, it captures detailed imagery suited for machine vision, quality control, or as a compact 4k mini camera alternative for applications demanding accuracy and reliability

Product description

Overview

Image Sensor & Lens Specifications

Other Specifications

Applications & Notes

This USB2.0 UVC-compliant module leverages the selected global shutter sensor (2.3MP, 1920×1200) to deliver motion artifact-free imaging at 1080p@90fps?ideal for high-speed robotics (e.g., pick-and-place, drone navigation) where USB3.0 bandwidth is excessive but legacy compatibility is critical. The onboard ISP dynamically optimizes exposure, gain, and white balance (auto/manual modes) to compensate for USB2.0’s 480Mbps bandwidth constraints, ensuring usable frame rates even in low-light industrial environments.

Applications

Notes
