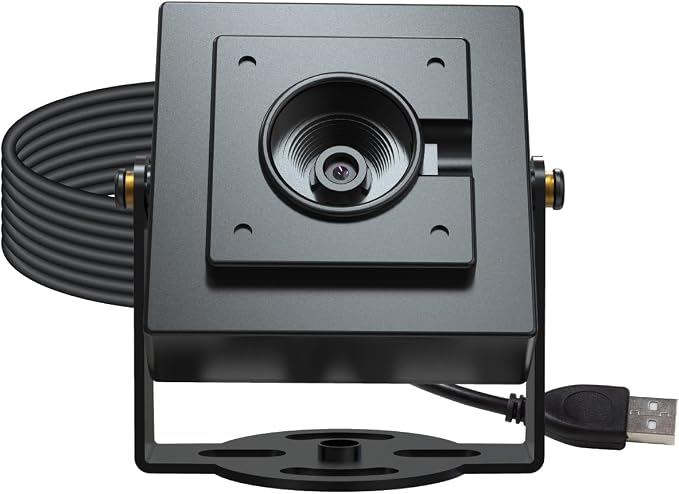

Arducam 16MP USB Camera Module AutoFocus Lightburn Camera Support Digital PTZ Compatible with Windows Linux

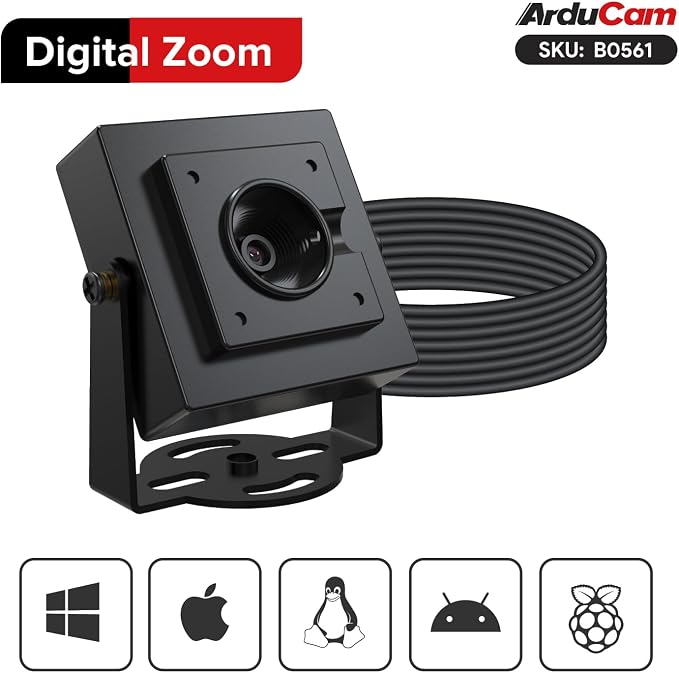

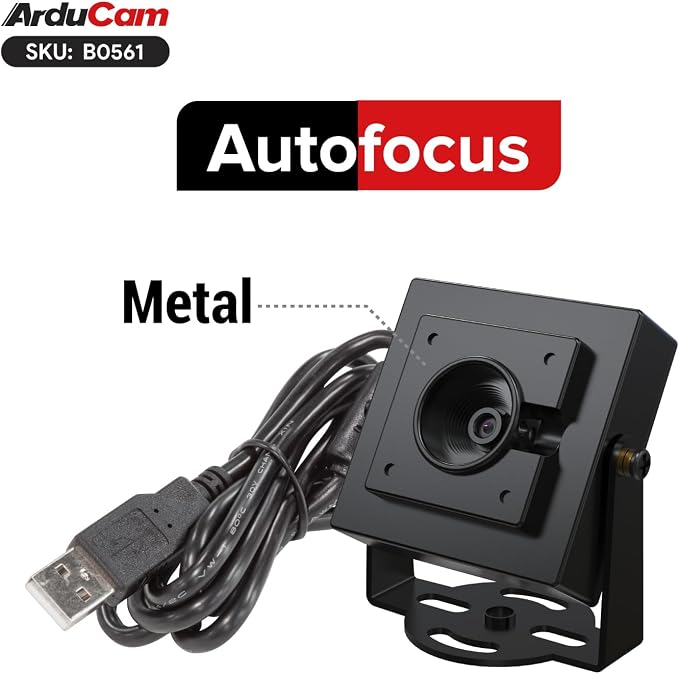

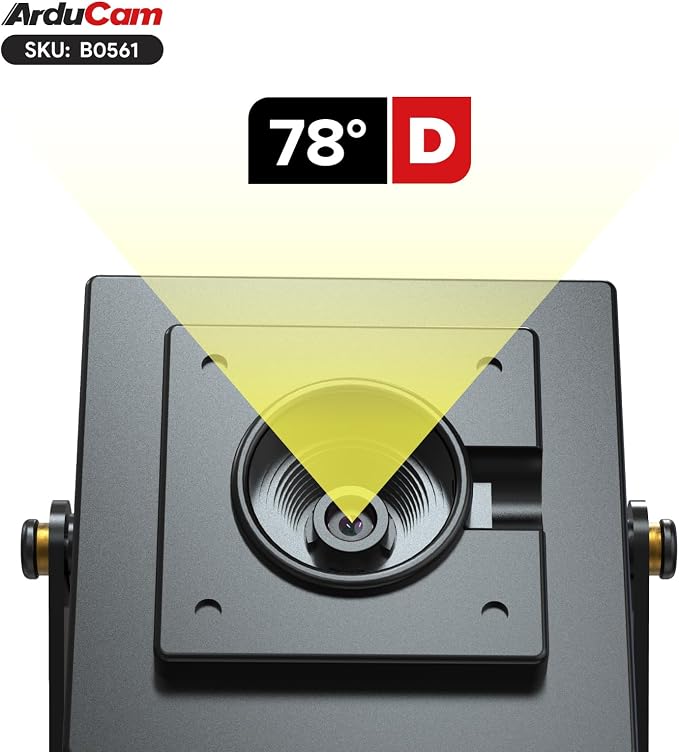

- 16MP Color Sensor for Ultra-High Definition: The USB camera features a 16MP color sensor with 1.12μm x 1.12μm pixel size, delivering ultra-high-definition imaging. Its ability to capture intricate details makes it ideal for medical imaging, scientific research, and applications requiring exceptional clarity - Digital PTZ Adjustments for Flexible Composition: The UVC camera offers digital PTZ (Pan-Tilt-Zoom) adjustments at lower resolutions (480p, 720p, 1080p), allowing users to optimize composition without physically moving the camera. This feature enhances flexibility in framing and focusing, particularly in constrained environments - Maximized Active Sensor Area for Optimal Quality: Like the ezBOX-HDR, the ezBOX-Klarity USB webcam maximizes its sensor’s active area, ensuring no pixel is wasted. This results in sharper, more detailed images, making it a powerful tool for applications where precision and image quality are critical. - Autofocus Lens: This 16MP webcam is equipped with 78°(D) autofocus lens, which ensures sharp focus for every shot - Easy to Set Up: This camera is USB 2.0 UVC compliant. Just Plug-and-play, it supports working with Windows, Linux, Android, and Mac OS without extra driver installed. No specific software required - Note: Digital PTZ (Pan-Tilt-Zoom) adjustments can only be used at lower resolutions (480p, 720p, 1080p).

Product description

Overview

Specifications-Image Sensor

Specifications-Lens

Other Specifications

Applications

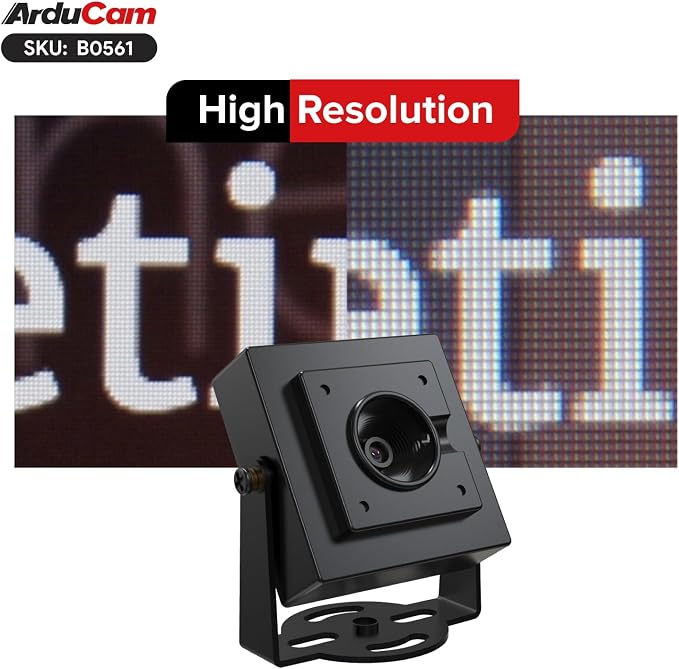

ezBOX-Klarity offers precision in every pixel with its 16MP Color Sensor, featuring a 1.12um x 1.12um pixel size. It maximizes the entire active sensor area, ensuring no pixel is wasted and delivering optimal image quality. This camera is perfect for applications requiring exceptional clarity and precision, with resolutions up to 16MP. Additionally, it provides enhanced flexibility at lower resolutions (480p, 720p, 1080p), allowing for digital Pan-Tilt-Zoom (PTZ) adjustments to optimize composition.

USB Interface

Interface: USB 2.0 Device

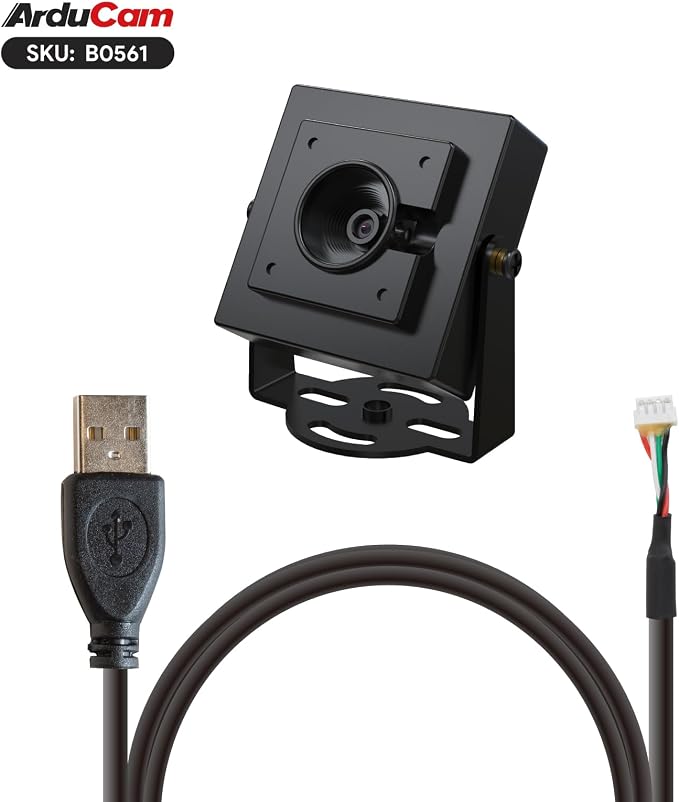

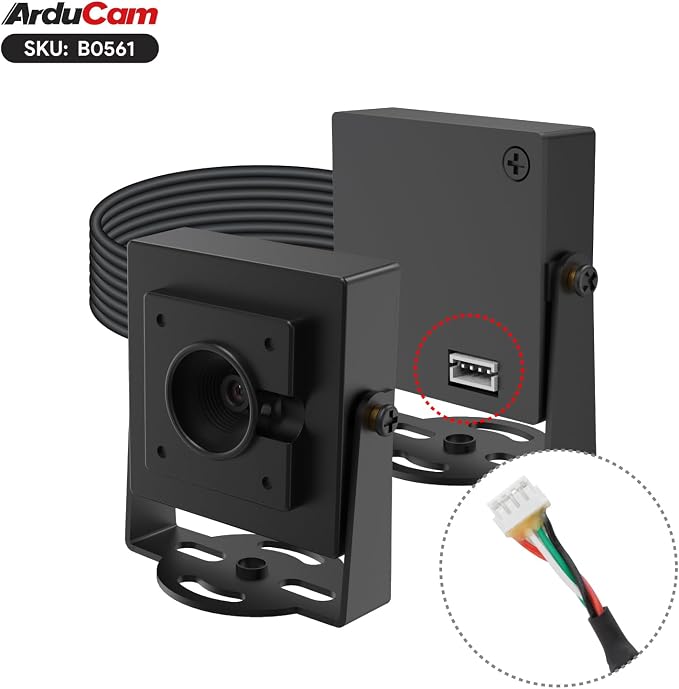

Connector: B4B-ZR JST

UVC Compliant: No additional drivers required

Electrical and Mechanical

Operating Voltage: 5V

Operating Temp.: 32°F-158°F (0°C to 70°C)

Power Consumption: 1.75W

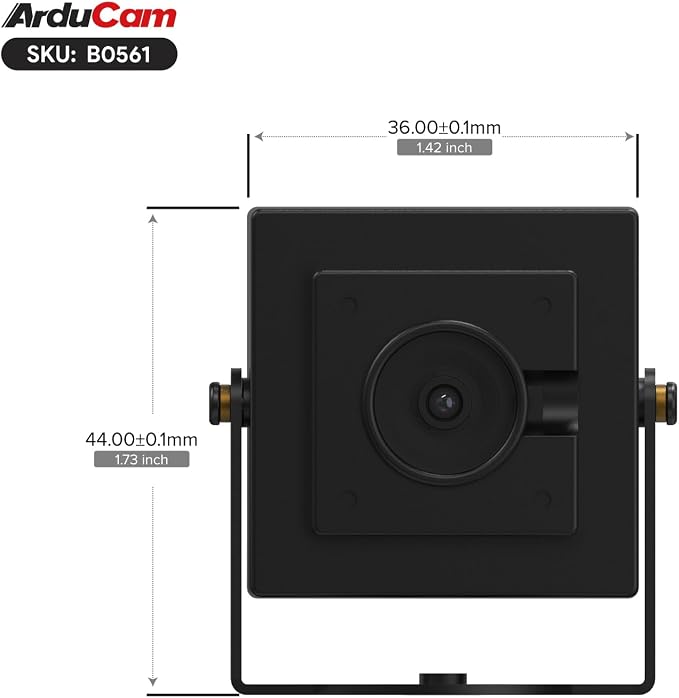

Camera Board Size: 32mmX32mmX1.6mm

Functionality and Compatibility

Supported OS: Windows, Linux

Recommend Sample Application: Amcap for Windows, qv4l2 for Linux

UVC Controls: Brightness, Contrast, Saturation, PTZ (Pan/Tilt/Zoom), White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)
