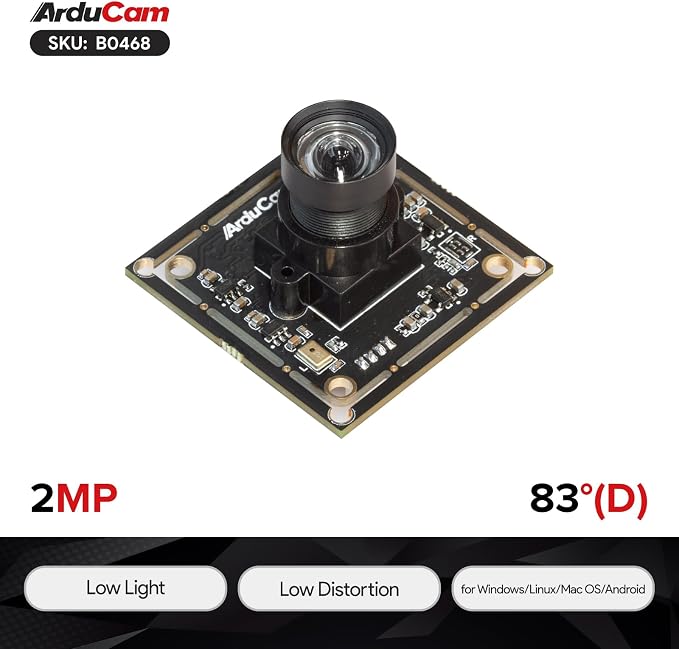

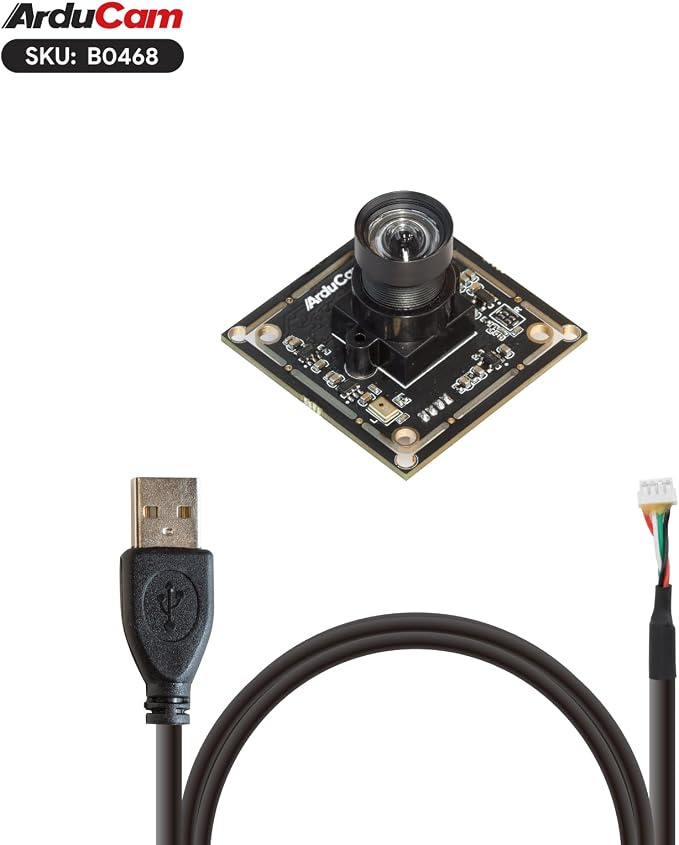

Arducam 1080P USB Camera Module Low Light Low Distortion Lightburn Camera 2MP CMOS IMX323 Mini UVC USB2.0 Webcam Board with 83°(D) M12 Lens 3.3ft/1m Cable for Windows Linux Android and Mac OS

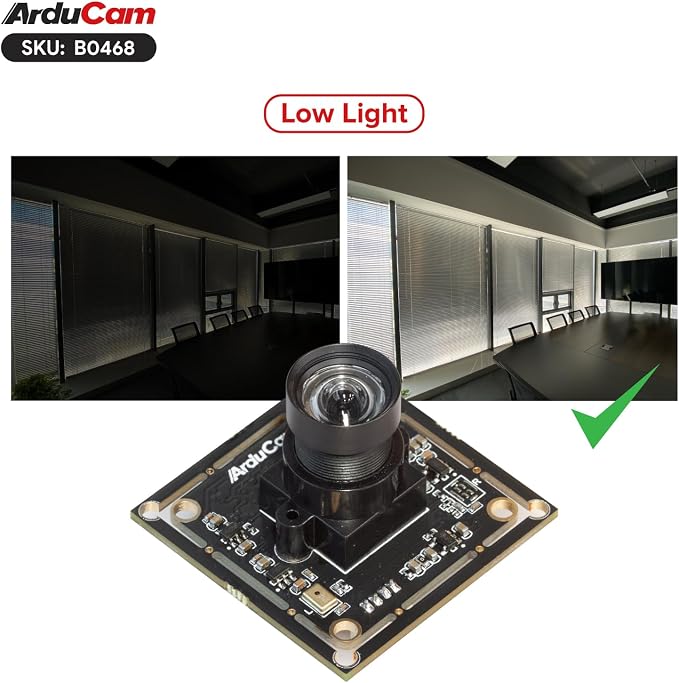

- ⊙ HD Resolution and Low Light: This USB camera is based on the advanced 2MP IMX323 sensor, which can capture the minimum illumination 0.01 Lux@F1.2 - ⊙ Low Distortion: This UVC camera module comes with 83°(D) Low-Distortion (<1%) M12 Lens, the maximum still resolution of 1920*1080 which makes imaging clearer and more realistic. - ⊙ Capture Video with Audio: This low light camera's frame rates are: H.264/MJPG: 30fps@1080p; YUYV: 30fps@640*480, which can ensure smooth and fluid video capture. - ⊙ Plug&Play: This camera module is UVC-compliant, no extra drivers are needed. - ⊙ Applications: This IMX323 camera can be widely applied on most occasions: Home surveillance, day-night vision, dashcam, machine vision, Video conference, Monitoring 3D printers, Robot, and machine vision

Product description

Highlights

Specifications

Others

This IMX323 USB camera boasts a maximum resolution of 2 megapixels utilizing the advanced IMX323 image sensor. With a maximum still resolution of 1920*1080, users can capture detailed images. Moreover, the camera's frame rate can reach up to 30fps@1080P, ensuring smooth and fluid video capture.

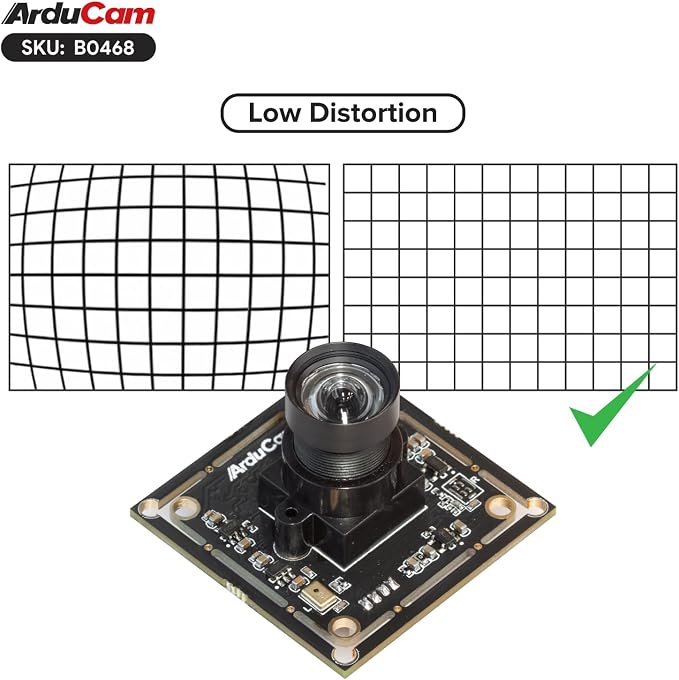

With its low distortion M12 Lens offering a field of view 83° DFoV, this camera captures stunningly accurate images.

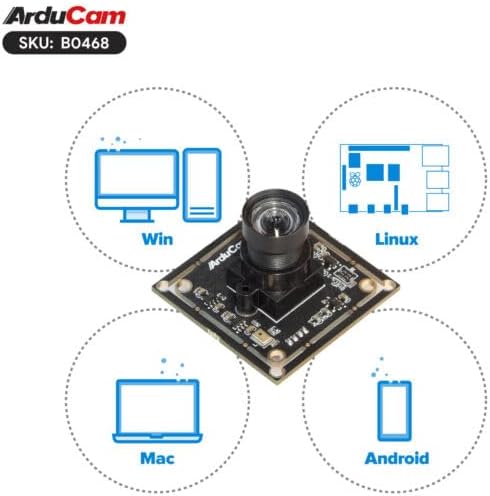

Arducam USB camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows, Linux, Mac OS, and Android, no additional drivers are needed, simplifying the setup process.

MJPG: 1920*1080@30fps, 1280*720@30fps, 800*600, 640*360, 640*480, 352*288,320*240@30fps YUYV: 15fps@800*600, 30fps@320*240/352*288/640*360/640*480 H.264: 30fps@ 1920*1080, 1280*720, 800*600, 640*360, 640*480, 352*288,320*240

SENSOR: IMX323

Still Resolution: 2 Megapixels

Output Format: MJPG/YUYV/H.264

Sensor Active Area: 1936(H)*1097(V)

Focus Type: Manual Focus

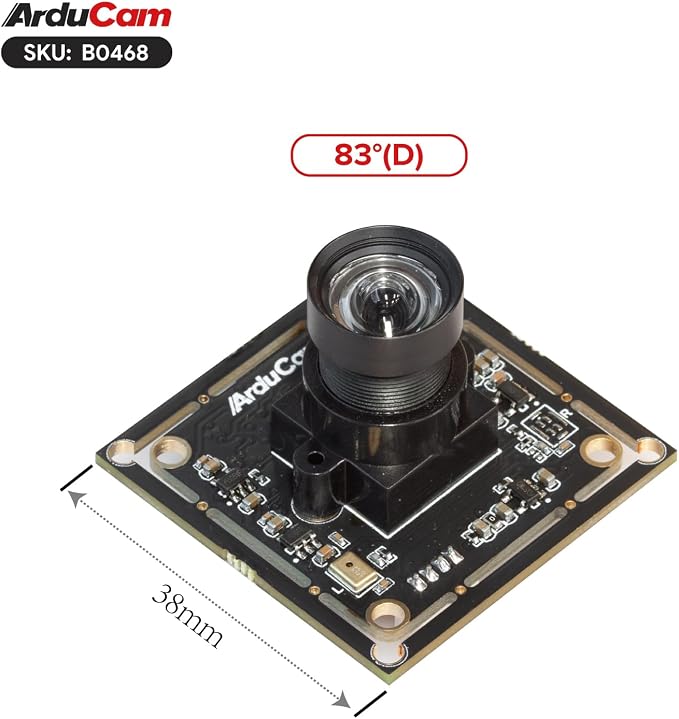

FOV: 83°(D)×71°(H)×55°(V)

Lens Mount: M12 Mount

F.NO: F2.8

E.F.L: 4mm

Note: This camera supports H264 output format, here is the recommended software for you: AMcap(download with bit.ly/H264-AMcap) and Portplayer.
