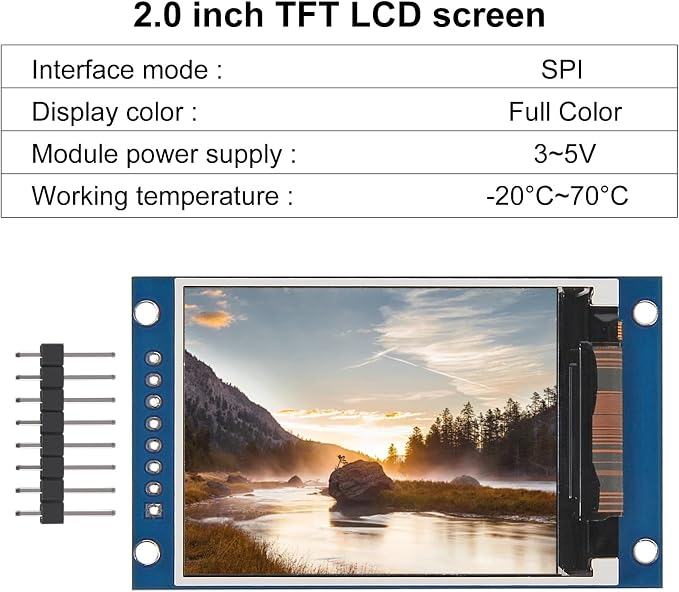

- Interface: SPI. LCD type: IPS. Driver: ST7789V. Resolution: 240(V) x 320 (H) B.

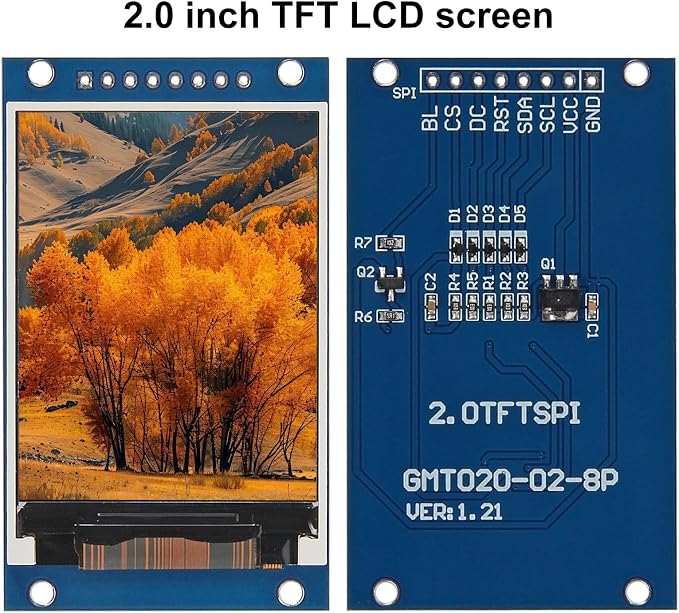

- This 2" SPI TFT LCD Display Module is a compact and high-quality solution for visual output in embedded projects. With a crisp 240×320 resolution and 262K vibrant colors, it offers stunning image quality in a small form factor. The display adopts an IPS panel, ensuring excellent brightness and wide viewing angles

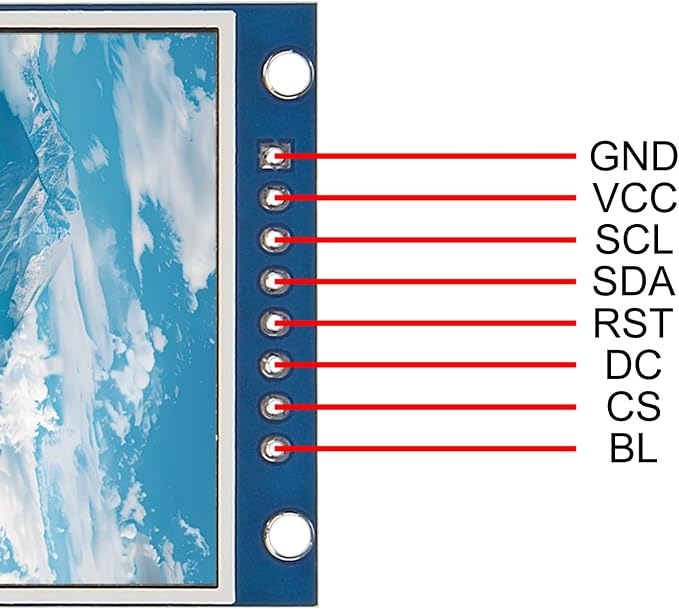

- Designed with both 3.3V and 5V logic level support, this module is widely compatible with mainstream development boards. Pin labels (VCC, GND, DIN, SCK, CS, RST, DC, BL) are clearly marked for easy setup. The backlight LED ensures a bright and visible output even in dim lighting.
- Applications include DIY dashboards, robotics displays, data monitors, handheld electronics, and IoT devices
- Powered by the integrated ST7789V controller, this screen communicates via a 4-wire SPI interface, reducing the number of IO pins required and simplifying your hardware design. Whether you’re building a custom user interface or visualizing sensor data, this display provides reliable and efficient performance.
