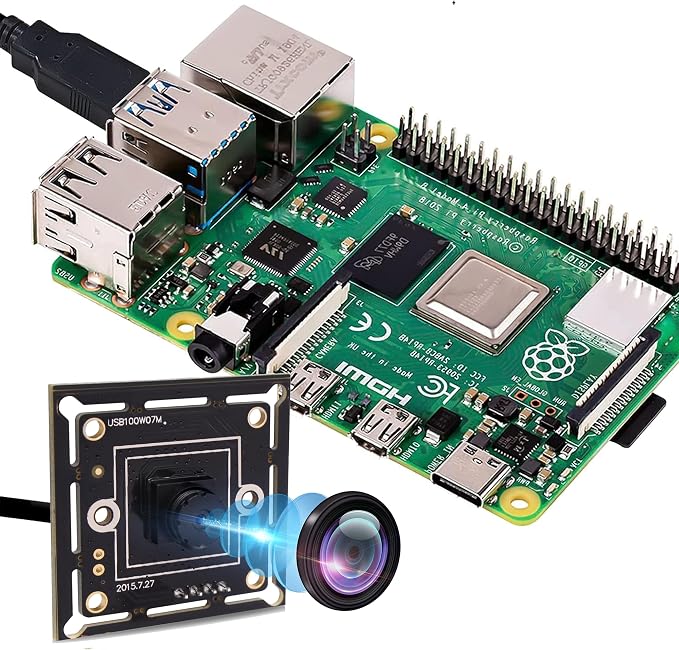

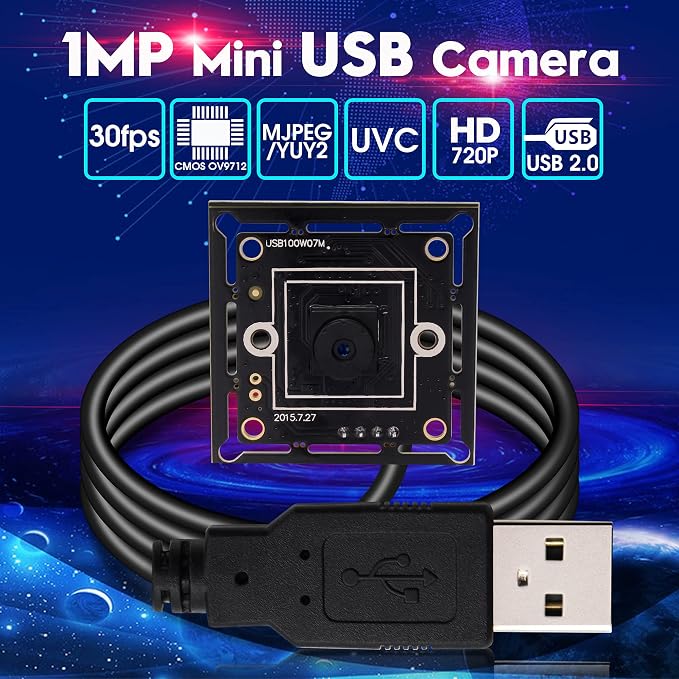

720P USB Camera Module Super Mini 45 Degree M7 Low Distortion Lens USB Camera Module for Opencv Raspberry Pi USB2.0 High Speed CCTV PC Camera Plug and Play for Windows Linux Mac OS Android

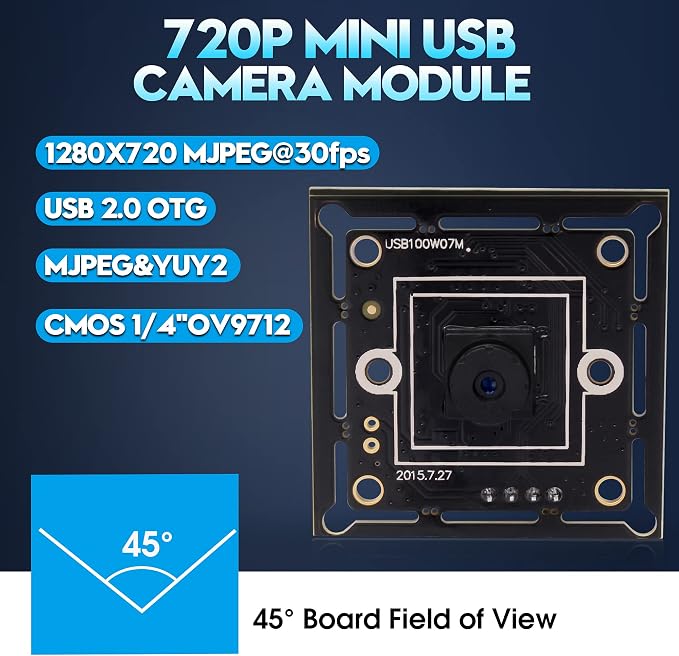

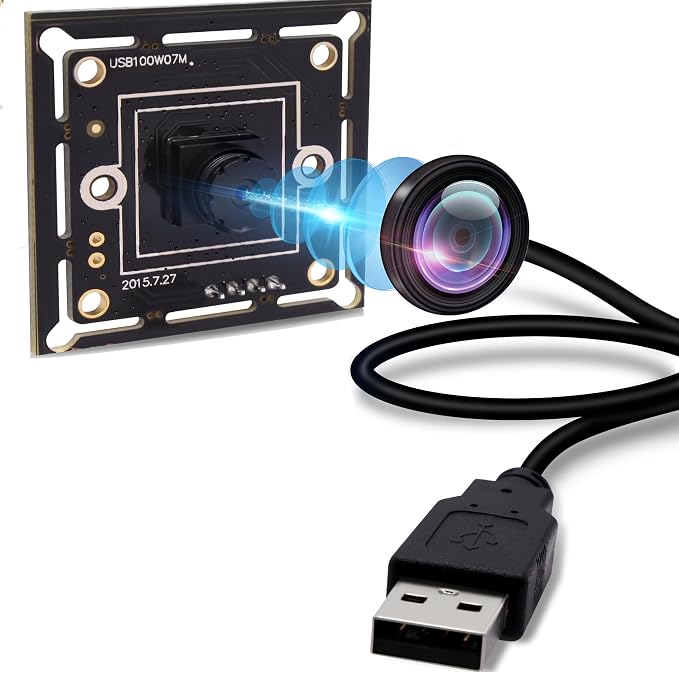

- 1 Megapixel USB camera module comes equipped with a 1/4" CMOS OV9712 image sensor for improved image performance. Its super small profile and thin configuration make it ideal for embedded applications. The USB 2.0 camera module comes with a 1-meter USB 2.0 cable. Board size/weight is 32X32mm (compatible with 26X26mm)/approx. 30g. - M7 Lens 45 Degree Mini USB Camera: 1MP USB Camera Module with Ominivision CMOS 1/4" OV9712 Image Sensor. Standard M7 Mini Lens with a wide-angle view (D)60 (H)45 degrees. - The 720p USB camera module comes with IR-cut filter@550nm for true-color images/videos (does not work with 850nm infrared illumination). Brightness, contrast, color saturation, sharpness, gamma, WB, and more are adjustable. The ultra-small profile and thin shape make the compact camera suitable for various application scenarios such as traffic monitoring, parking lots, entrance of parking lots, ATM machines, toll booths, etc. - Operating System Support: The USB camera module is an ideal choice for many applications such as security systems, portable video systems, video phones, industrial machine monitoring, and toys. It supports USB 2.0 plug-and-play free drivers. Most operating systems: Win7/8/10, Linux, Mac OS, Android, Raspberry Pi, etc. - Wide Application: The USB 720P camera module is an ideal choice for many applications such as security systems, portable video systems, video phones, industrial machine monitoring, and toys. It uses high-quality image sensors manufactured by OmniVision, which is one of the world leaders in the electronic field. The USB camera module is the ideal choice for device manufacturers, experimenters and hobbyists.

Product description

IFWATER 720p USB Camera Module Wide Angle with 45degree M7 Lens Camera Computer UVC Video PC Opencv Camera Module,with 3.3ft/1m Cable for Laptop

1Megapixels USB Camera Module,1280X720 M7 45 Degree Lens with CMOS OV9712 USB Webcam Plug and Play For Computer PC Desktop Laptop

IFWATER Usb Camera Module With Ov9712 Sensor 720p 30fps Camera Module For High Quality Image And Low Power Consumption,Ideal For Portable Equipment

USB Camera Module 1MP, 1280X720 M7 45degree Lens with CMOS OV9712 Image Sensor Surveillance Camera board, free driver For Linux Mac OS Windows

Camera USB 720P with 45Degree Wide Angle Lens

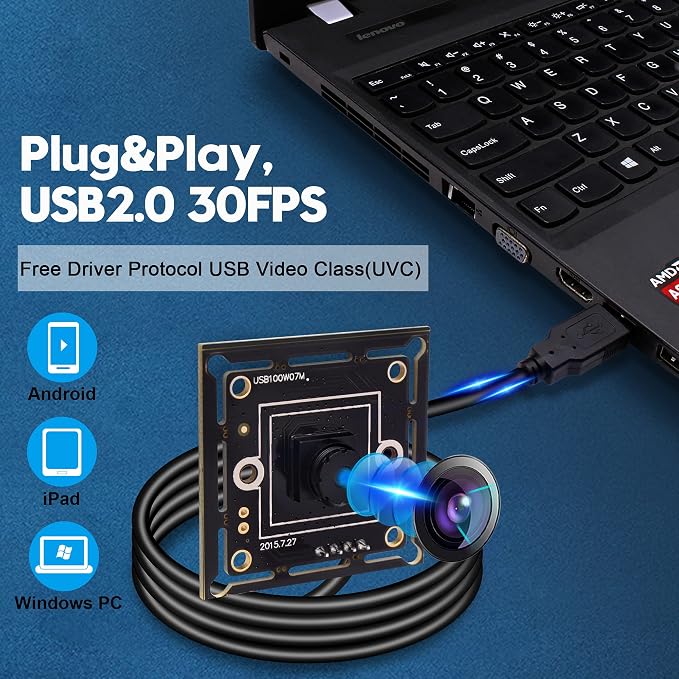

Free Driver Plug&Play USB Camera

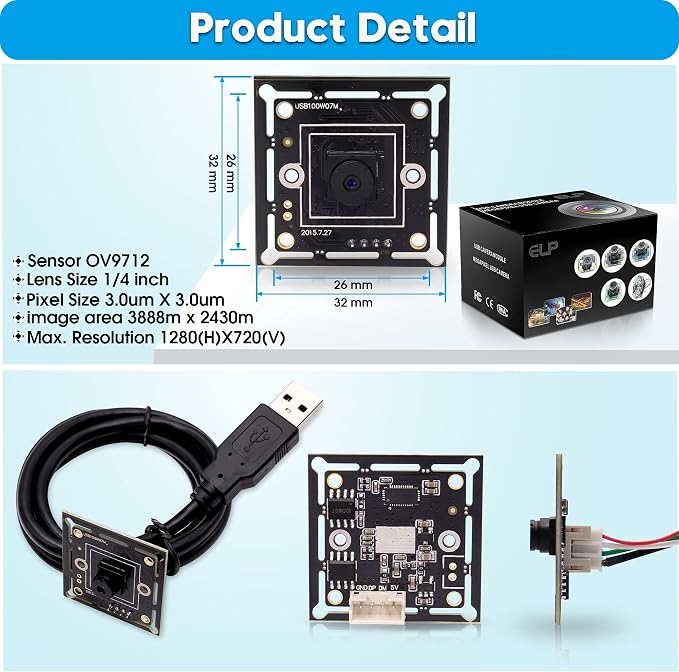

Specification:

Sensor OV9712

Lens Size 1/4 inch

Pixel Size 3.0um X 3.0um

image area 3888m x 2430m

Max. Resolution 1280(H)X720(V)

Compression format MJPEG / YUV2（YUYV）

S/N Ratio 40dB, Dynamic Range 69dB

Sensitivity 3.7V/lux-sec@550nm

Mini illumination 0.1lux

Shutter Type Electronic rolling shutter / Frame exposure

Connecting Port type USB2.0 High Speed

Free Drive Protocol USB Video Class（UVC）

Support OTG Protocol USB2.0 OTG

Resolution & frame MJPEG：

320X240@ 30fps, 352X288@ 30fps

640X360@60fps,640X480@ 30fps

800X600@ 30fps,1280X720@ 30fps

YUV：320X240@ 30fps,352X288@ 30fps

640X360@30fps,640X480@ 30fps

800X600@ 15fps,1280X720@ 5fps

Features:

The HD 720P USB CMOS board camera module is ideal for many applications like :

security systems, portable video system, video phones, industrial machine monitoring and toys.

It use high quality image sensors made by OmniVision, one of the world leaders in this field of electronics.

The USB camera module are ideal for equipment manufacturers, experimenters and hobbyists.

HD camera module used for all kinds of machine as below:

Smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, machinery equipment, all-in-one machine, POS equipment, STB, etc

Adjustable Parameters:

Brightness/contrast/saturation/hue/sharpness/gamme/gain/white balance/backlight contrast/exposure.

Easy to set up:

Our usb webcam is very easy to set up, USB 2.0 connector more effective in data transmission great save time for you . Easy to use, available USB port, compatible with most social media platform.

Operating System Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）

MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
