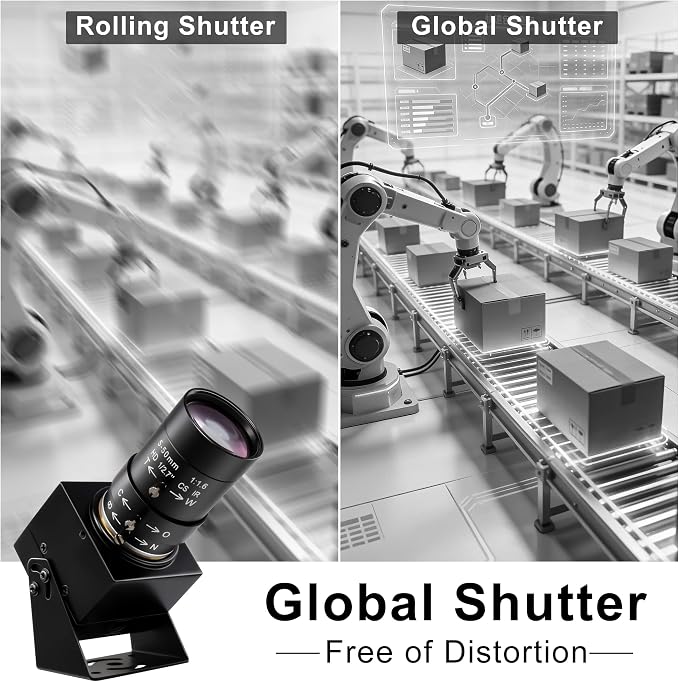

- Global Shutter Technology: Adopting advanced global shutter design to expose the entire sensor simultaneously, this monochrome camera eliminates rolling artifacts, smear and distortion. It captures ultra-sharp, complete frames of fast-moving objects, perfectly suited for industrial inspection and high-precision scientific analysis. - 800P 120fps/210fps High Speed Performance: Equipped with 1/4-inch OV9281 global shutter sensor, this USB 2.0 webcam delivers smooth 1280x800 resolution at 120fps MJPEG. 640x480 @ 210fps MJPEG, It provides stable high-speed imaging for precision motion analysis, 3D printer monitoring and industrial dynamic capture tasks. - 4X Manual Zoom & High-Sensitivity Monochrome Imaging Features a 2.8-12mm adjustable 4X manual zoom lens for flexible focal length control. The professional monochrome CMOS sensor enhances light sensitivity and contrast, delivering precise, high-detail images even in low-light engineering and research environments. - UVC Plug & Play Multi-OS Compatibility: UVC-compliant driver-free design supports instant use via USB connection. Fully compatible with Windows, Linux, macOS, Android and Raspberry Pi. Works well for PC, laptop and embedded system projects with zero complicated setup. - Adjustable Parameters & Wide Industrial Applications: Supports full manual tuning of exposure, gain, gamma, sharpness and white balance to adapt to diverse lighting conditions. Rugged mini body with mounting bracket ensures industrial durability, ideal for laser engraving, gesture tracking, robotics, barcode scanning and automation vision tasks.

Product description

IFWATER Monochrome 1280x800 800P High Frame Rate Webcam, Global Shutter USB2.0 Camera, Plug & Play for Raspberry Pi Windows Linux Mac Android

IFWATER 800P 1280x800 Ultra High Frame Rate Webcam, Global Shutter Monochrome Camera, Multi-System Compatible for Industrial Vision Golf Swing

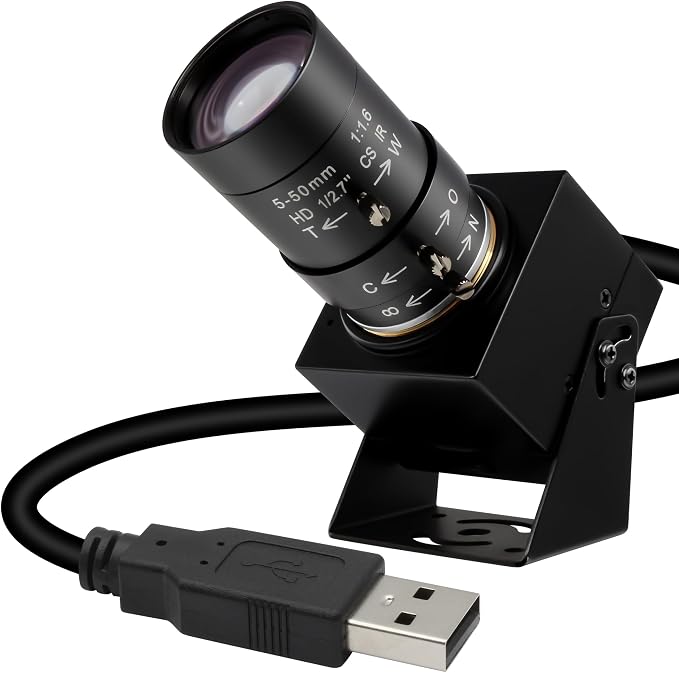

800P Global Shutter USB Camera, 120/210/420/640fps High Speed, 5-50mm 4X Manual Zoom, USB2.0 UVC Webcam for PC Laptop Raspberry Pi Windows Linux

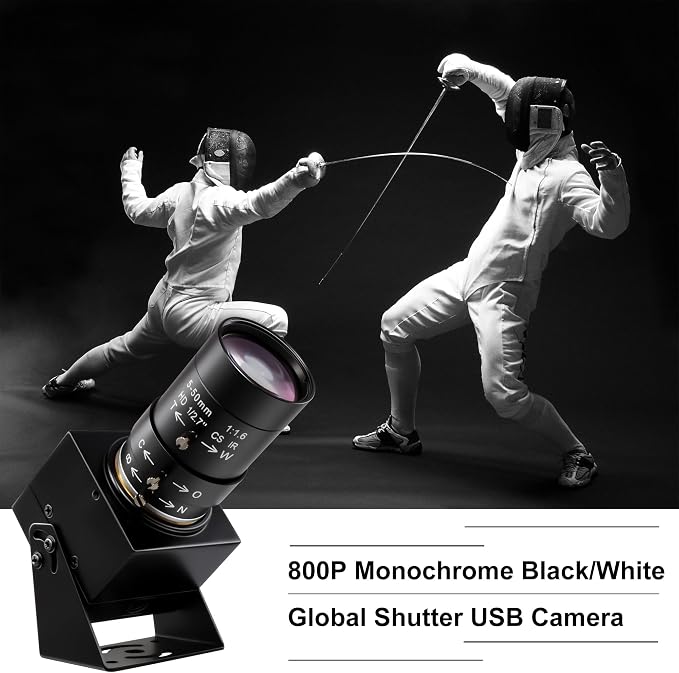

Global Shutter 800P High Frame Rate Webcam, Monochrome USB2.0 Camera with Zoom Lens, Plug and Play for Shooting Industrial & Embedded Projects

120fps Monochrome Global Shutter USB Camera, 480P@210fps 240P@420fps High Speed UVC Webcam, 2.8-12mm 4X Manual Zoom Lens, USB2.0 Plug & Play

Monochrome High Speed Global Shutter USB Webcam, 120FPS USB2.0 Camera Module, Adjustable Zoom Lens for Barcode Scanning & Industrial Automation

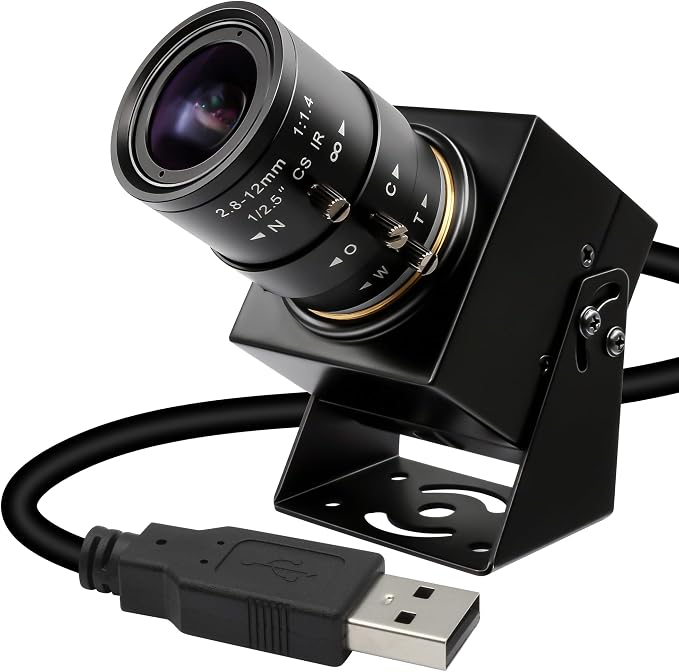

IFWATER high-speed monochrome 1MP USB camera adopts the 1/4-inch OmniVision OV9281 global shutter sensor, delivering frame rates up to 640fps to capture sharp, blur-free footage of rapidly moving objects. Equipped with a 2.8-12mm 4X manual varifocal zoom lens, it supports adjustable focal length, zoom and brightness to adapt to different shooting ranges.

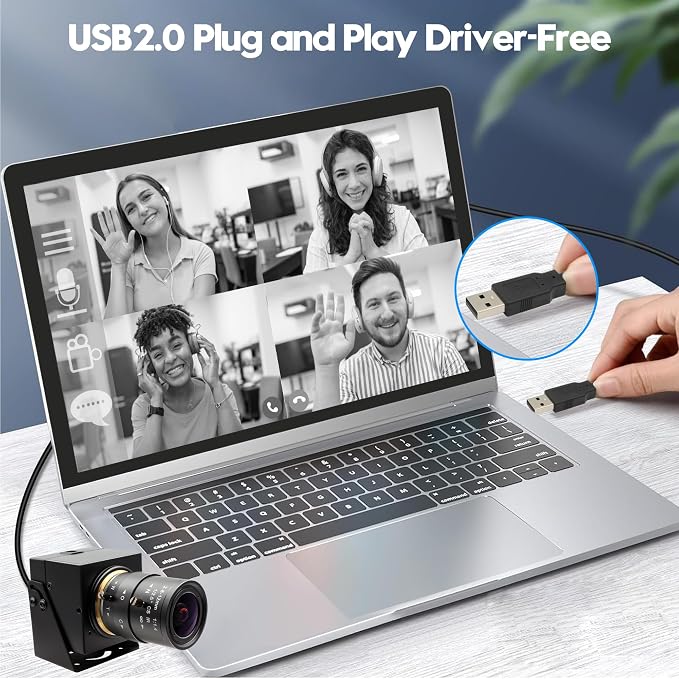

Compliant with UVC standard, this camera is plug-and-play without driver installation, fully compatible with Windows, Linux, Mac OS, Android and Raspberry Pi. Boasting outstanding low-light sensitivity and stable high-speed data transmission, it is perfectly suited for golf swing analysis, industrial machine vision inspection, 3D printer monitoring, robotic vision and all other high-speed motion capture projects.

Resolution & Frame rate :

1280x800 @ 120fps MJPEG @10fps YUY2

1280x720 @ 120fps MJPEG @10fps YUY2

1024x768 @ 120fps MJPEG @10fps YUY2

800x600 @ 120fps MJPEG @20fps YUY2

640x480 @ 210fps MJPEG @30fps YUY2

640x400 @ 210fps MJPEG @30fps YUY2

320x240 @420fps MJPEG @120fps YUY2

160x120@ 640fps MJPEG @420fps YUY2

Adjustable Parameters: Brightness, contrast, Saturation, Hue, Sharpness, Gamma,White Balance, Backlight Compensation, Exposure

Operating System Request:

WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later, Android 4.0 or above with UVC

Main Specifications:

Sensor: OmniVision OV9281

Lens Size: 1/4 inch, Pixel Size: 3 μm x 3 μm

Max Resolution: 1280(H)x 800(V)

Default Resolution: 640(H)x 480(V) @ 210fps MJPEG

Surface Mount Technology: SMT

Central Definition:600LW/PH (Center)

S/N Ratio: 37dB, Dynamic Range : 70dB, Sensitivity : 1.4V/lux-sec@550nm

Min illumination: 0.3 Lux, Shutter Type: Global Shutter

Connecting Port Type: USB2.0 High Speed

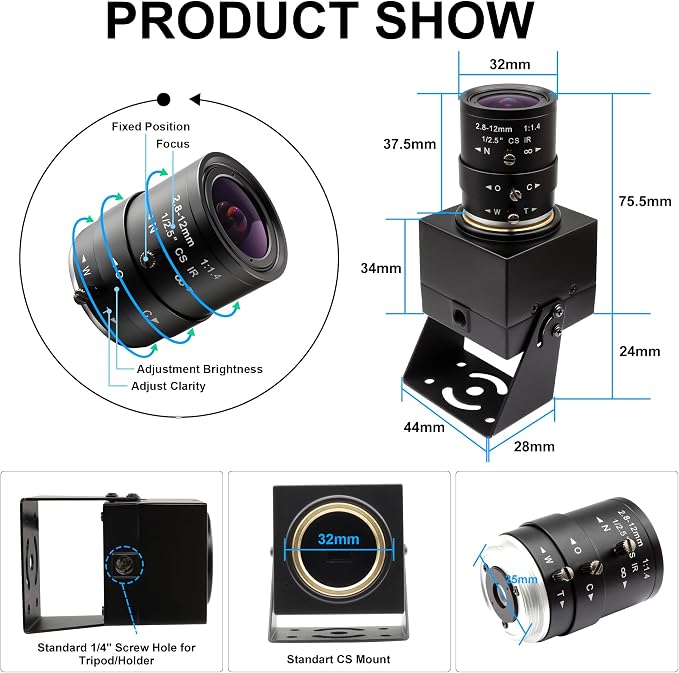

AEC/AWB/AGC: Support, Lens Parameter: CS 2.8-12mm lens

LED Board Power Connector: Support 2P-2.0mm socket

Power Supply USB BUS POWER: 4P-2.0mm Socket

Operating Voltage: DC 5V, Working Current: 100mA- 130mA

Storage Temperature: -20°C to 85°C, Working Temperature: -10°C to 70°C

1: Global Shutter Monochrome Sensor OV9281 eliminate motion smear rolling distortion

2: 1MP 1280×800 up to 120fps MJPEG high speed USB2.0 camera module

3: 2.8-12mm 4X manual zoom lens high light sensitivity low light imaging

4: UVC plug and play driver free support windows linux mac android raspberry pi

5: Full adjustable image parameters exposure gain white balance gamma sharpness

6: Mini industrial camera board with mounting bracket for embedded integration

7: Wide application laser engraving 3d printing robotics barcode inspection tracking

120FPS Monochrome Global Shutter USB Camera, 480P@210fps 240P@420fps High Speed UVC Webcam with 2.8-12mm 4X Manual Zoom Lens, Plug and Play for PC, Ideal for High-Speed Motion Capture, 3D Printing, Machine Vision Analysis Barcode Scanning, Gesture & Eye Tracking, Lightburn Laser Engraving, Robotics and Industrial Automation.
