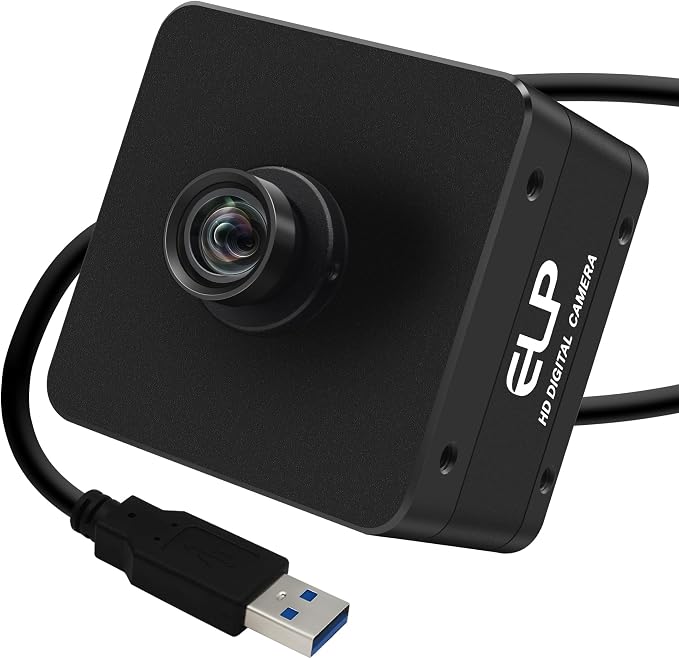

5K USB3.0 Industrial Camera20MP 5120x3840 High Resolution Webcam85° HFOV No Distortion LensSupport USB3.0/2.0 High Speed TransmissionPlug&ampPlay for Windows Linux Mac Android System

- Equipped with a professional sensor, supports 5K high resolution and delivers clear, sharp images with true colors. - Features a distortion-free lens, wide viewing angle, no dead ends and no post-correction needed. - USB 3.0 high-speed transmission, compatible with USB 2.0, stable signal and no lag. - Plug-and-play design, no driver required, compatible with multiple systems and Raspberry Pi. - Metal case, wide temperature adaptation, suitable for industrial and Lightburn scenarios.

Product description

IFWATER 20MP USB3.0 Type-C Camera, 4K 30fps 3840P Webcam with No Distortion 85° HFOV Lens, Plug & Play PC Jetson Nano Industrial Machine Vision

IFWATER 5K USB3.0 Industrial Camera， 2880P@30fps High Speed Lightburn USB3.0/2.0 For Computer Plug & Play Compatible with Windows Linux Mac Android

Onsemi AR2020 5K USB3.0 Webcam, 5120x3840 High Resolution Camera, 85° Wide No Distortion Lens, Multiple Frame Rate Options,

5K USB3.0 Industrial Camera, 20MP 5120x3840 High Resolution Webcam, 85° HFOV Undistorted Lens, Support USB3.0/2.0 High Speed Plug & Play for Lightburn

20MP 5K Ultra HD USB3.0 Webcam, IFWATER 5120x3840 Industrial Camera, 85 Degree No Distortion View Lens, High Speed Video Recording

5K USB3.0 industrial camera, 20MP 5120x3840 webcam, 85° undistorted lens, Lightburn camera, plug and play computer camera

This IFWATER industrial USB3.0 camera delivers 4K UHD high-resolution imaging with a 20MP sensor and smooth 30fps high-frame-rate performance.

The 85° wide-angle no distortion lens provides a large viewing range while maintaining zero distortion, making it perfect for full-scene monitoring and precision vision applications

With plug-and-play UVC design, it works seamlessly with Windows, Linux, Mac OS and Raspberry Pi without extra drivers.

Built for reliability and versatility, it is widely used in Lightburn laser monitoring, machine vision, industrial inspection,

3D printer monitoring, live streaming and professional imaging projects.

PRODUCT SPECIFICATION:

Sensor: Onsemi AR2020 (1/1.8” )

Max /Default Resolution:5120(H) *3840 (V)

Video Compression:MJPEG / YUY2(YUYV)

Shutter Type: Electronic Rolling Shutter/ Frame Exposure

Connecting Port Type: USB 3.0 Interface

Power Supply & Interface:USB Type-C Power Supply, Type-C

With 1.2m cable with USB3.0 Type-C port

DC 5V,Working Current 220-260mA

Working Temperature: -10°C to 70°C

Storage Temperature: -20°C to 80°C

Operating System Request：

Win10/Win11 etc; Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above.

Resolution & Frame Rates:

Under USB 3.0 Interface & Speed:

5120x3840 MJPEG 27.5fps/ YUY2 7.5fps 5120x2880 MJPEG 30fps/ YUY2 10fps

4608x3456 MJPEG 27.5fps/ YUY2 10fps 4096x3072 MJPEG 27.5fps/ YUY2 15fps

4000x3000 MJPEG 27.5fps/ YUY2 15fps 4096x2160 MJPEG 30fps/ YUY2 20fps

3840x2160 MJPEG 30fps/ YUY2 23fps 3264x2448 MJPEG 27.5fps/ YUY2 23fps

2592x1944 MJPEG 27.5fps/ YUY2 30fps 2560x1440 MJPEG 30fps/ YUY2 30fps

2048x1536 MJPEG 27.5fps/ YUY2 27.5fps 1600x1200 MJPEG 27.5fps/ YUY2 27.5fps

1920x1080 MJPEG 30fps/ YUY2 30fps 1280x960 MJPEG 27.5fps/ YUY2 27.5fps

1280x720 MJPEG 30fps/ YUY2 30fps 640x480 MJPEG 27.5fps/ YUY2 27.5fp

Under USB 2.0 Speed:

5120x3840 MJPEG 20fps 5120x2880 MJPEG 23fps， 4608x3456 MJPEG 23fps 4096x3072 MJPEG 27.5fps

4000x3000 MJPEG 27.5fps 4096x2160 MJPEG 30fps， 3840x2160 MJPEG 30fps 3264x2448 MJPEG 27.5fps

2592x1944 MJPEG 27.5fps 2560x1440 MJPEG 30fps， 2048x1536 MJPEG 27.5fps 1600x1200 MJPEG 27.5fps

1920x1080 MJPEG 30fps 1280x960 MJPEG 27.5fps/ YUY2 7.5fps， 1280x720 MJPEG 30fps/ YUY2 10fps 640x480 MJPEG 27.5fps/ YUY2 27.5fps

1: This 20MP USB camera delivers sharp 4K video at 30FPS, making it ideal for projects requiring high image clarity.

2: Image quality is this camera’s greatest strength. Equipped with a 20MP Onsemi AR2020 (1/1.8”) sensor, it produces genuinely sharp, detailed 4K resolution rather than relying on upscaling. Colors are natural, and 30fps video plays smoothly and consistently with no lag or stuttering.

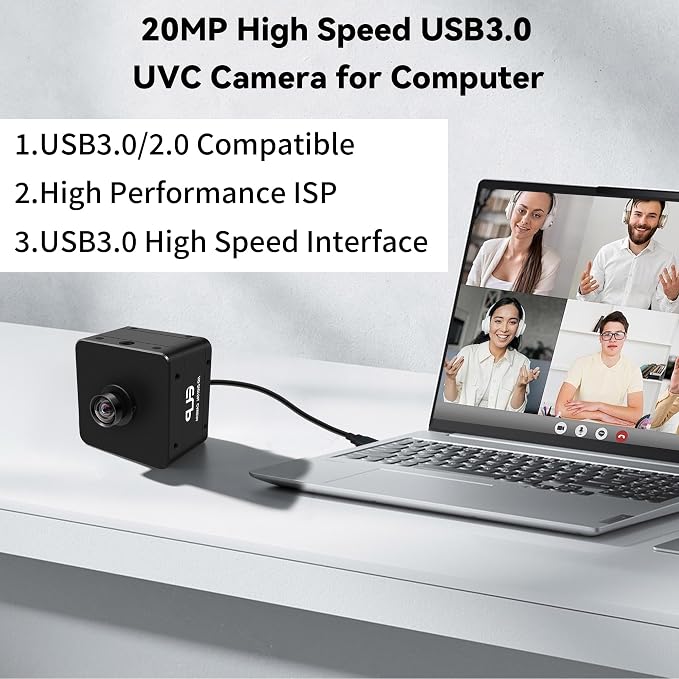

3: While the camera supports SuperSpeed USB 3.0, it automatically falls back to High-Speed when connected to non-USB 3.0 ports. When used with a proper USB 3.x port, it establishes stable UVC bulk/isochronous connections and maintains high-resolution YUY2 streaming without frame drops.

Support Multi System & Software

-No driver required, plug and play

- Support Live Streaming Software, Skype, Zoom, Facetime, Youtube...

- Support many APPs and software, Amcap, OpenCV, PC default webcam software, VLC, V4L2...

- Compatible with many operating systems, including Windows, Linux, Android, Ubuntu, Raspberry Pi, Mac OS.

Bandwidth & Transmission:

While the camera supports SuperSpeed USB 3.0, it automatically falls back to High-Speed when connected to non-USB 3.0 ports. When used with a proper USB 3.x port, it establishes stable UVC bulk/isochronous connections and maintains high-resolution YUY2 streaming without frame drops.

Real-World Performance:

The AR2020 sensor delivers sharp, clean images with accurate color reproduction in proper lighting. The conservative default ISP settings can be fine-tuned for precise exposure, gain, and white balance. Latency is low, and the camera remains stable during long-duration streaming.

It works with most systems and devices. Perfect for Lightburn, industrial inspection, 3D printer monitoring, live streaming and daily professional recording.
