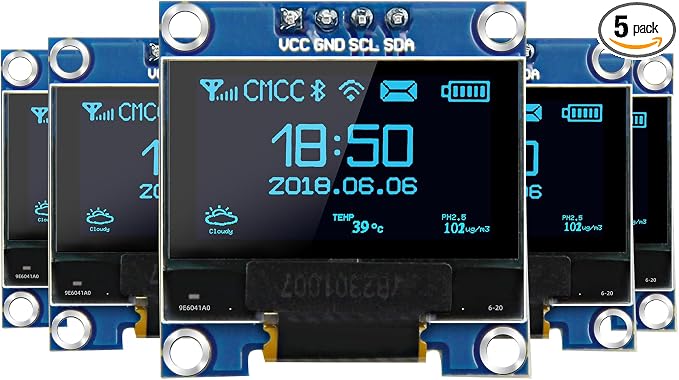

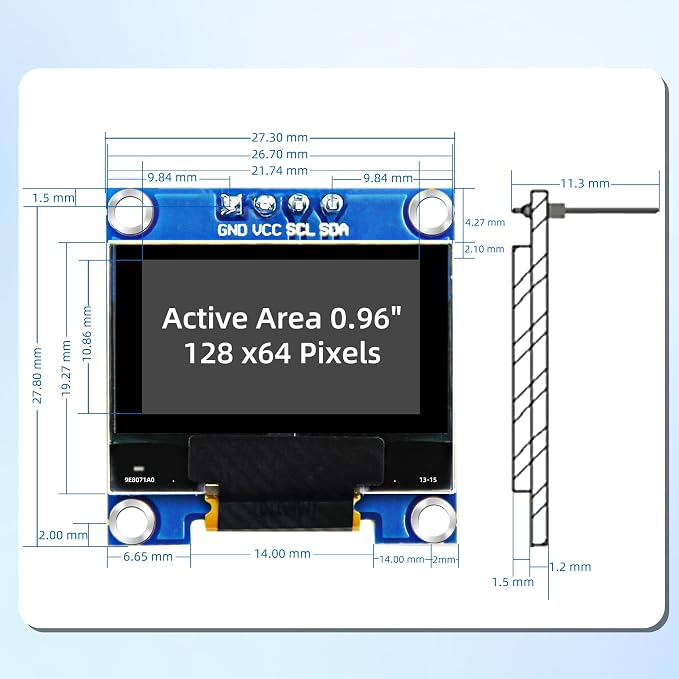

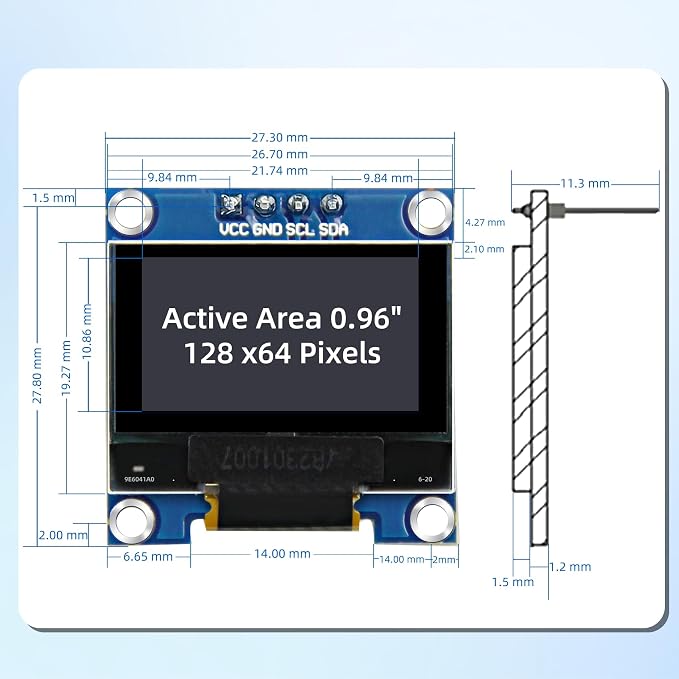

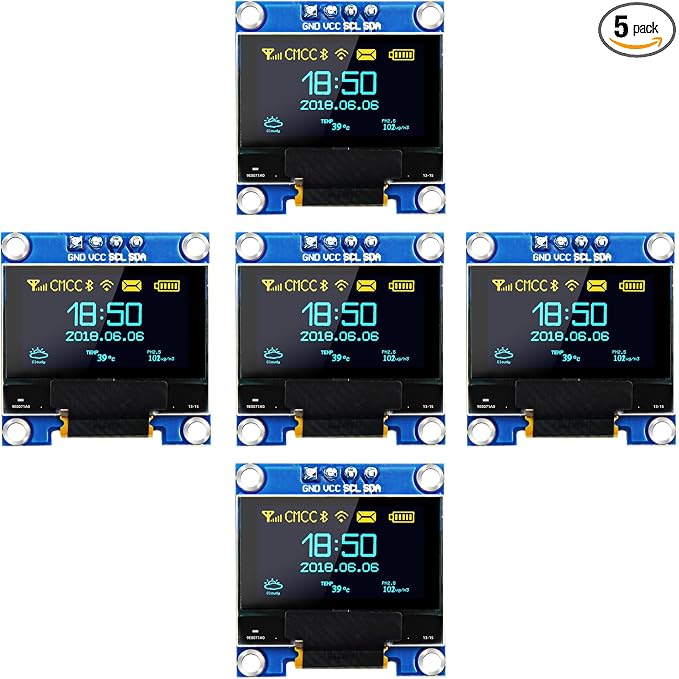

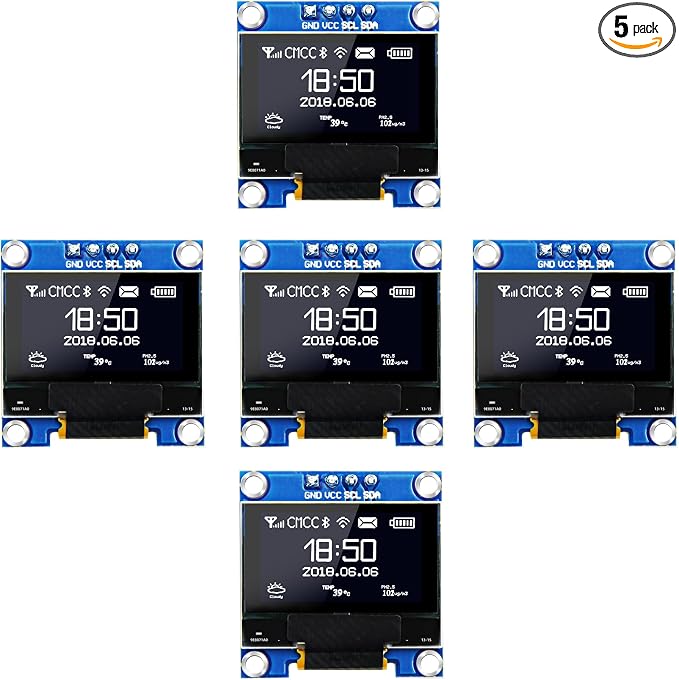

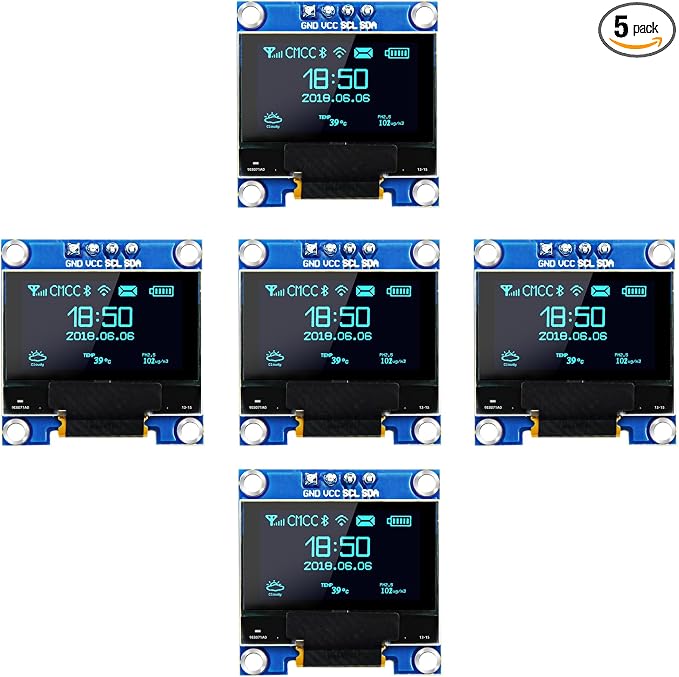

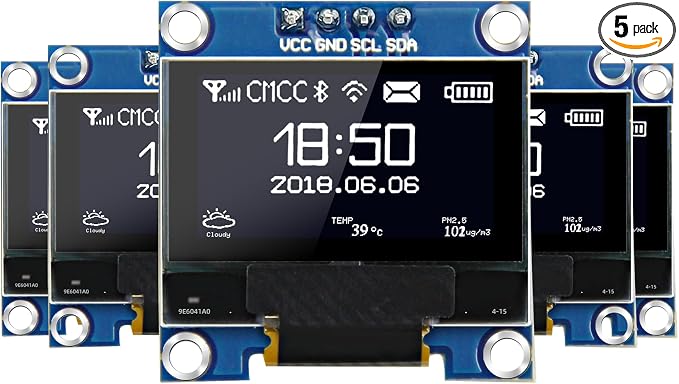

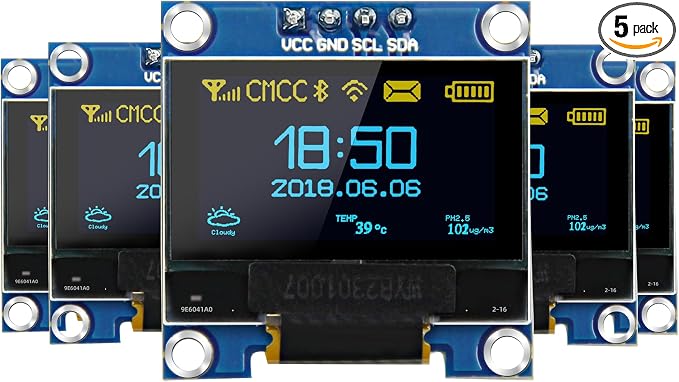

- 0.96 inch OLED display with a resolution of 128 x 64 and a viewing angle greater than 160°. It supports a voltage range from 3.3V to 5V DC, with a normal operating power consumption of 0.04W and a power consumption of 0.08W when the screen is fully lit.

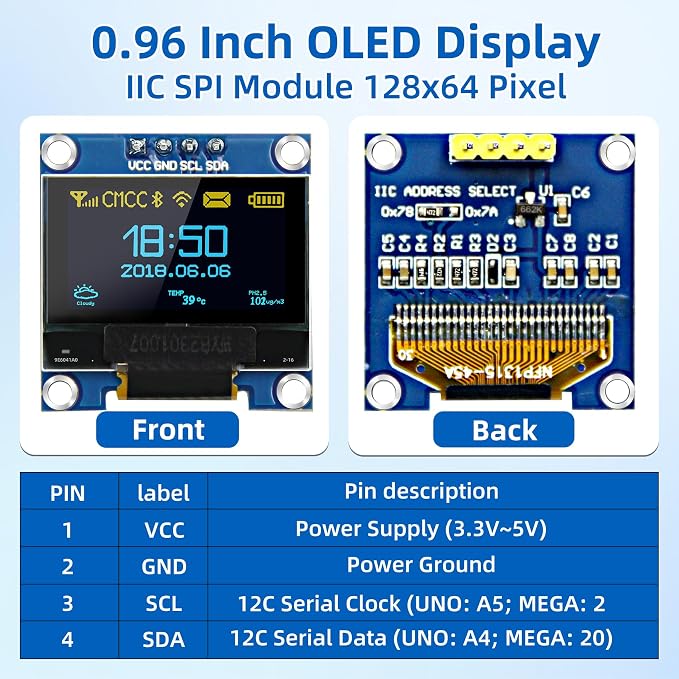

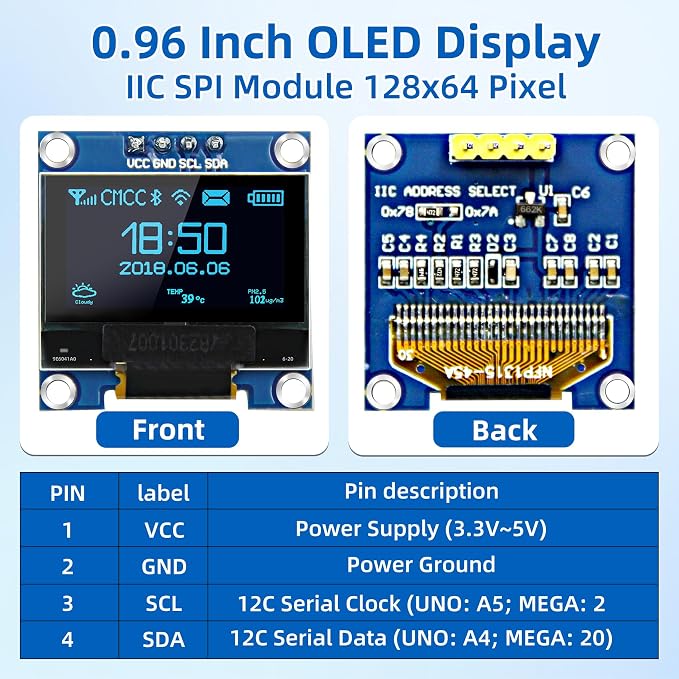

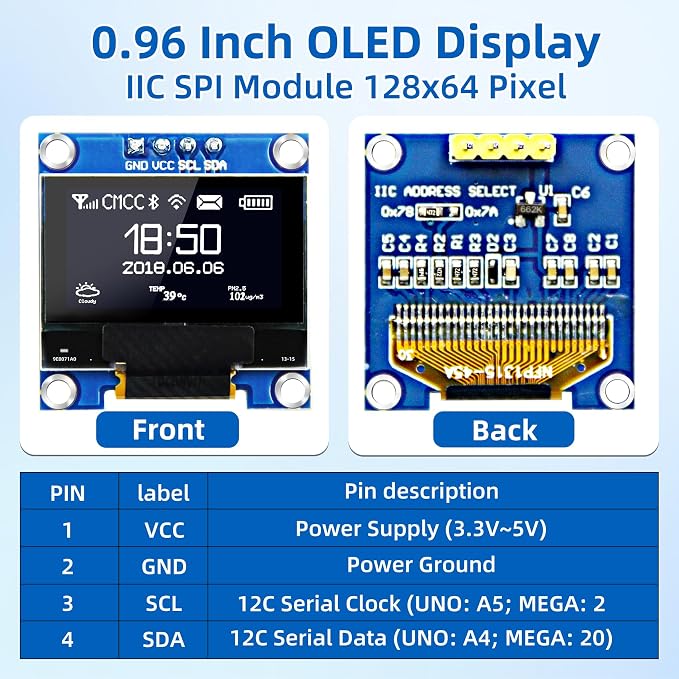

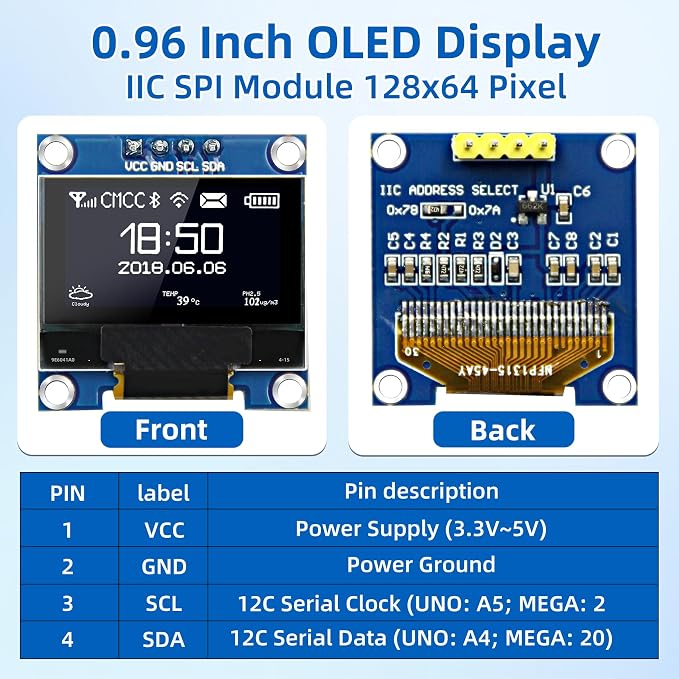

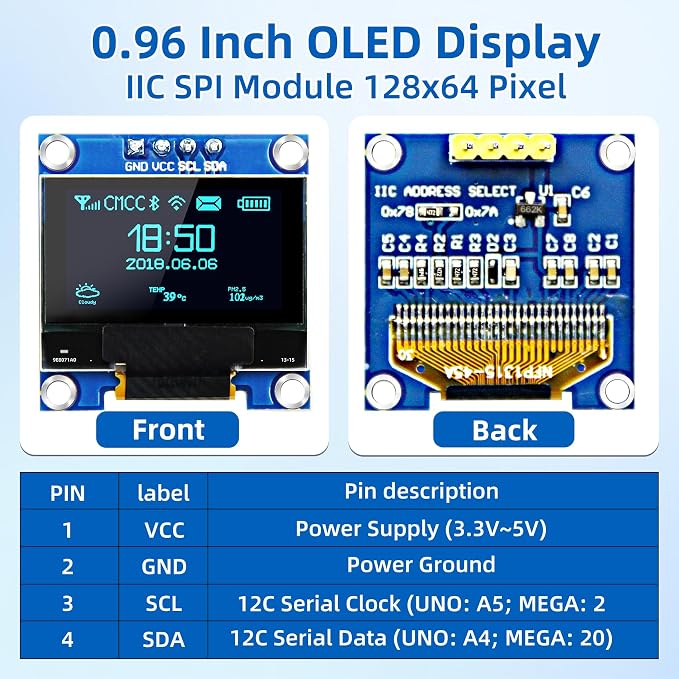

- The I2c OLED display module uses an SSD1306 embedded driver IC and communicates via the I2C/IIC interface, requiring only two I/O ports. The I2C address can be changed for easy compatibility with different devices.

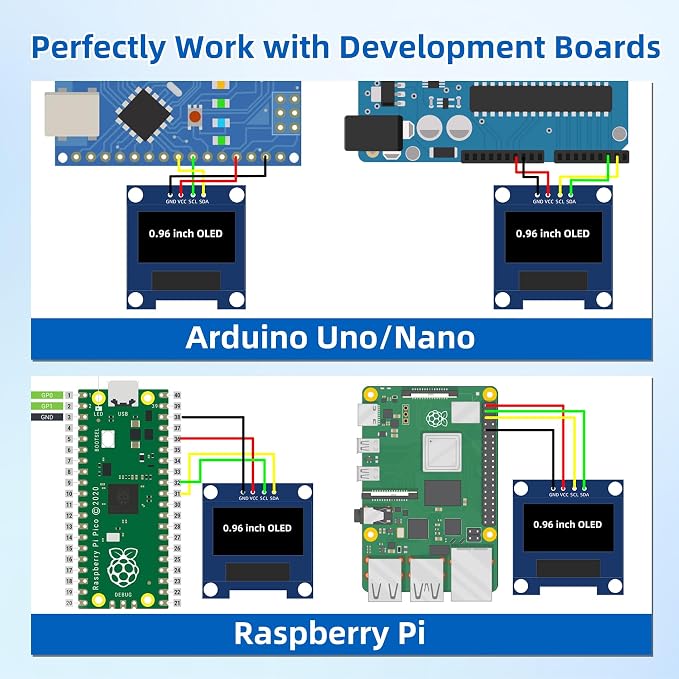

- The OLED display module is compatible with Raspberry Pi, Beagle Bone Black, Arduino Nano, UNO, R3, Mega, 51 MCU, and STM 32.
- Raspberry Pi screen module does not require a backlight and has an ultra-high contrast ratio, making small fonts clear and easy to read. There are no embedded fonts in the module; users can create fonts using font generation software.

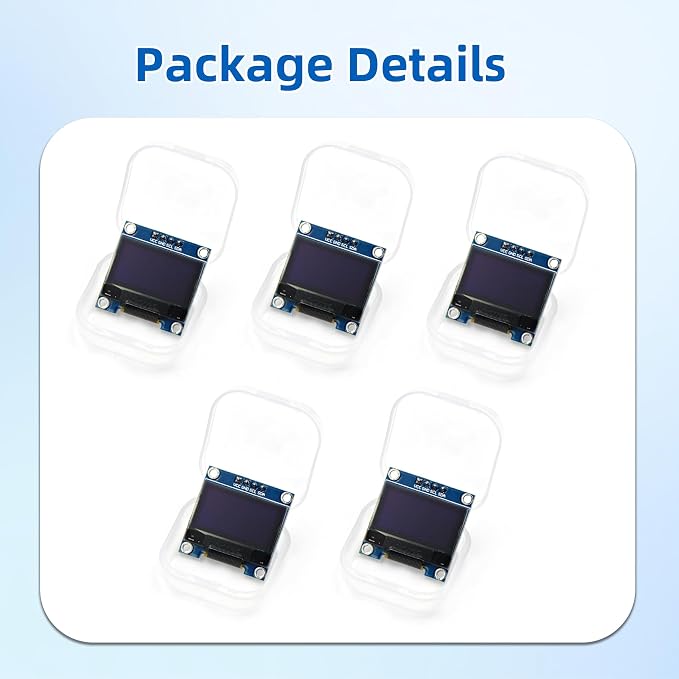

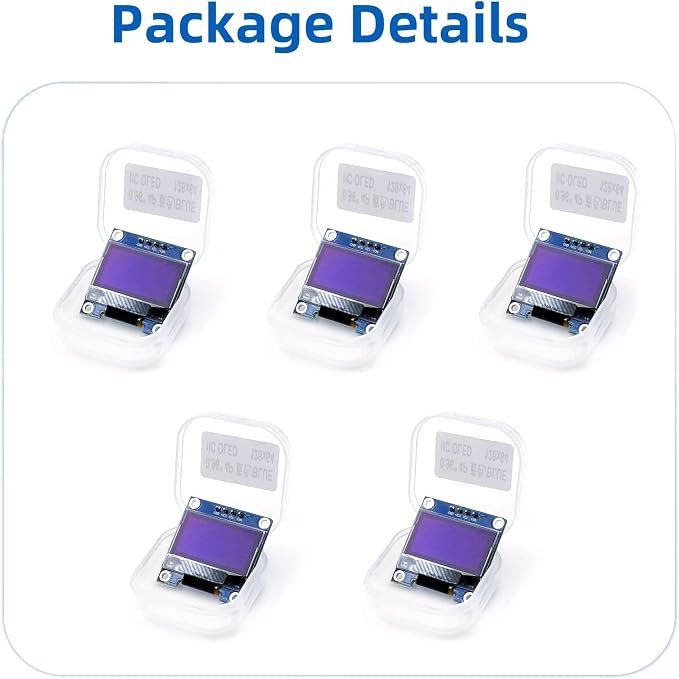

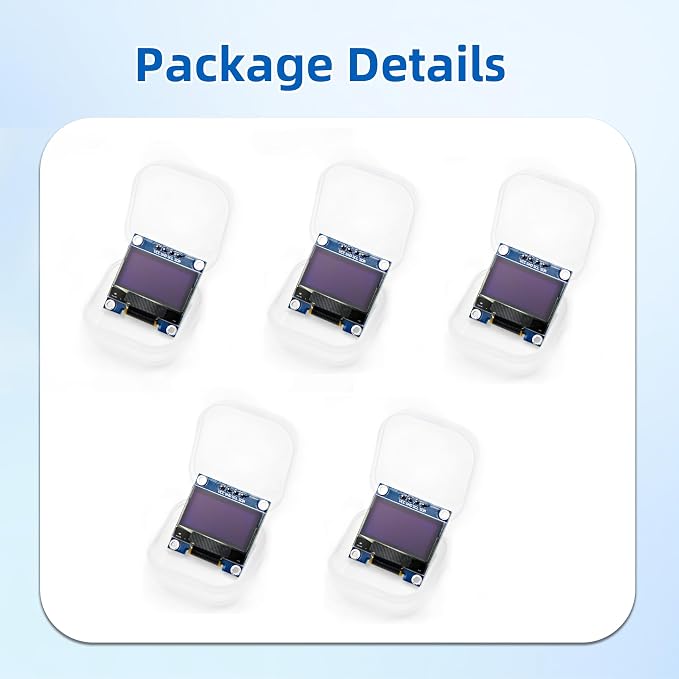

- The module pins are soldered and housed in a small box to prevent them from falling off during transportation. The OLED glass surface is covered with a removable transparent scratch-resistant film.
Product description
What will you get?
User Manual: lcdwiki.com/0.96inch_OLED_Module_MC096GX
