4MP Global Shutter 3D Stereo USB Camera Module 60fps Dual Lens | Wide-Angle No-Distortion Synchronous Capture 1600x600 120fps High Speed Industrial Webcam for VR Face Recognition

- Global Shutter USB Camera: This 3D VR USB Camera features global shutter technology to capture crisp, distortion-free images of high-speed moving objects. Eliminates rolling shutter artifacts completely for accurate, smear-free imaging, ensuring true reproduction of image details. - High Resolution & Frame Rate: This 3D Stereo USB Camera Module is equipped with a 1/2.9" OG02B10 sensor. It outputs 3200×1200 resolution at 60fps in MJPEG format, and supports 1600×600 resolution at 120fps for analyzing fast-paced action in sports, manufacturing. - Distortion-Free Dual-Lens Design: Equipped with M12 Mount dual lenses, it offers synchronous shooting with a wide horizontal field of view (HFOV) of 112 degrees. The no-distortion lenses ensure accurate and clear images, making it suitable for applications requiring precise visual data. - Diverse Applications: Provides low-light sensitivity, enabling sharp and accurate imaging of high-speed moving objects, avoiding rolling artifacts. Widely used in robot vision, virtual/augmented reality, 3D measurement, intelligent transportation, and more. - Plug-and-Play & Wide Compatibility: With a high-speed USB 2.0 Type-C interface, the 3D vr camera is truly plug-and-play, eliminating the need for additional drivers. It complies with UVC standards, ensuring seamless compatibility with Windows, Linux, Android, and Mac operating systems, and supports OTG for direct connection to Android devices. - Compact & Versatile: Measuring just 80*16.5mm, its mini size makes it suitable for embedded applications. Despite its small outline, it packs powerful features, making it a flexible choice for various projects.

Product description

High Speed 120FPS Global Shutter USB Camera with Synchronization Dual Lens

Plug & Play, UVC compliant, Support USB2.0 OTG Protocol

Camera Specification

More Cameras

4MP 3200(H)X1200(V)

Max. Resolution

48MP 8000(H)x6000(V)

Sync dual lens

Lens

70 Degree Lens

MJPEG

Compression Format

MJPEG / YUY2 (YUYV)

0.1Lux

Mini Illumination

0.3 lux

Autofocus

1.2 M

Cable

1 M

4MP 3200(H)X1200(V)

Max. Resolution

2MP 1920(H)X1080(V)

Sync dual lens

Lens

No Distortion Lens

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.1Lux

Mini Illumination

0.01Lux

Autofocus

1.2 M

Cable

1 M

4MP 3200(H)X1200(V)

Max. Resolution

2MP 1920(H)X1080(V)

Sync dual lens

Lens

2.8-12mm Lens

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.1Lux

Mini Illumination

0.01Lux

Autofocus

1.2 M

Cable

3 M

4MP 3200(H)X1200(V)

Max. Resolution

2MP 1920(H)X1080(V)

Sync dual lens

Lens

170 Degree Fisheye

MJPEG

Compression Format

H.264/MJPEG/YUV2

0.1Lux

Mini Illumination

0.01Lux

Autofocus

1.2 M

Cable

3 M

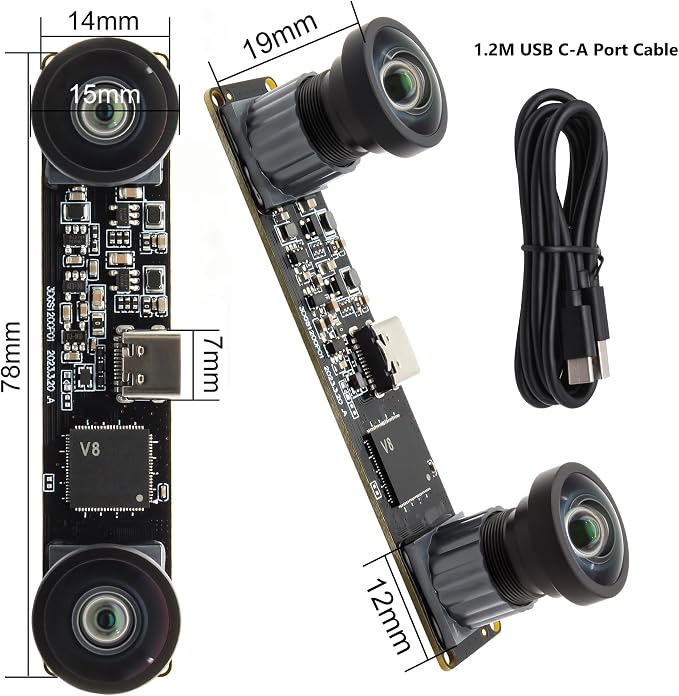

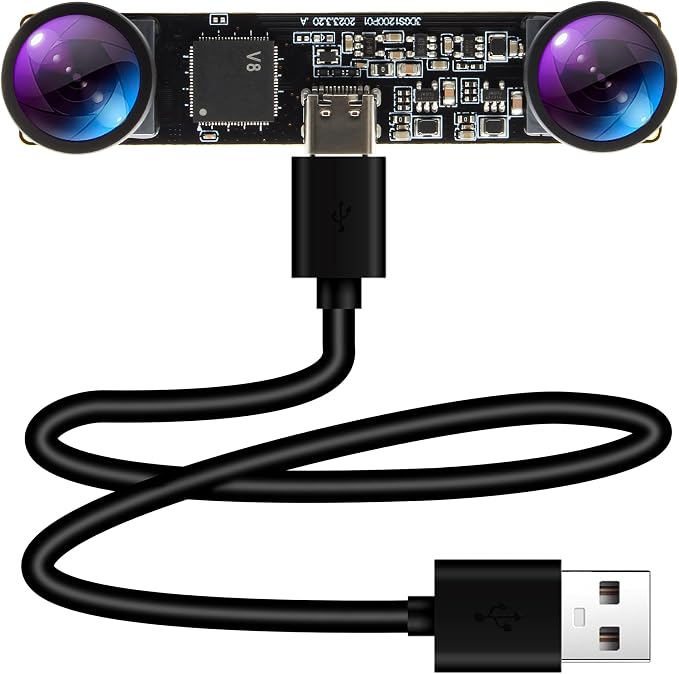

Miniature long strip with a 1.2 meters long cable, it is compact and portable, ideal for embedded applications.

Resolution: 4MP 3200(H)X1200(V)

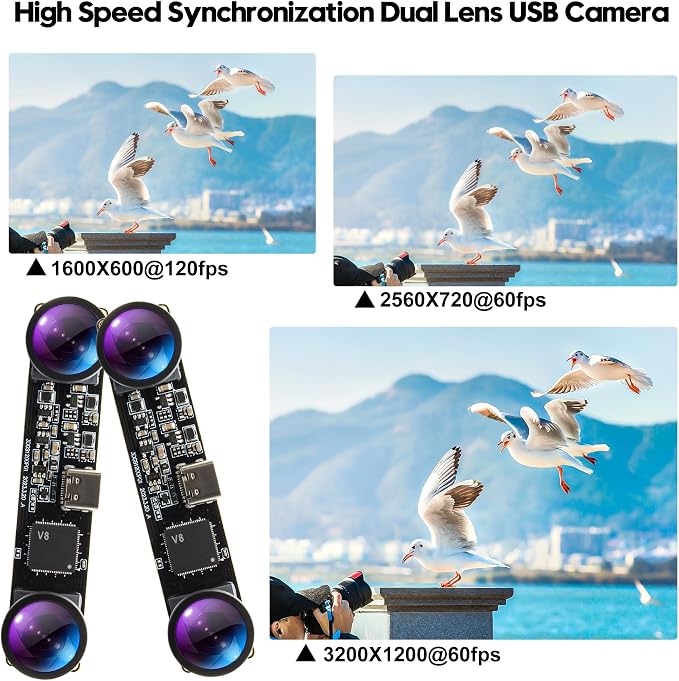

High Speed: 3200X1200@ 60fps/2560X720@60fps/1600X600@120fps/1280X480@120fps/640X240@120fps

Global shutter cameras expose the entire sensor simultaneously, avoiding the motion distortion or blurring caused by rolling shutters' line-by-line scanning. They're ideal for dynamic scenes, while rolling shutters suit static or low-speed subjects.

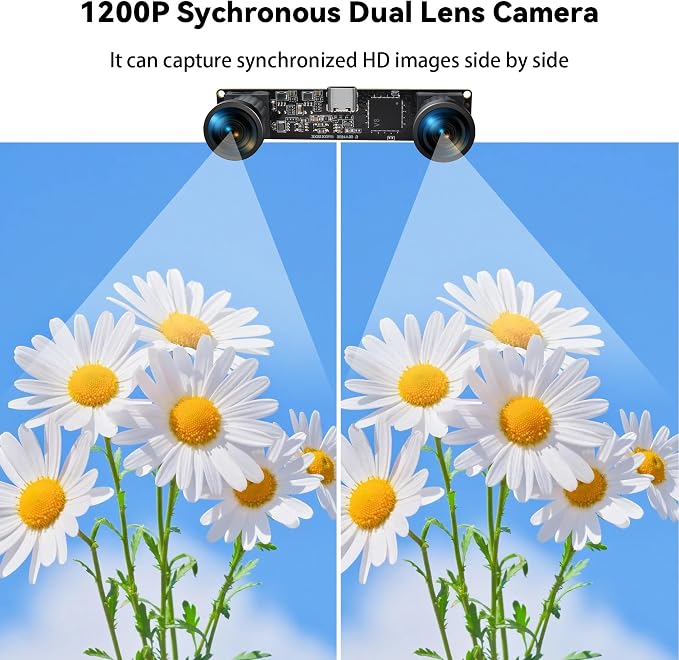

Adopting a distortion-free M12 mount dual-lens design that supports synchronous imaging, it has a horizontal field of view (HFOV) of 112 degrees.

Adjustable parameters: Brightness Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure.

Ultra-portable design with 4-pin USB connector for versatile use across devices.

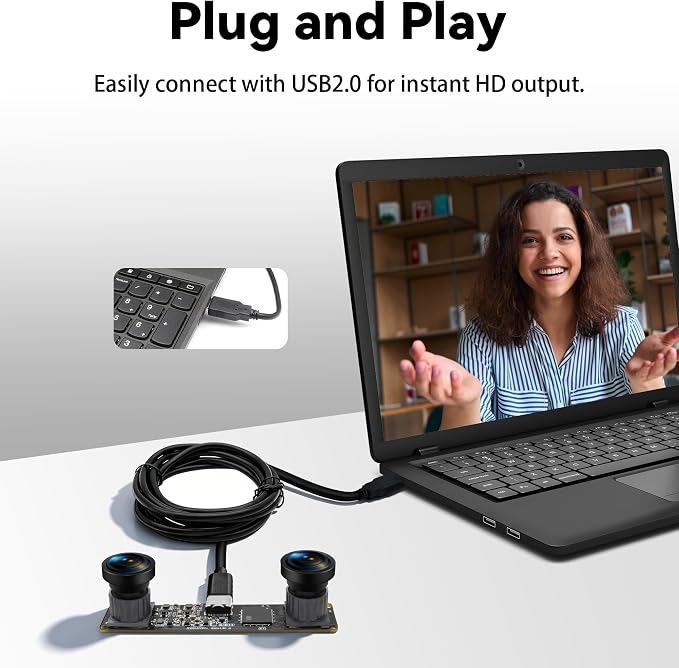

This usb camera is easy to use, no need to download or install complicated driving software, only plug the camera into computer USB port and running the software can make video display and recording work. No drive installation is required.
