4K HDMI USB3.0 Simultaneous Output Camera H.264 High Speed 60fps Low Illumination Color Webcam 100° Wide Angle No Distortion Lens Plug &amp Play for Windows Linux Android

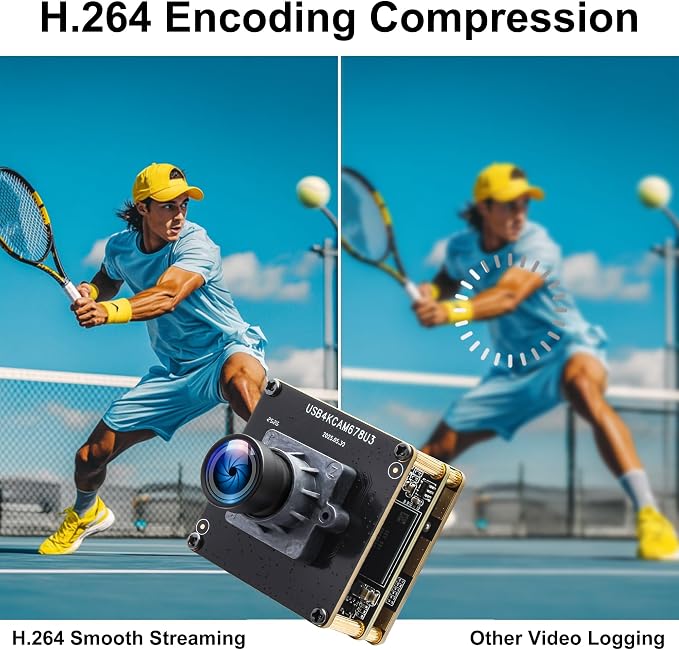

- H.264 Efficient Video Coding: Built-in H.264 compression ensures smoother streaming, lower latency and less bandwidth usage for long-hour working. - HDMI & USB3.0 Synchronous Output: Support simultaneous HDMI and USB3.0 output, stable 4K 60fps high-speed transmission for real-time display and recording. - Low Illumination Color Imaging: Capture clear, colorful images even in weak light environments, ideal for dark scene monitoring and industrial applications. - 100° Wide Angle No Distortion Lens: Equipped with 100-degree wide-angle lens, providing large view without distortion, perfect for precise observation. - Wide Compatibility & Plug & Play: UVC compliant, no driver needed. Compatible with Windows, Linux, Android and Lightburn software.

Product description

IFWATER 4K HDMI USB3.0 Simultaneous Output Camera H.264 60fps Low Illumination Color Lightburn Webcam for Windows Linux Android Live Streaming

IFWATER 4K HDMI USB3.0 Simultaneous Output Camera, H.264 High Speed 60fps Low Illumination Color Webcam, 100° Wide Angle No Distortion Lens

IFWATER 4K HDMI USB3.0 Simultaneous Output Camera, H.264 60fps Camera Module, 100° Wide Angle No Distortion Lens Plug & Play for Windows Linux Android

IFWATER 4K USB3.0 HDMI Camera Module, H.264 60fps High Speed Low Light Color Webcam with 100° Wide Angle Lens for Lightburn, Windows Linux Android

IFWATER 4K HDMI USB3.0 Simultaneous Output Camera, H.264 60fps High Speed 100° Wide Angle No Distortion Lens for Lightburn, Windows Linux Android

This IFWATER 4K webcam is a high-performance imaging solution built for versatility, featuringHDMI USB3.0 simultaneous dual output, H.264 high-speed encoding, and smooth 60fps recording for crisp, blur-free video. Engineered with exceptional low illumination performance, it captures vibrant, clear color imagery even in dim environments, eliminating grain and distortion for professional-quality results.

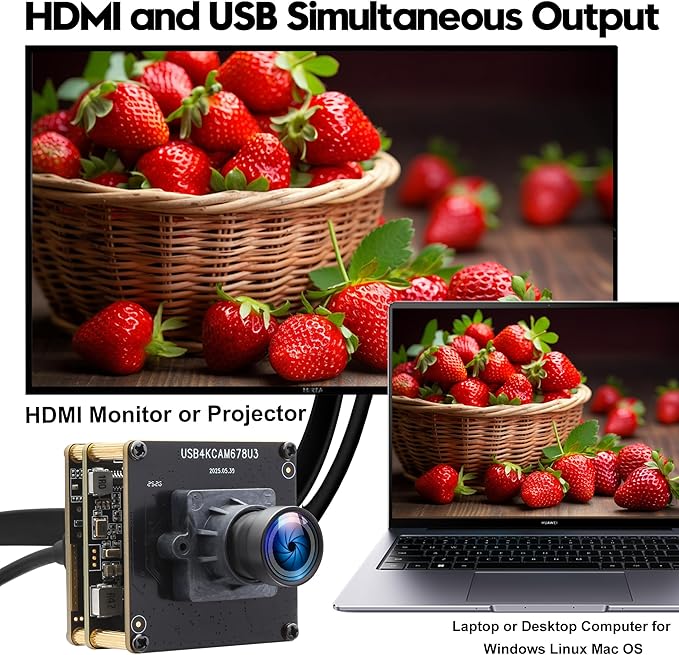

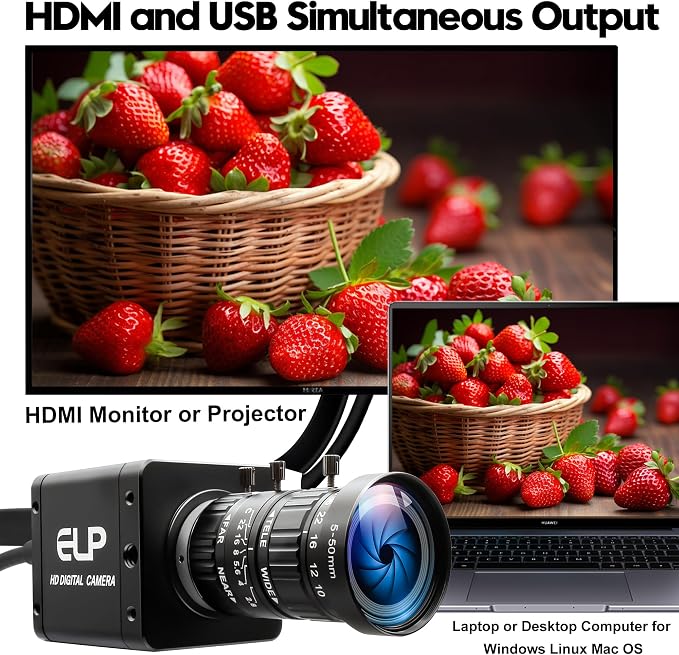

USB 3.0 Type-C + HDMI Dual Simultaneous Output：

Equipped with high-speed USB 3.0 Type-C (low power, fast data transfer) and HDMI dual outputs that work simultaneously. UVC compliant plug-and-play design, no extra drivers needed; compatible with PCs, laptops, Android and Raspberry Pi, HDMI directly connects to monitors/TVs.

Main Specifications:

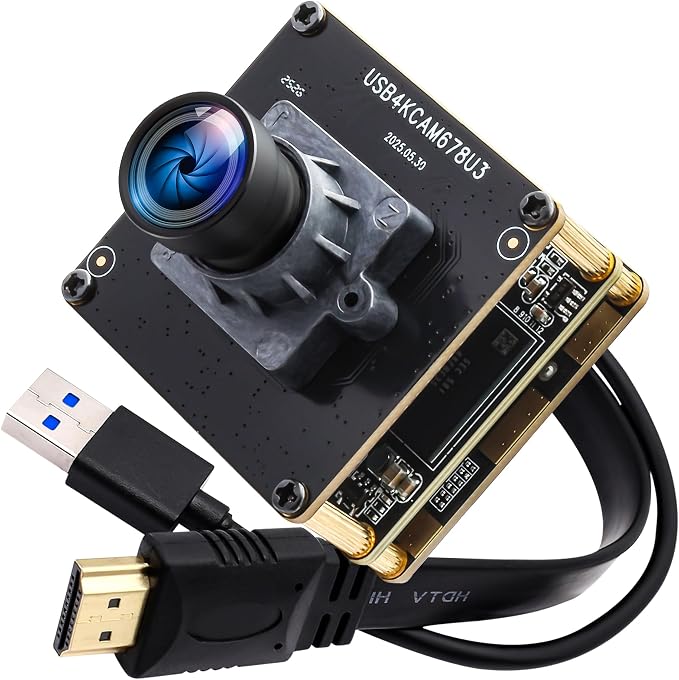

Model: ELP-USB4KCAM678U3-V100

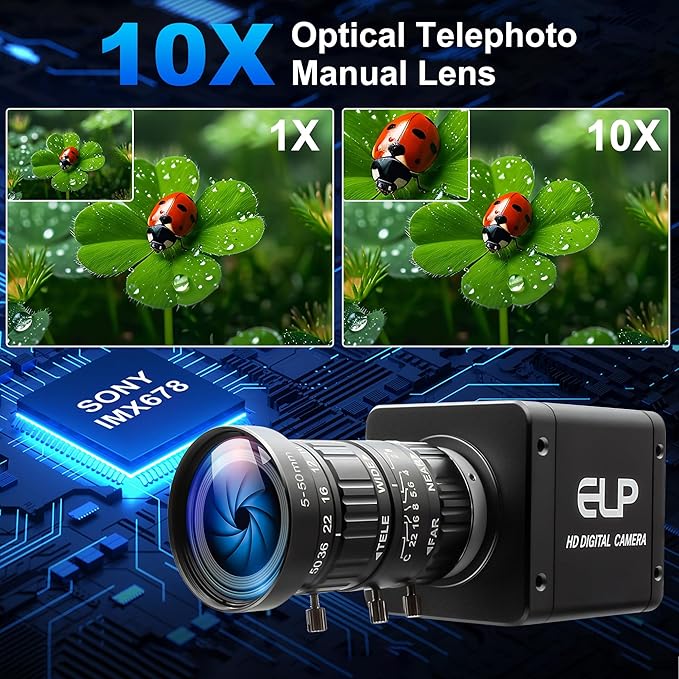

Sensor: 1/1.8” SONY IMX678, Pixel Size: 2.0μm x 2.0μm

Connecting Port Type: USB 3.0 Interface &HDMI v2.0 Interface

Display Modes: I.USB Output, II.HDMI Output , III.USB Output +HDMI Output Simultaneous

HDMI Output: 3840(H)X2160(V) HDMI 60fps

USB Output: Max / Default Resolution: 3840(H)X2160(V)

Video Compression: MJPEG / YUY2(YUYV) / H.264

Image Processing Time: About 10 seconds after opening the preview software

Central Definition: 1000LW/PH(Center), S/N Ratio: 41dB, Min illumination: 0.05Lux

Shutter Type: Electronic Rolling Shutter/ Frame Exposure, AEC/AWB/AGC: Support

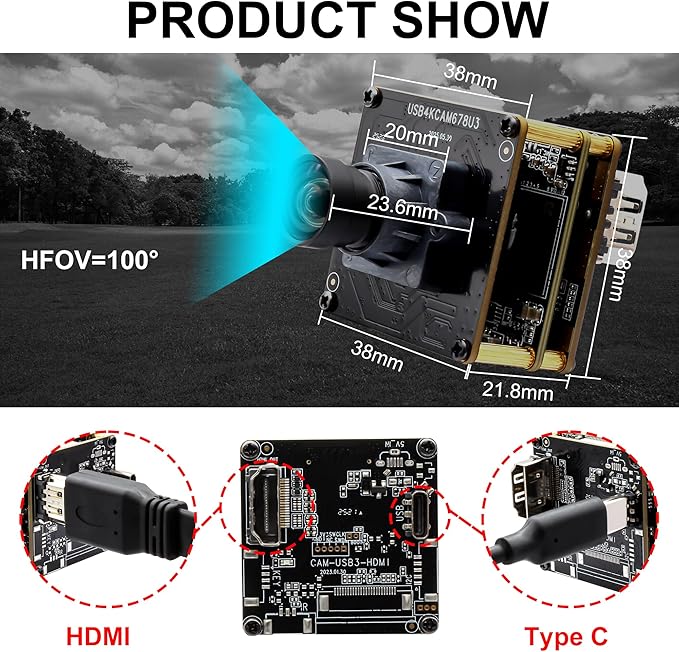

Power Supply & Interface: USB Type-C Power Supply, Type-C & HDMI Display Simultaneous

Operating Voltage: DC 5V, Working Current: 700-780mA

Storage Temperature: -20°C to 80°C, Working Temperature: -10°C to 70°C

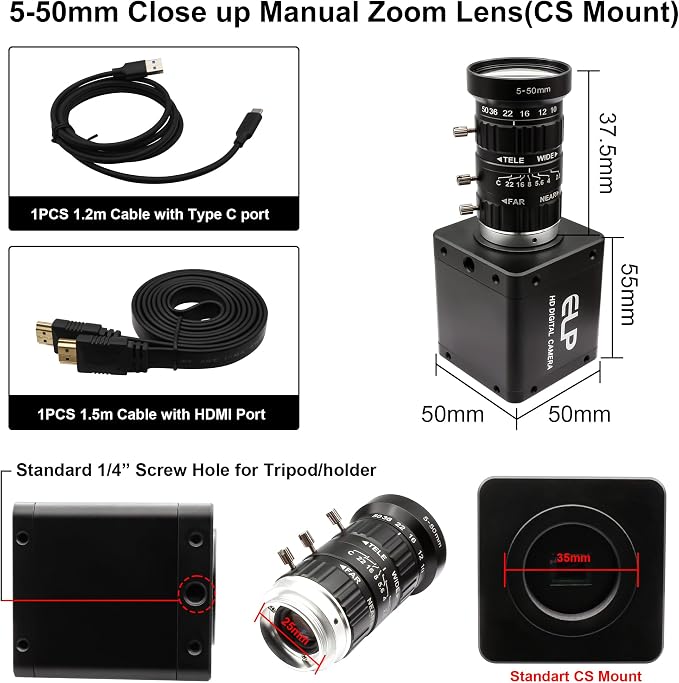

USB Cable: 1.2m cable with Type-C port, HDMI Cable: 1.5m cable with HDMI port

Resolution & Frame Rate :

3840x2160 MJPEG 60fps/ H.264 60fps / YUY2 15fps

2560x1440 MJPEG 60fps/ H.264 60fps / YUY2 30fps

1920x1080 MJPEG 60fps/ H.264 60fps / YUY2 60fps

1280x720 MJPEG 60fps/ H.264 60fps / YUY2 60fps

640x480 MJPEG 60fps/ H.264 60fps / YUY2 60fps

Operating System Request: Win7/Win8/Win9/Win10/Win11 etc.

Linux with UVC; MAC-OSX10.4.8 or later; Android5.x or above

4K UHD High-Resolution IMX678 Sensor:

Built-in 1/1.8" IMX678 color CMOS sensor, supports ultra-clear 4K UHD 3840×2160 resolution, delivering professional-grade sharp and vivid imaging far beyond standard sensors.

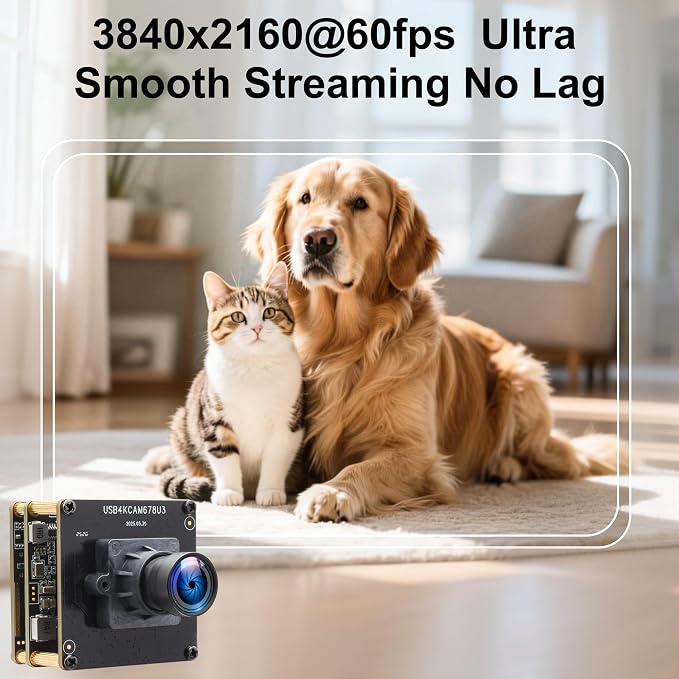

4K 60fps High-Speed Video Output：

Supports smooth high-frame-rate recording: MJPEG 4K@60fps, H.264 4K@60fps, YUY2 1080p@60fps and HDMI 4K@60fps. Eliminates motion blur, ensuring stable, fluid footage for live streaming, fast-moving object capture and high-speed photography.

100° Wide Angle No Distortion Lens:

Equipped with 100-degree wide-angle lens, providing large view without distortion, perfect for precise observation.

This IFWATER camera is built for live streaming, industrial use, Lightburn, and high-speed video capture.

It records smooth 60fps footage with H.264 compression, performs great in low-light environments, and features a 100 degree no distortion wide angle lens so you can frame any shot perfectly.

Works with Windows, Linux, Android, and all your favorite streaming software.Best of all, it’s true plug-and-play ? no drivers needed.

Whether you’re streaming, recording, monitoring a laser machine, or building a project ? this camera does it all.
