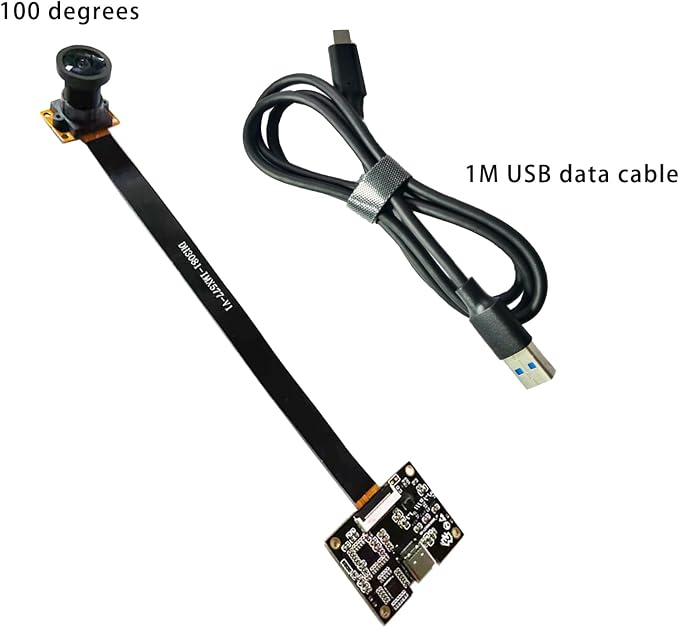

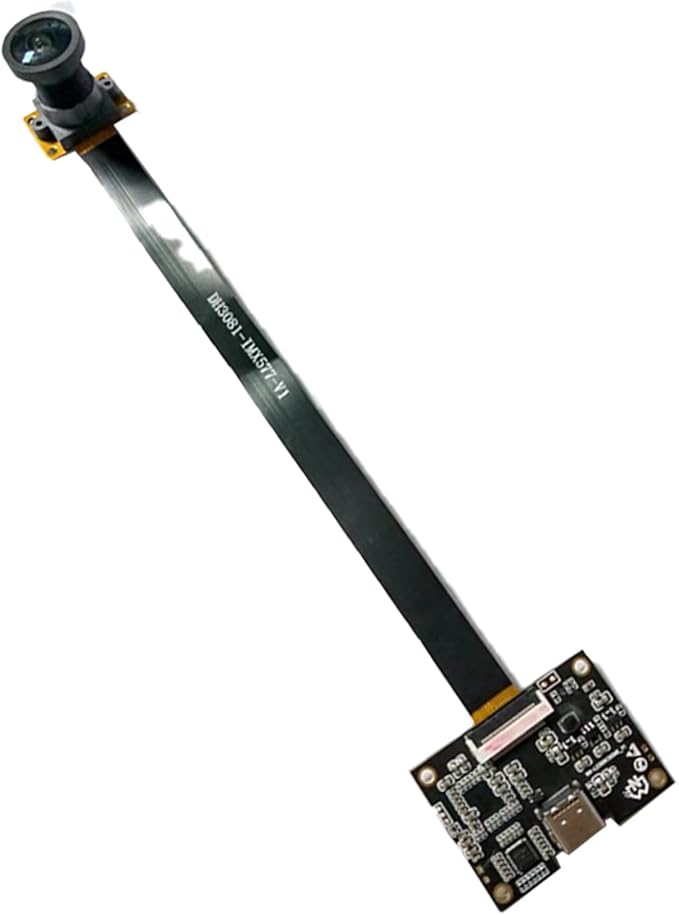

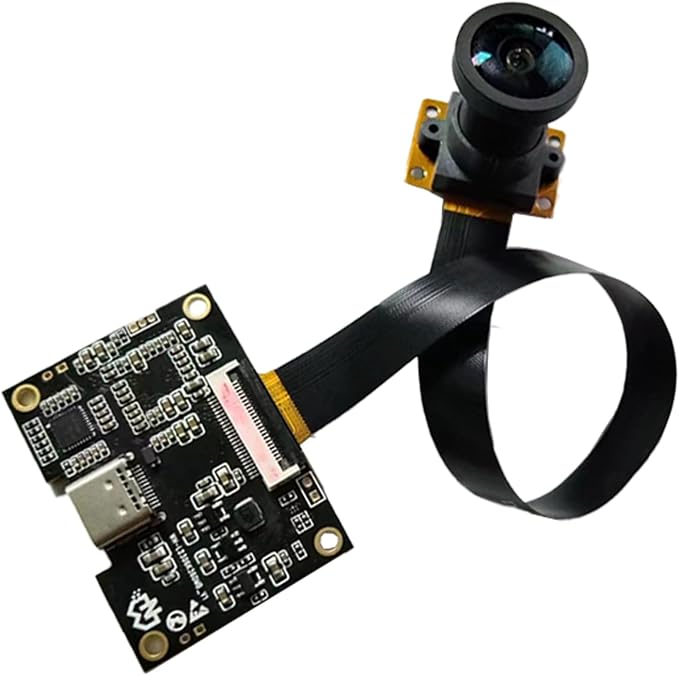

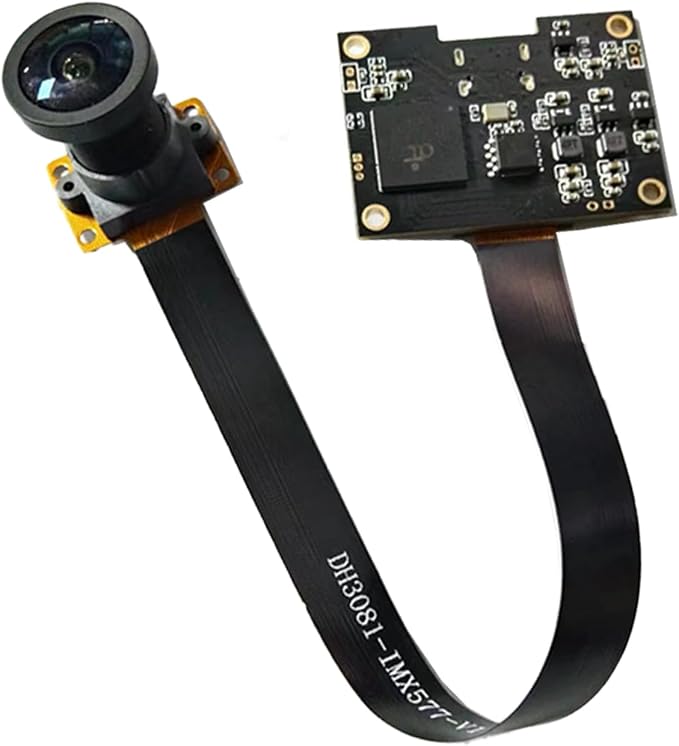

4K 12MP HD IMX577 CMOS 4000 * 3000 100 Degree Fixed Focus USB3.0 FPC Camera Module with Motherboard for Machine Vision Product Vision

- IMX577-AACK-C is a diagonal 7.857 mm (Type 1/2.3) 12.3 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed. It equips an electronic shutter with variable integration time.
