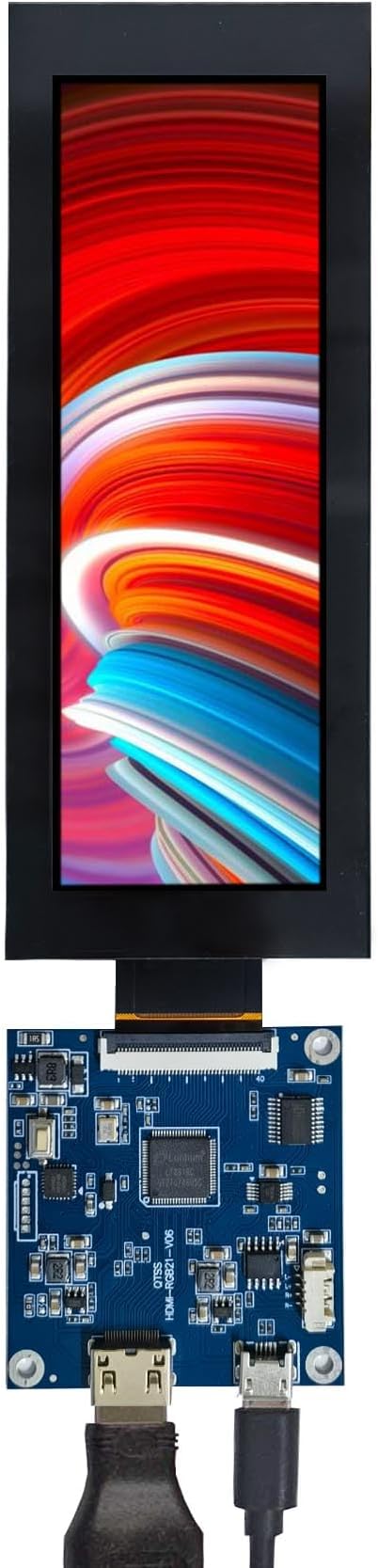

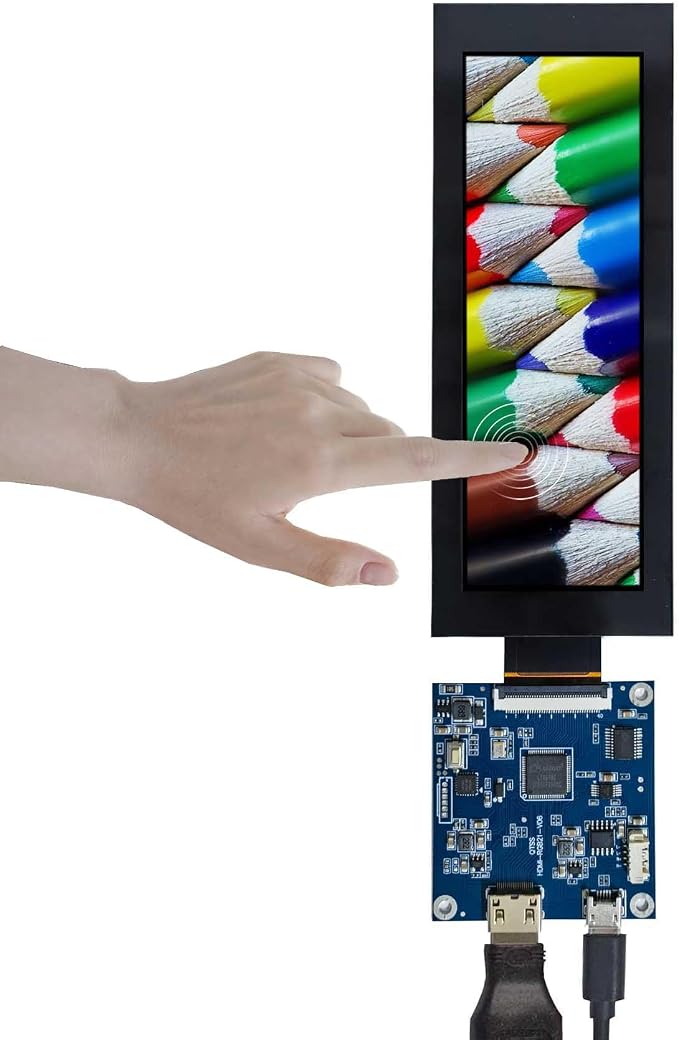

- 【6.2" mini Square MIPI screen】IPS full viewing angle,Great resolution 360x960 ,Outline Size 62.2×152.36×3 (H×V×D)mm,Display Area 55.3× 147.46 (H×V)mm,Interface MIPI, 40 pins ,FPC,Backlight WLED,Input Voltage 1.8/3.3 V.

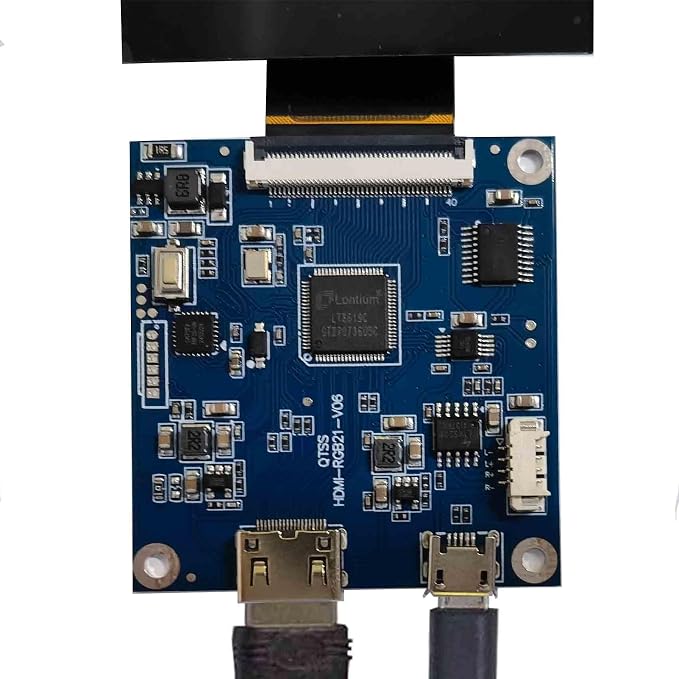

- 【Micro controller board】Video input :port ,board size: 50mm x 45mm x 5mm,pls use it in insulated environment.
- 【Input Power】5Vdc More than 0.5A,Pls prepare it seperately .

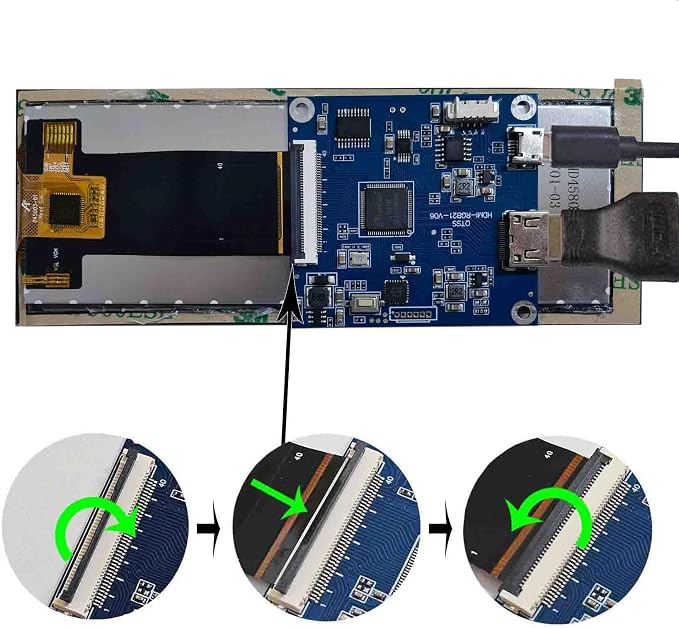

- 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter cable ,the screen can work well after powering.

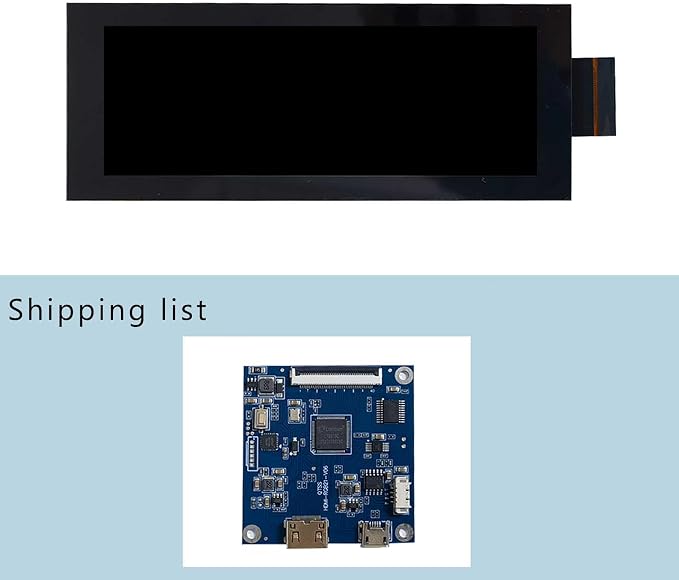

- 【Packing lists】1× LCD Board VS-RGB21-V06,1×6.2inch 360x960 VS62001C40 LCD Screen
