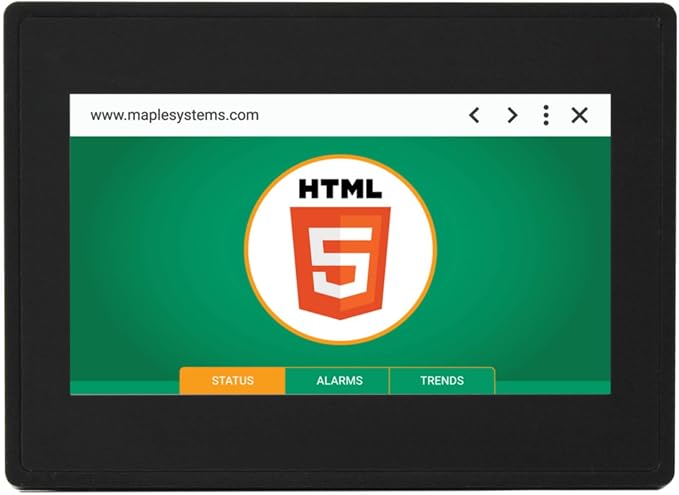

4.3 Capacitive Web HMI Panel 480x272 Resolution 1000 nits C1D2 Rated WP4043AP Black

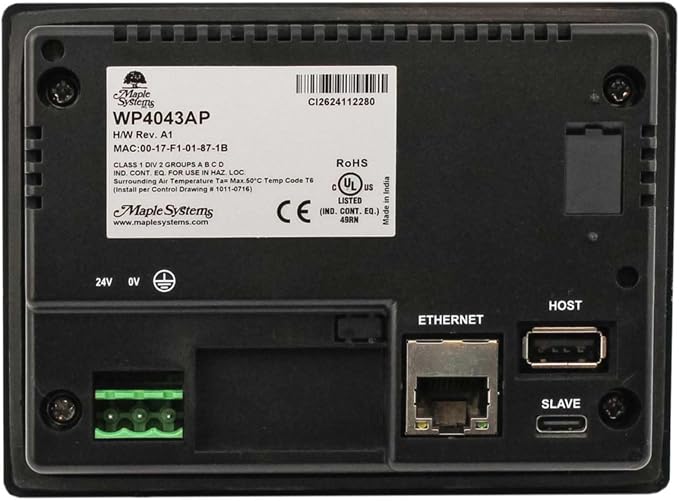

- DISPLAY SPECS: 4.3-inch WQVGA TFT display with 480 x 272 resolution and ultra-bright 1000 nit luminance, featuring 16M colors for crystal clear visibility. - PROCESSING POWER: Dual ARM Cortex-A9 CPU running up to 1GHz with GPU 2D/3D support, paired with 1GB RAM and 4GB eMMC storage for smooth operation. - RUGGED DESIGN: Features tempered glass capacitive touchscreen with IP66-rated front panel, operating in temperatures from 32° to 122°F with 10-95% humidity tolerance. - CONNECTIVITY: Equipped with 10/100 Mbps Ethernet port, USB 2.0 Type-A host port, and USB 2.0 Type-C client port for versatile integration options. - COMPACT INSTALLATION: Panel mount design with dimensions of 4.72 x 3.50 x 1.26 inches, weighing only 0.44 lbs for easy integration into control systems.

Product description

Remote Desktop With Web HMI, Raspberry Pi, and noVNC

9 things to consider when choosing a Web HMI

Connecting a Maple Web HMI to an Arduino Web Server

What is a Web HMI?

You can use a Maple Systems Web HMI to remotely view and interact with the desktop operating system of desktop PC, such as a Raspberry Pi with the help of the Virtual Network Computing (VNC) protocol. This process entails using a local VNC server application and noVNC to enable the PC to function as a gateway for remote access the Web HMI can connect to and visualize.

Web HMIs (Human-Machine Interfaces) offer a versatile and secure means to extend access to a central server. Designed for industrial applications, Web HMIs are durable, cost-effective, and user-friendly. Here are 9 things to consider when choosing a Web HMI 1-Web Browser, 2-Operating system, 3-Display, 4-Performance, 5-Input Method, 6-Operating temperature, 7-Security, 8-Support resources, and 9-Certifications.

Maple Systems’ Web HMIs can connect to a web server hosted by an Arduino microcontroller development board when paired with a compatible Ethernet Shield. Configure the web server to display the status of the GPIO (General-Purpose Input/Output) pins on the Web HMI, enabling users to interact with a running Arduino program.

The Web HMI is an alternative to the traditional operator interface panel. Sleek, client-only devices, Web HMIs offer unparalleled flexibility, accessibility, and efficiency.

With Web HMIs, extensive configuration is a thing of the past. Forget about software installations, licensing issues, and driver problems. Choosing a Web HMI can enhance efficiency while boosting security by simplifying the installation process and reducing vulnerabilities.

Maple Systems’ Web HMIs provide the rugged build of an industrial touchscreen with the versatility of a Chromium-based web browser, ensuring reliable access to critical data even in the toughest environments.
